Genuine Quanta Computer, lnc through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
1IX2UZZ0STQ
Category
Switches & Bridges
Overview
Data center networks face changes with hardware and meeting the requirements of the software it hosts. Quanta Cloud Technology provides a series of Bare Metal Switches, the QantaMesh BMS product line, that addresses these changes in the data center market. The QuantaMesh BMS product lines support speeds up to 100G speeds on their Ethernet Switches. To meet the requirements of high performance, high availability, fast scale out, low latency performance, and continuous serviceability in data center applications, the QuantaMesh BMS product line is the best choice.
BMC (Baseboard Management Controller) embedded on the server as the core of the Intelligent Platform Management Interface (IPMI) architecture can now be implemented in the Ethernet switch. In addition to providing health monitoring of the temperature, power status, and cooling fans; BMC also aids in the deployment and management of software and hardware peripherals.

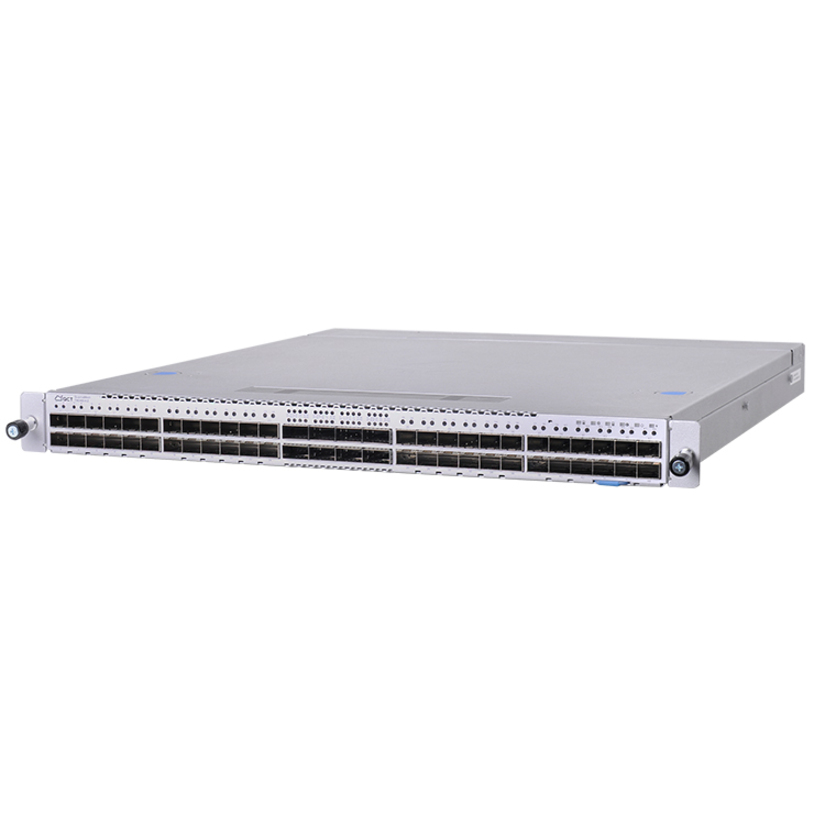

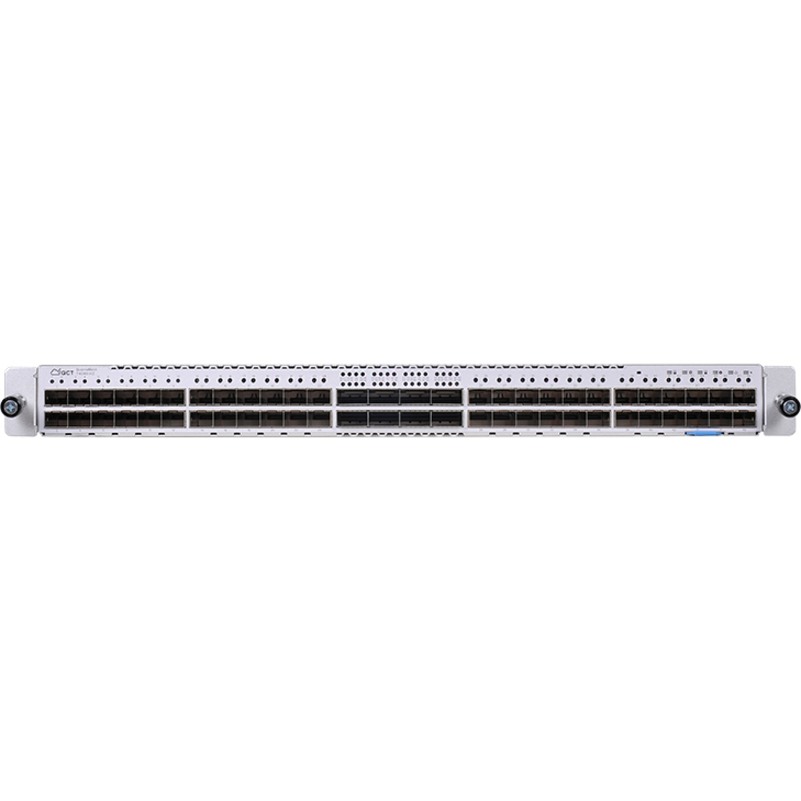

QuantaMesh T4048-IX2 supports 48 SFP28 and 8 QSFP28 (10/25/40/50/100GbE speed) ports in a compact rack unit size. By leveraging merchant silicon chipsets, the T4048-IX2 is a high-performance, high-density Ethernet switch with an affordable price for the deployment of datacenter infrastructure. With ONIE (Open Network Installation Environment) pre-loaded, the T4048-IX2 can be used with multiple operating system that supports ONIE installers to achieve agile installation and fast response when demand changes.
Warranty
Limited Warranty: 3 Year
Highlights
ONIE Pre-loaded
x86 CPU Board Support
ONL Ready
BMC Built-in
Cumulus Linux Ready
Specifications
General Information
Manufacturer
Quanta Computer, lnc
Manufacturer Part Number
1IX2UZZ0STQ
Brand Name
QCT
Product Line
QuantaMesh
Product Model
T4048-IX2
Product Name
Next-Generation 25G ToR Switch for Datacenter and Cloud Computing
Product Type
Ethernet Switch
Interfaces/Ports
Modular
Yes
Stack Port
No
Port/Expansion Slot Details
48 x 25 Gigabit Ethernet Expansion Slot, 8 x 100 Gigabit Ethernet Expansion Slot
Management & Protocols
Manageable
Yes
Media & Performance
Media Type Supported
Optical Fiber
Ethernet Technology
25 Gigabit Ethernet, 100 Gigabit Ethernet
Network Technology
25GBase-X, 100GBase-X
Network & Communication
Layer Supported
2
Physical Characteristics
Form Factor
Rail-mountable
Height
1.7"
Width
17.3"
Depth
20"
Weight (Approximate)
20.19 lb
Power Description
Power Source
Power Supply
Redundant Power Supply Supported
Yes
Warranty
Limited Warranty
3 Year
I/O Expansions
Total Number of Expansion Slots
56.0
Expansion Slot Type
SFP28, QSFP28
Shared SFP Slot
No
Miscellaneous
Package Contents
Next-Generation 25G ToR Switch for Datacenter and Cloud Computing
Rail Kit
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
