Overview

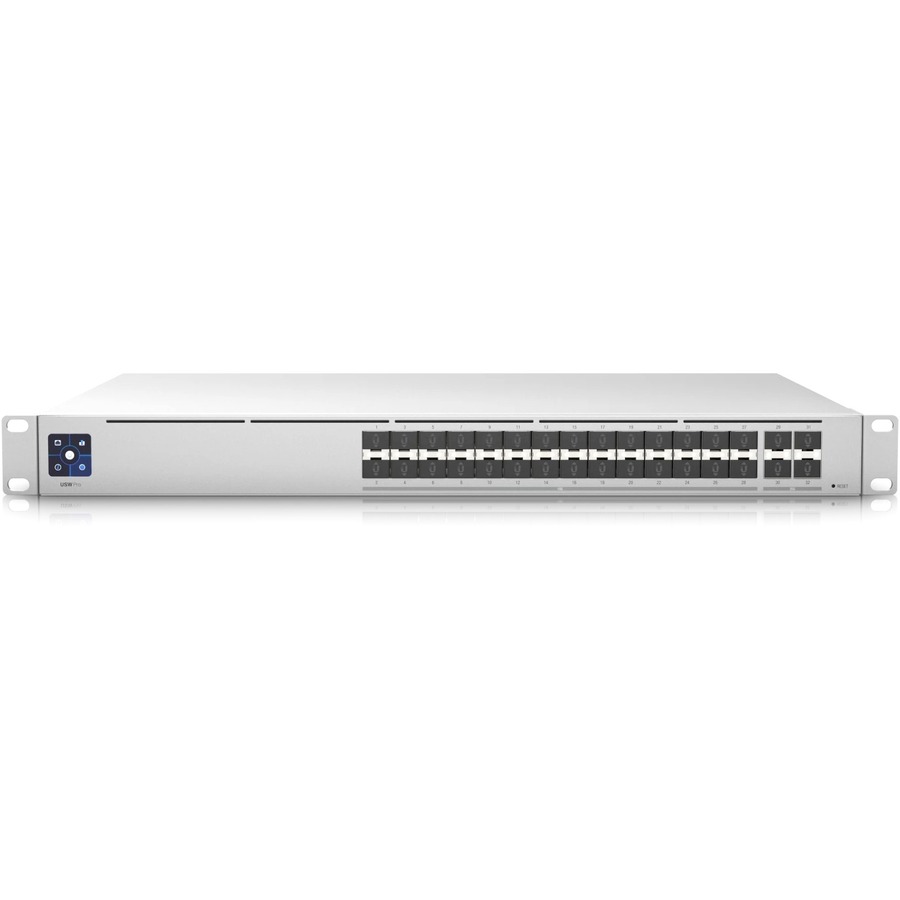

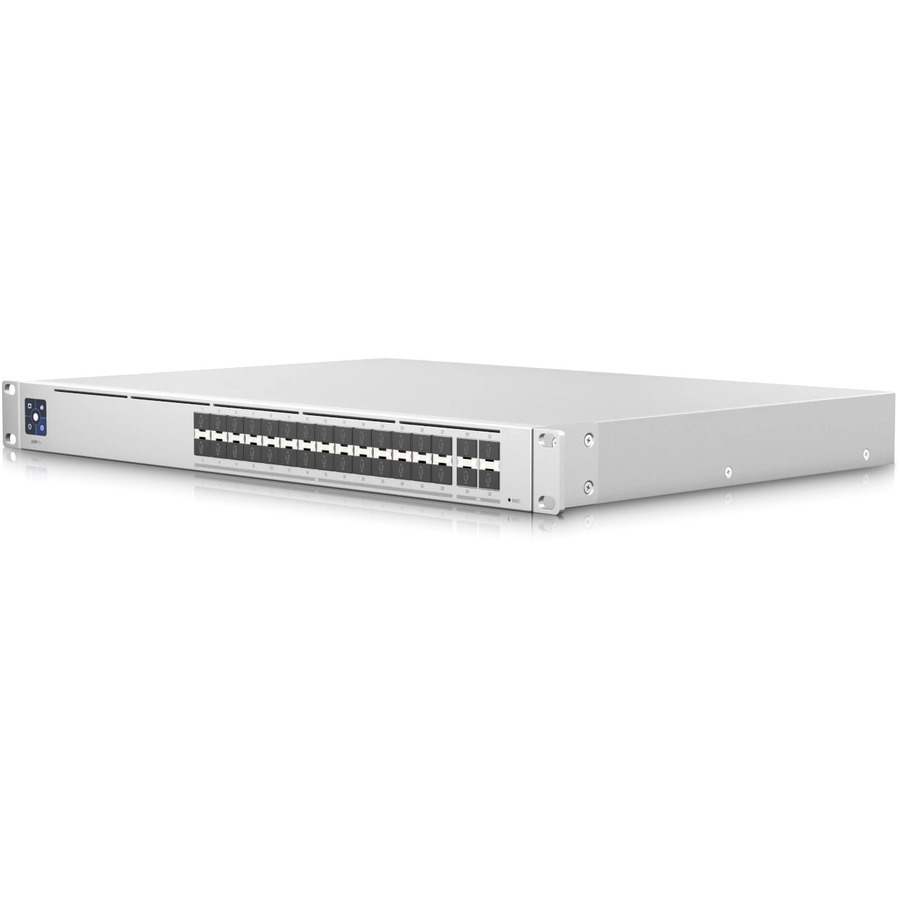

Build and expand your network with the UniFi ® Switch, part of the Ubiquiti Networks ® UniFi Enterprise System. The UniFi Switch, model USW-Aggregation-Pro, is a congurable 10G ber Layer-3 switch. It offers 28 10G SFP+ ber links to your devices and 4 25G SFP28 ber uplink options to your enterprise network.
The USW-Aggregation-Pro features a 1.3" touch LCM. The LCM provides current switch states and the necessary information you need for quick diagnosis.
Managed and congured by the UniFi Network Application with UniFi Network Mobile app support, the UniFi Switch offers an extensive suite of advanced Layer-3 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port, Inter-VLAN routing, static routing, and DHCP server. The UniFi Network Application and mobile app allow admins to congure and monitor virtually all of the switch features in a graphical user interface from anywhere.
RPS DC inputis a new feature on USW-Aggregation-Pro, this DC input provides redundant power when the switch is connected to USP-RPS (UniFi Smart Power RPS) via RPS DC input. When the switch's internal PSU is off, the Switch function can keep working by backup power from the USP-RPS input port.
Highlights
Layer 3 Switch provides dependable and powerful connectivity for maximum usability
Can work as layer 3 routing for scalable network design
Rack mounting enables you to organize wires & secure cables for professional installation
Management capability allows maximum efficiency and with unrestricted control
Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Specifications
Product Type
Layer 3 Switch
Manufacturer Part Number
USW-PRO-AGGREGATION
Power Source
Power Supply
Layer Supported
3
Weight (Approximate)
10.14 lb
Form Factor
Rack-mountable
Manufacturer
Ubiquiti Inc.
Product Model
USW-Aggregation-Pro
Product Name
UniFi Pro Aggregation Switch
Network Technology
10GBase-X, 25GBase-X
Power Consumption
100 W
Product Line
UniFi
Brand Name
Ubiquiti
Expansion Slot Type
SFP+, SFP28
Height
1.7"
Width
17.4"
Depth
12.8"
Manageable
Yes
Ethernet Technology
10 Gigabit Ethernet, 25 Gigabit Ethernet
Number of SFP+ Slots
28
Modular
Yes
Uplink Port
Yes
Media Type Supported
Optical Fiber
Port/Expansion Slot Details
28 x 10 Gigabit Ethernet Expansion Slot, 4 x 25 Gigabit Ethernet Expansion Slot
