Manageable - Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit Ethernet - 10GBase-SR4, 10GBase-LR4, 100GBase-SR4, 100GBase-PSM4, 100GBase-LR4, 1000Base-X, 10GBase-X, 25GBase-SR - 3 Layer Supported - Optical Fiber - Compact, Rack-mountable, DIN Rail Mountable
$6,599.06
Special order — estimated available by September 10, 2026.
Genuine Quanta Computer, lnc through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Data center networks face changes with hardware and meeting the requirements of the software it hosts. Quanta Cloud Technology provides a series of Bare Metal Switches, the QCT BMS product line, that addresses these changes in the data center market. The QCT BMS product lines support speeds up to 100G speeds on its Ethernet Switches. To meet the requirements of high performance, high availability, fast scale out, low latency performance, and continuous serviceability in data center applications, the QCT BMS product line is the best choice.
BMC (Baseboard Management Controller) embedded on the server as the core of the Intelligent Platform Management Interface (IPMI) architecture can now be implemented in the Ethernet switch. In addition to providing health monitoring of the temperature, power status, and cooling fans; BMC also aids in the deployment and management of software and hardware peripherals.

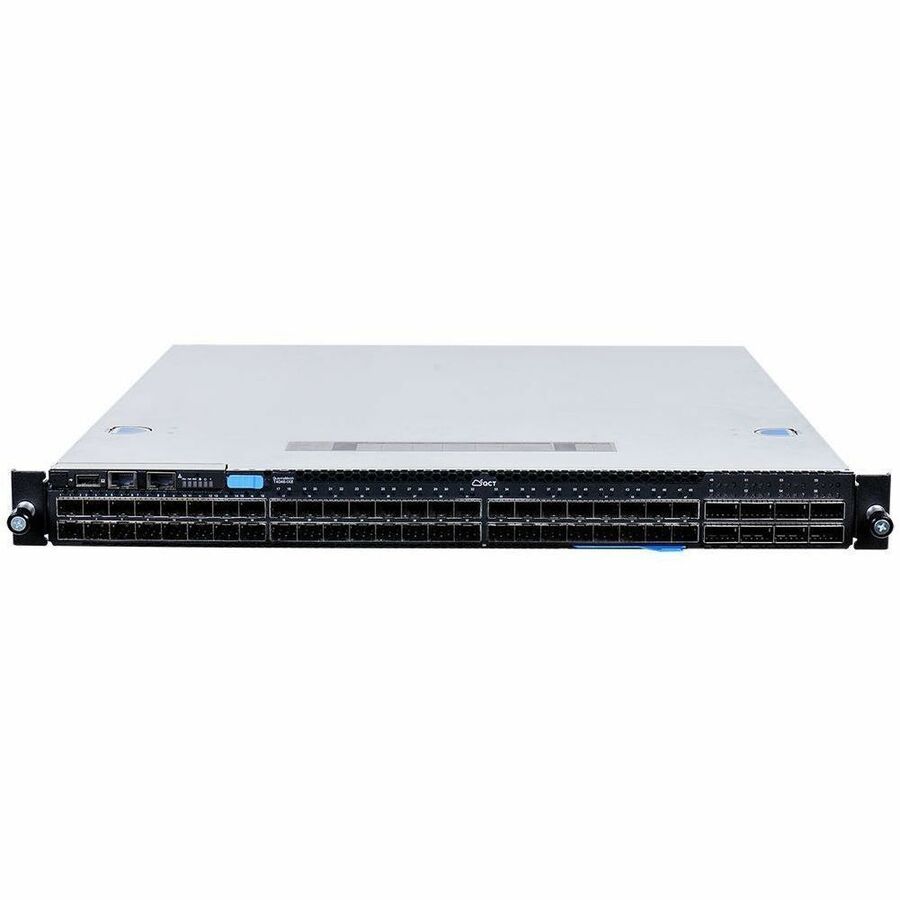

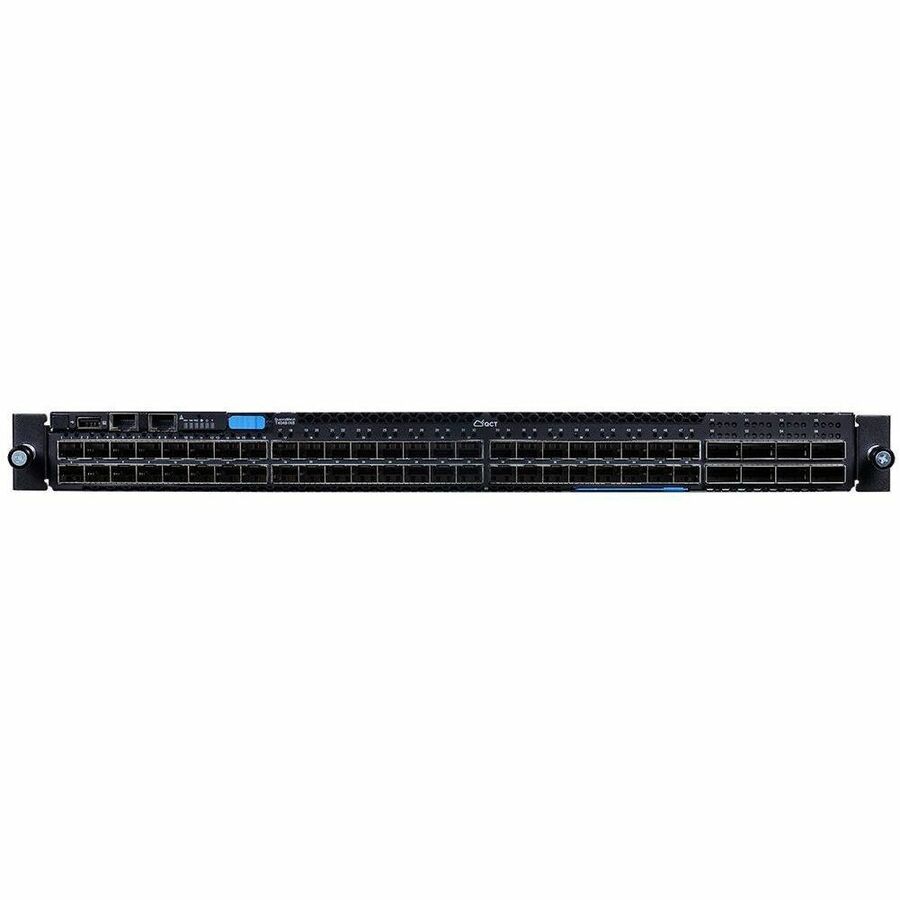

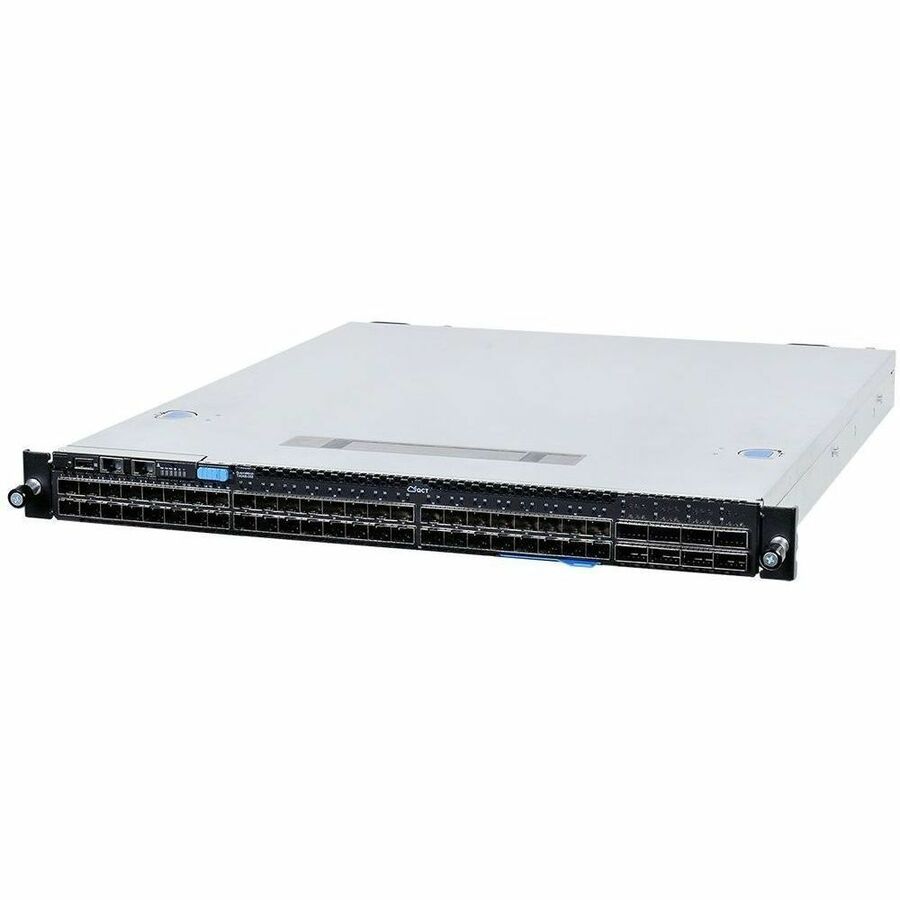

QCT BMS T4048-IX8 supports 48 SFP28 and 8 QSFP28 (10/25/40/50/100 GbE speed) ports and is equipped with BMC in a compact rack unit size. By levering merchant silicon chip, T4048-IX8 is fully compliant with IEEE 802.3by and is a high performance high density Ethernet switch with advanced features such as smart table, dynamic load balancing, and VxLAN/RIOT support. T4048-IX8 also improves the performance for larger packet buffers adn reduced latency. With ONIE (Open Network Installation Environment) pre-loaded T4048-IX8 can be used for multiple network operating system which supports ONIE installer to achieve agile installation and fast response for the changing demand.
About QCT
Quanta Cloud Technology (QCT) is a global data center solution provider. We combine the efficiency of hyperscale hardware with infrastructure software from a diversity of industry leaders to solve next-generation data center design and operation challenges. QCT serves cloud service providers, telecoms and enterprises running public, hybrid and private clouds.
Product lines include hyper-converged and software-defined data center solutions as well as servers, storage, switches, integrated racks with a diverse ecosystem of hardware component and software partners. QCT designs, manufactures, integrates and services cutting edge offerings via its own global network. The parent of QCT is Quanta Computer, Inc., a Fortune Global 500 corporation.
| General Information | |
|---|---|
| Manufacturer | Quanta Computer, lnc |
| Manufacturer Part Number | 1IX8UZZ0000 |
| Brand Name | QCT |
| Product Line | QuantaMesh |
| Product Model | T4048-IX8 |
| Product Name | QuantaMesh T4048-IX8 Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 48 x 1/25 Gigabit Ethernet SFP28 Expansion Slot, 8 x 10/25/40/50/100 Gigabit Ethernet QSFP28 Expansion Slot, 1 x 10/100/1000Base-T Out-of-Band Management Port, 1 x RJ-45 Console Port, 1 x USB 2.0 Port |
| Management & Protocols | |
| Manageable | Yes |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit Ethernet |
| Network Technology | 10GBase-SR4, 10GBase-LR4, 100GBase-SR4, 100GBase-PSM4, 100GBase-LR4, 1000Base-X, 10GBase-X, 25GBase-SR |
| Fiber Optic Cable Wavelength | 850 nm, 1310 nm |
| Maximum Data Transfer Rate | 12.50 GB/s |
| Network & Communication | |
| Layer Supported | 3 |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Compact, Rack-mountable, DIN Rail Mountable |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 20" |
| Weight (Approximate) | 21.41 lb |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Number of Power Supplies Installed | 2 |
| Technical Information | |
| Features | Hot-swappable |
| I/O Expansions | |
| Total Number of Expansion Slots | 56 |
| Expansion Slot Type | SFP28, QSFP28 |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 6 |
