10 Ports - Manageable - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet - 100/1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-X - 2 Layer Supported - 36 W Power Consumption - Twisted Pair, Optical Fiber - Desktop, Compact
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine QNAP Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Flexible deployment with multiple 10G SFP+ fiber and Multi-Gigabit ports

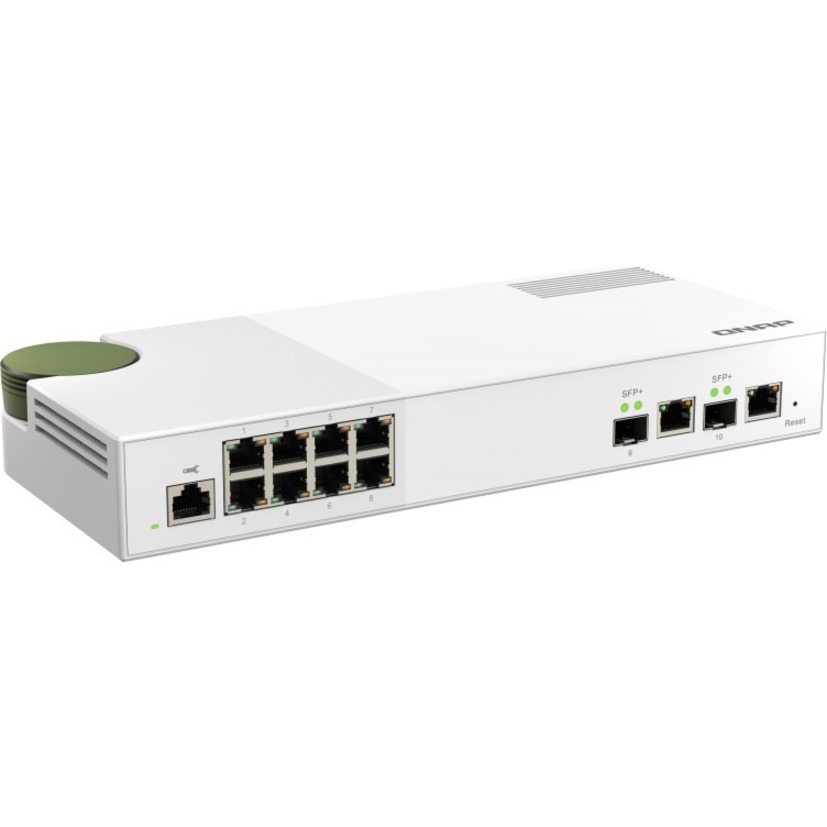

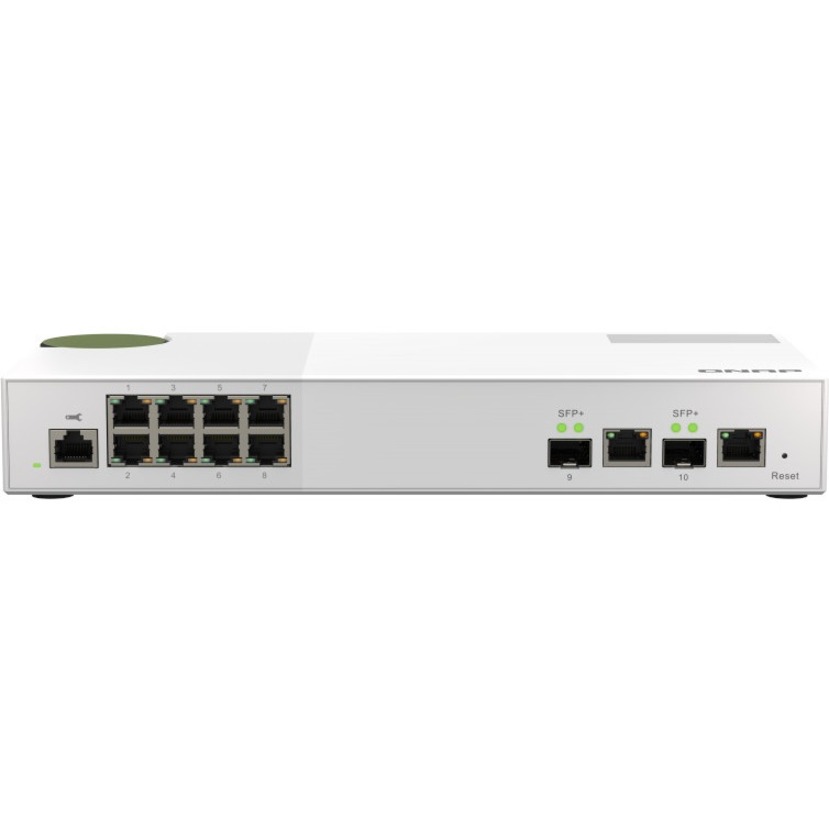

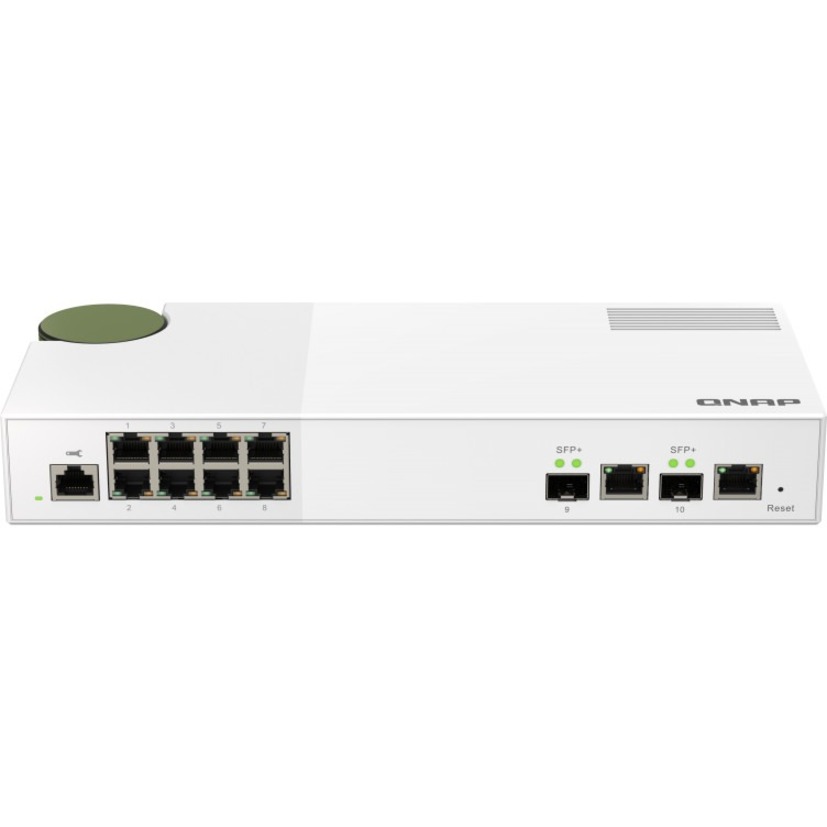

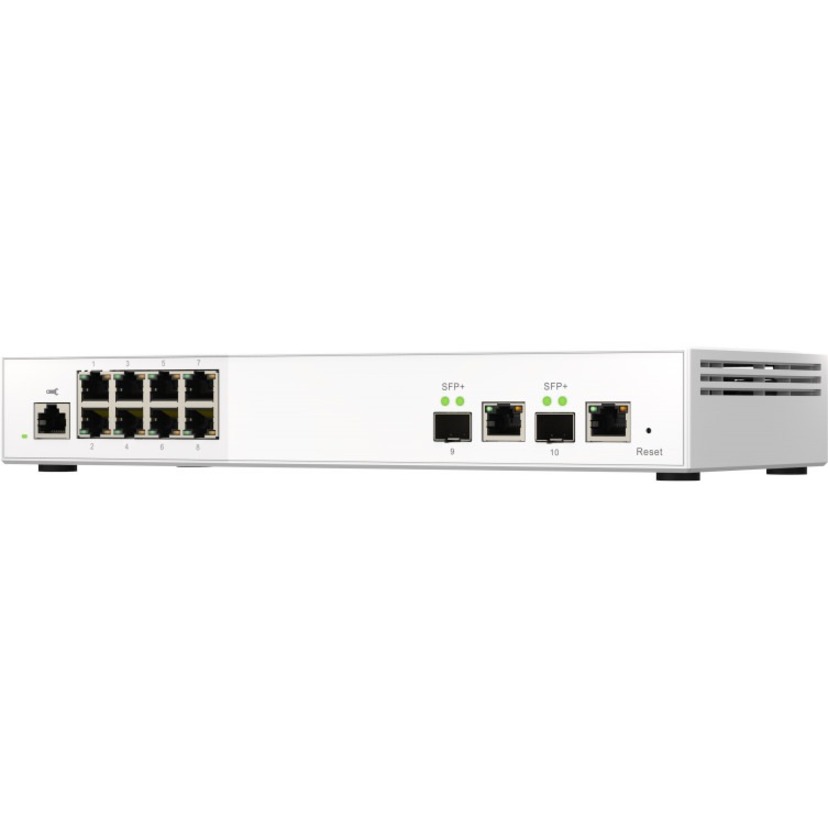

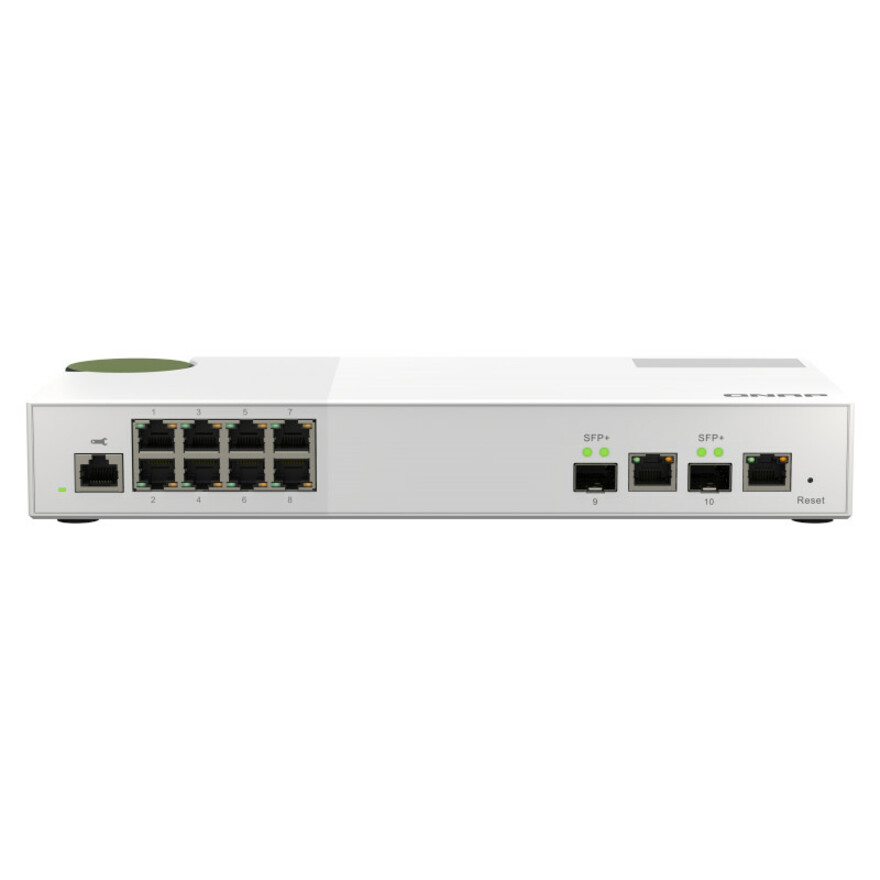

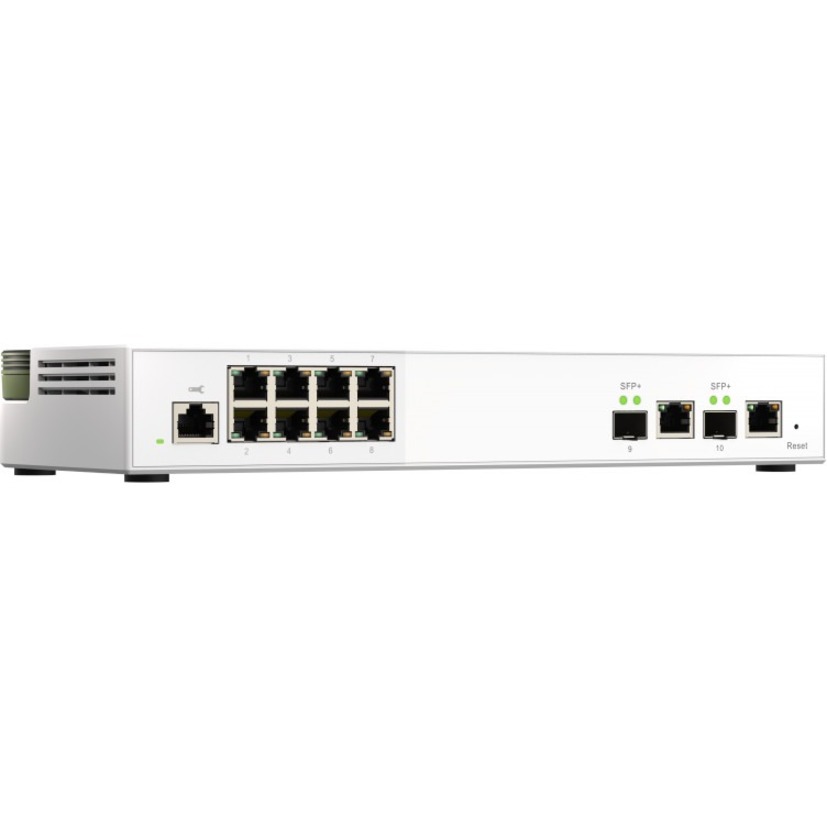

The QSW-M2108-2C provides two 10GbE SFP+/RJ45 combo ports and eight 2.5 Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T devices through RJ45 Category 6 (or better) cabling. The switching capacity of the QSW-M2108-2C is 80Gbps, guaranteeing the full potential of each port.
Flexible deployment combo ports and 10GbE / NBASE-T
The QSW-M2108-2C is compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) using existing Cat 5e and Cat 6a cables. The SFP+/RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable type and lengths, different speeds can be achieved for faster, more efficient data transfer.
Fully embrace high-speed networking with QNAP!
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
A switch that supports 2.5GbE/10GbE
QNAP 2.5GbE/10GbE switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.
A fast NAS
A QNAP NAS with multiple 2.5GbE/10GbE ports and Port Trunking allows you to combine multiple ports for greater bandwidth potential.
Upgrade desktops and servers
Servers and desktops can install QNAP PCIe network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.
Add a 5GbE/10Gb port to laptops
Use the portable QNAP USB 3.2 Gen 1 to 5GbE adapter or QNAP Thunderbolt 3 to 10GbE adapter to connect laptops and upgrade-limited computers to 5G/2.5G/1G/100M networks.
QSS: Intuitive Network Management Software
The QNAP Switch System (QSS) features an easy-to-use Web GUI with value-added functions to simplify network set up and management.
Sleek Design
Use the at-a-glance major functions, flat control layers and one-click login to simplify set up and management.
GUI
The visual illustration matches physical ports for greater usability.
Value-added
With the settings guide, status chart reference, online firmware update, learning and management costs are greatly reduced.
QSS: Human-centered settings guide
QSS provides an overview dashboard, port management and setting guide to help administrators control Layer 2 networks
Overview Dashboard
View real-time system information, port connection status and port traffic.
Optimize Network Performance with bandwidth and packet control
The QSW-M2108-2C provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.
LACP
Link Aggregation (LAG) combines multiple network connections to increase throughput and protect against connection failure.
VLAN
Virtual Networks (VLAN) allows groups of devices from different networks to be combined into a single network.
| General Information | |
|---|---|
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | QSW-M2108-2C-US |
| Brand Name | QNAP |
| Product Series | QSW |
| Product Model | QSW-M2108-2C |
| Product Name | QSW-M2108-2C Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 10 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x 2.5 Gigabit Ethernet Network Port, 2 x 10 Gigabit Ethernet SFP+/RJ-45 Combo Port |
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Web Managed |
| Media & Performance | |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Ethernet Technology | Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Network Technology | 100/1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Switching Capacity | 10 GB/s |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1ab, IEEE 802.1p |
| Physical Characteristics | |
| Form Factor | Desktop, Compact |
| Height | 1.7" |
| Width | 11.4" |
| Depth | 5" |
| Weight (Approximate) | 2.47 lb |
| Power Description | |
| Input Voltage | 12 V |
| Power Source | DC, Power Adapter |
| Power Consumption | 36 W |
| Technical Information | |
| Features | Quality of Service (QoS), IGMP Snooping, Virtual LAN (VLAN), Link Aggregation, Flow Control, Access Control List, Plug and Play, Auto-negotiation, Reset Button |
| I/O Expansions | |
| Shared SFP Slot | Yes |
