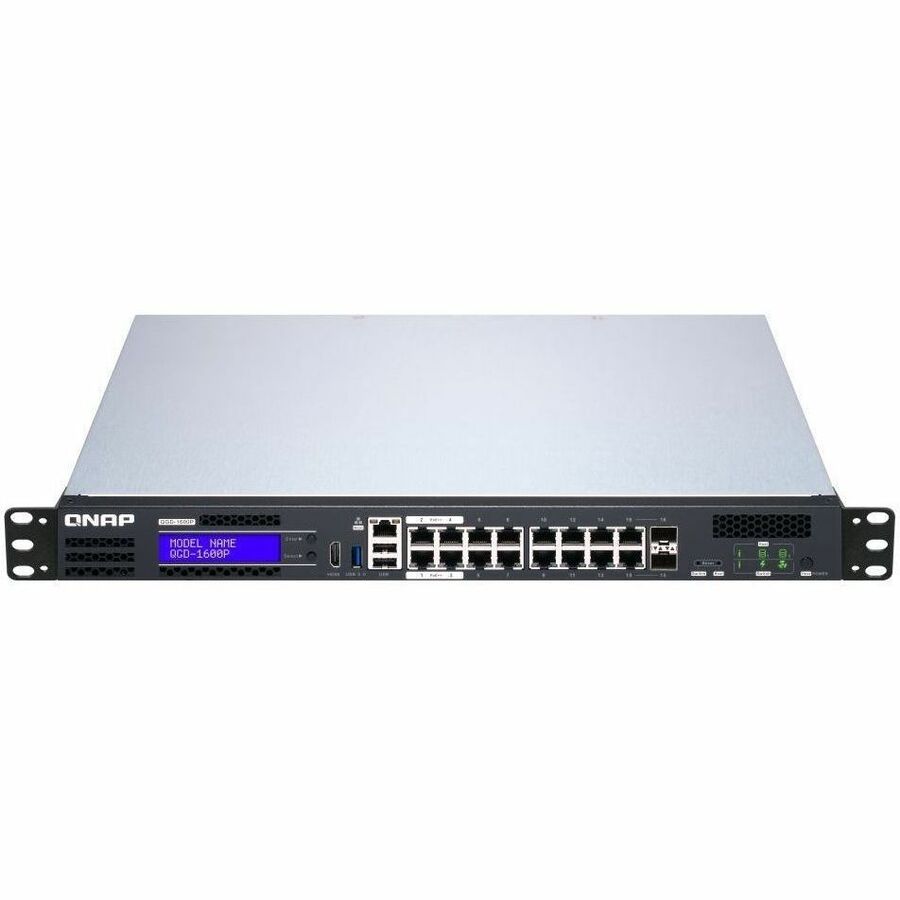

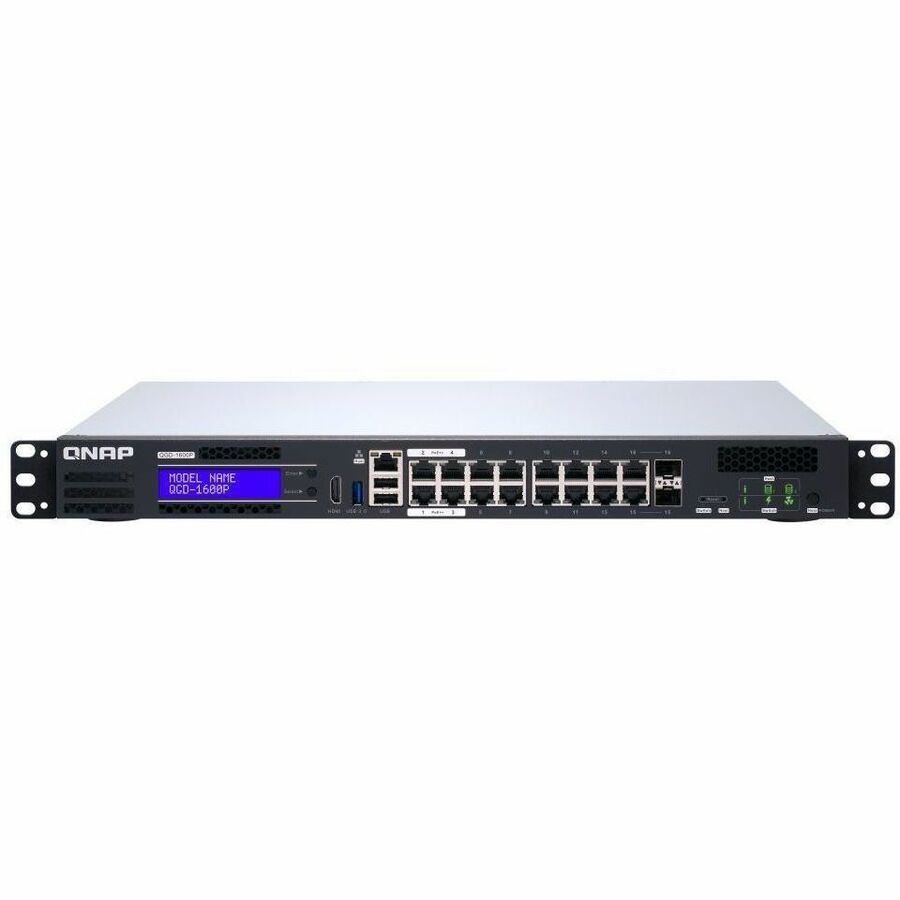

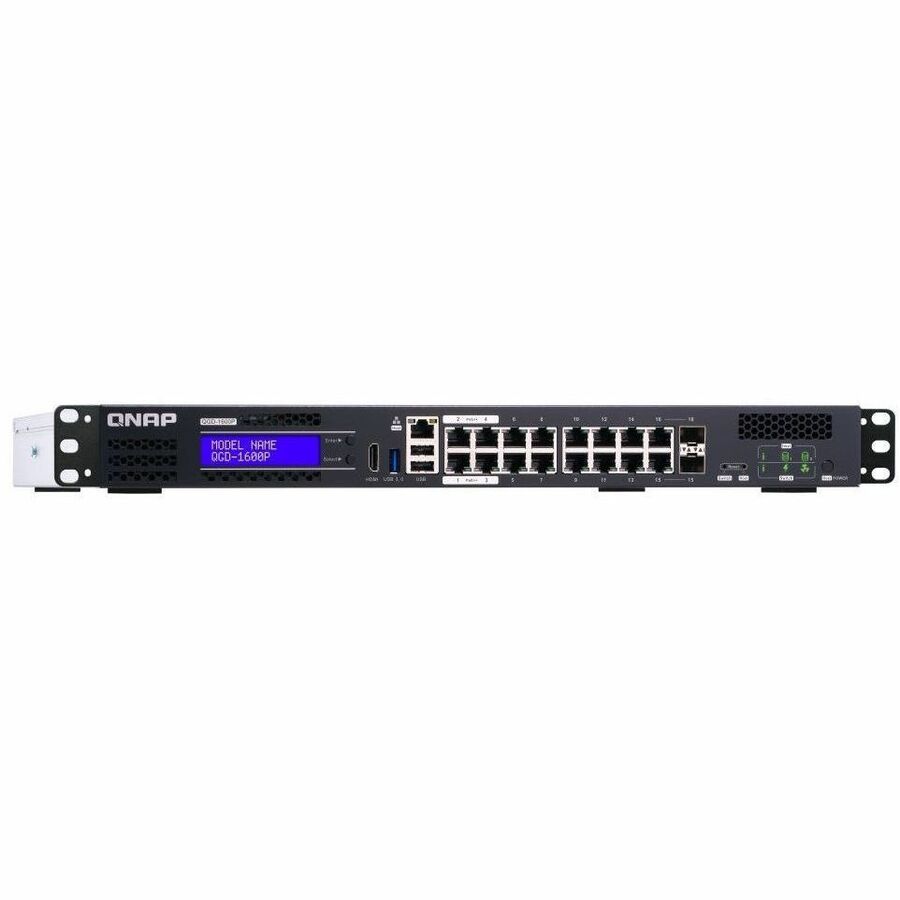

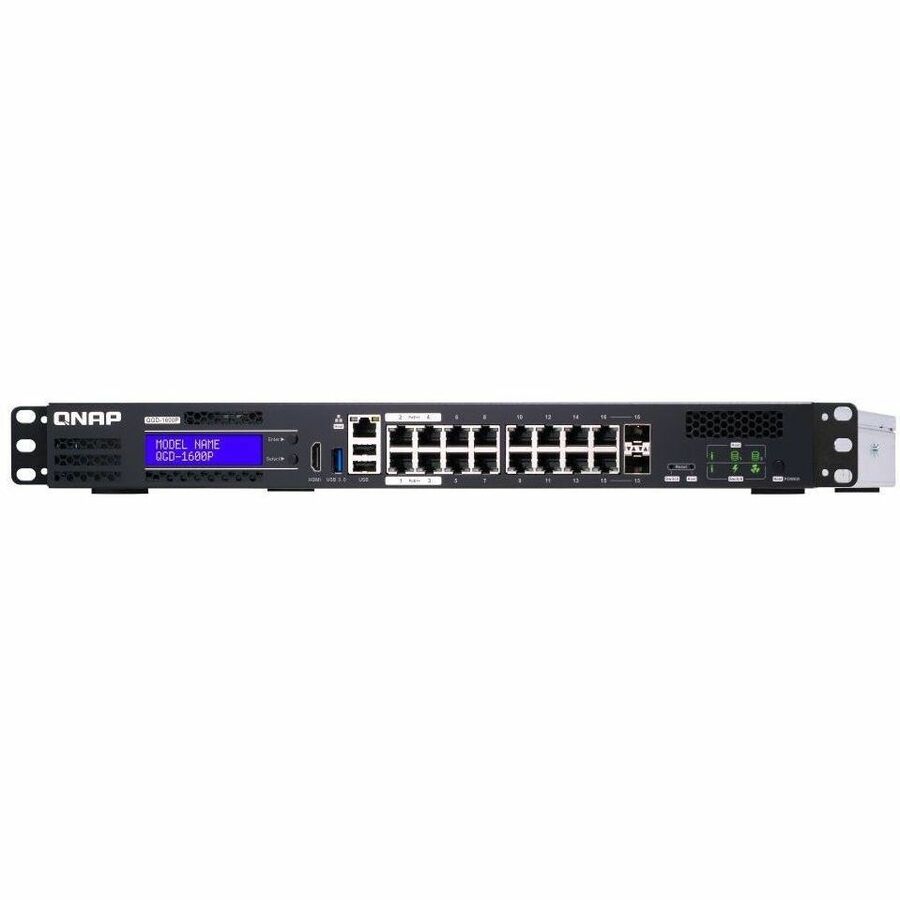

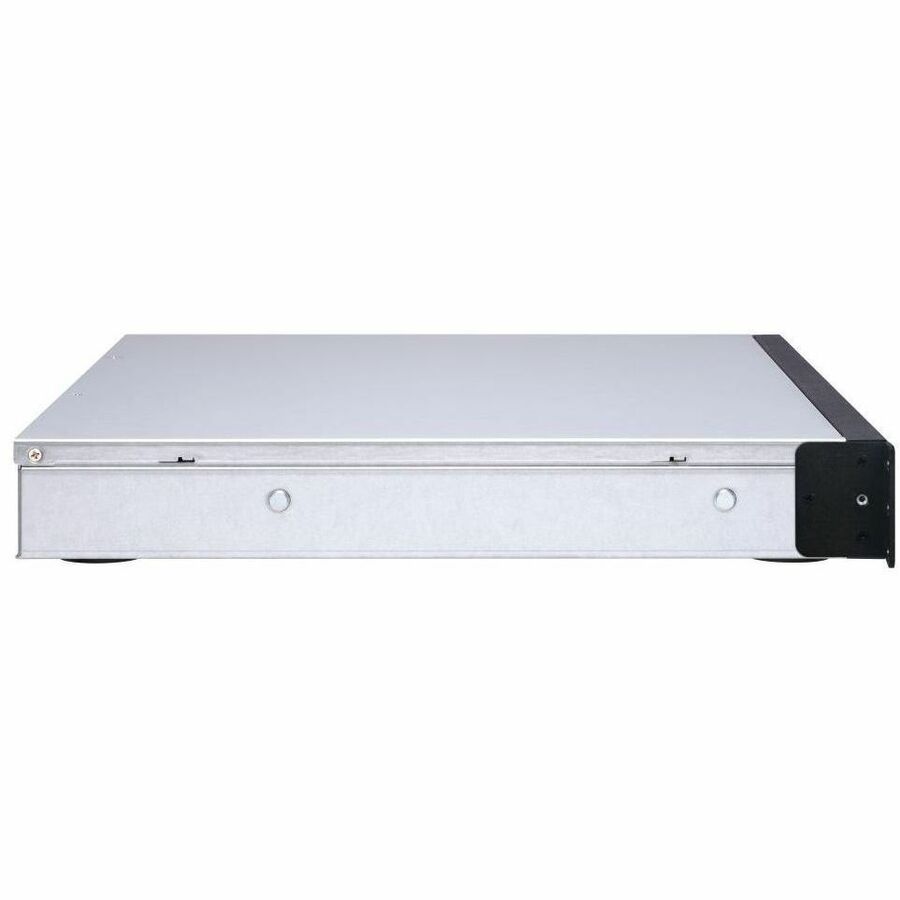

QNAP QGD-1600-4G Ethernet Switch

The First Switch with VM Support

The Guardian series is the world's first switch with the QTS operating system built in for VM, container, and other cloud applications, enabling diverse networking and storage solutions. In addition to QVR Pro, VJBOD, and other diverse storage applications, the QTS App Center also supports VMs for running many open-source software applications. Integrated with public cloud services, the QGD-1600 meets the needs of various applications in IP surveillance, storage expansion and network security. The QGD-1600 dual-CPU design enables you to run the networking management interfaces of QSS (QNAP Switch System) and QTS independently. The QGD-1600 offers a user-friendly web interface, QuNetSwitch, to help SMBs easily deploy a flexible and secure IT infrastructure.

QuNetSwitch: Layer 2 Management with User-friendly Web GUI

The QGD-1600 provides comprehensive Layer 2 management features (including VLAN, LACP, and LLDP) for efficient control of networks through IP grouping and bandwidth management. Powerful security functions (including IGMP Snooping, static MAC, QoS, and Wake-on-LAN) are also suitable for simple networking environments and easy deployment. Aside from the QNAP Switch System (QSS), the QGD-1600 also offers the user-friendly web interface software QuNetSwitch (via QTS) to help IT staff control Layer 2 management networks. The overview dashboard and statistical analysis area displays all the information about the switch and devices at a glance, making centralized management of network devices intuitive and easy.

Port Management

• Port status

• Port statistics

• Port configuration

• Jumbo frame support

• IEEE 802.3x flow control

• Auto-negotiation of speed and duplex modes

VLAN

• VLAN configuration

• Port-based private VLAN

• IEEE 802.1Q-based VLAN

Port Trunking

• Port trunking

• LACP groups

QoS

• Bandwidth control

• Traffic classification

IGMP

• IGMP snooping v2/v3

Security

• Access Control Lists (ACL): ACL by IP address, ACL by MAC

• Static MAC address

• Rate limits

Management

• Link Layer Discovery Protocol (LLDP): LLDP remote device

• interfaces: Web UI, Telnet, Command Line Interface (CLI)

• SNTP, DNS, DHCP client entry

Advanced Applications

• Port mirroring

• Loop protection to avoid broadcast loops

• Wake-on-LAN

Deploy a multi-site VPN with SD-WAN solution The QGD-1600 and other QNAP solutions now support QuWAN - QNAP's SD-WAN solution. QuWAN provides full mesh IPsec VPN topology between QNAP devices based in multiple sites to fulfill enterprise video, VoIP, ERP system data, and filing needs. QuWAN adopts software-defined networking to achieve optimum network connectivity, and supports cloud-centric management for deploying a resilient IT Infrastructure.

QuWAN Orchestrator

Manage the network using a centralized management cloud platform.

QuCPE Server

The high-performance core VPN Server at the HQ.

NAS

Add branch offices to the VPN Infrastructure with your existing NAS.

QGD Switch

Fulfill surveillance and VoIP applications at small business sites (such as stores).

QHora Router

Provides easy-to-use VPN functions for remote workers.

QVPN Mobile users can connect to SSL VPN using their PCs, laptops or mobile phones.
