Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
EKI-2725FI-AE
Category
Switches & Bridges
Overview

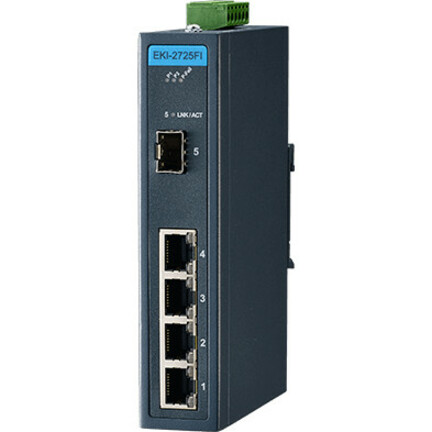

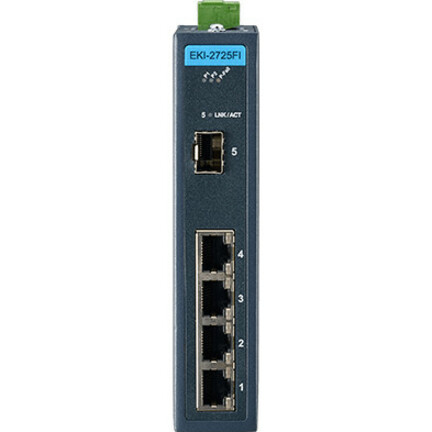

The EKI-2725F supports Gigabit Ethernet. The power rating is +12 ~ 48 V DC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protection and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. Each port of EKI-2725F has 2 LED's to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, which makes troubleshooting quick and easy. EKI-2725F comes with compact metal housing rated at IP30 to protect against dusty industrial environments.
Highlights
Effectively reduces downtime with improved network performance
Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
DIN Rail Mountable form factor for your convenience and simplicity of usage
The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
Gigabit Ethernet port for ultra-fast network speeds
Twisted Pair media support for a dependable and productive connectivity
Specifications
Product Type
Ethernet Switch
Manufacturer Part Number
EKI-2725FI-AE
Layer Supported
2
Form Factor
DIN Rail Mountable, Wall Mountable
Manufacturer
Advantech Co., Ltd
Product Model
EKI-2725FI
Product Name
4 GE + 1 SFP Ind. Unmanaged Switch W/T
Network Technology
10/100/1000Base-T, 1000Base-X
Product Series
EKI-2000
Brand Name
Advantech
Expansion Slot Type
SFP (mini-GBIC)
Country of Origin
Taiwan
Height
5.5"
Width
1.2"
Depth
3.7"
Manageable
No
Ethernet Technology
Gigabit Ethernet
Number of SFP Slots
1
Modular
No
Uplink Port
No
Stack Port
No
Media Type Supported
Twisted Pair, Optical Fiber
Total Number of Network Ports
4
Shared SFP Slot
No
Port/Expansion Slot Details
4 x Gigabit Ethernet Network, 1 x Gigabit Ethernet Expansion Slot
