Advantech 4FE+1FE ST Multi-mode Unmanaged Ethernet Switch, Flexible Mounting
5 Ports - Fast Ethernet - 10/100Base-TX, 100Base-FX - 2 Layer Supported - Multi-mode - 3 W Power Consumption - Twisted Pair, Optical Fiber - Rail-mountable, Wall Mountable, DIN Rail Mountable - 2 Year Limited Warranty
SKU
Category
Switches & Bridges
MSRP$214.45
$189.04
Save 12%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Switches & Bridges
Overview

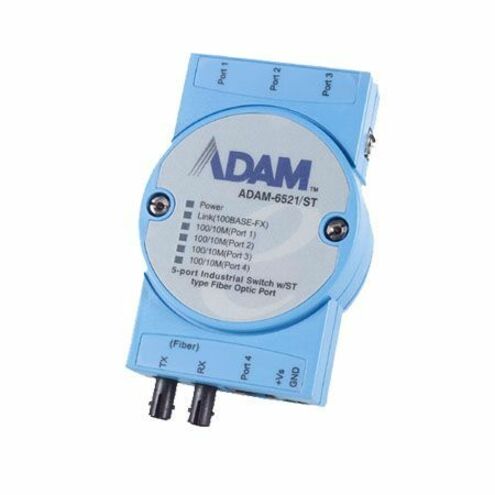

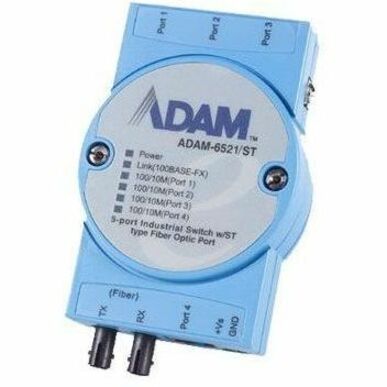

ADAM-6521 and ADAM-6521S are industrial-grade Ethernet switch with a fiber optic port that makes it possible to expand industrial networks fast and cost-effectively. ADAM-6521 and ADAM-6521S of 1 fiber port and 4-RJ-45 ports. With fiber optics, you can prevent noise interfering with your system and implement transmission distances up to 15 km.
ADAM-6521 and ADAM-6521S are especially suited for industrial environments with Ethernet networking needs such as: semi-conductor factories, inventory control environments, assembly line and production and more.
ADAM-6521 and ADAM-6521S support a wide voltage range of +10 ~ 30 VDCover the terminal block, and 3,000 VDC surge (EFT) protection to protect it from being damaged by over-voltage. A wide operating temperature range from -10 to 65° C (14 ~ 149° F), makes it functional in harsh operating environments. They also have six inclusive LED indicators which make troubleshooting the ADAM-6521 and ADAM-6521S easier. Each port has a pair of LEDs that indicate link status and transmission speed. This function conveniently informs users of any collisions, the link status, power failure and data receipts for immediate on-site diagnostics.
Warranty
Limited Warranty: 2 Year
Highlights
Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector and 1 x 100 Mbps multi/single-mode fiber port with ST connector
Supports full/half duplex flow control
Supports Integrated Loop-up engine
Supports MDI/MDI-X auto crossover
Provides broadcast storm protection
Supports +10 ~ 30 VDC voltage power input
Provides surge protection (EFT) 3,000 VDC for power line and 4,000 VDC Ethernet ESD protection
