Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
EKI-2525M-BE
Category
Switches & Bridges
Overview

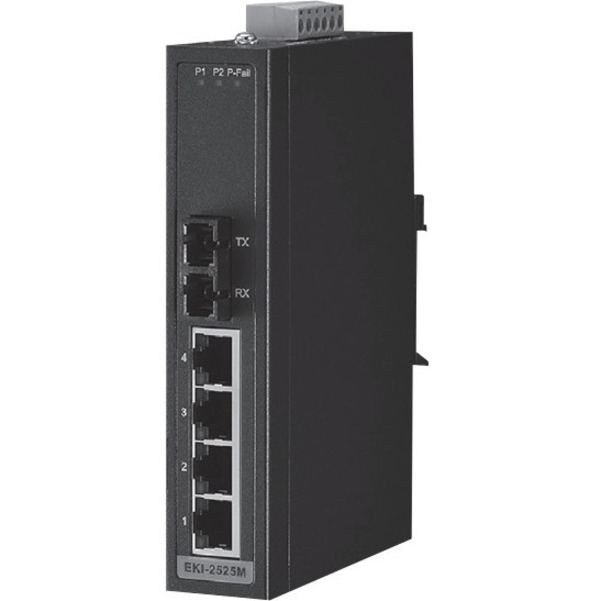

EKI-2525M/2525S are industrial-grade Ethernet switches that enable you to expand your industrial network fast and cost-effectively. The EKI-2525M/2525S have four 10/100 Mbps Ethernet ports, and additionally the EKI-2525M provides one multi-mode fiber-optic ports, while the EKI-2525S provide one single-mode fiber-optic ports. Using fiber-optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmissions.
EKI-2525M/2525S have industrial-grade designs, assuring high reliability and stability in harsh environments, making it a robust bridge between enterprise fiber-optic backbones and Ethernet devices. EKI-2525M/2525S includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected, so MDI or MDI-X is automatically selected and a crossover cable is not required. All the Ethernet ports have memory buffers that support the store and forward mechanism, assuring all data is transmitted properly.
Warranty
Limited Warranty: 5 Year
Highlights
Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
Provides 1 x 100 Mbps Multi-mode SC type fiber optic port (EKI-2525M)
Provides 1 x 100 Mbps Multi-mode ST type fiber optic port (EKI-2525M-ST)
Provides 1 x 100 Mbps Single-mode SC type fiber optic port (EKI-2525S)
Supports full/half duplex flow control
Supports MDI/MDI-X auto crossover
Provides broadcast storm protection
Provides redundant 12 ~ 48 VDC power input
Provides flexible mounting: DIN-rail and Wall mount
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
EKI-2525M-BE
Brand Name
Advantech
Product Series
EKI-2000
Product Model
EKI-2525M
Product Name
4-Port Ethernet Switch w/ 1-port 100FX Multi-Mode
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
4
Uplink Port
No
Modular
No
Stack Port
No
Port/Expansion Slot Details
5 x Fast Ethernet Network
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Ethernet Technology
Fast Ethernet
Network Technology
10/100Base-TX, 100Base-X
Network & Communication
Layer Supported
2
Physical Characteristics
Form Factor
Wall Mountable, DIN Rail Mountable
Height
5.5"
Width
1.2"
Depth
3.7"
Warranty
Limited Warranty
5 Year
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
