Genuine Tenda Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
TEF1109P-8-63W
Category
Switches & Bridges
Overview

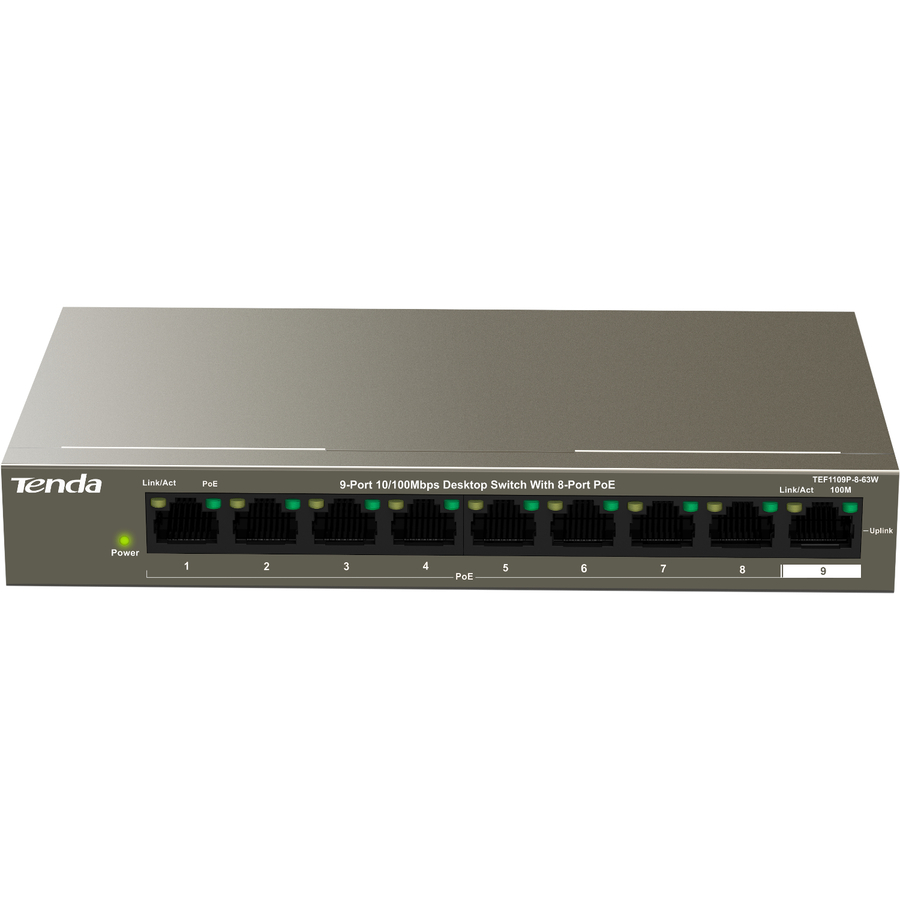

TEF1109P-8-63W is an 9-Port 10/100Mbps Desktop Switch With 8-Port PoE developed by Tenda. It provides 9 10/100 BASE-TX RJ45 ports. Ports 1-8 support IEEE 802.3at PoE standard with each port providing power of 15.4W, or support IEEE 802.3af PoE+ standard with each port providing power of 30W. The whole device can provide power of up to 58W. By using CAT5 twisted pairs, it can provide power and data transmission to APs, IP cameras, IP phones, and so on. In addition, all the port s support lightning protection of 6kV and long distance data transmission and powering of 250m, which decreases deploy ment difficulty and time thus decreases cost.
Lightning Protection 6kV
The ports and embedded power can provide lightning protection of up to 6kV. It also provides PSE shortcircuiting protection, PoE overloading, power over temperature, over voltage and surge current protection.
Outstanding PoE Power Supply
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device.
250 Meters Transmission
With 8-pin and the professional network extension technology, the transmis- sion distance of power and data can be up to 250 meters, which can work in place of network extender or some optical fiber to expand the network without additional cost.
Highlights
Effectively increases available bandwidth on your network
Expand your network capacity with the help of 9 networking ports and transfer your data quickly and easily
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
The desktop installation makes it ideal for deployments outside the wiring closet
Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
