StarTech Industrial 8 Port Gigabit PoE Switch 30W, Power Over Ethernet Switch, GbE POE+ Network Switch, Unmanaged, IP-30, TAA
8 Port Gigabit PoE switch 30W PSE power per port to devices w/GbE on Cat5e/6 - Power over Ethernet Network IEEE 802.3af/at |10/100/1000 Mbps |Unmanaged |Alarm Relay |DIN/Wall Mount |Redundant Power Input IP-30 /Industrial Hardened -40C to 75C temp
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
IESC1G80UP
Category
Switches & Bridges
Overview
This industrial 8 port gigabit PoE switch features 30W of power and is designed to be installed in harsh environments and supports up to a total of 200W power outputs. Includes hardware for DIN rail or wall mounting. For Demanding Environments Where No Fiber Connections Are Required Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like: Cameras Sensors Wi-Fi Access Points High total power budget with high PoE port count at a maximum of 30 watts per port, up to 200 watts max. Power provided in order of device connection; max 6 802.3at (30W) devices (180W total) at any time. Truly Industrial for Devices That Must Function Under Harsh Conditions Industrial features include: Operating Temperature Range: -40 C to 75 C IP-30 rated housing Vibration, shock, and free-fall standard testing This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 500,000+ hrs (Telcordia/Bellcore) at 50°C, for long-term reliability. More from the Manufacturer More from the Manufacturer
Highlights
POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) | Use with devices like cameras & access points using Cat 5e/6
TECH SPECS: 8 port GbE PoE switch | 8 PoE ports | IEEE 802.3af / IEEE 802.3at | 10/100/1000 Mbps | Unmanaged | Error Alarm Relay | Redundant Power Input | Terminal Block Power | 200W power budget

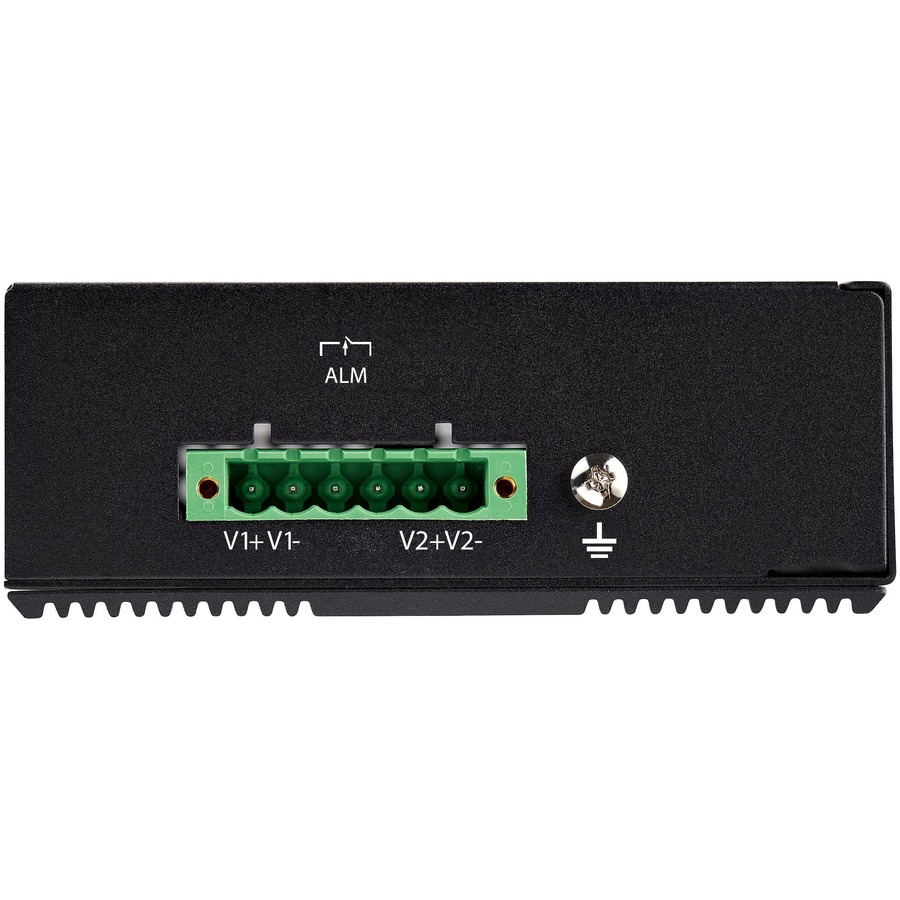

REDUNDANT POWER: Dual terminal block power inputs (48-56VDC) provide redundancy for high-availability applications
STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This Gigabit PoE switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Specifications
Package Contents
Ethernet Switch
Mounting Hardware Kit
Quick-Start Guide
Terminal Block
Product Type
Ethernet Switch
Manufacturer Part Number
IESC1G80UP
Packaged Quantity
1 Each
Power Source
PoE+
Limited Warranty
2 Year
Layer Supported
2
Weight (Approximate)
1.18 lb
Form Factor
DIN Rail Mountable, Wall Mountable
Length
5.6"
Manufacturer
StarTech.com
Product Name
Ethernet Switch
Network Technology
10/100/1000Base-T
Power Consumption
206 W
Brand Name
StarTech.com
Plug/Connector Type
Terminal Block
Country of Origin
Taiwan
Height
1.6"
Width
4.1"
Manageable
No
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Network (RJ-45)
Yes
Media Type Supported
Twisted Pair
Total Number of Network Ports
8
PoE (RJ-45) Port
Yes
Port/Expansion Slot Details
8 x Gigabit Ethernet PoE+
PoE Budget
200 W
Networking Standards
IEEE 802.3x
Product Material
Steel
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
