Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
IES51000
Category
Switches & Bridges
Overview
The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C).Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Highlights
5 10/100/1000 Mbps unmanaged RJ45 Ethernet ports
IP30-rated DIN rail and wall-mountable metal enclosure

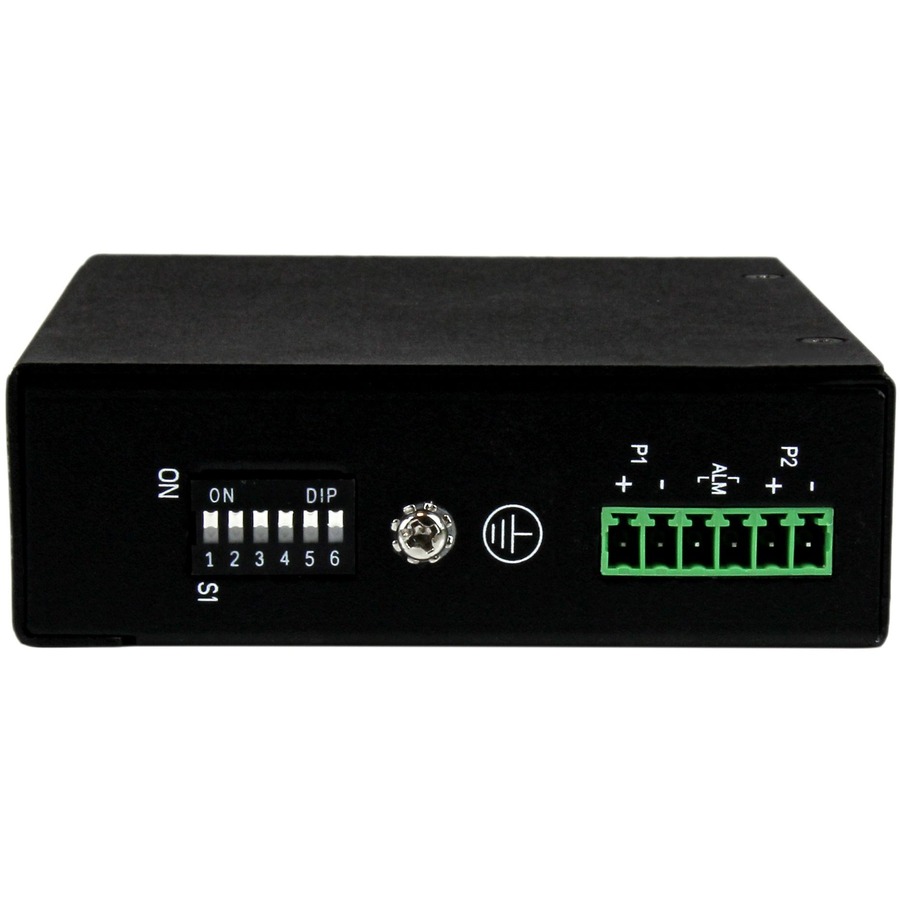

Wide-range redundant power via two 12-58V DC terminal block inputs, with alarm relay
Overcurrent and reverse polarity protection
Extended operating temperature range (-40?C to 75?C)
Speed / duplex auto-negotiation and auto-MDIX detection on each port
Up to 9K jumbo frame support
IEEE 802.3az Energy-Efficient Ethernet
Supports IEEE 802.3x flow control and back-pressure
Specifications
Package Contents
5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable
2 x Wall-Mount Brackets
1 x DIN-Rail Clip
4 x Screws
1 x Terminal Block
1 x Instruction Manual
Product Type
Ethernet Switch
Manufacturer Part Number
IES51000
Packaged Quantity
1 Each
Power Source
Power Adapter
Limited Warranty
2 Year
Layer Supported
2
Weight (Approximate)
11.60 oz
Form Factor
Rail-mountable, Wall Mountable
Manufacturer
StarTech.com
Product Name
5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable
