Industrial 6 Port Gigabit Ethernet Switch - Up to 30W per 4 PoE ports - 75C to -40C hardened 5 RJ-45 ports (4 PoE) + 2 SFP slots MSA IP-30 housing MTBF 500k + hrs Vibration/shock/free fall rated Unmanaged DIN mountable/DIN connector included 2yr warr
MSRP$272.64
$263.98
Save 3%In stock: 32
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable. Power Over Ethernet & 48V Voltage With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like: Cameras Sensors Wi-Fi access points Uses Cat 5e (or higher rated) Ethernet cabling. Designed for Harsh Environments Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-Fall: EN 60068-2-32 500,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability. Dual Power Inputs Dual power inputs provide redundancy. Accepts terminal block power or DIN power connectors for additional power supply flexibility, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. The IES1G52UPDIN is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.
Power Over Ethernet & 48V Voltage
With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
Cameras
Sensors
Wi-Fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32
500,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

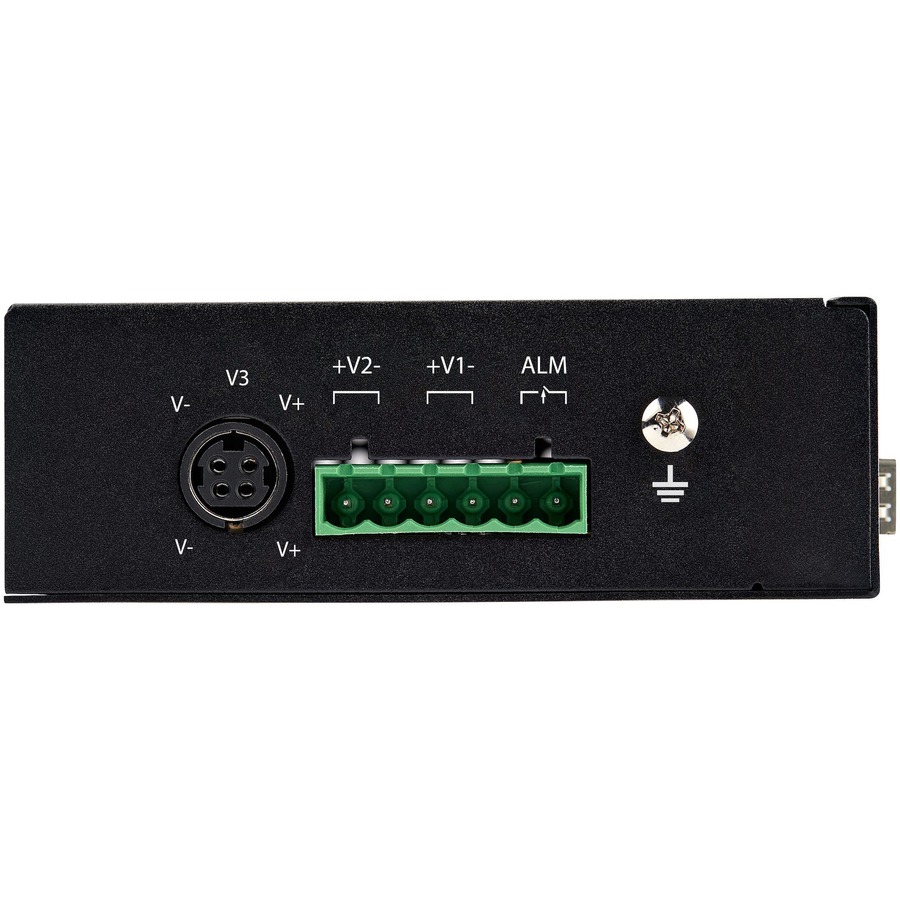

Dual Power Inputs
Dual power inputs provide redundancy. Accepts terminal block power or DIN power connectors for additional power supply flexibility, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The IES1G52UPDIN is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Limited Warranty: 2 Year
The StarTech.com Advantage We simplify the lives of IT Professionals by making it easy to find the connectivity accessories and information they need and getting products to their project sites quickly. StarTech.com products are designed by IT pros, for IT pros, to meet their rigorous technical performance requirements. Who We Are While we may manufacture IT connectivity accessories, StarTech.com is truly in the business of making the lives of IT professionals easy. Founded in 1985 in London, Ontario, Canada by Paul Seed and Ken Kalopsis, StarTech.com has always been dedicated to solving technology problems faced by IT professionals. Originally known as StarTech Computer Accessories, the company had very humble beginnings as a “Visa Card” funded operation, manufacturing products like computer dust covers in the basement of a house. By focusing on the needs of our customers and continual innovation, StarTech.com has evolved into a global organization offering accessories that support over 200 different technologies, from legacy to the latest. StarTech.com Founder and CEO, Paul Seed’s dedication to making IT solutions easy to implement has not wavered, nor has his passion for the community. From individual contributions to organization wide campaigns, StarTech.com is committed to staying connected to the community and supporting non-profit organizations across the globe.
| General Information | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IES1G52UPDIN |
| Brand Name | StarTech.com |
| Product Name | Ethernet Switch |
| Packaged Quantity | 1 Each |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE+, 1 x Gigabit Ethernet TP/SFP Combo, 1 x Gigabit Ethernet Expansion Slot |
| Management & Protocols | |
| Manageable | No |
| Media & Performance | |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T, 1000Base-X |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Physical Characteristics | |
| Product Material | Steel |
| Form Factor | Wall Mountable, DIN Rail Mountable |
| Height | 1.4" |
| Width | 4.1" |
| Length | 5.6" |
| Weight (Approximate) | 1.09 lb |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120 W |
| Power Source | PoE+, Power Supply |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 126 W |
| Plug/Connector Type | 4-pin Power DIN Connector Female, Terminal Block |
| Warranty | |
| Limited Warranty | 2 Year |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 2 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
