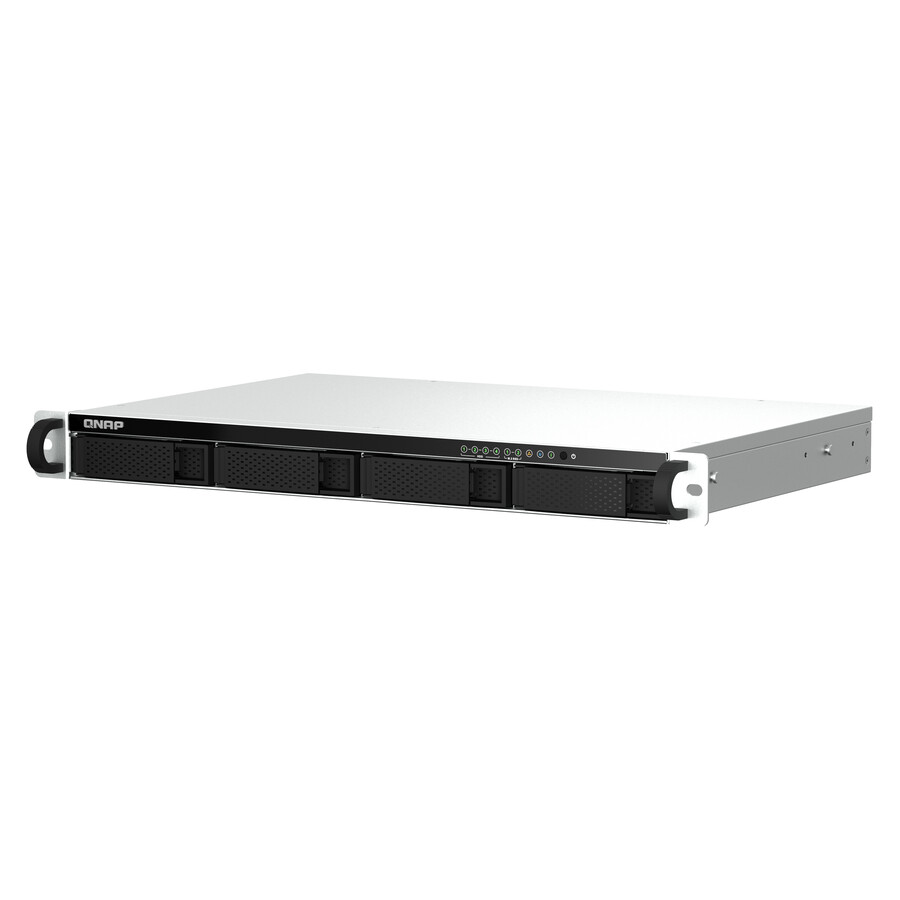

QNAP TS-464EU-8G SAN/NAS Storage System
Intel Celeron N5095 Quad-core (4 Core) 2 GHz - 4 x HDD Supported - 0 x HDD Installed - 4 x SSD Supported - 0 x SSD Installed - 8 GB RAM DDR4 SDRAM - Serial ATA/600 Controller - RAID Supported - 0, 1, 5, 6, 10, JBOD RAID Levels - 4 x Total Bays - 4 x 2.5"/3.5" Bay - 2.5 Gigabit Ethernet - HDMI - 4 USB Port(s) - 2 USB 2.0 Port(s) - Network (RJ-45) - QTS 5.0.1 - LDAP, HTTPS, L2TP, SFTP, DHCP, SSH, IPSec, FTPS, AFP, FTP, CIFS/SMB, ... - 4 GB Flash Memory Capacity - 1U - Rack-mountable
- SKU
- TS-464EU-8G-US
- Category
- Storage Arrays & Servers
$896.00
Back ordered — ships when restocked.
Genuine QNAP Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- TS-464EU-8G-US
- Category
- Storage Arrays & Servers
Overview
The TS-464eU is powered by Intel® Celeron® N5095 quad-core processor (burst up to 2.9 GHz). The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. With expandable storage capacity and feature-rich apps, the TS-464eU surpasses the previous generation.
• 2.5GbE connectivity Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports.
• HDMI Output Supports 4K media playback and real-time transcoding.
• NVMe SSD application Two M.2 PCIe NVMe SSD slots support Qtier? auto-tiering technology and SSD caching.
• USB interface Two USB 3.2 Gen 2 10Gbps ports for faster data transfer.
• Backup and data recovery Protects PC/Macs, virtual machines, software containers, cloud data, and SaaS services.
• Hybrid cloud applications Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.
Quad-core Processor, burst up to 2.9 GHz
The TS-464eU is powered by Intel® Celeron® N5095 quad-core processor (burst up to 2.9 GHz) with 8 GB DDR4 memory. With Intel® AES-NI encryption engine, the TS-x64eU provides unmatched encryption performance with AES-256 bit encryption acceleration, boosting system performance while ensuring the safety of sensitive business data stored in the NAS.
Build a High-Speed 2.5GbE Network Environment
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
• A fast 2.5GbE NAS A QNAP NAS featuring one or more 2.5GbE ports, and Port Trunking allows you to combine multiple ports for greater bandwidth potential.
• Upgrade computers and servers Servers and desktops can install PCIe-based QNAP network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.
• Add a 5GbE port to laptops Laptops and upgrade-limited computers can use QNAP's portable USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.
• A switch that supports 2.5GbE+ QNAP's 10GbE/NBASE-T switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.
Highlights
- SAN/NAS Storage System is the single answer to all your desired storage needs
- Connect an expansion unit, and expand up to 4 drives for additional storage on the go
- Through RAID levels (0, 1, 5, 6, 10, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for desired storage efficiency with accuracy and precision
- Experience responsive performance, power, adaptability and fun with Intel Celeron 2 ghz processor
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable form factor for your convenience and simplicity of usage
- 2.5 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- It's qts 5.0.1 operating system offers powerful platform to efficiently run routine applications
Specifications
| Additional Warranty Information | The TS-464eU is backed by a 3-year warranty at no additional cost. |
|---|---|
| Package Contents |
|
| Product Type | SAN/NAS Storage System |
| Manufacturer Part Number | TS-464EU-8G-US |
| Protocols | LDAP, HTTPS, L2TP, SFTP, DHCP, SSH, IPSec, FTPS, AFP, FTP, CIFS/SMB, SNMPv2, IPv4, WEBDAV, Telnet, SSL, iSCSI, TLS, HTTP, NFS, TFTP, FXP, DDNS, IPv6, PPTP |
| Limited Warranty | 3 Year |
| Standard Memory | 8 GB |
| Weight (Approximate) | 9.59 lb |
| Operating System | QTS 5.0.1 |
| Form Factor | Rack-mountable |
| Manufacturer | QNAP Systems |
| Product Model | TS-464EU-8G |
| Product Name | TS-464EU-8G SAN/NAS Storage System |
| Processor Speed | 2 GHz |
| Processor Type | Celeron |
| RAID Levels | 0, 1, 5, 6, 10, JBOD |
| Controller Type | Serial ATA/600 |
| Rack Height | 1U |
| Brand Name | QNAP |
| Memory Technology | DDR4 SDRAM |
| Processor Model | N5095 |
| Height | 1.7" |
| Width | 19" |
| Depth | 12.7" |
| Processor Core | Quad-core (4 Core) |
| Flash Memory Capacity | 4 GB |
| Processor Manufacturer | Intel |
| RAID Supported | Yes |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Total Expansion Bays | 4 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 100 W |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of Hard Drives Supported | 4 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 4 |
| Number of Solid State Drive Installed | 0 |
| Number of 2.5"/3.5" Bays | 4 |
| Number of USB 3.2 Gen 2 Ports | 2 |
