10 Ports - Manageable - Gigabit Ethernet - 1000Base-T, 1000Base-X - 3 Layer Supported - Modular - 2 SFP Slots - 163.90 W Power Consumption - 125 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U - Rack-mountable - Lifetime Limited Warranty
MSRP$1,173.09
$855.42
Save 27%Special order — estimated available by September 10, 2026.
Genuine Netgear through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Switching Engineered for AV over IP
The NETGEAR AV Line M4250 series was designed with input from AV Professionals. The result is a line of switches built from the ground up to support 1Gb audio and video over IP with customized hardware and software along with dedicated service and support.
NETGEAR M4250 series key features:
• Ranges from 8 to 16 ports with a variety of PoE+ and Ultra90 PoE++ options for 15.4W, 30W, 60W, 75W and 90W AVoIP endpoints
• Uplink options include 1G for audio installations or standalone video installations as well as 10G uplinks for larger scale video deployments
• Also includes 12-port multi-gigabit Ethernet and 16-port 1G/10G fiber models for plug and play aggregation in a star topology
• Designed for a clean integration with traditionalrack-mounted, AV equipment

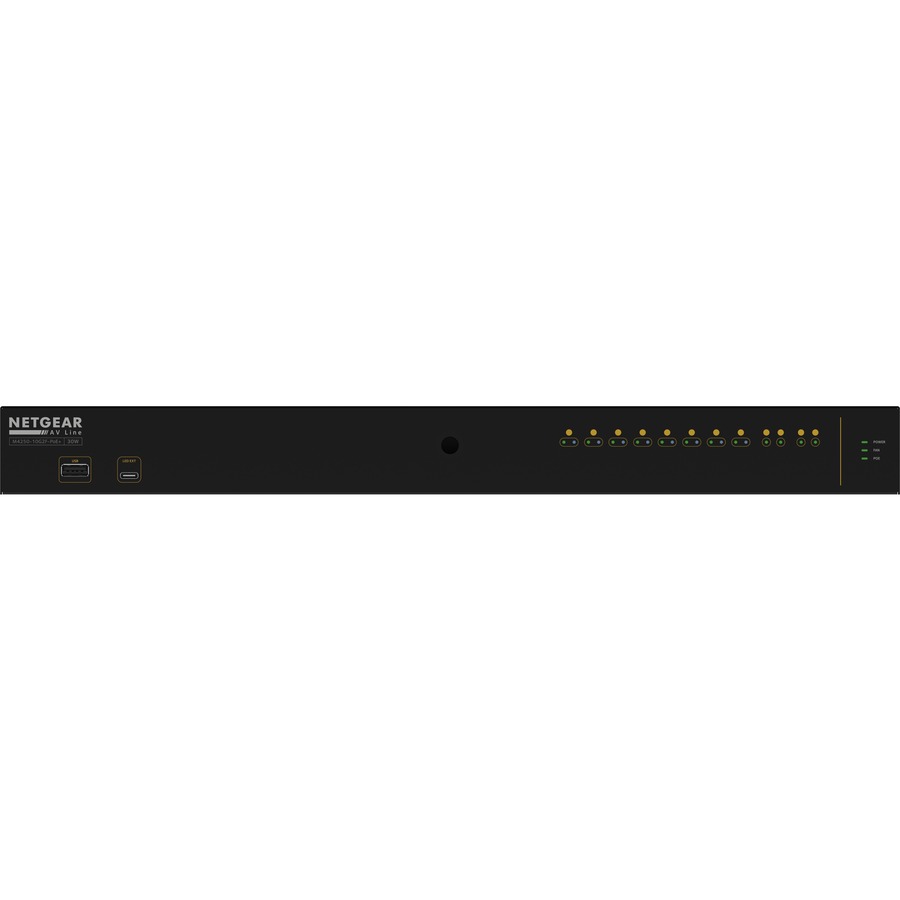

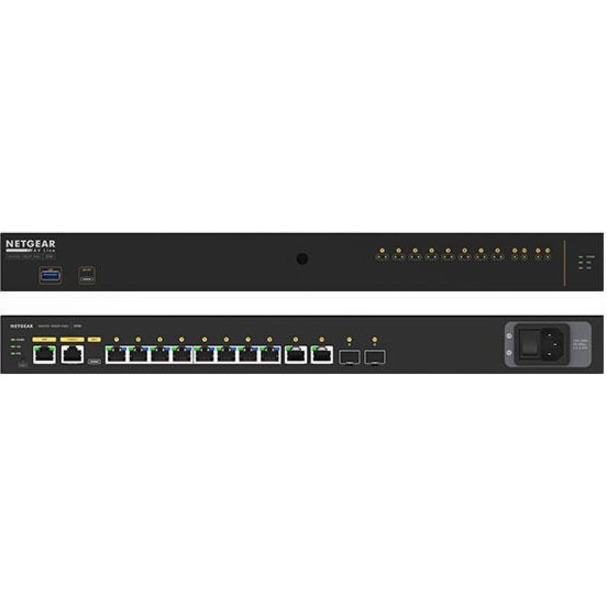

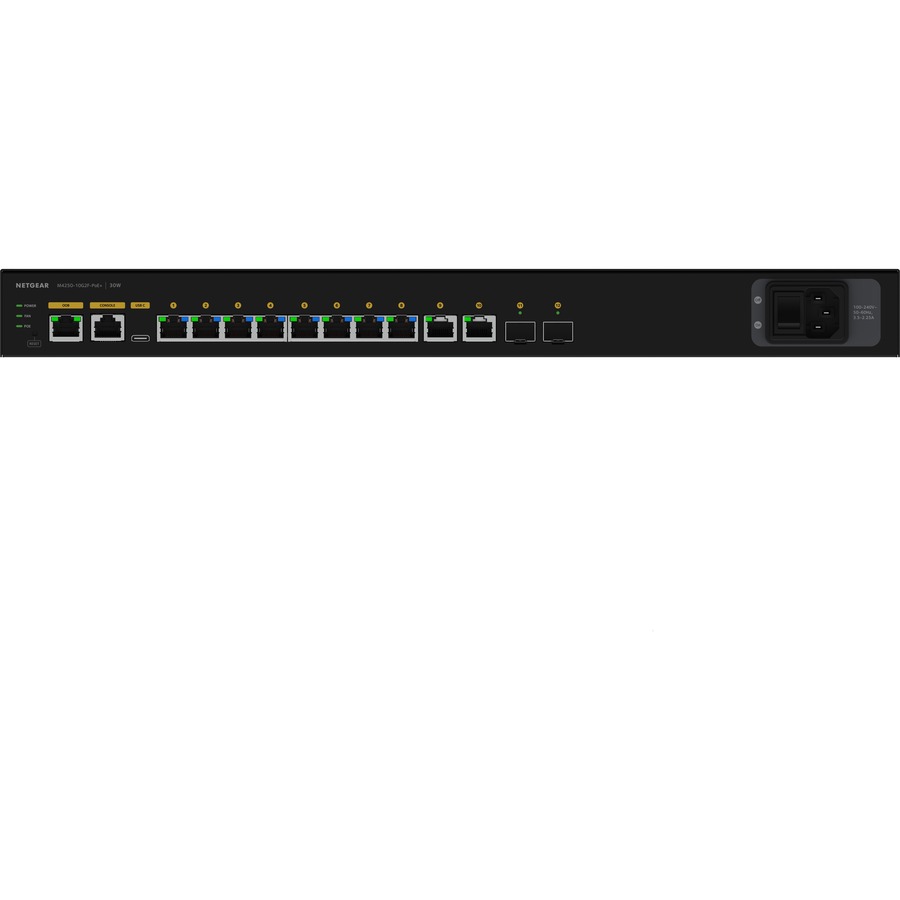

• The M4250 switches come with a sleek, black display panel with status in front and all cabling plus additional status in the back
• Reversed mounting is possible when ports are desired on the front of the rack
• A second pair of rackmount ears allows the switches to be mounted recessed by 2-inches to allow for the cabling
• Software-controlled fan adjustments enable the fans to be turned off when ambient temperature and PoE loads are appropriate for a totally fanless operation
• Threaded holes on the bottom (4xM5 for 50x100mm VESA) and in front (1xM10 for clamps) allow for universal mountingoptionsoutside the rack as well
NETGEAR M4250 series AV software features:
• Pre-configured for audio and video over IP out of the box, the M4250 switches enable encoders and decoders to be connected with zero configuration
• When more configuration is required, an AV web-based GUI is available at the switch IP address:8080
• This interface has been specially designed for AV installers with specific AV-related controls made more accessible and with port-based profiles
• For audio, profiles for Dante, Q-SYS and AES67 are built-in, as well as an AVB profile (AVB license sold separately
• For video, the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Kramer KDS, Aurora Multimedia, ZeeVee, Atlona, Dante and SDVoE
• Other AV CODECs and manufactures are supported as well as audio/video/ control mixed profiles
• To further simplify star deployments, NETGEAR IGMP Plus? brings multicast automation between all M4250 switches, and with M4300/M4500
• Simply connect the switches together and you are done!
NETGEAR M4250 series other software features:
• All M4250 switches share the same high-end NETGEAR Layer 2 / Layer 3 switching engine for a consistent experience
• All switches in the M4250 series have another main, IT web-based GUI for midsize Enterprise campus networks, IoT and IPTV
• Additional features include static, RIP and PIM-SM, DM and SSM multicast routing, DHCP Server and PTPv2 Transparent Clock (1-step E2E)
• AVB is the only feature requiring a license, all other advanced features are available license-free
• Advanced classifier-based, time-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP transport ports)
• Selectable Port-Channel / LAG (802.3ad - 802.1AX) L2/L3/L4 hashing for fault tolerance and load sharing with any type of Ethernet channeling
• Voice VLAN with SIP, H323 and SCCP protocols detection and LLDP-MED IP phones automatic QoS and VLAN configuration
• Efficient authentication tiering with successive DOT1X, MAB and Captive Portal methods for streamlined BYOD
Limited Warranty: Lifetime
About NETGEAR At NETGEAR, we turn ideas into innovative networking products that connect people, power businesses, and advance the way we live. Easy to use. Powerful. Smart. And designed just for you. For Home NETGEAR makes it easy for you to have the smartest home in the neighborhood, with the latest, fastest networking technology. Our range of easy-to-use products can help you stream movie night more often, watch almost anything on your tablet without buffering, check in on your home from your smartphone and store and protect all of your family’s memories. From the most advanced wireless internet connectivity, to superior streaming and storage solutions, your home networking system will have the speed, range and performance you need, every time you need it. At NETGEAR, we focus on all things connected, with the goal of making your online experience seamless so you can sit back, relax and do more. For Business In business, confidence is everything. When it comes to your network, it’s even more important. Whether you’re a small business with big dreams or a mid-size business ready to take the next step, you need to share access and ideas safely, connect remote locations securely and give your people the tools to perform. At NETGEAR, we provide networking, storage and security solutions without the cost and complexity of big IT. Our advanced range of reliable, affordable networking products are easy to install and maintain. We deliver solutions you can count on, so you can spend more time on what matters most – growing your business. For Service Providers Keeping your customers happy and loyal is everything. At NETGEAR we are dedicated to your success. That’s why we deliver the tools and solutions you need to keep your residential and business customers connected, productive and satisfied. Partner with NETGEAR for home connectivity, home media, security and automation, and mobile solutions. We pay attention to the details that matter to you to deliver custom, cost-effective and scalable solutions that contribute to your bottom line.
| Product Type | Ethernet Switch |
|---|---|
| Manufacturer Part Number | GSM4212P-111NAS |
| Power Source | Power Supply |
| Limited Warranty | Lifetime |
| Layer Supported | 3 |
| Form Factor | Rack-mountable |
| Manufacturer | Netgear, Inc |
| Product Model | M4250-10G2F-PoE+ |
| Product Name | AV Line M4250-10G2F-PoE+ Ethernet Switch |
| Network Technology | 1000Base-T, 1000Base-X |
| Power Consumption | 163.90 W |
| Product Line | AV Line |
| Brand Name | Netgear |
| Plug/Connector Type | IEC 60320 C14 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Country of Origin | Thailand |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 7.9" |
| Manageable | Yes |
| Environmentally Friendly | Yes |
| Compatible Rack Unit | 1U |
| Ethernet Technology | Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 2 |
| Modular | Yes |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Total Number of Network Ports | 10 |
| PoE (RJ-45) Port | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+, 2 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot |
| Total Number of Expansion Slots | 2.0 |
| PoE Budget | 125 W |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Send a bill of materials or part numbers — we confirm stock, TAA country of origin and a below-market total. No payment up front.
