Lantronix Managed Hardened Fast Ethernet Switch
Lantronix

Lantronix Managed Hardened Fast Ethernet Switch

16 Ports - Manageable - Gigabit Ethernet, Fast Ethernet - 1000Base-X, 10/100/1000Base-TX - 2 Layer Supported - Modular - 2 SFP Slots - 12 W Power Consumption - Optical Fiber, Twisted Pair - Rail-mountable, Wall Mountable - Lifetime Limited Warranty - TAA Compliant

SKU
SISTM1040-262D-LRT-B
Category
Switches & Bridges

MSRP$1,320.00

$927.84

Save 30%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SISTM1040-262D-LRT-B
Category
Switches & Bridges

Overview

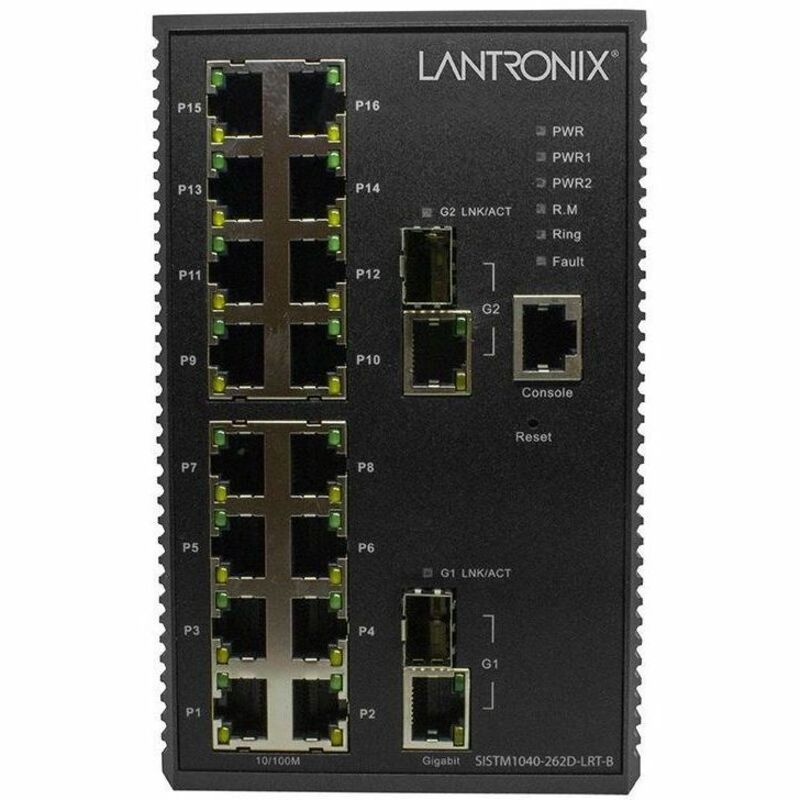

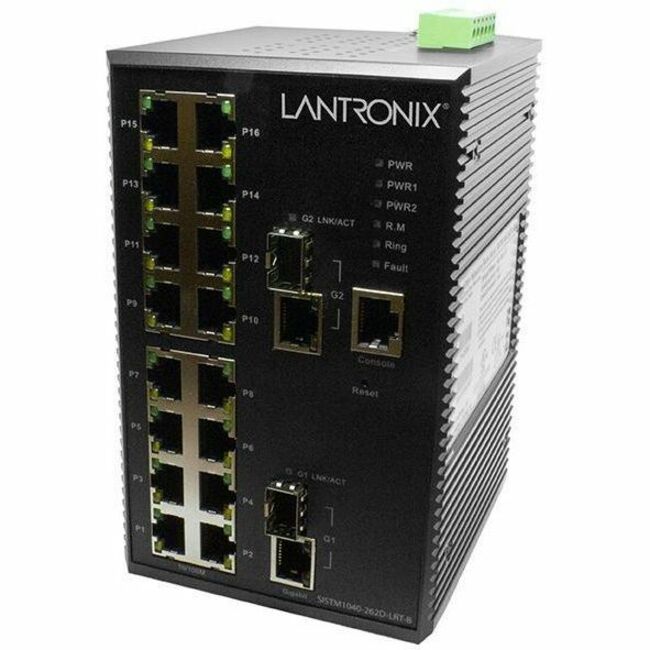

The SISTM1040-262D-LRT-B switch is a (18) port managed hardened switch with (2) copper ports or (2) dual speed SFP ports supporting Fast Ethernet to Gigabit Ethernet speeds. The (2) SFP ports provide the ultimate flexibility by allowing SFP fiber connections at different speeds and at a variety of communication distances. The ports can also be used in a redundant ring for maximum network reliability

Highlights

  • Auto-Negotiation
  • Auto-MDI/MDIX
  • Combo SFP ports support 100/1000Base-X SFPs
  • Extended Operating Temperature (-40°C to +70°C)
  • Dry Contact Relay Alarm Output

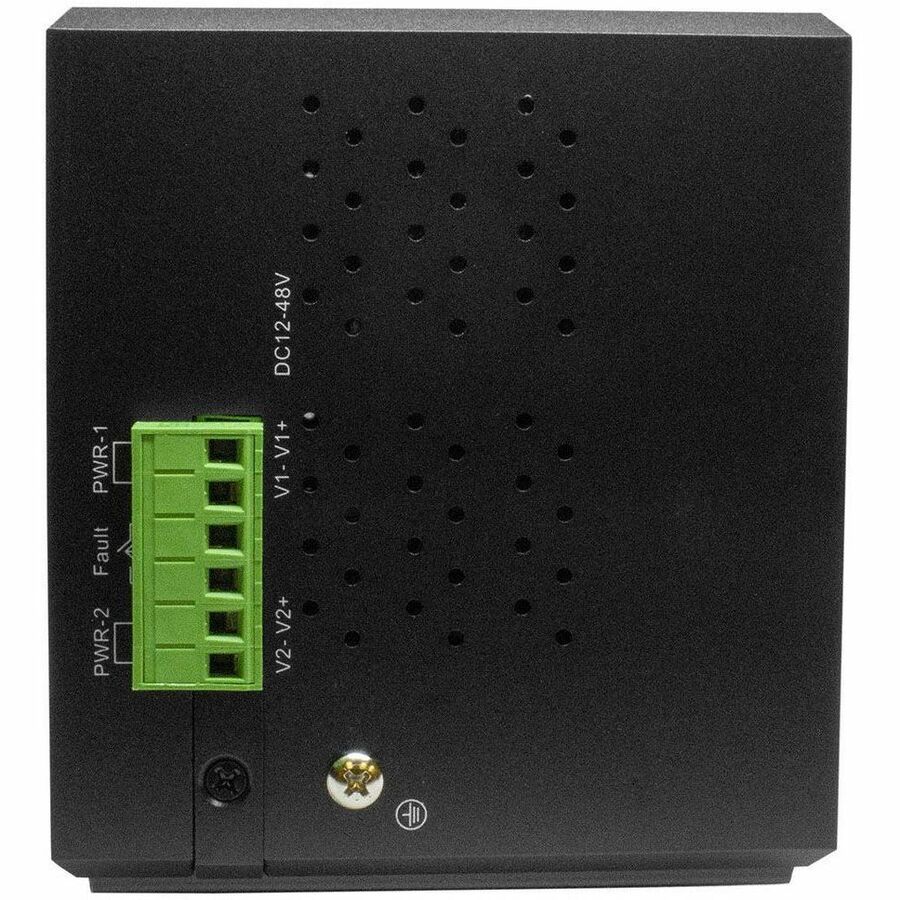

  • Dual, Redundant, Auto-Sensing 12-48 VDC Power Inputs
  • Overload Current Protection

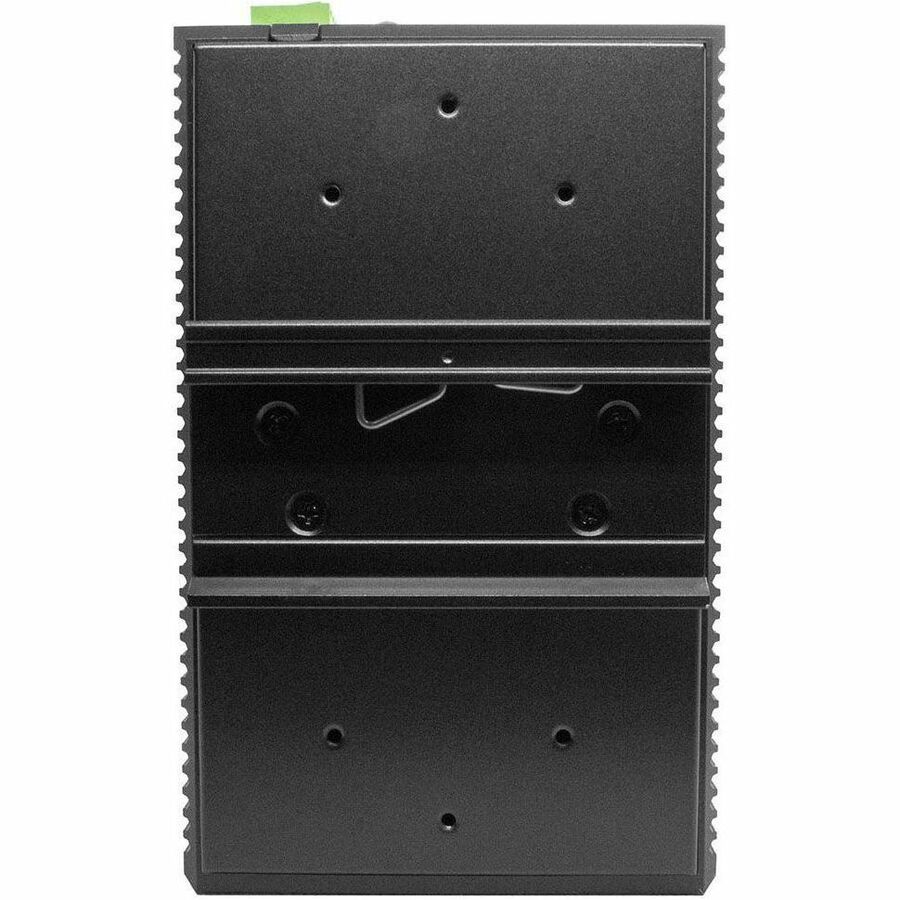

  • DIN Rail Mounting and Wall Mount Brackets Included
  • PTP- Precision Timing Protocol
  • RMON

Specifications

Package Contents
  • Managed Hardened Fast Ethernet Switch
  • DIN Rail Mounting
  • Wall Mount Brackets
Product TypeEthernet Switch
Input Voltage12 V DC, 48 V DC
Manufacturer Part NumberSISTM1040-262D-LRT-B
Power SourceDC
Limited WarrantyLifetime
Layer Supported2
Weight (Approximate)3.85 lb
Form FactorRail-mountable, Wall Mountable
ManufacturerLantronix, Inc
Product ModelSISTM1040-262D-LRT-B
Product NameManaged Hardened Fast Ethernet Switch
Network Technology1000Base-X, 10/100/1000Base-TX
Power Consumption12 W
Brand NameLantronix
Expansion Slot TypeSFP
Height6.1"
Width3.8"
Depth4.3"
ManageableYes
Ethernet TechnologyGigabit Ethernet, Fast Ethernet
Network (RJ-45)Yes
Number of SFP Slots2
ModularYes
Media Type SupportedOptical Fiber, Twisted Pair
Total Number of Network Ports16
Shared SFP SlotYes
Port/Expansion Slot Details16 x Fast Ethernet Network, 2 x Gigabit Ethernet Expansion Slot, 2 x Gigabit Ethernet Network
Total Number of Expansion Slots2
TAA CompliantYes
Networking StandardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.1x, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3z, IEEE 802.3x, IEEE 802.1s, IEEE 802.1w, IEEE 802.1ab
