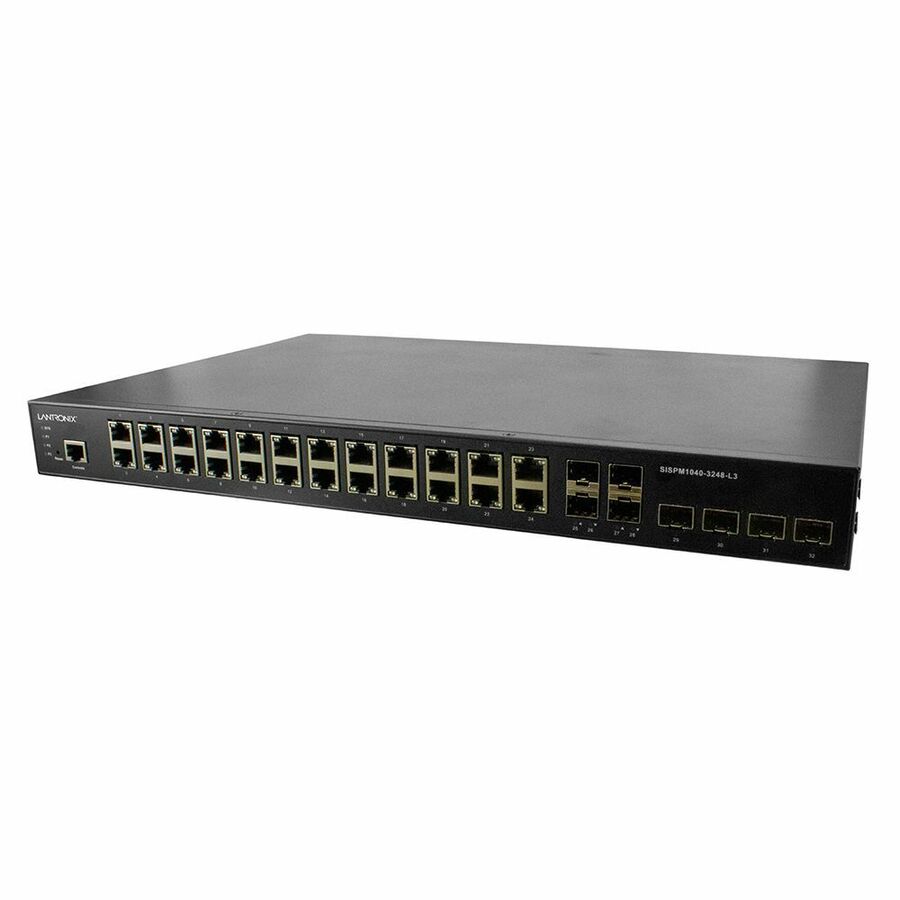

Lantronix SISPM1040-3000-L3 Layer 3 Switch
24 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-X, 10/100/1000Base-TX, 100/1000Base-FX - 4 Layer Supported - Modular - 4 SFP Slots - 15 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 5 Year Limited Warranty
- SKU
- SISPM1040-3248-L3-EU
- Category
- Switches & Bridges
MSRP$3,323.10
$2,342.29
Save 30%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SISPM1040-3248-L3-EU
- Category
- Switches & Bridges
Overview
(16) 10/100/1000Base-T PoE+ Ports + (4) 100/1000Base-X SFP Slots + (2) 1G/10GBase-X SFP+ Slots
(24) 10/100/1000Base-T PoE+ Ports + (4) 100/1000Base-X SFP Slots + (4) 1G/10GBase-X SFP+ Slots
The SISPM1040-3000-L3 Series managed Layer 3 (L3) hardened Gigabit Ethernet PoE switches offer powerfulLayer 2 and Layer 3 features and performance required to meet the demands of Smart City and Utility,Transportation, Security and Surveillance applications where performance and reliability across a wide range oftemperatures is required. The SISPM1040-3000-L3 Series are designed to support current and future Internet ofThings (IoT) applications with their non-blocking / wirespeed performance, wide operating temperature range of-40°C to 75°C for outdoor and indoor environments.
Device management is made simple with Lantronix ConsoleFlow?. The ConsoleFlow Cloud device managerprovides cloud-based control of the Lantronix SISPM1040-3000-L3 Series network switches. ConsoleFlowCloud provides a single pane of glass to securely deploy, monitor and manage Lantronix network switches andconnected IT equipment. ConsoleFlow Cloud features True Zero-Touch automation, simplifying onboardinglogistics and provisioning new devices while eliminating remote or on-site visits and reducing operational costs.In addition, the native mobile apps for iOS® or Android? platforms provide users the freedom to monitor andremotely connect to any device while on the go.
Highlights
- IPv4/IPv6 Layer 3 Static Routing
- RIP v1/v2, OSPF v2/v3 Dynamic Routing
- Supports Jumbo Frame up to 10K bytes
- Authentication - RADIUS, TACACS+
- SSH v1/v2
- DHCP Relay, DHCP Snooping, DHCP Server, DHCP Client
- L2/L3/L4 ACLs Support MAC, VLAN ID, or IP address, protocol, per port
- LACP (Link Aggregation Control Protocol)
- LLDP (Link Layer Discovery Protocol)/CDP Aware
- ITU-T G.8031 Ethernet Linear Protection Switching (ELPS)
- ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
- Rapid Ring for fast recovery
- IEEE 802.3az Energy Efficiency
- IP Source Guard, Port Security
- Storm Control
- Port Mirroring
- SNMP Traps/Syslog/SMTP
Specifications
| Package Contents |
|
|---|---|
| Product Type | Layer 3 Switch |
| Input Voltage | 52 V DC, 57 V DC, 120 V AC, 230 V AC |
| Manufacturer Part Number | SISPM1040-3248-L3-EU |
| Power Source | PoE+, AC, DC |
| Limited Warranty | 5 Year |
| Layer Supported | 4 |
| Weight (Approximate) | 11 lb |
| Manufacturer | Lantronix, Inc |
| Product Name | SISPM1040-3000-L3 Layer 3 Switch |
| Network Technology | 10GBase-X, 10/100/1000Base-TX, 100/1000Base-FX |
| Power Consumption | 15 W |
| Product Series | SISPM1040-3000-L3 |
| Brand Name | Lantronix |
| Expansion Slot Type | SFP+, SFP (mini-GBIC) |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 11.8" |
| Manageable | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 4 |
| Modular | Yes |
| Stack Port | No |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 24 |
| Shared SFP Slot | No |
| PoE (RJ-45) Port | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network PoE+, 4 x Gigabit Ethernet SFP, 4 x 10 Gigabit Ethernet SFP+ |
| Total Number of Expansion Slots | 8 |
| PoE Budget | 370 W |
| Networking Standards | IEEE 802.3ah, IEEE 802.3x, IEEE 1588v2, IEEE 802.1s, IEEE 802.1ab, IEEE 802.3 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
