Overview
Single-Phase 0U PDU Distributes and Monitors Network-Grade Power in Real Time
This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMV15-72 features 36 NEMA 5-15R 120V outlets for connecting equipment. An included 15-foot cord with NEMA 5-15P input plug connects to a distant AC power source, generator or protected UPS system to distribute power to connected loads.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.
Up-to-Date Safety Features Protect Your Vital Equipment

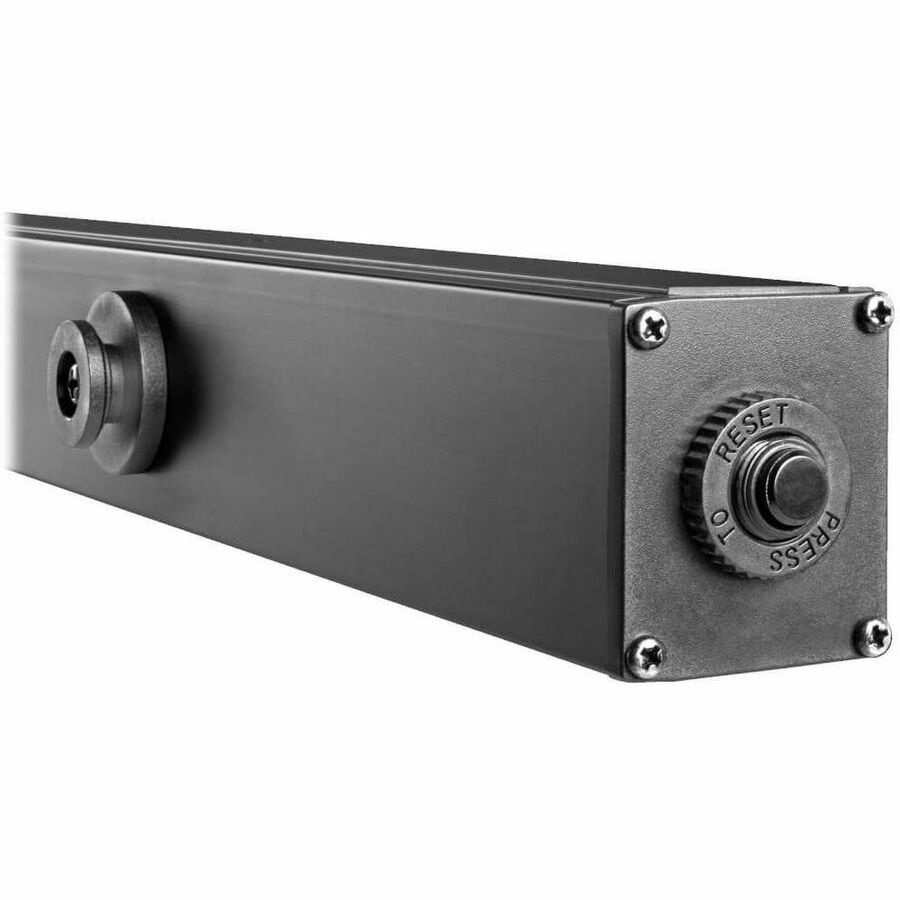

A lighted on/off switch is protected by an integrated transparent plastic cover to help prevent an accidental shutdown that could lead to costly downtime. A 15A circuit breaker protects connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The 72-inch 0U all-metal housing mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Bolt-down retention brackets keep power cords organized and your rack free of clutter.
Warranty
Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights

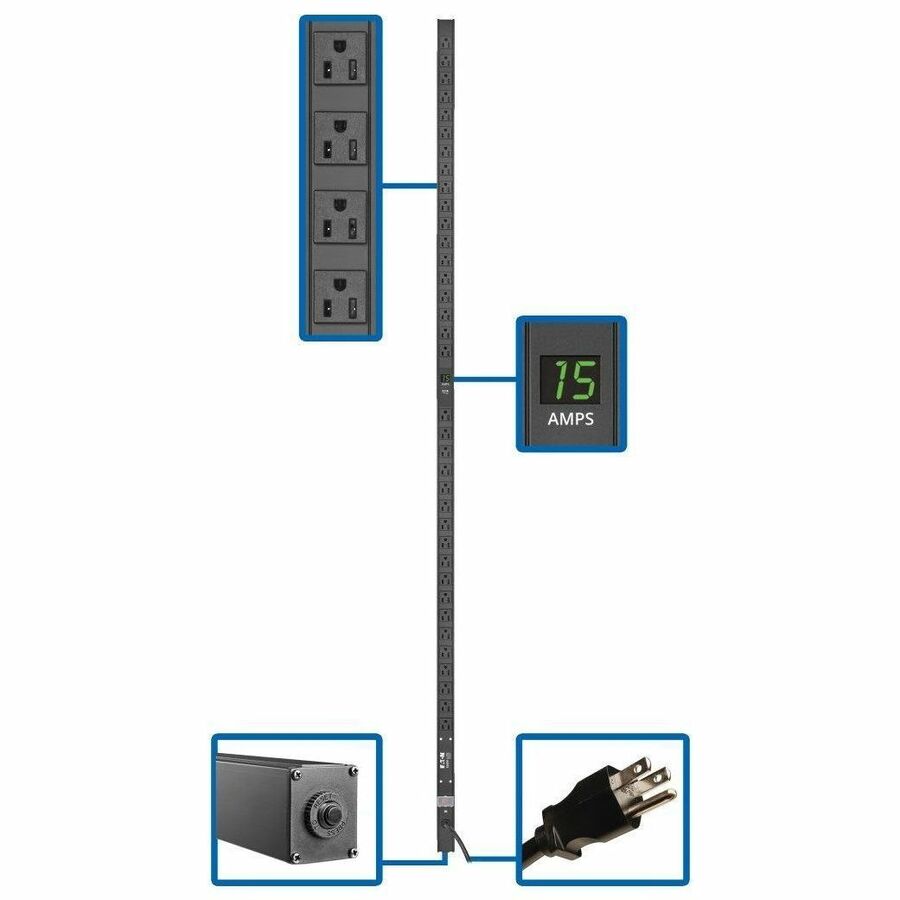

36 NEMA 5-15R 120V outlets distribute AC power to connected equipment

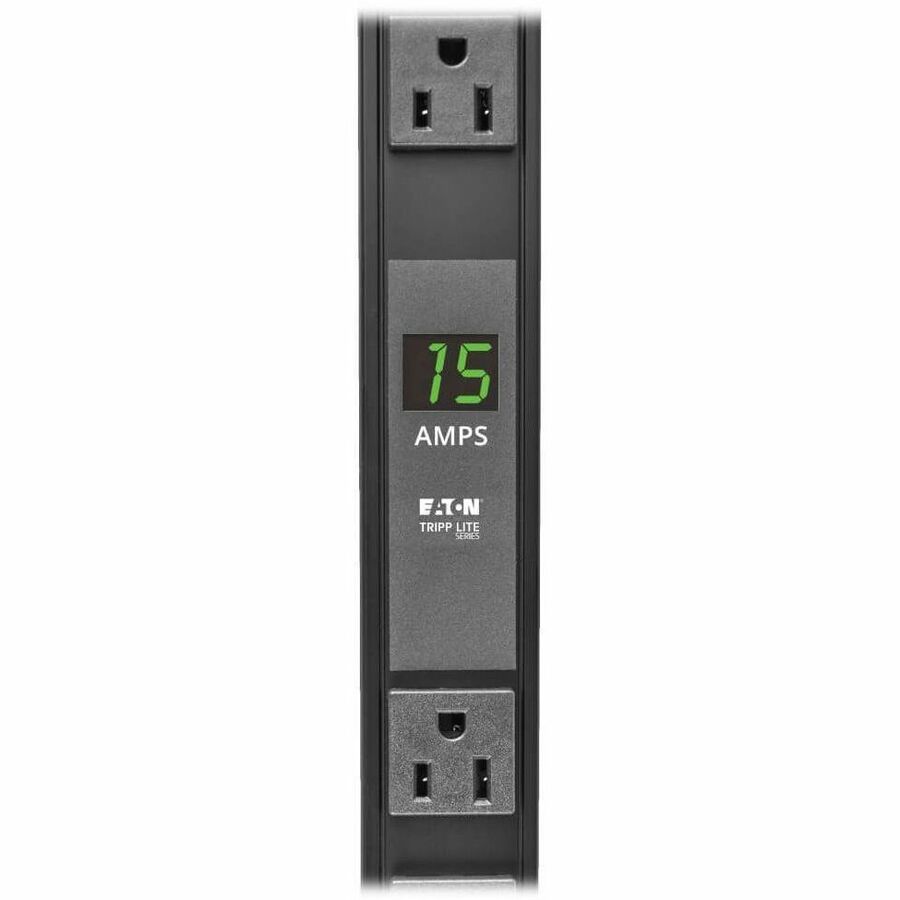

Digital ammeter for on-site real-time load monitoring helps prevent power overloads
Lighted power switch with protective cover helps prevent accidental shutdowns
15 ft. cord with NEMA 5-15P single-phase input connects to AC power source
72 in. 0U PDU with included mounting hardware installs in rack or under counter
2-year limited warranty
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
PDUMV15-72
Brand Name
Tripp Lite series
Product Model
PDUMV15-72
Product Name
PDUMV15-72 36-Outlets PDU
Product Type
PDU
Physical Characteristics
Mounting Orientation
Vertical
Placement
Under-counter
Rack Height
0U
Cord Length
15 ft
Height
72.5"
Width
1.6"
Depth
1.5"
Weight (Approximate)
6.14 lb
Power Description
Input Voltage
120 V AC
Output Voltage
100 V AC, 120 V AC, 127 V AC
Power Rating (Watt)
1440 W
Input Current
15 A
Technical Information
PDU Type
Metered
Phase
Single Phase
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacle Detail
36 x NEMA 5-15R
Protection Type
Overload Protection, Accidental Power Shutdown
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
PDUMV15-72 36-Outlets PDU
Plug Retention Brackets With Installation Hardware
