Eaton 7.7kW Single-Phase Switched PDU with LX Platform Interface, 230V Output, IEC 309 32A Blue, 10 ft. (3.05 m) Cord, 0U, TAA

Features

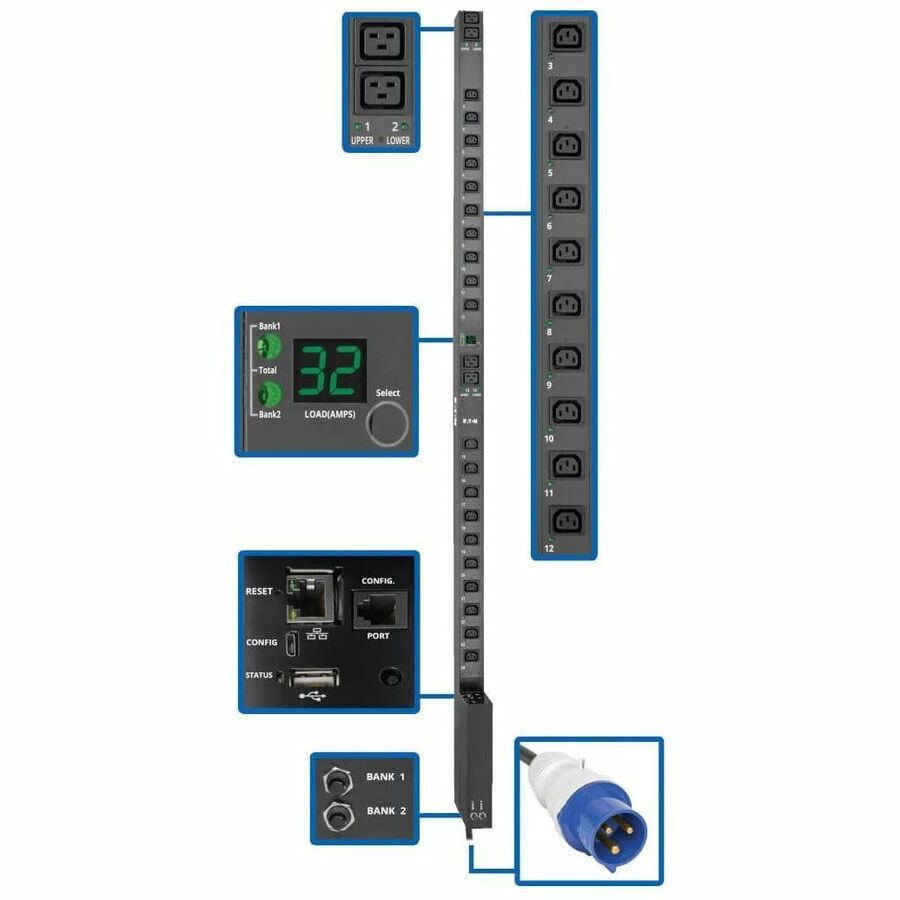

0U PDU Distributes, Monitors and Manages Network-Grade AC Power

Recommended for data centers, server rooms and network closets, this 0U vertical PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. You can more efficiently manage network power consumption and properly balance loads without having to visit the site. Reducing the number of on-site visits can help lower the cost of data center maintenance.

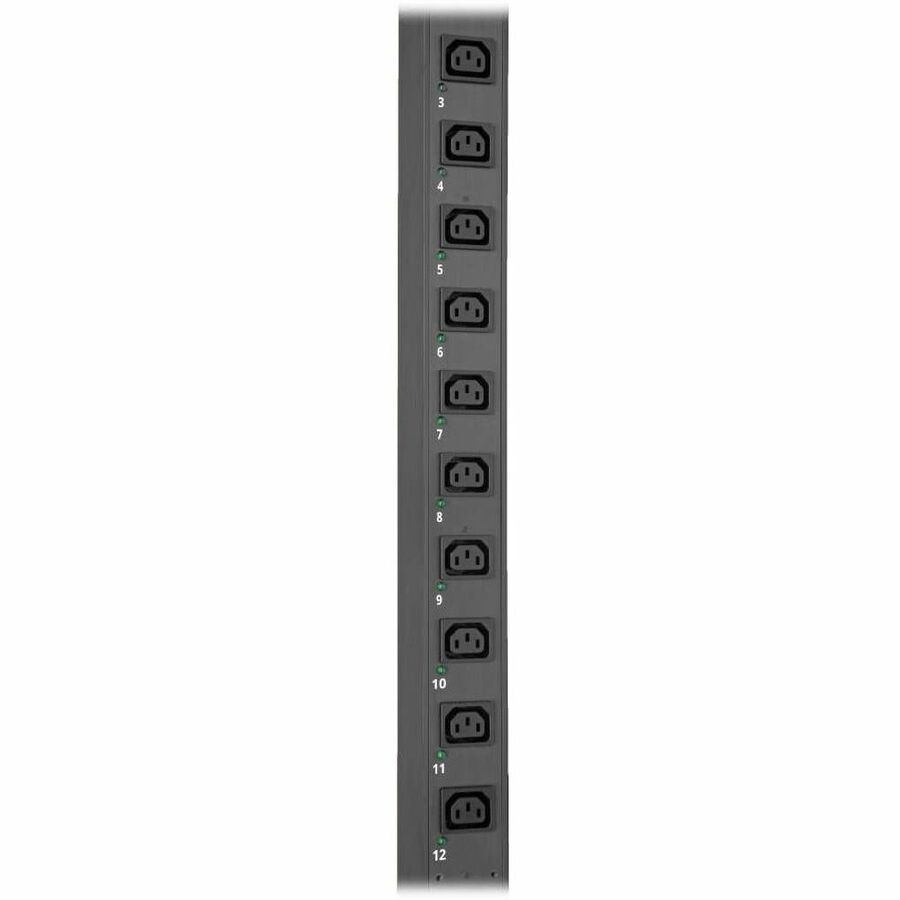

24 Outlets Dispense Clean Power

During normal operation, 24 individually controllable outlets-20 C13 and four C19-distribute AC power to connected equipment. Each 230V outlet is accompanied by an LED that illuminates when the outlet is ramped up and ready to be used. The outlets are split into two load banks, each protected by a circuit breaker that trips if the bank's connected load exceeds its maximum load rating. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

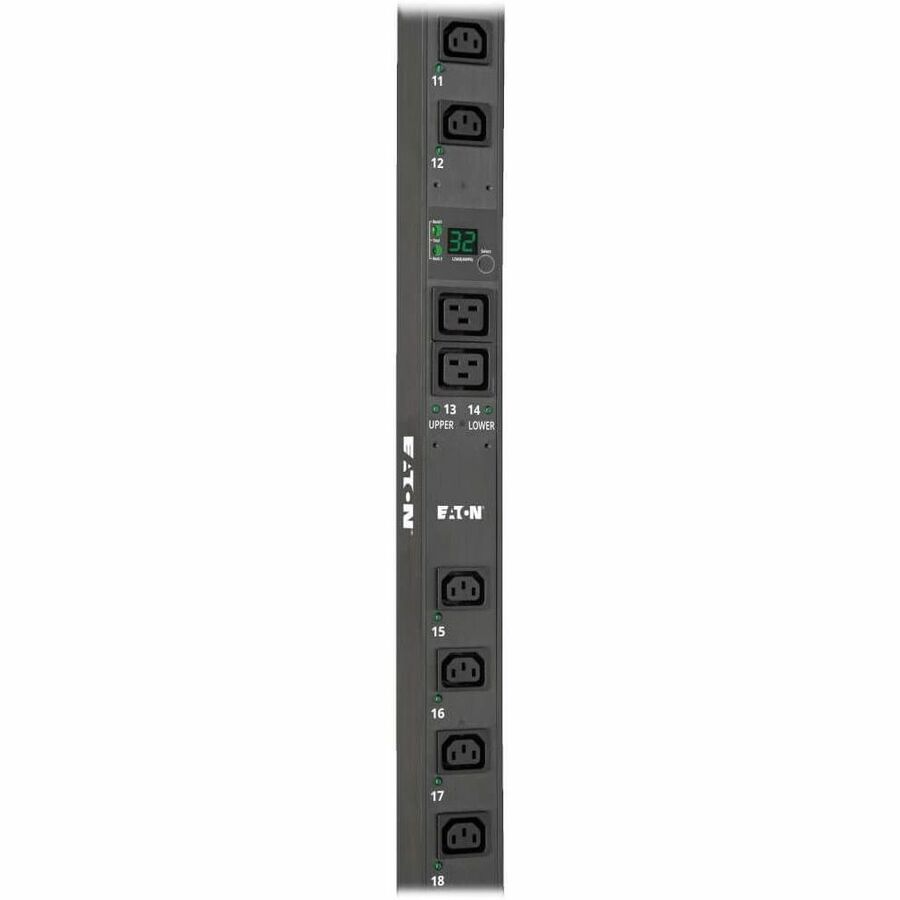

Digital Load Meter Helps Prevent Potentially Expensive Overloads

A digital ammeter reports the load for each outlet bank separately and the total connected load. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. The firmware can be easily upgraded to ensure the PDU continues to perform at its best as connected equipment adds new features.

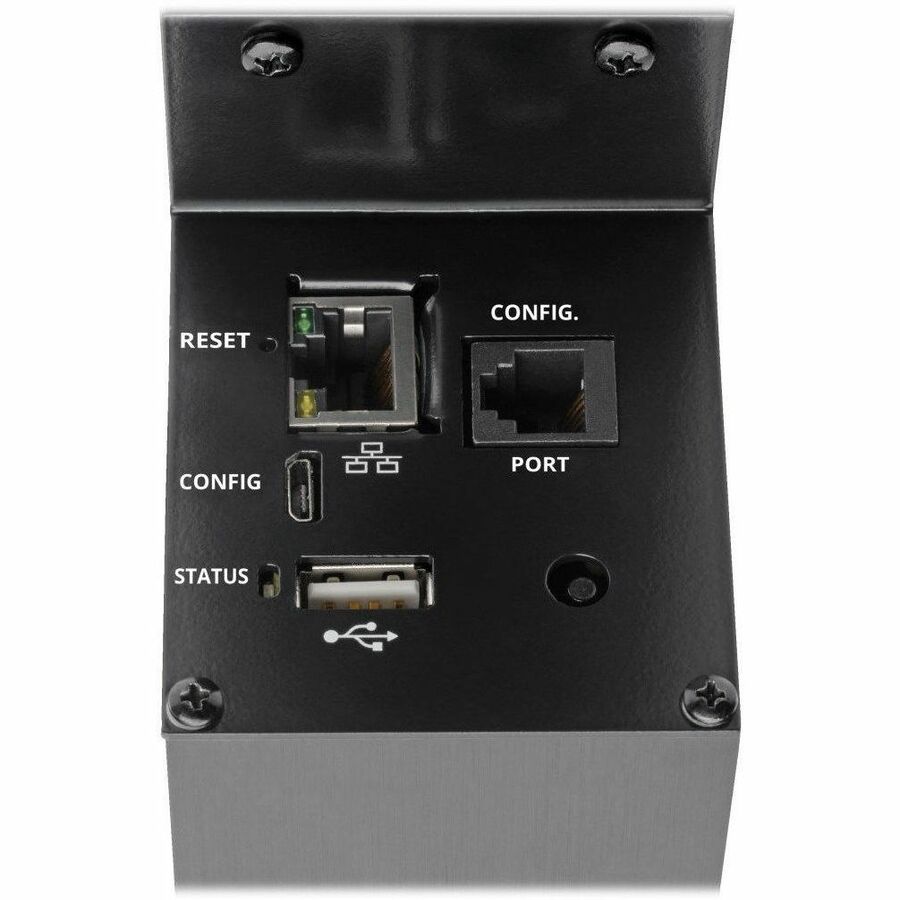

Built-In LX Platform Network Management Card Allows Remote Access 24/7

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The 0U PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.

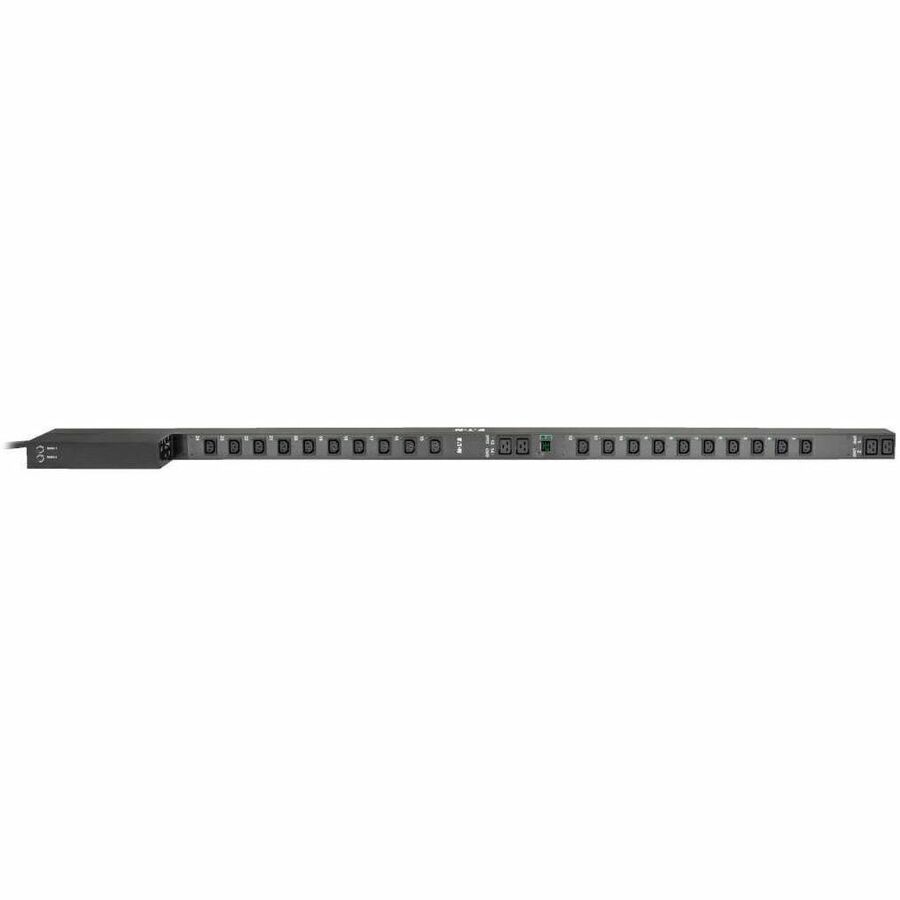

Easy to Install Vertically in an EIA-Standard 19 in. Rack

The 0U PDU mounts vertically using the included toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A 10-foot cord with IEC 309 32A Blue (2P+E) input plug connects the single-phase PDU to a compatible AC power source, generator or protected UPS system.

TAA-Compliant for GSA Schedule Purchases

The PDUMV32HVNETLX is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

2-Year Warranty

The PDUMV32HVNETLX is backed by a 2-year warranty, ensuring reliability and performance.

More from the Manufacturer

Single-Phase Power Distribution with Remote Management, No Java Required

Tripp Lite’s PDUMV32HVNETLX 7.4kW Switched PDU distributes network-grade single-phase power to connected devices and provides advanced network control and remote power monitoring. This vertical (0U) rack-mount PDU delivers 230V power to 24 outlets (20 C13 and four C19) and has a digital meter for local current monitoring. A metal housing provides the durability needed for IT environments.

Key Features

Advanced Network Monitoring Capabilities

The PDUMV32HVNETLX gives IT personnel enhanced oversight of network power conditions with a built-in, Java-free HTML5-based LX Platform interface. It remotely monitors site power conditions and PDU load levels, and supports notification and logging of all major power events and user-specified alarm thresholds via email or SNMP traps. The PDUMV32HVNETLX provides 10/100 Mbps auto-sensing for optimal communication compatibility with a 10/100 Base-T network. When used with Tripp Lite’s optional EnviroSense2 (E2) sensor, the PDUMV32HVNETLX can also remotely monitor temperature/humidity conditions, plus up to four dry contact interfaces for alarm, security, and telecom devices. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

Individual Outlet Current Monitoring and Remote Outlet Control

The PDUMV32HVNETLX offers the ability to turn on, turn off, recycle, or lock out power to all of its outlets as well as locally and remotely monitor each outlet’s output power consumption. This allows you to more efficiently manage network power consumption and properly balance loads both remotely and on-site. If equipment needs to be rebooted on a Sunday—no problem! Simply log on from wherever you are and take care of business.

Allows Local Monitoring at a Glance

An easy-to-read digital LED ammeter allows IT personnel a way to locally monitor load level (in amps) of connected equipment. Local monitoring helps installers balance loads to prevent overloads that could lead to costly downtime.

Supports Toolless Mounting in Compatible Racks

The PDUMV32HVNETLX is easy to integrate with a wide range of data center and network applications. It comes ready to mount vertically in EIA-standard 19-inch racks using the pre-installed mounting buttons or the included mounting brackets. You also have the option to mount the PDU with the outlets facing the rear of the rack. Vertical 0U installation reduces cord clutter and promotes efficient airflow through the rack.
