SKU
9PXPPDM1G2
Category
PDUs
Overview
208V to 120V Power Distribution Module Converts High-Voltage Input to Low-Voltage Output

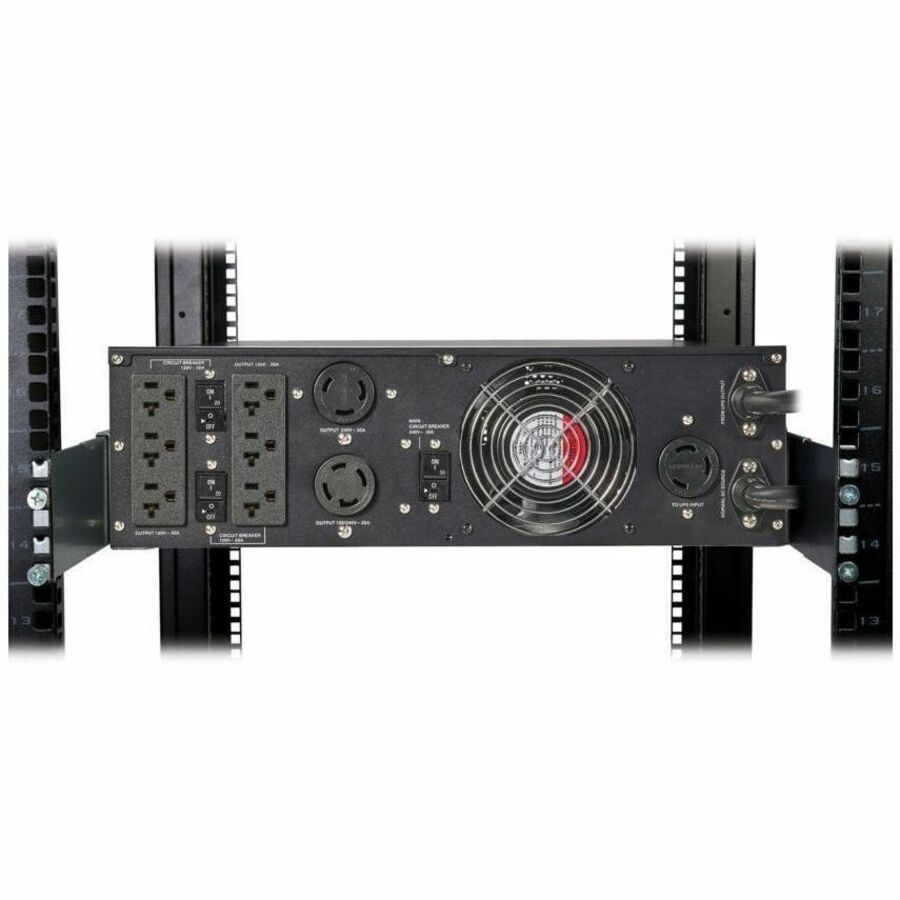

The 9PXPPDM1G2 converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features one L6-30R, one L14-30R and six NEMA 5-20R outlets for connecting equipment. Resettable 30A circuit breakers protect against overload conditions.
Compatible with Select Eaton UPS Systems

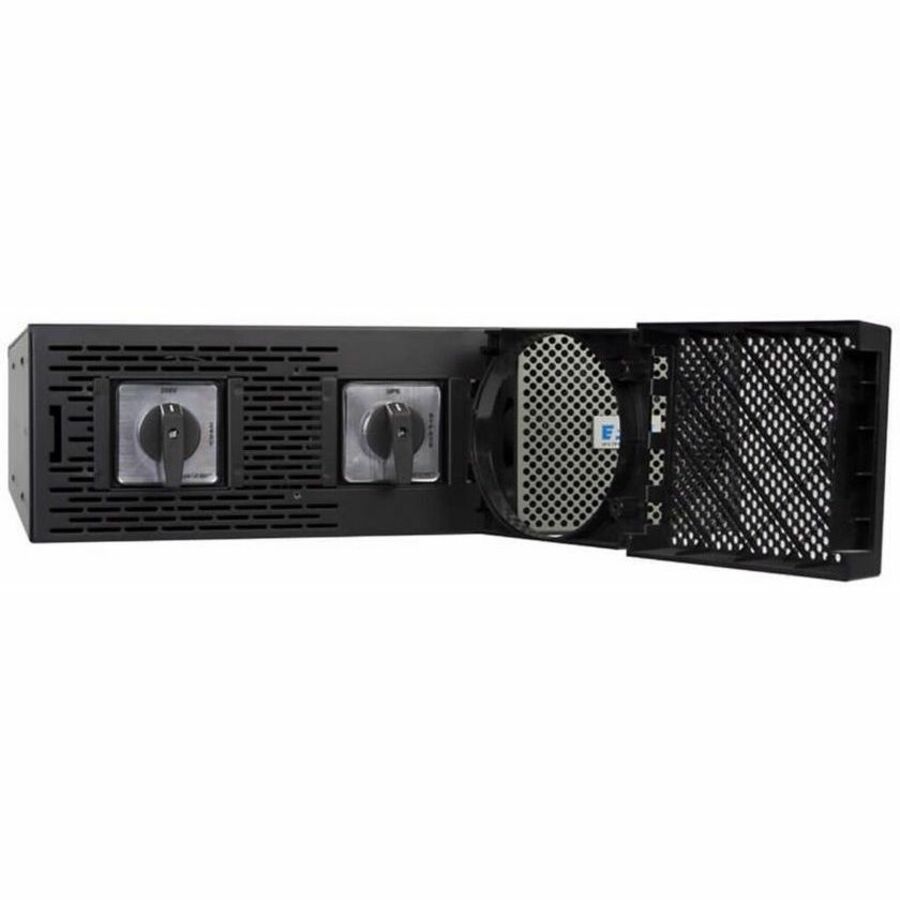

The 9PXPPDM1G2 works with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 UPS systems. Its front-panel maintenance bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. All connected equipment remains energized, even while the UPS system is not present.
Versatile Installation Options

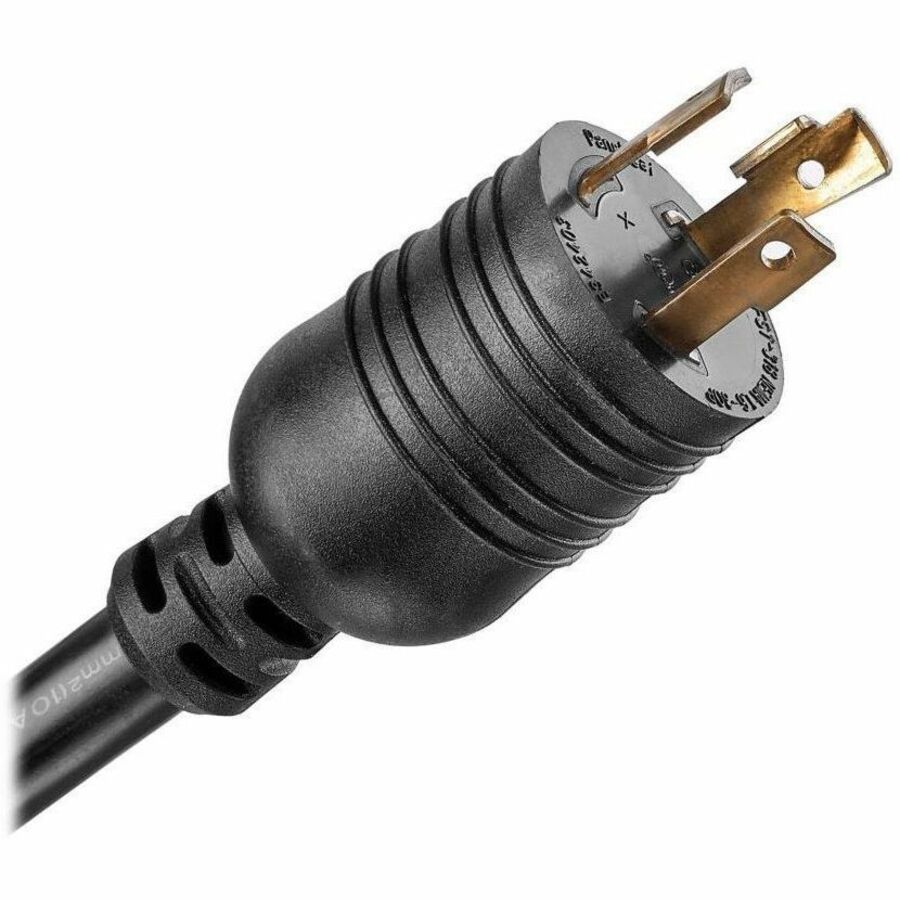

You can mount the 9PXPPDM1G2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware. The 10-foot power cord with L6-30P plug connects to a compatible AC outlet.
Warranty
Limited Warranty: 3 Year
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable.
Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights
PDU improves efficiency, uptime and growth of data centers
NEMA 5-20R receptacle type to ensure maximum dependability and optimal performance
Single Phase phase PDU provides optimal power output with added usability
NEMA L6-30P plug/connector type for reliable, productive connectivity and optimal power output
230 V AC input voltage for maximum feasibility and added productivity
100 V AC output voltage for better reliance and maximum usability
Specifications
Environmental Conditions
Minimum Operating Temperature
32°F (0°C)
Maximum Operating Temperature
104°F (40°C)
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
9PXPPDM1G2
Brand Name
Eaton
Product Line
PowerPass
Product Model
9PXPPDM1G2
Product Name
PowerPass 9PXPPDM1G2 8-Outlets PDU
Product Type
PDU
Physical Characteristics
Color Family
Black
Product Color
Black
Mount Type
Rack-mountable
Form Factor
Rack/Tower
Rack Height
3U
Cord Length
6 ft
Height
5.1"
Width
17.3"
Depth
25"
Power Description
Input Voltage
230 V AC
Output Voltage
100 V AC, 110 V AC, 120 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC
Power Source
UPS
Input Current
30 A
Input Frequency
60 Hz
Technical Information
Phase
Single Phase
Plug/Connector Type
NEMA L6-30P
Receptacle Type
NEMA 5-20R, NEMA L14-30R, NEMA L6-30R
Receptacle Detail
1 x NEMA L14-30R, 1 x NEMA L6-30R, 6 x NEMA 5-20R
Protection Type
Surge Protection
Load Capacity (VA)
6000 W
Load Capacity (Watt)
6000 W
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
PowerPass 9PXPPDM1G2 8-Outlets PDU
Joining Bracket And Hardware For Tower Configuration
