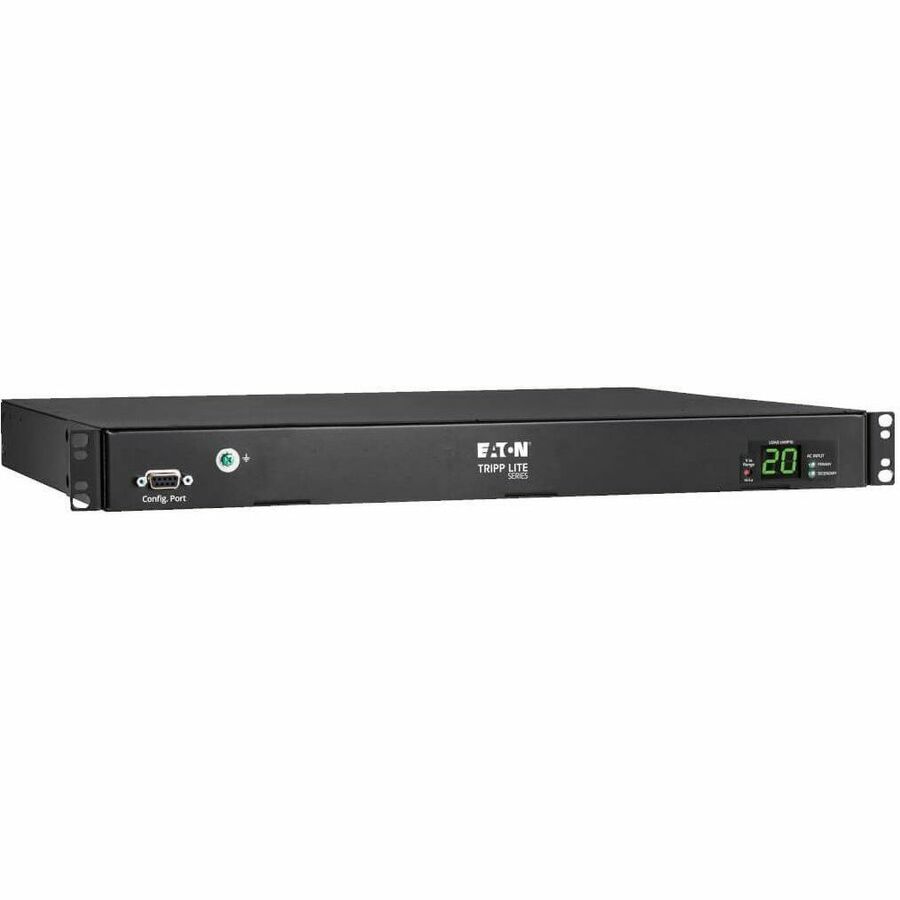

Metered Auto Transfer Switch - IEC 60320 C20 - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 1U - Horizontal - Rack-mountable - TAA Compliant
MSRP$721.00
$663.32
Save 8%In stock: 16
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Single-Phase 20A ATS PDU Distributes and Monitors Network-Grade Power in Real Time

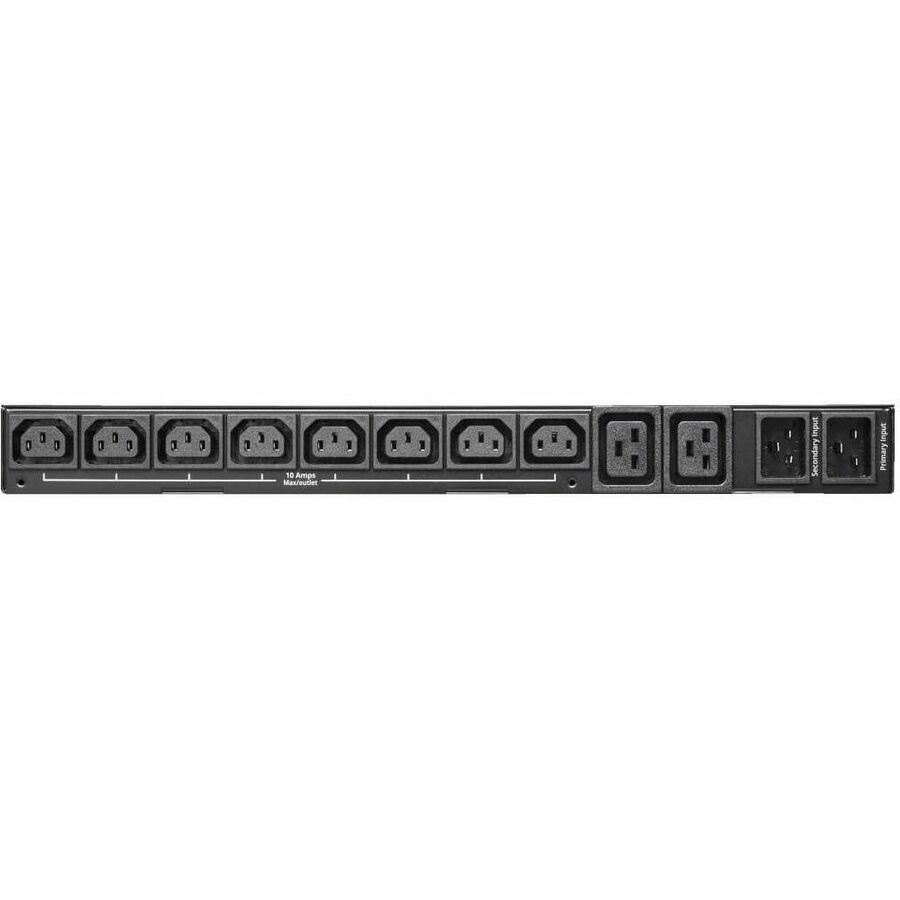

This metered PDU provides real-time local reporting of the total load level via its built-in digital current meter. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20HVATS features eight C13 and two C19 200-240V outlets for connecting equipment. Outlets are factory-programmed for sequential turn-on at 250-millisecond intervals when the PDU is first energized to prevent inrush-related equipment interaction at startup.
Switches from Primary to Secondary Power Source in Milliseconds
Dual 12-foot (3.7-meter) power cables with C20 inputs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources. Dynamic solid-state automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2-5 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source.
Digital Load Meter Helps Prevent Potentially Expensive Overloads

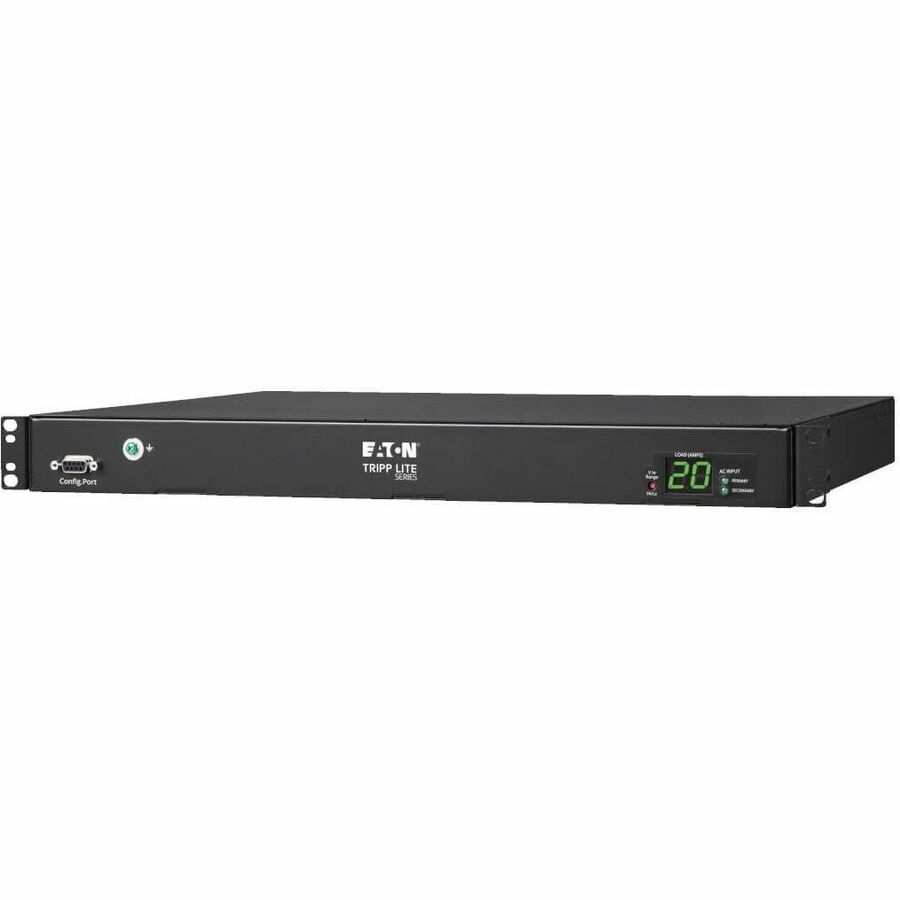

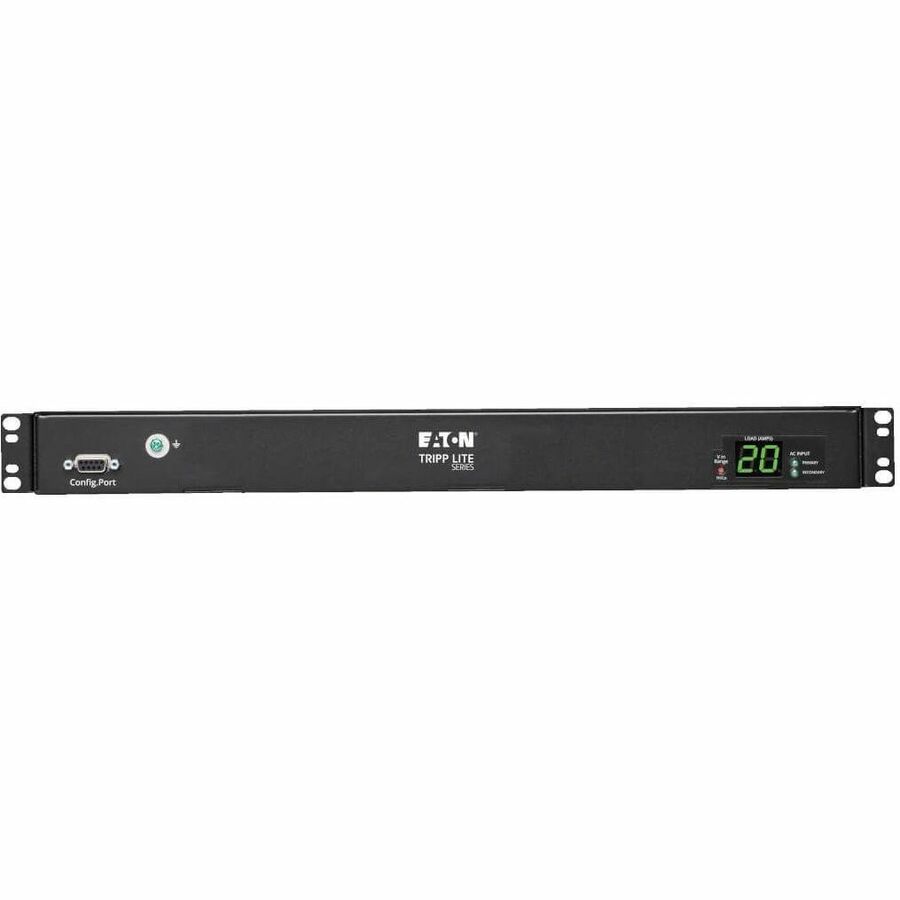

A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.
Mounts into 1U of Rack Space

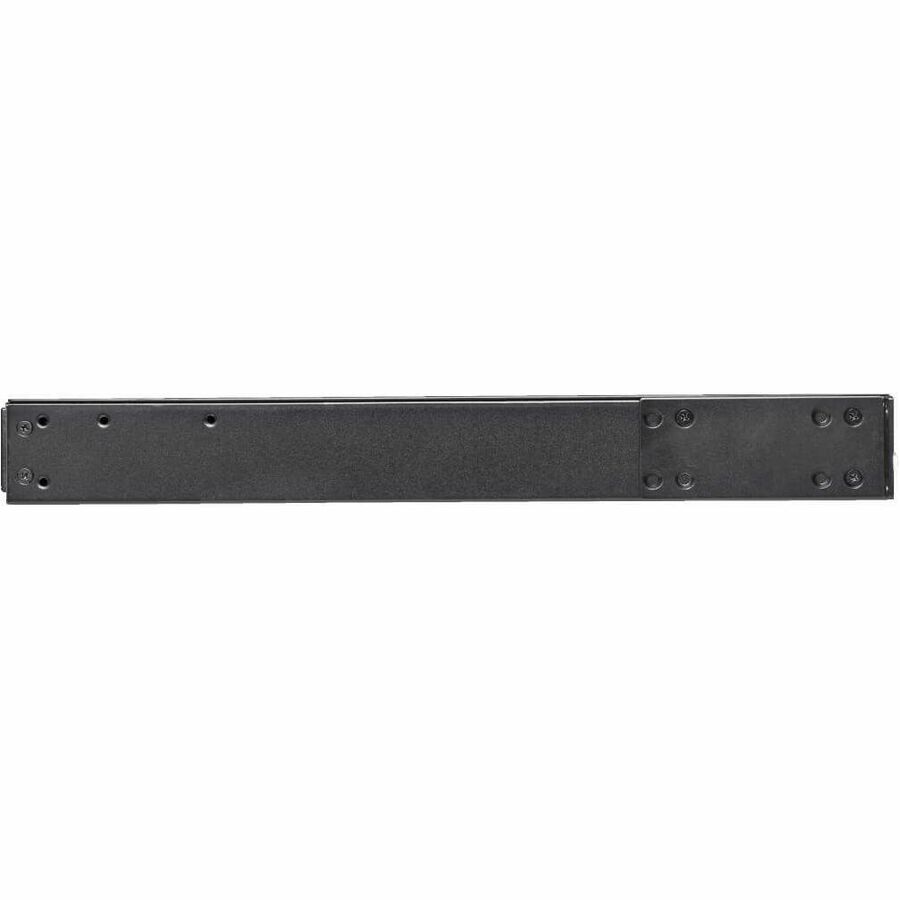

Use the included mounting hardware to install the all-metal housing into 1U of space in an EIA-standard 19-inch rack.
TAA-Compliant for GSA Schedule Purchases
The PDUMH20HVATS is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Limited Warranty: 2 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMH20HVATS |
| Brand Name | Tripp Lite series |
| Product Model | PDUMH20HVATS |
| Product Name | PDUMH20HVATS 10-Outlets PDU |
| Product Type | PDU |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 14.8" |
| Weight (Approximate) | 10.30 lb |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC |
| Power Rating (Watt) | 3800 W |
| Input Current | 20 A |
| Technical Information | |
| PDU Type | Metered Auto Transfer Switch |
| Phase | Single Phase |
| Plug/Connector Type | IEC 60320 C20 |
| Plug/Connector Detail | 2 x IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
| Receptacle Detail | 8 x IEC 60320 C13, 2 x IEC 60320 C19 |
| Protection Type | Circuit Protection, Overload Protection |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
