Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
PDUMH20HVL66
Category
PDUs
Overview
Single-Phase PDU Distributes and Monitors Network-Grade Power in Real Time

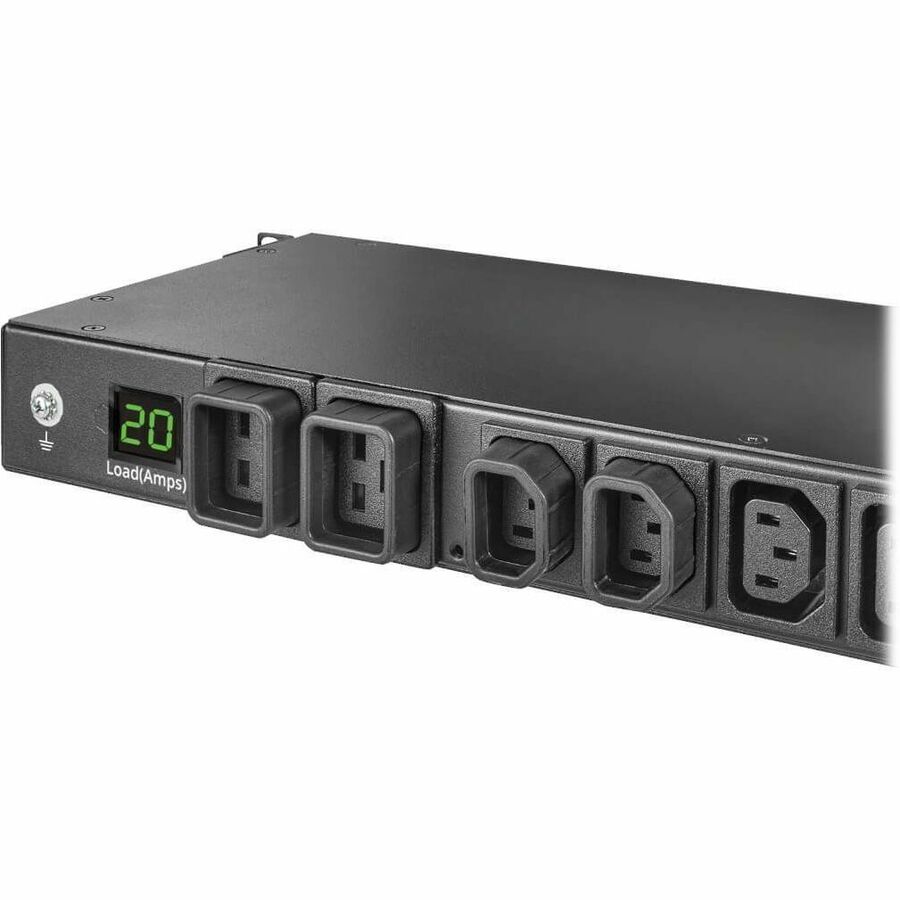

This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20HVL66 features eight C13 and two C19 208/230V outlets for connecting equipment. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.
Digital Load Meter Helps Prevent Potentially Expensive Overloads

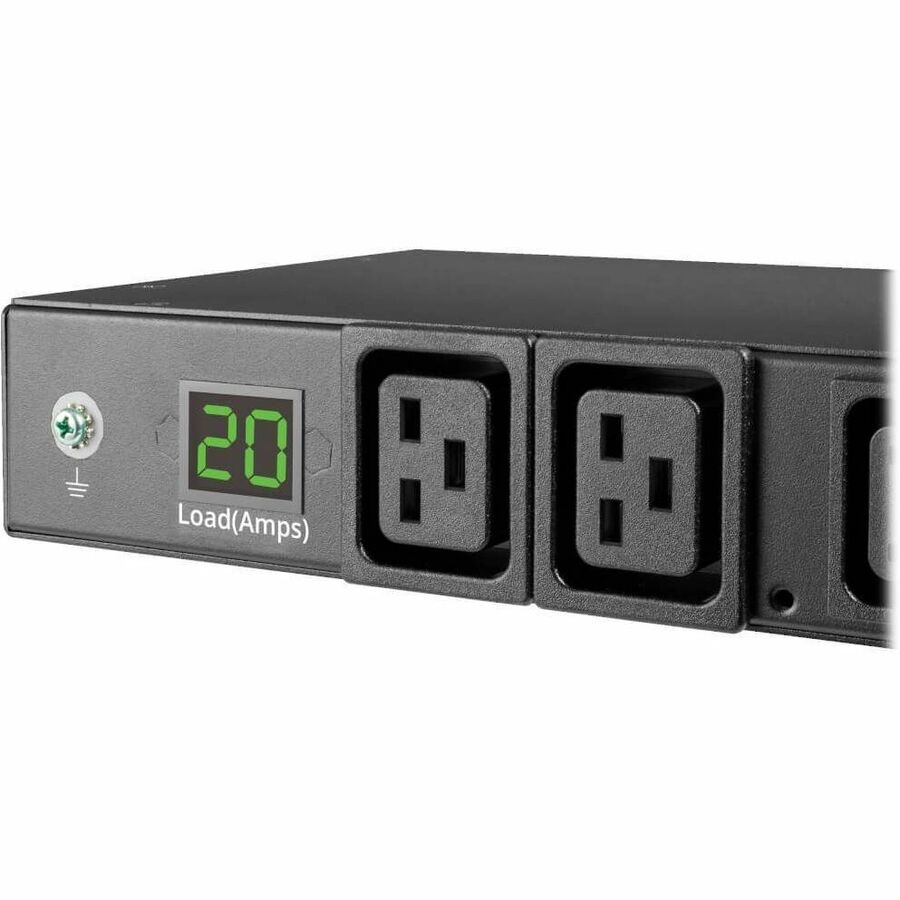

A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.
Versatile Installation Options Give You Plenty of Choices

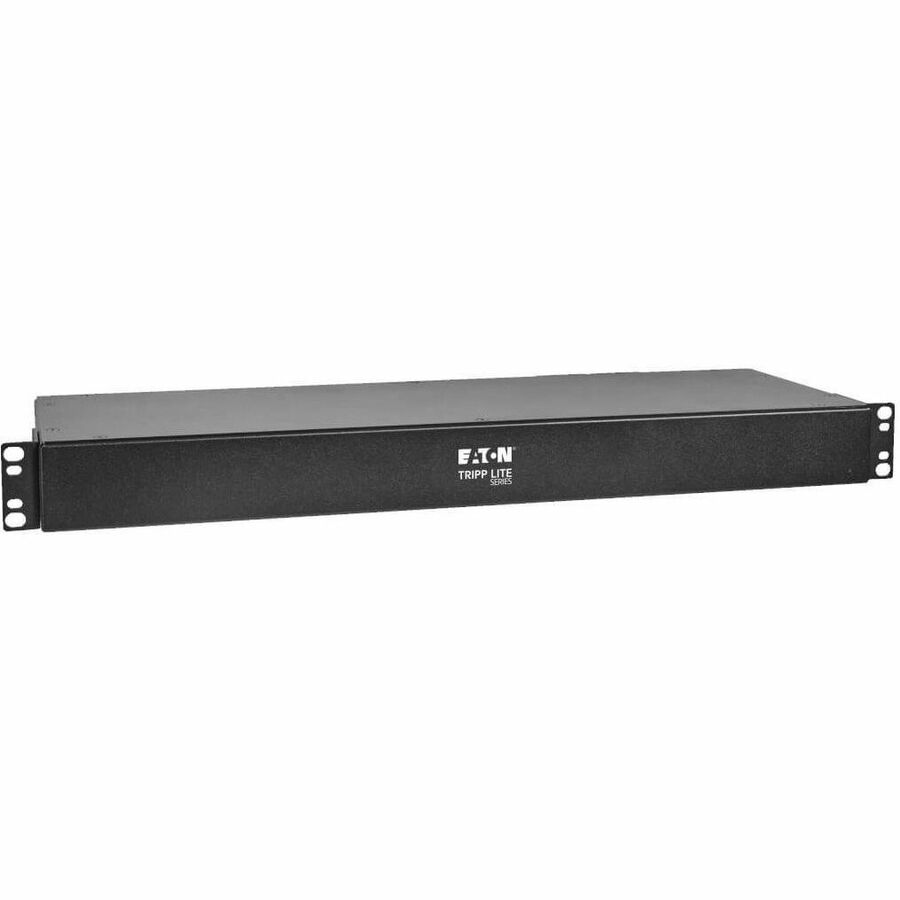

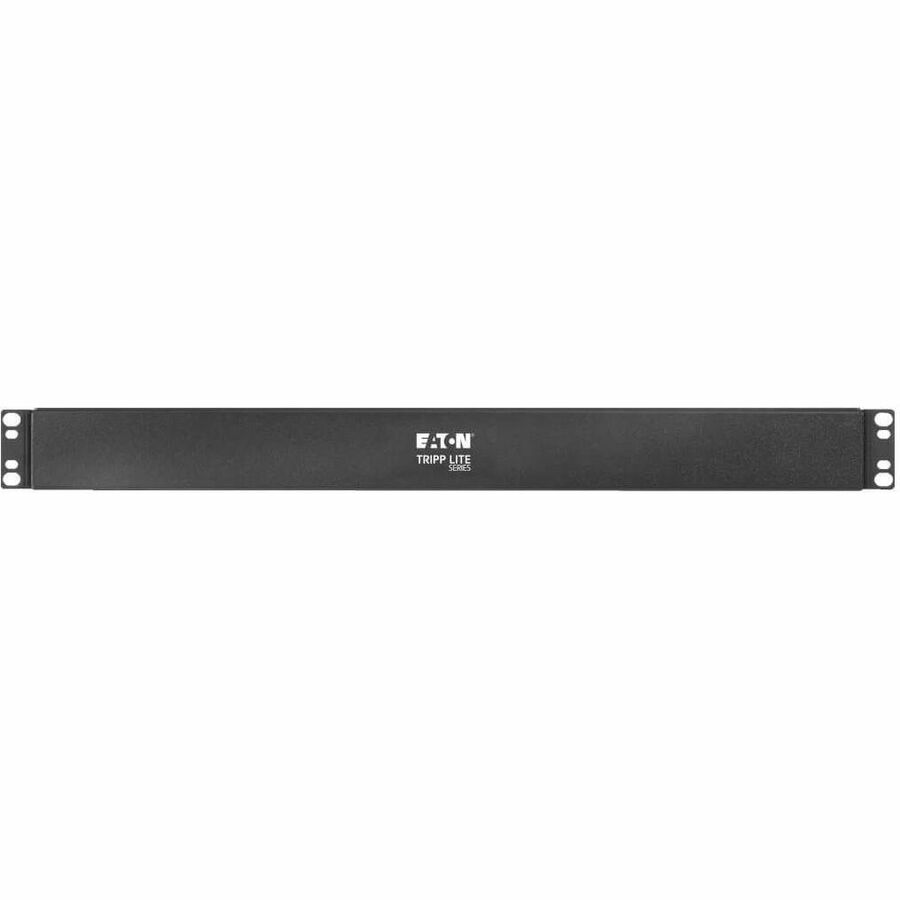

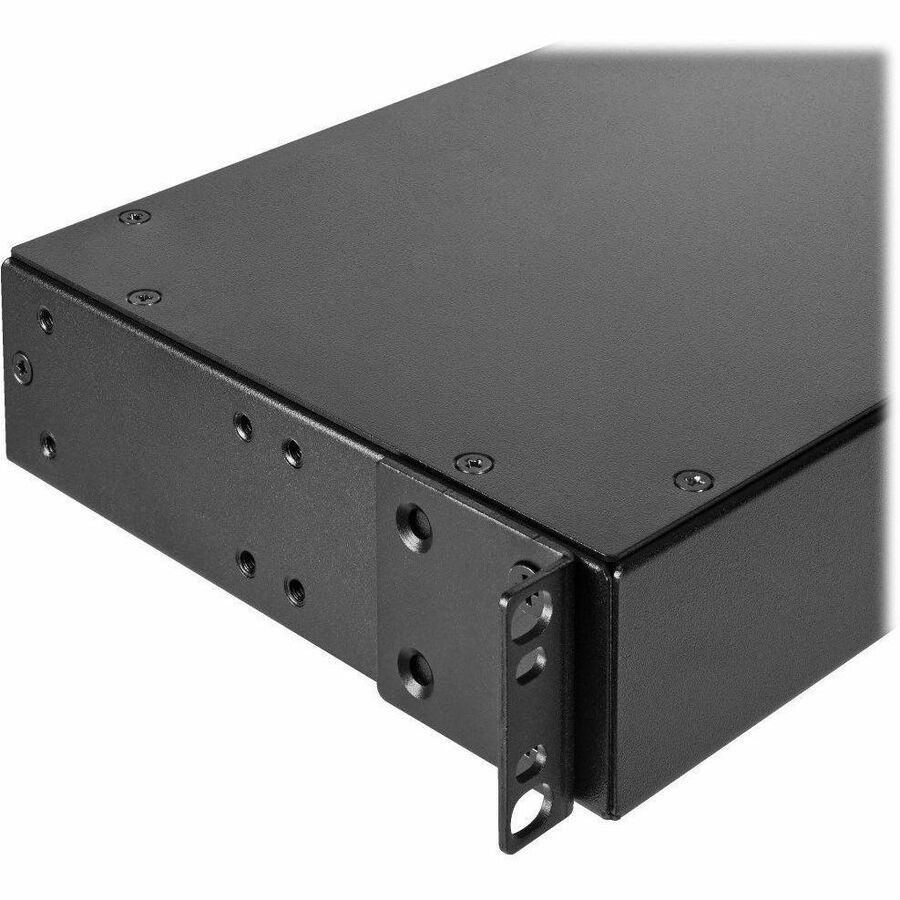

The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. The six-foot cord with NEMA L6-20P input plug connects the single-phase PDU to a protected UPS system, generator or mains input source for reliable multi-outlet power distribution.
TAA-Compliant for GSA Schedule Purchases
The PDUMH20HVL66 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Warranty
Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
8 C13 and 2 C19 208/240V outlets distribute AC power to connected equipment
Digital ammeter for on-site real-time load monitoring helps prevent power overloads
6 ft. cord with NEMA L6-20P single-phase input connects to AC power source
Flexible installation options include 1U and 0U rack, under counter and on wall
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
2-year limited warranty
Specifications
Package Contents
PDUMH20HVL66 10-Outlets PDU
10 x Plug-lock Insert Sleeves
Rack-mounting Hardware
Owner's Manual
Product Type
PDU
Input Voltage
230 V AC
Manufacturer Part Number
PDUMH20HVL66
Limited Warranty
2 Year
Output Voltage
208 V AC, 240 V AC
Weight (Approximate)
6.80 lb
Input Current
20 A
Manufacturer
Eaton Corporation
Product Model
PDUMH20HVL66
Product Name
PDUMH20HVL66 10-Outlets PDU
Mount Type
Wall-mountable, Rack-mountable
Protection Type
Circuit Protection, Overload Protection, Accidental Power Shutdown
