Vertiv Geist Rack Transfer Switch PDU with Next-Generation IMD| 15A| 120V| 1.4kW| (10) NEMA 5-15R Receptacles| (2) NEMA 5-15P Plug| VA4N11A0
Vertiv

Vertiv Geist Rack Transfer Switch PDU with Next-Generation IMD| 15A| 120V| 1.4kW| (10) NEMA 5-15R Receptacles| (2) NEMA 5-15P Plug| VA4N11A0

Redundant Power-Sharing Port | High-Visibility Touchscreen LCD | Internal Orientation Sensor | Security Enhanced | Interchangeable Monitoring Device | UL Listed | TAA-Compliant | RoHS Certified | 3-Year Warranty Which Extends to 5-Year Warranty if Registered Within 120 Days of Purchase

SKU
VA4N11A0
Category
PDUs

MSRP$2,180.00

$1,464.96

Save 33%

In stock: 11

Get a quote

Genuine Vertiv through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
VA4N11A0
Category
PDUs

Overview

The Vertiv Geist Rack Transfer Switch VA4N11A0 is a 15A, 120V, single phase unit level monitored rPDU with (10) NEMA 5-15R Receptacles and (2) NEMA 5-15P plug that provides 1.4kW of power capacity. This unit provides backup power to single-corded devices and helps ensure continuity in the event of power loss. It quickly detects power loss on the main source and automatically switches to the secondary source within less than 4 to 8 milliseconds. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability. More from the Manufacturer

<4-8ms TRANSFER SPEED

The Vertiv Geist Rack Transfer Switch can help ensure your critical IT equipment remains powered even in the event of a power failure. This rPDU automatically switches from the primary power source to the secondary power source in 4-8 milliseconds, saving your important business operations from harmful and costly disruptions caused by power loss.

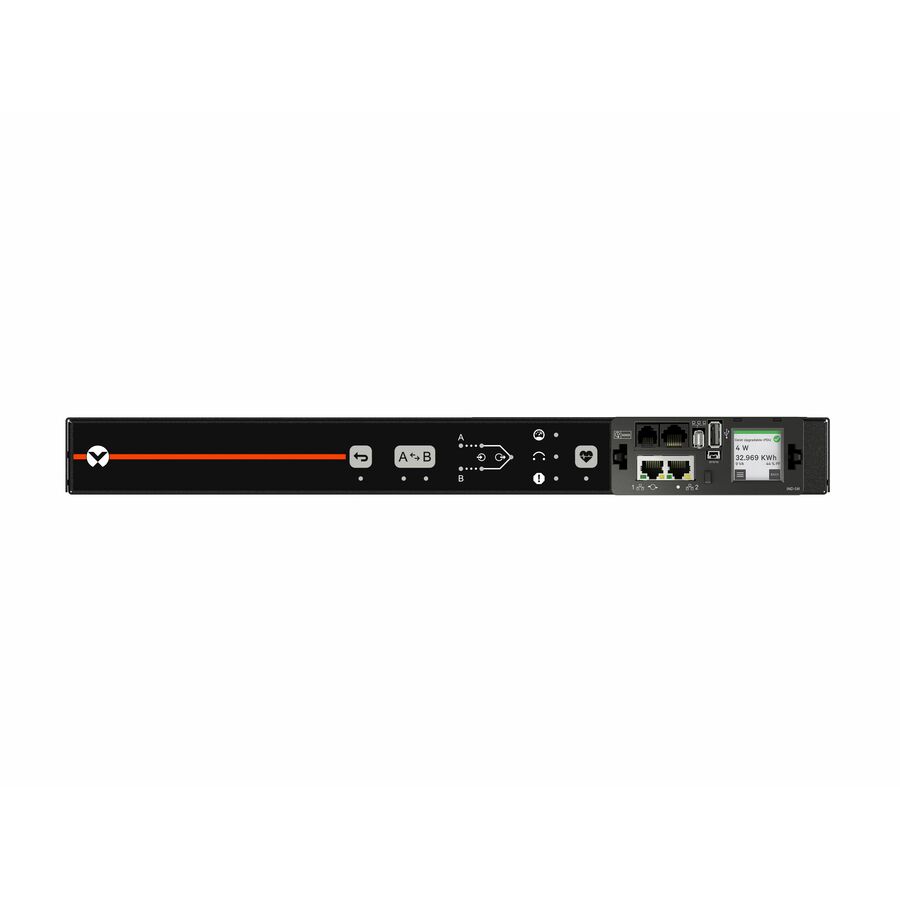

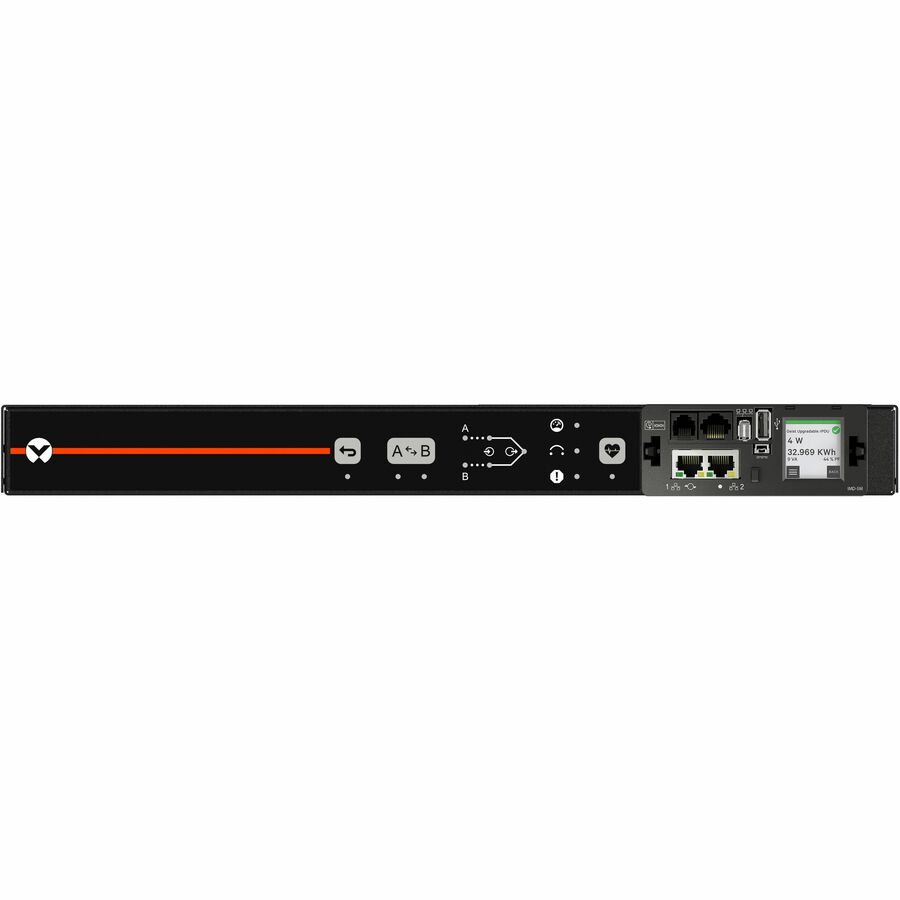

EASY TO USE FRONT PANEL

The RTS has an easy-to-use front panel that provides visual identification of the active power source for easy monitoring. It also allows users to do a manual transfer of the power source. The transfer can be done either by touch of a button or remotely, so users have options on how to manage power loads during maintenance or emergency power loss.

OUTLET FLEXIBILITY

Select models in the Vertiv Geist RTS product line are equipped with the Combination Outlets C13/C19. These hybrid outlets function as both a C13 and C19 receptacle. The outlets accommodate both C14 and C20 plug types interchangeably, providing you the flexibility to support common critical IT equipment using just a single rack PDU.

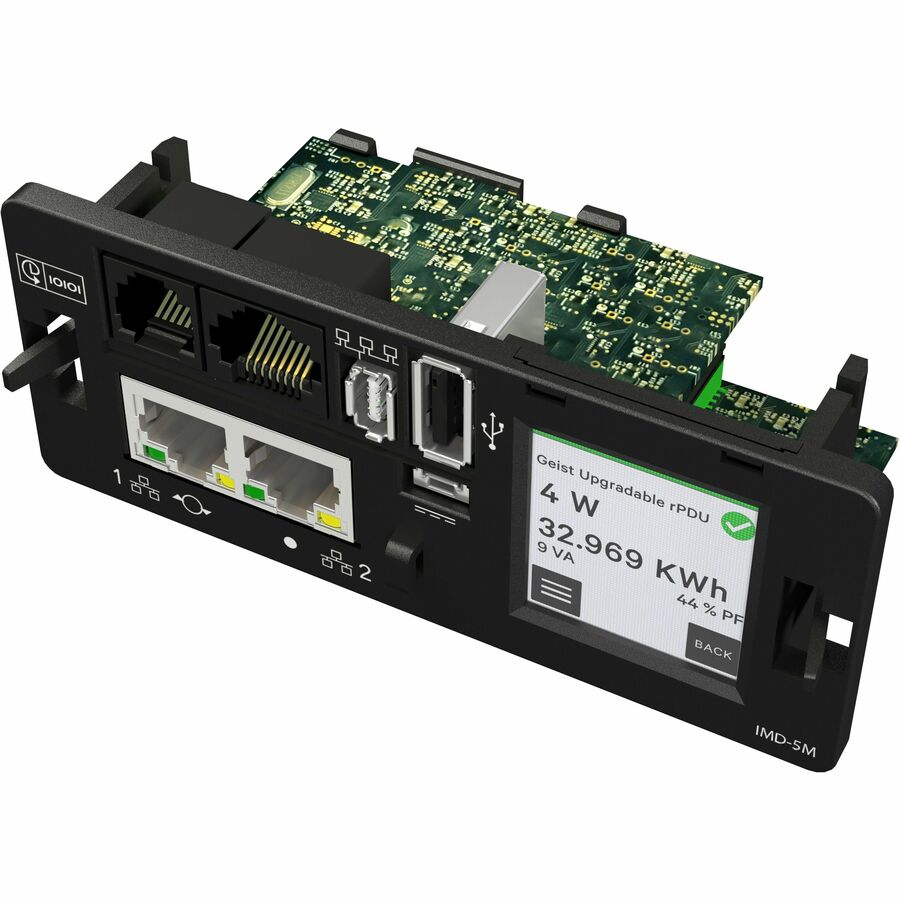

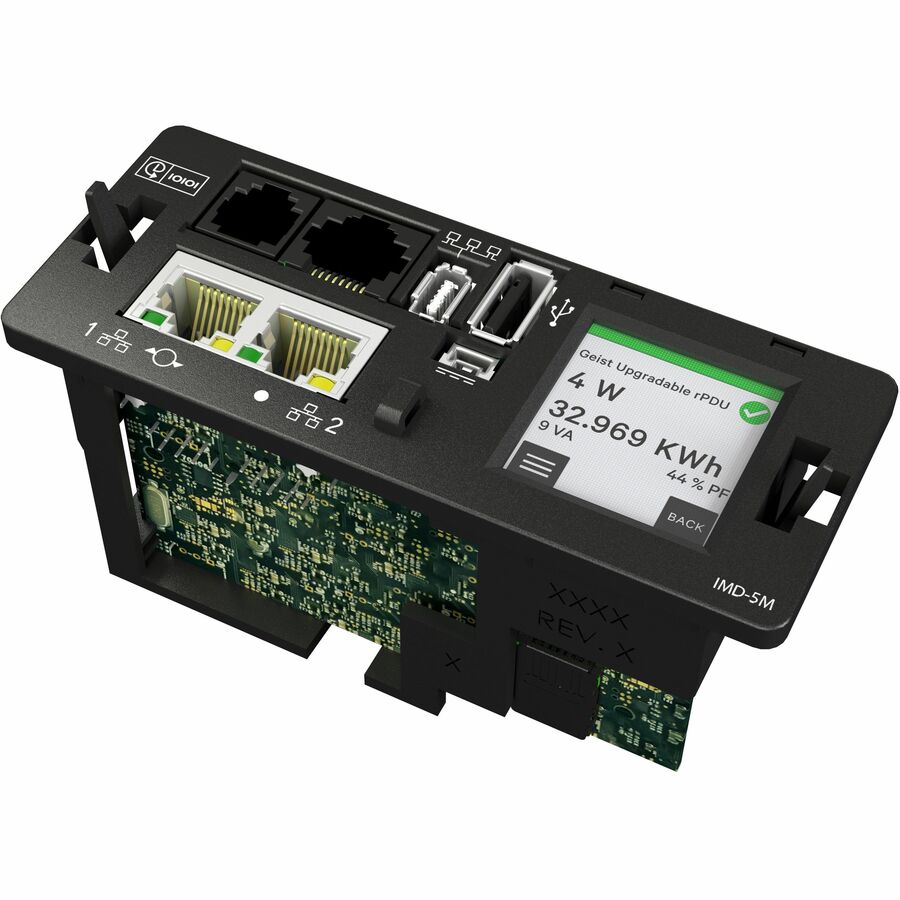

NEXT GENERATION IMD

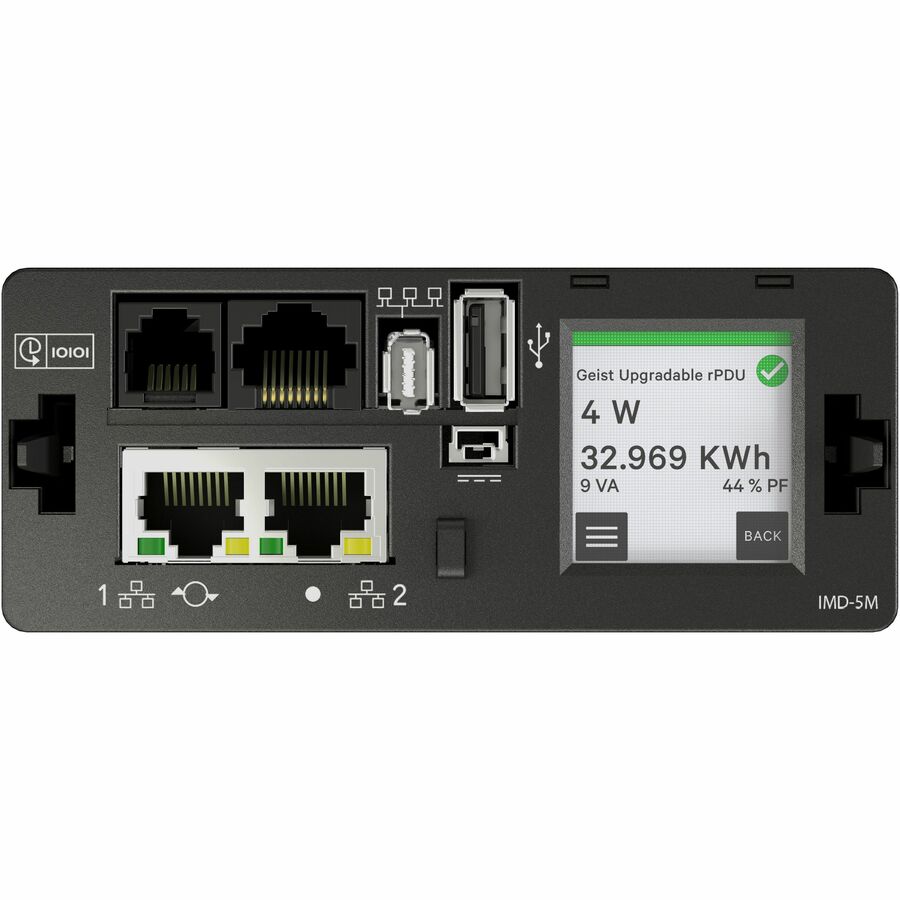

Integrated with the Vertiv Geist Next Generation IMD with 128x128 high-visibility LCD that displays power data. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation.

SECURE DATA

The Vertiv Geist Next Generation IMD helps protect your data and operations with enhanced security features with a secured boot that utilizes a hardware-based trust anchor. The integrated redundant power-sharing port connects two IMDs in the rack and provides backup power.

UL-LISTED and TAA-COMPLIANT

All Vertiv Geist RPDUs are individually tested for functionality and reliability. This Vertiv Geist Monitored rPDU is UL-listed, TAA-compliant, and RoHS certified. It helps ensure a smoother selection, procurement, and deployment process for those who are under the federal, state, and local governments. All Vertiv Geist Rack PDUs are backed with a standard three-year warranty that automatically extends to five years if the product is registered within 120 days of purchase.

VA4U11A0

Input: (2) C14 inlets

Outlet: (10) U-Lock C13

Current: 10A/15A

Voltage: 100V-240V

Power Capacity: 1.4kW/2.4kW/2.3kW

VA4N11A0

Input: (2) NEMA 5-15P

Outlet: (10) NEMA 5-15R

Current: 15A

Voltage: 120V

Power Capacity: 1.4kW

VA4N21A0

Input: (2) NEMA 5-20P

Outlet: (10) NEMA 5-20R

Current: 20A

Voltage: 120V

Power Capacity: 1.9kW

VA4N31A0

Input: (2) NEMA L6-30P

Outlet: (1) NEMA L6-30C

Current: 30A

Voltage: 208V

Power Capacity: 4.9kW

Warranty

Additional Warranty Information: 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years Limited Warranty: 5 Year

About Vertiv

Digital Continuity Solutions Vertiv brings together hardware, software, analytics, and ongoing services to ensure a customer’s digital infrastructure and vital applications run continuously, perform optimally, and scale with business needs Vertiv is a U.S. based, publicly-traded (NYSE: VRT), global manufacturer of power, thermal and IT infrastructure products and services. By bringing together hardware, software and on-going services, Vertiv offers solutions that ensure uninterrupted, reliable, safe operations of vital data applications that run continuously and perform-optimally. Vertiv possesses a rare combination of expertise and solutions that ensures connectivity and availability across any and all network facilities, anywhere in the world. Our portfolio includes the most respected brands in the industry including Avocent (networking and remote management), Geist (rack PDUs, monitors, sensors), and Liebert (UPS, power and thermal). Visit Vertiv.com for more information. Our Brands Avocent The power of being there When you need to take control of multiple IT devices across a room or across geographies, you can rely on market-leading Avocent or Cybex keyboard, video, and mouse (KVM) switches and serial consoles to provide easy, single-point access to valuable system data. Since 1981 Avocent has been developing and manufacturing industry-leading KVM switches and serial consoles to deliver easy, single-point access to valuable system data in order to control and simplify management of multiple IT devices. Vertiv’s Avocent solutions have helped over 200,000 customers worldwide by providing faster provisioning, simplified management, reduced mean time to repair, enhanced security, and lower operating costs. Geist Reliable power management Ensuring data center availability and business continuity requires that the last link in the power chain, the rack power distribution unit (rPDU), operates as intended to support dynamic operations in the areas of power, cooling, monitoring, and overall data center infrastructure management (DCIM). Geist designs and manufactures industry-leading technology and software to power, cool, monitor and manage critical data center infrastructure. On-site engineering, reliability, conformance and compliance allow us to design, manufacture, and ship PDUs so they arrive when you need them. Customers have peace of mind knowing Geist’s dedicated compliance and reliability engineering team ensure conformance to global standards for reliability, safety, and accuracy. Liebert Protecting the power and environment of your mission critical electronic systems Your data center and edge computing sites are the core of your business. Intelligent, efficient power and thermal infrastructure are critical to ensuring continuous access to vital applications and data. Liebert power and thermal management systems are designed to protect your IT environment and adapt to your changing needs. Liebert provides global power and thermal management solutions with a portfolio of most efficient and reliable power and cooling technologies in the market. Liebert offers a complete line of energy-efficient and reliable technologies including UPS, racks, rack enclosures, rack cooling, and PDUs. These award-winning technologies offer unmatched efficiency and reliability for mission-critical applications, as well as controls to optimize uptime. Architects of Continuity​ As Architects of Continuity, Vertiv solutions help customers build future-ready digital infrastructures that deliver continuity across large infrastructure (AC power, DC power, energy storage, industrial solutions, thermal) and IT and edge infrastructure (edge systems, IT systems, rack, rack PDU, rack thermal, rack UPS) applications. Customers can choose to work with a trusted Vertiv advisor or order products online via their preferred IT distributors, resellers and marketplaces. To learn more, visit Vertiv.com today!​

Highlights

  • Vertiv Geist Rack Transfer Switch gives backup power to single corded devices in case of power loss
  • VA4N11A0 is a 15A, 120V, rPDU with 1.4kW power capacity and (10) NEMA 5-15R Receptacles
  • Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
  • Helps ensure that data and operations are protected with the enhanced security features
  • Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified

Specifications

Additional Warranty Information5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Product TypePDU
Input Voltage120 V AC
Manufacturer Part NumberVA4N11A0
Limited Warranty5 Year
Weight (Approximate)19 lb
FeaturesLCD Display, Touch Screen Display
Form FactorRack
Input Current15 A
Management
  • DHCP
  • HTTP
  • HTTPS
  • IPv4
  • IPv6
  • LDAP
  • NTP
  • RADIUS
  • RSTP
  • SSH
  • SMTP
  • SNMP (v1/v2c/v3)
  • Modbus TCP/IP
  • Syslog
  • TACACS+
ManufacturerVertiv
Product ModelAN03E1R5-10S153-1ST5ST5A011-D
Product NameGU VA4N11A0 PDU
Mount TypeRack-mountable
Product LineGeist Upgradeable
Product SeriesN
Rack Height1U
Brand NameVertiv Geist
Plug/Connector TypeNEMA 5-15P
Input Voltage Range100 V AC - 120 V AC
Country of OriginUnited States
Cord Length20 ft
Height1.7"
Width17"
Depth18"
PhaseSingle Phase
Receptacle TypeNEMA 5-15R
Environmentally FriendlyYes
Output Voltage Range100 V AC - 120 V AC
Network (RJ-45)Yes
Load Capacity (Watt)1400 W
TAA CompliantYes
PDU TypeMonitored
Remote Outlet SwitchingNo
Mounting OrientationHorizontal
Power Rating (Watt)1400 W
Product ColorBlack
Color FamilyBlack
Receptacle Detail10 x NEMA 5-15R
Plug/Connector Detail2 x NEMA 5-15P
Environmental ComplianceChina Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS)
