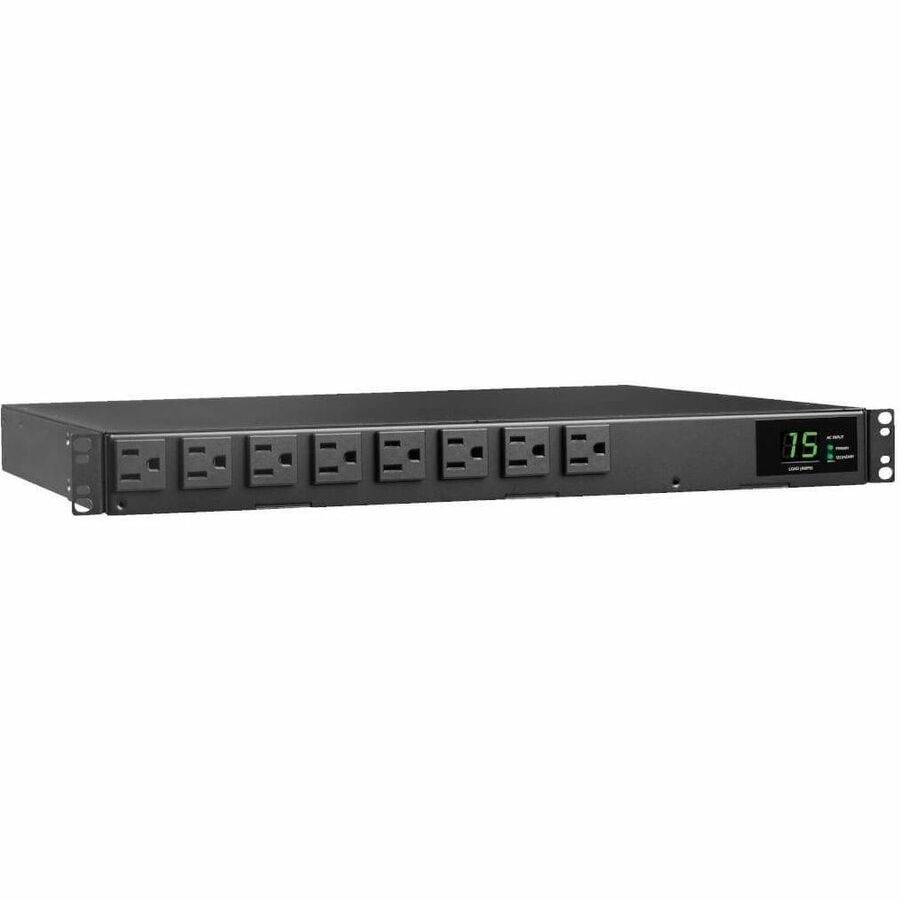

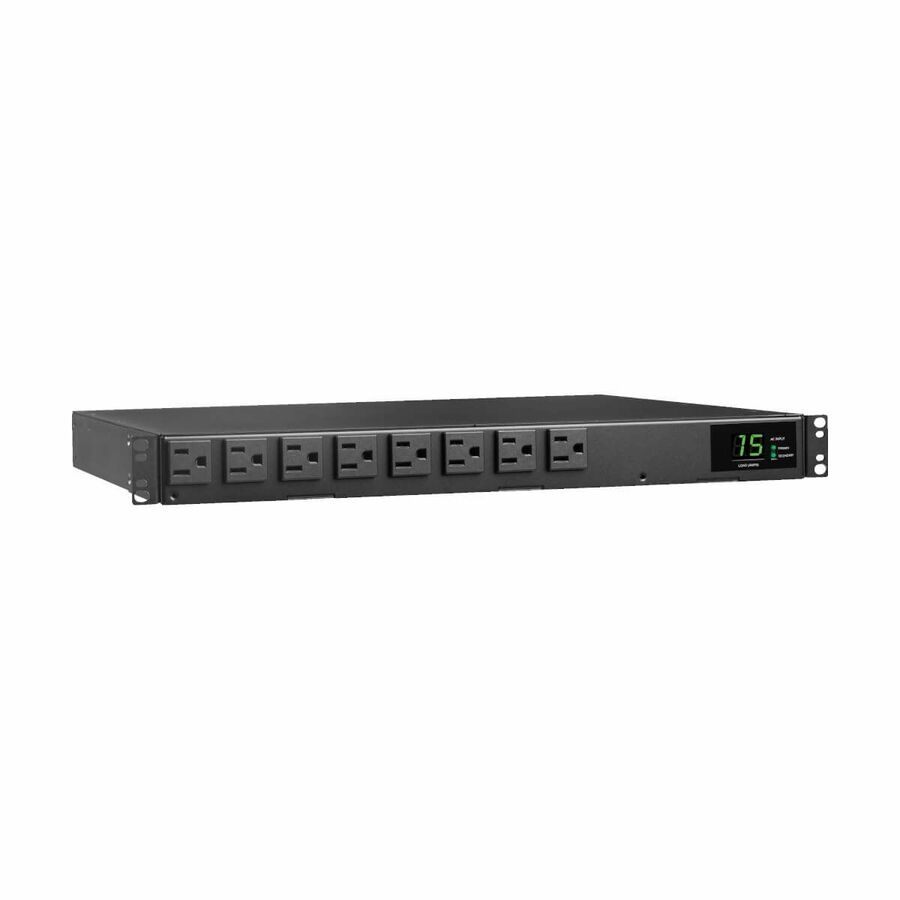

Single-Phase 15A ATS PDU Distributes and Monitors Network-Grade Power in Real Time
This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH15ATS features eight NEMA 5-15R 120V outlets for connecting equipment. Dual 12-foot (3.7-meter) power cords with NEMA 5-15P inputs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources.
Switches from Primary to Secondary Power Source in Milliseconds
Automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2-7 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.
Mounts into 1U of Rack Space or on a Wall

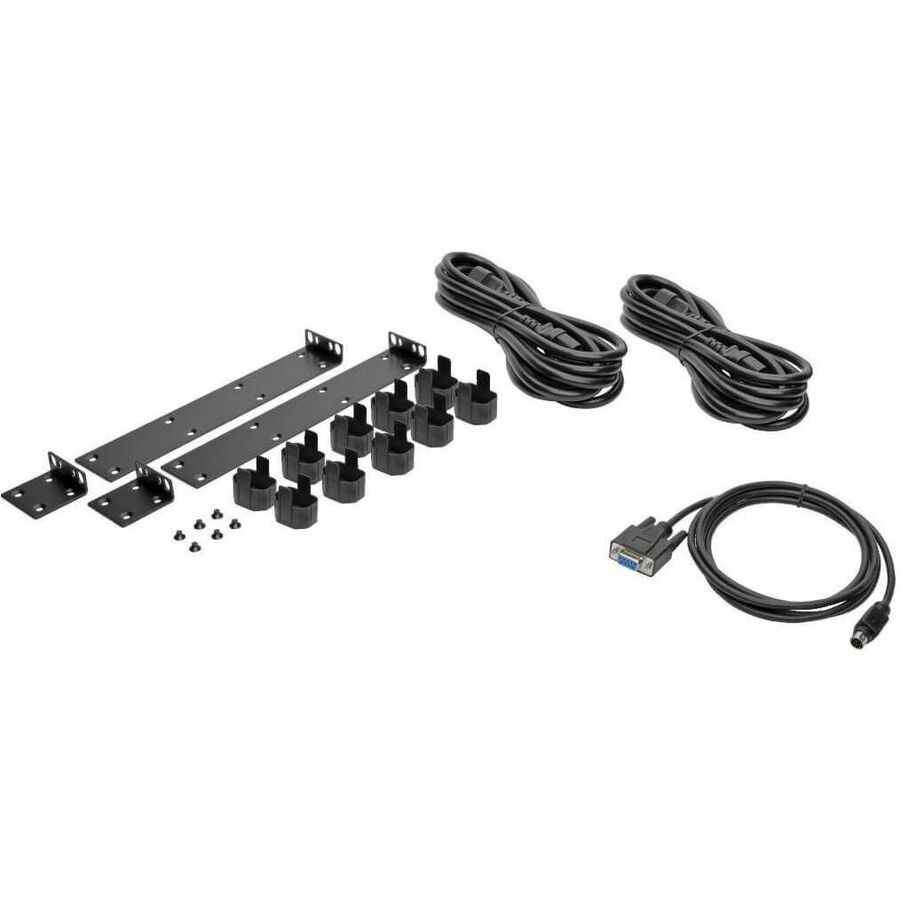

Use the included mounting hardware to install the all-metal housing into 1U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall or under a counter.
TAA-Compliant for GSA Schedule Purchases
The PDUMH15ATS is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Warranty
Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights

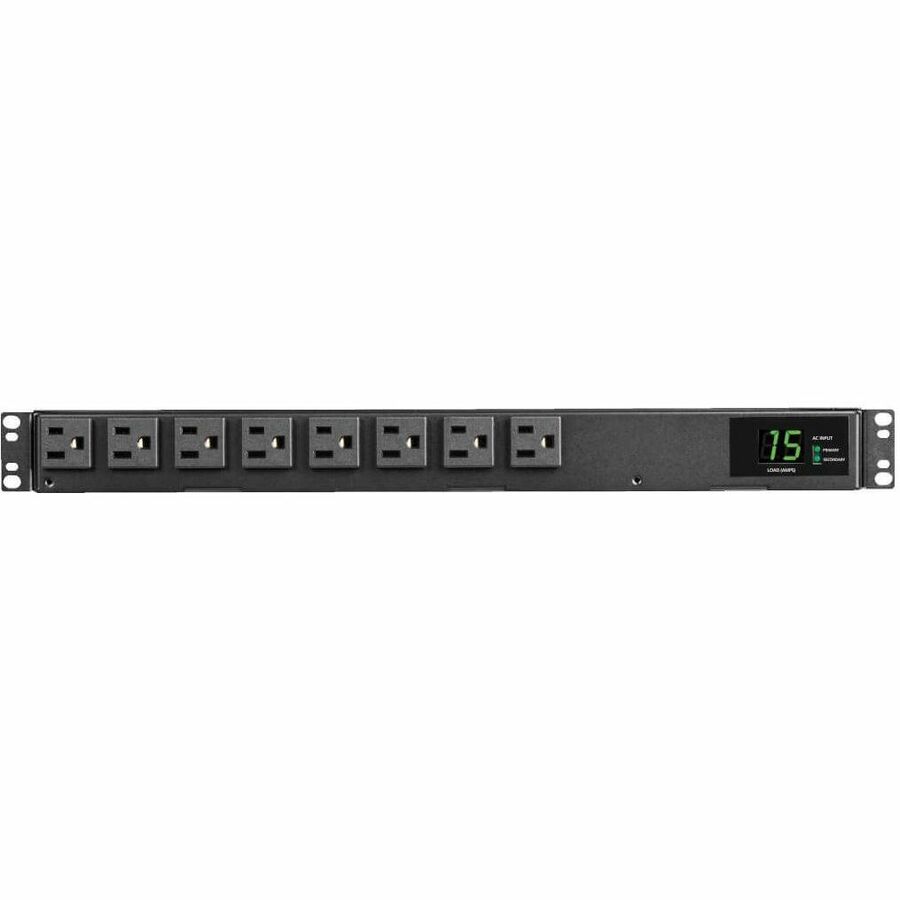

8 NEMA 5-15R 120V outlets distribute AC power to connected equipment
Digital ammeter for on-site real-time load monitoring helps prevent power overloads

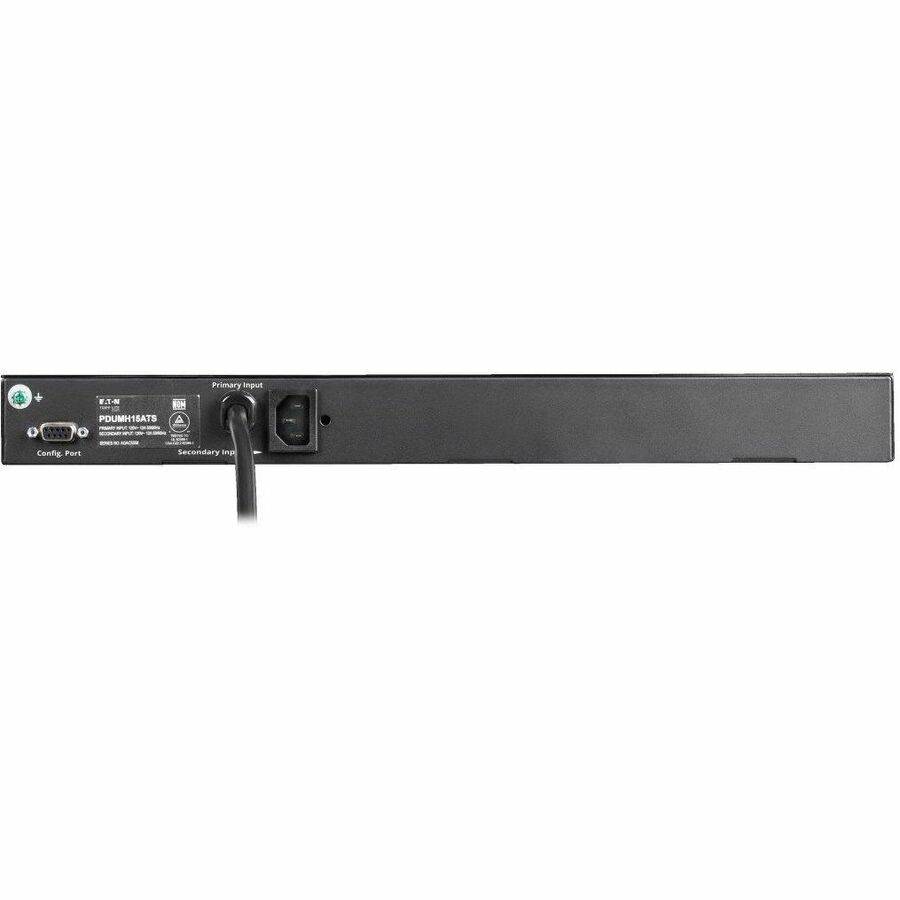

Dual 12 ft. cords with NEMA 5-15P inputs connect to separate power sources
Installs in 1U of space in EIA-standard 19 in. racks using included mounting brackets
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
2-year limited warranty
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
PDUMH15ATS
Brand Name
Tripp Lite series
Product Name
8-Outlets PDU
Product Type
PDU
Physical Characteristics
Mounting Orientation
Horizontal
Mount Type
Rack-mountable, Wall-mountable
Rack Height
1U
Height
1.8"
Width
17.5"
Depth
14.5"
Weight (Approximate)
11 lb
Power Description
Input Voltage
120 V AC
Output Voltage
120 V AC, 127 V AC, 100 V AC
Power Rating (Watt)
1520 W
Input Current
15 A
Technical Information
PDU Type
Metered Auto Transfer Switch
Phase
Single Phase
Plug/Connector Type
NEMA 5-15P
Plug/Connector Detail
2 x NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacle Detail
8 x NEMA 5-15R
Protection Type
Overload Protection
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
8-Outlets PDU
Detachable C13 To NEMA 5-15P Secondary Input Cord, 12 Ft. (3.7 m)
