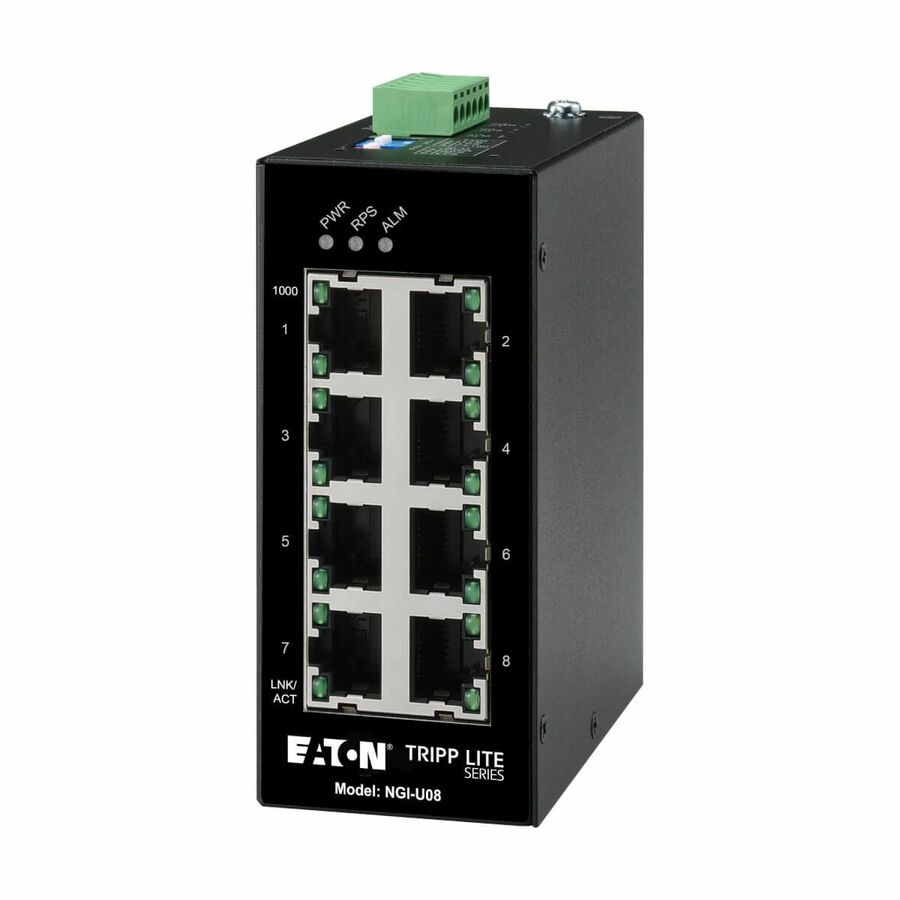

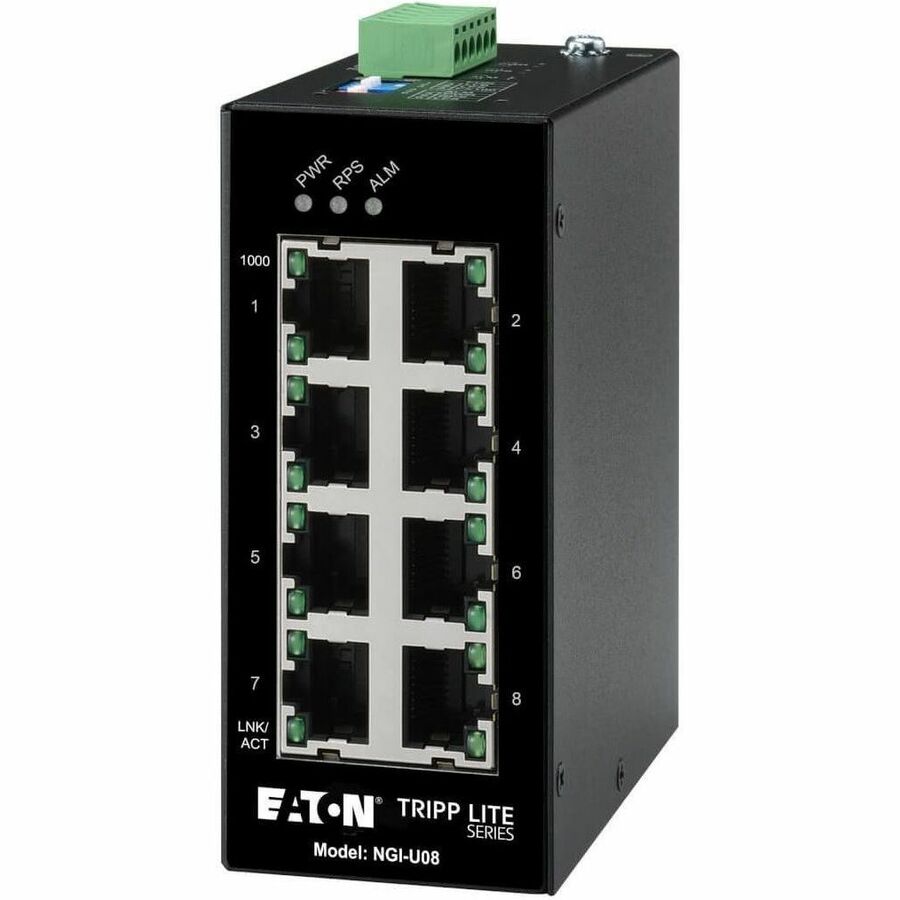

Tripp Lite by Eaton 8-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps DIN Mount
8 Ports - Gigabit Ethernet - 10/100/1000Base-T - TAA Compliant - 2 Layer Supported - 5 W Power Consumption - Twisted Pair - DIN Rail Mountable - 3 Year Limited Warranty
- SKU
- NGI-U08
- Category
- Switches & Bridges
MSRP$349.17
$227.72
Save 35%In stock: 302
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- NGI-U08
- Category
- Switches & Bridges
Overview
8-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.
Rugged Metal Housing Built to Last in Harsh Environments
The compact NGI-U08 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U08 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. DIP switch supports an alarm relay output function in which you can connect an alarm light or buzzer.
Pre-Installed DIN Rail Clip Allows for Convenient Installation

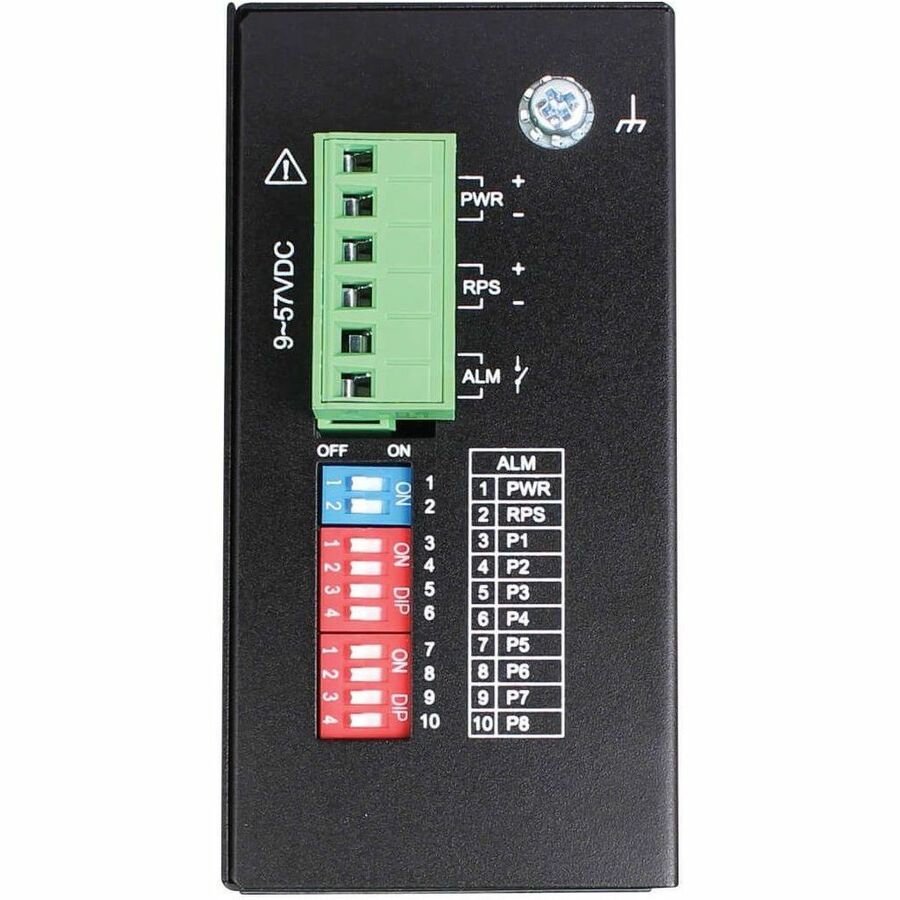

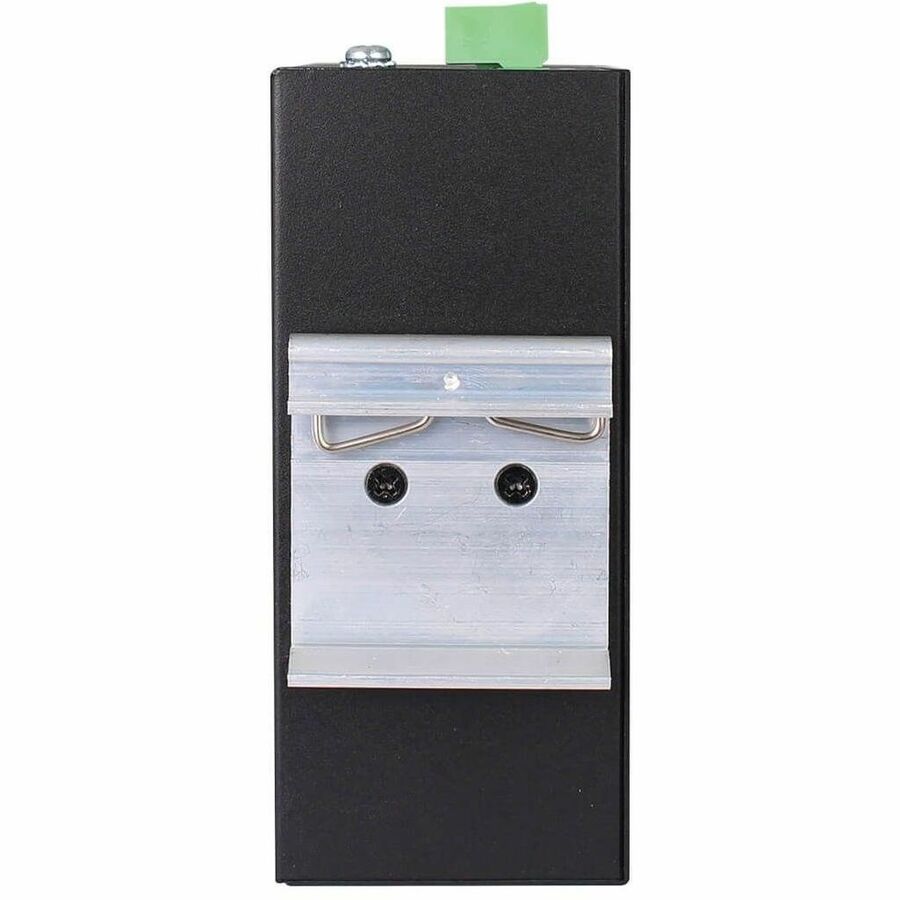

The switch may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 9-57 DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs. Device power must be supplied by LPS (Limited Power Source) circuit.
TAA-Compliant for GSA Schedule Purchases
The NGI-U08 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Effectively increases available bandwidth on your network
- Features 8 networking ports to easily establish a local network or expand your existing one
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- DIN Rail Mountable form factor allows hassle-free and easy usage with increased efficiency
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Manufacturer Part Number | NGI-U08 |
| Limited Warranty | 3 Year |
| Layer Supported | 2 |
| Weight (Approximate) | 1.10 lb |
| Form Factor | DIN Rail Mountable |
| Manufacturer | Eaton Corporation |
| Product Model | NGI-U08 |
| Product Name | NGI-U08 Ethernet Switch |
| Network Technology | 10/100/1000Base-T |
| Power Consumption | 5 W |
| Brand Name | Tripp Lite series |
| Country of Origin | Taiwan |
| Height | 3.9" |
| Width | 2" |
| Depth | 4.6" |
| Manageable | No |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| TAA Compliant | Yes |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Product Material | Metal |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
