Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
NFI-U04-SPE
Category
Switches & Bridges
Overview

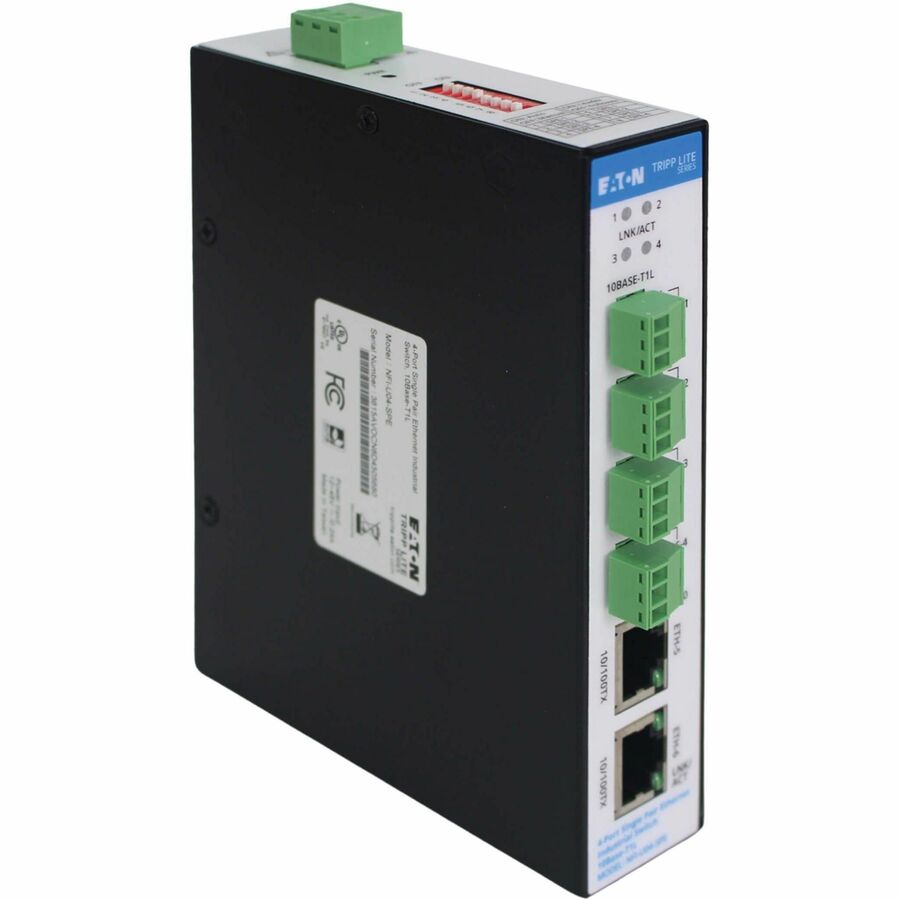

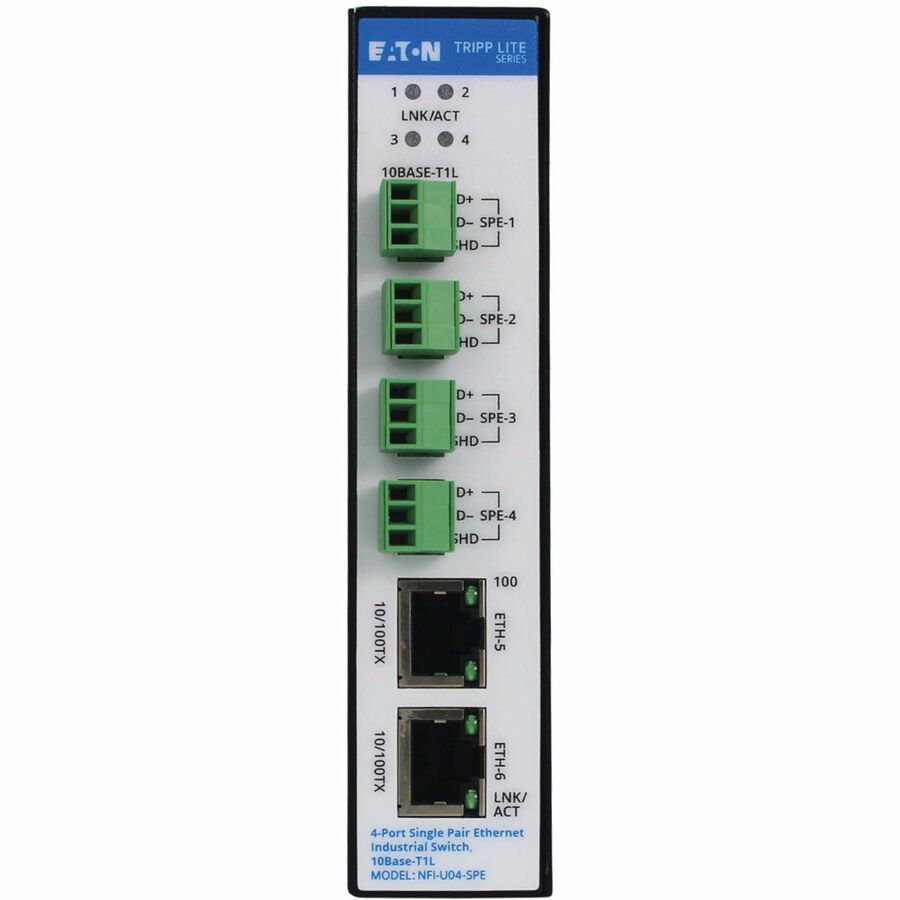

4-Port Single-Pair Ethernet (SPE) Industrial Switch - 10BASE-T1L, 10 Mbps, 1000 m, RJ45/Phoenix, -40° to 75°C, DC Power, TAA
• 10BASE-T1L ports bridge SPE field devices to broader industrial networks
• Dual 10/100BASE-TX uplink ports allow for flexible network integration
• Industrial-grade metal housing with wide -40°C to 75°C operating range

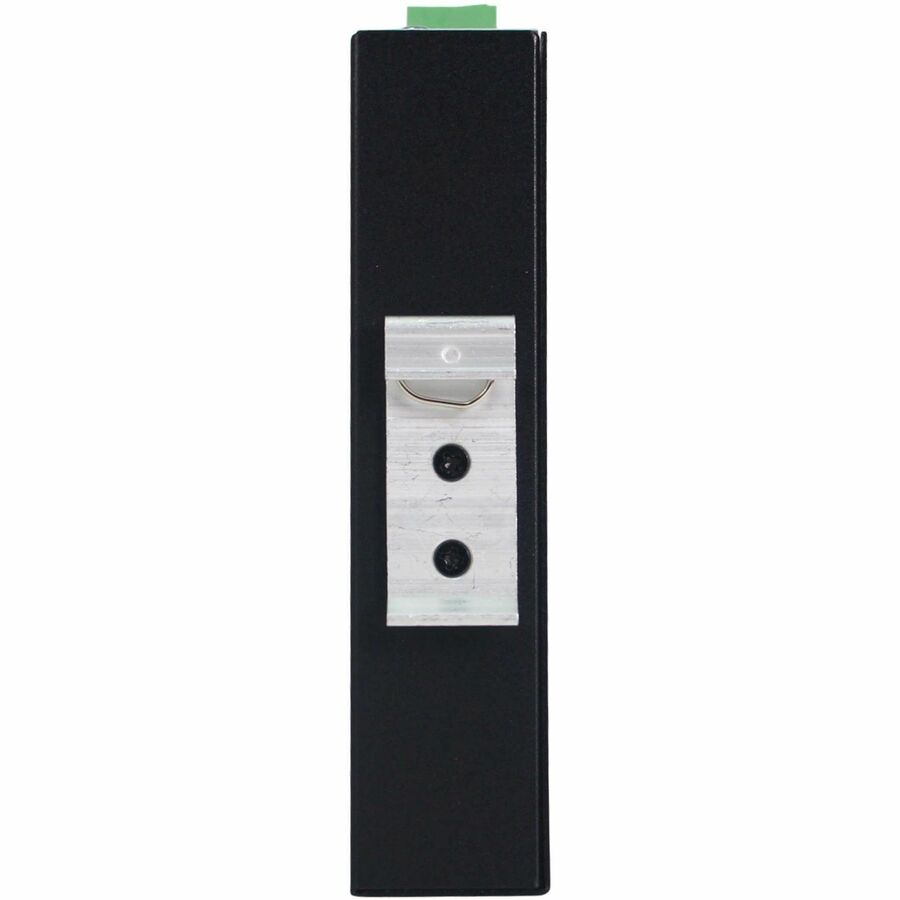

• DIN-rail or wall-mountable design for industrial control cabinets and edge deployments
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Ethernet Switch supports increased network bandwidth availability through data switching
Cascade connections to other network devices through the uplink port to extend a local area network topology
Create a local wired network and connect compatible devices using 4 ports to support basic communication needs
Layer 2 switching supports defined functions including IGMP snooping, port mirroring, and spanning tree operation
DIN Rail Mountable form factor supports structural consistency based on defined hardware construction
Unmanaged design enables immediate wired network expansion through fixed configuration without manual intervention
Fast Ethernet technology supports extending network connections across defined work areas
Twisted pair cable support enables cost?efficient network connections for data transmission across distances
Available in black color to align with the visual requirements of the environment
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
NFI-U04-SPE
Brand Name
Tripp Lite series
Product Model
NFI-U04-SPE
Product Name
NFI-U04-SPE Ethernet Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
4
Network (RJ-45)
Yes
Uplink Port
Yes
Port/Expansion Slot Details
4 x Gigabit Ethernet Network
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Fast Ethernet
Network Technology
10/100Base-TX
Maximum Data Transfer Rate
12.50 MB/s
Network & Communication
Layer Supported
2
Physical Characteristics
Product Color
Black
Product Material
Metal
Form Factor
DIN Rail Mountable, Desktop
Height
3.9"
Width
2"
Depth
4.6"
Weight (Approximate)
15.52 oz
Power Description

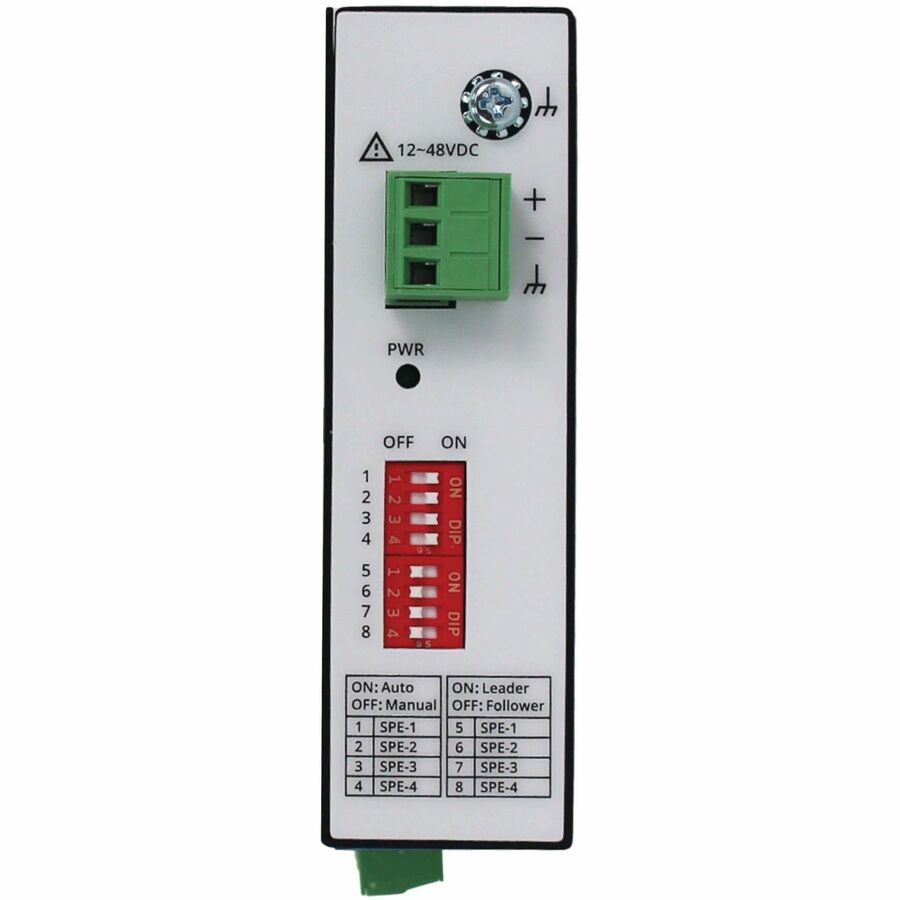

Input Voltage
12 V, 48 V
Power Consumption
4 W
Technical Information
Features
LED Indicator
Miscellaneous
Package Contents
NFI-U04-SPE Ethernet Switch
DIN-rail Mounting Kit
2 x RJ45 Rubber Inserts
User Documentation
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
