Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 27 and Dec 1, then process your delivery right after.
Genuine Allied Telesis through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Switches & Bridges
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

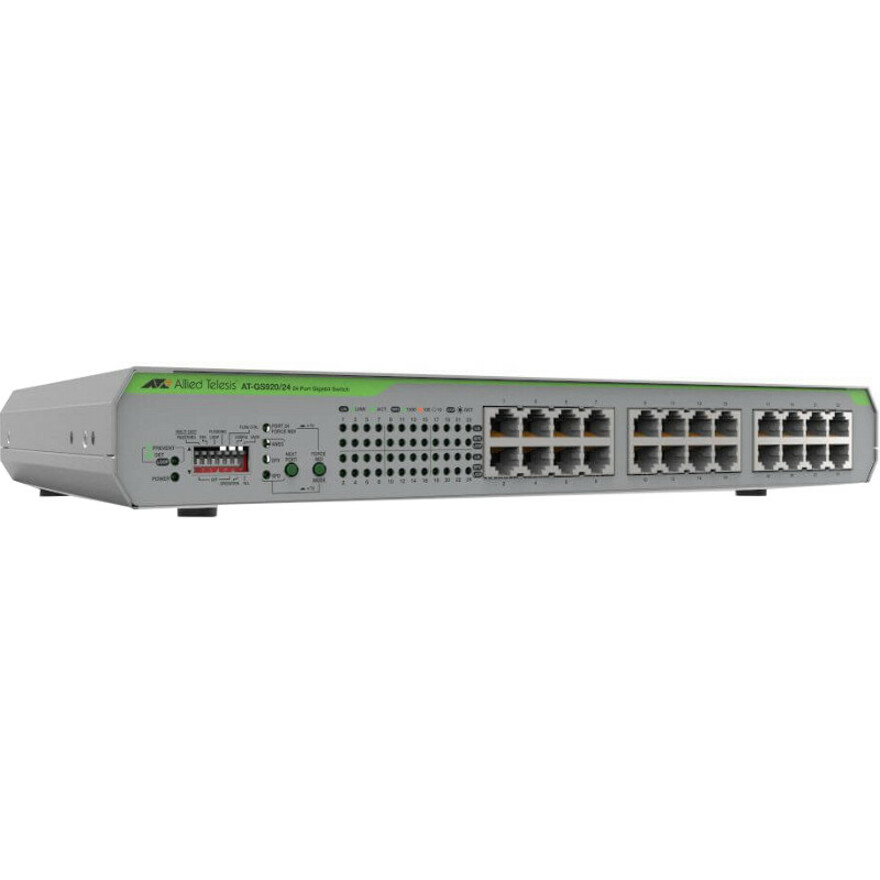

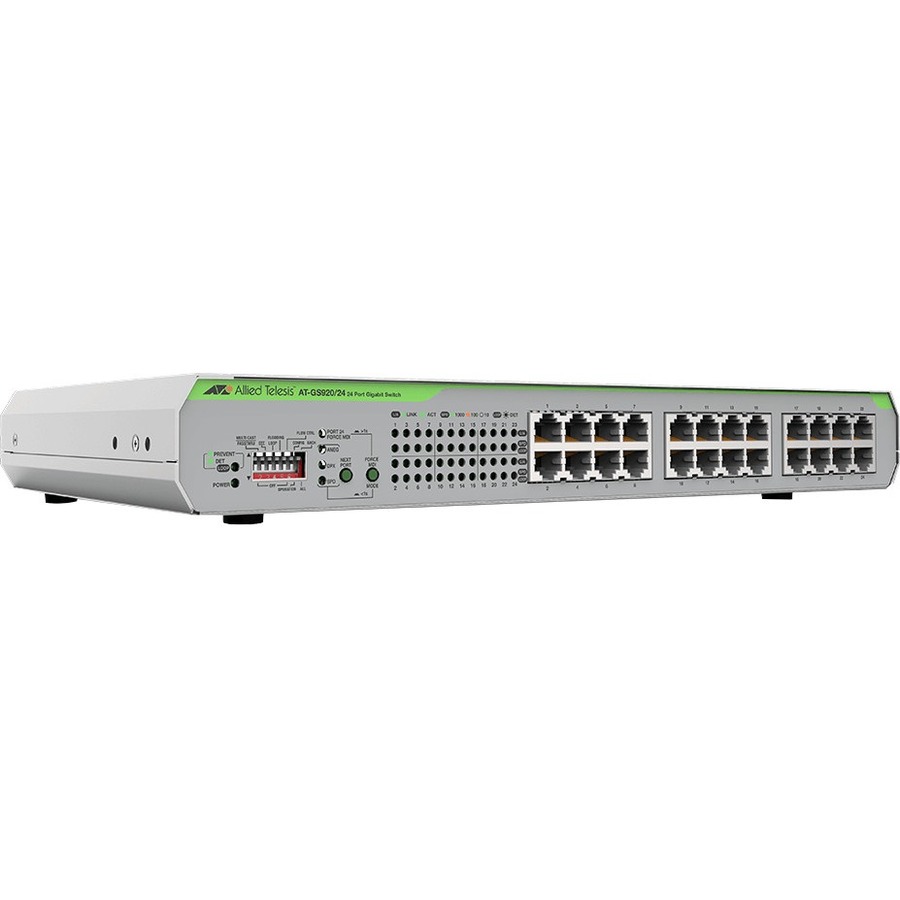

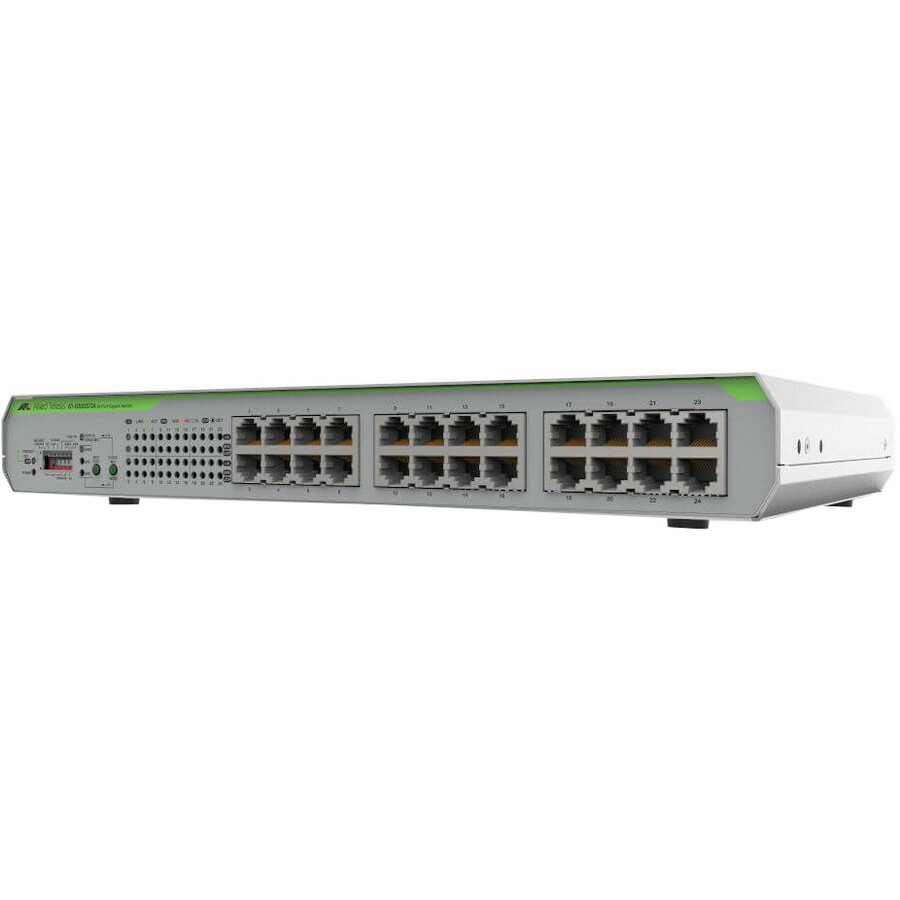

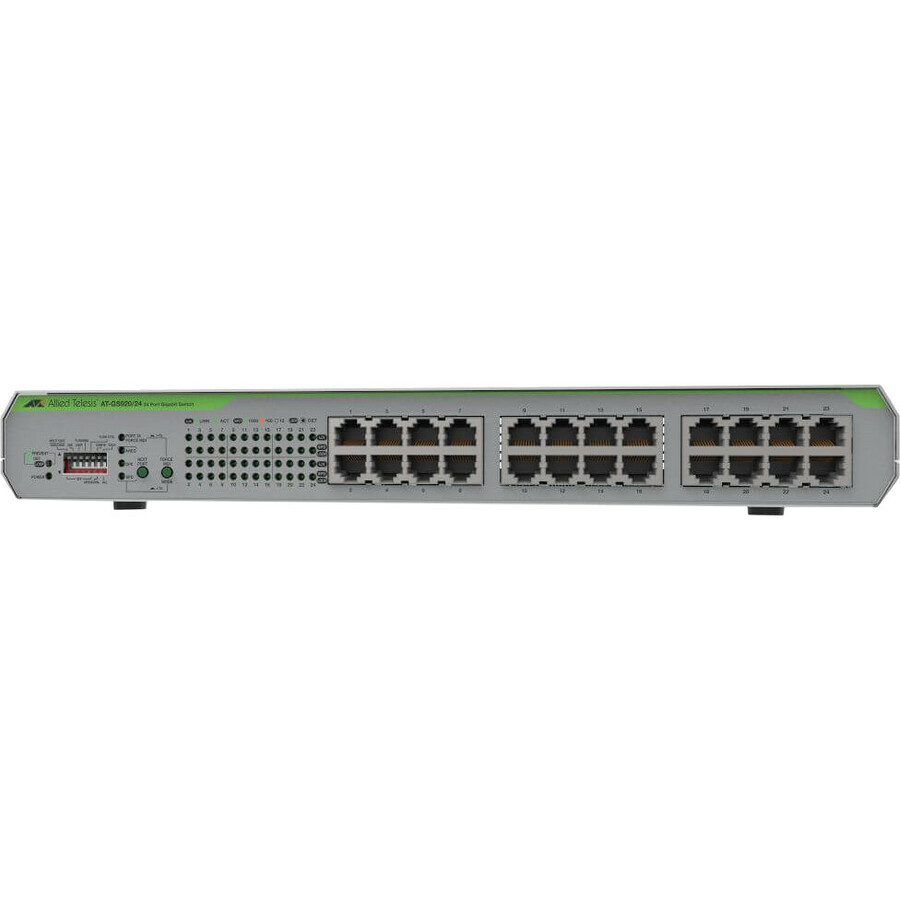

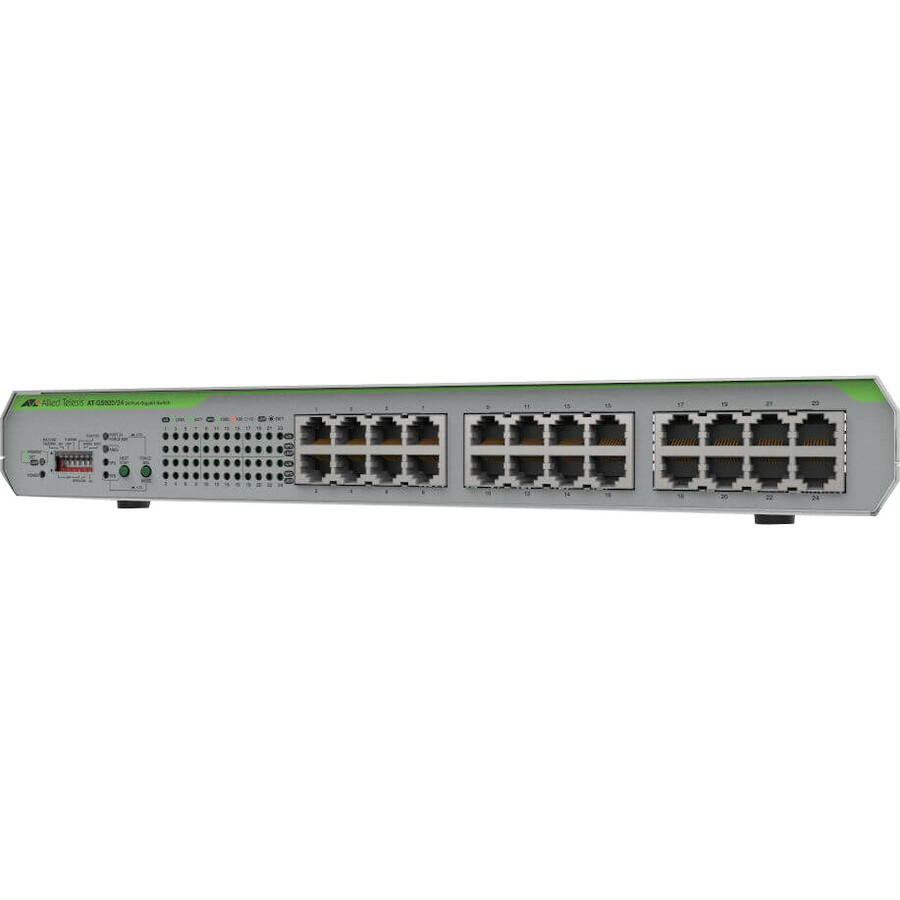

The Allied Telesis GS920/24 is a 24-port 10/100/1000T unmanaged DIP switch with internal PSU, offering secure, unmanaged Gigabit switching for the desktop and small networks.
Highlights
DIP switches
Loop Guard (Loop Detection) for avoiding loops at the network edge
Loop Detection Frames are regularly sent, and affected ports are shut down if a loop is discovered.
IEEE802.3az Energy Efficient Ethernet (EEE)
Force MDI avoids incorrect cabling and possible network loops.
EAPOL/BPDU forwarding
Flow control
Speed/Duplex configuration
Flooding mode
Specifications
General Information
Manufacturer
Allied Telesis, Inc
Manufacturer Part Number
AT-GS920/24-10
Brand Name
Allied Telesis
Product Series
GS920
Product Model
GS920/24
Product Name
24-port 10/100/1000T Unmanaged Switch with Internal PSU
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
24
Port/Expansion Slot Details
24 x Gigabit Ethernet Network
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T
Network & Communication
Layer Supported
2
Physical Characteristics
Form Factor
Desktop, Rack-mountable, Wall Mountable
Height
1.7"
Width
13.4"
Depth
8.3"
Weight (Approximate)
4.63 lb
Power Description
Power Source
Power Supply
Redundant Power Supply Supported
No
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
