Overview

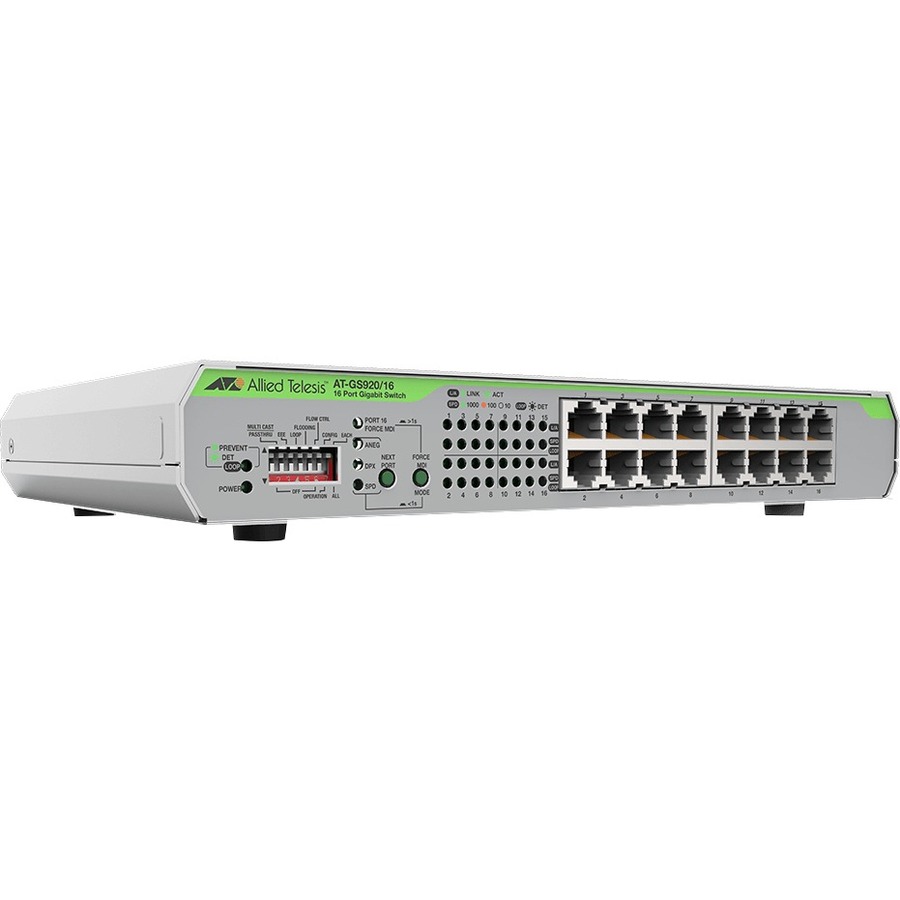

The Allied Telesis GS920 Series offers DIP Smart Gigabit switching solutions for the desktop and small networks. Front-panel DIP switches provide easy configuration of commonly-used features, without the need for a PC.
DIP switches
GS920 series switches provide port configuration for Speed/Duplex, Loop Detection and Flooding mode. The ability to set up the DIP switch without a PC saves money and time.
High performance
The GS920 Series delivers ultra-fast speed and high performance for today's high-bandwidth applications, such as video, graphics and industrial design, using Gigabit Ethernet.
Quality and reliability
Allied Telesis is a world leader in unmanaged Ethernet switches, and ships more than 250,000 unmanaged switches every year. Allied Telesis offers both proven reliability and industry-leading quality.
Speed/duplex configuration
The GS920 Series allows speed and duplex to be set on a per-port basis. This supports older devices where auto-negotiation is not supported, as well as embedded devices which may support a fixed speed/duplex only.
Loop detection
The Loop Detection feature discovers network loops, and shuts down affected ports. After the loop is resolved, affected ports are automatically returned to active use.
Flooding mode
Flooding mode allows the easy capture of data streams for troubleshooting and analysis, as they are sent to all ports.
Highlights
DIP switches
Loop Guard (Loop Detection) for avoiding loops at the network edge.
Loop Detection Frames are regularly sent, and affected ports are shut down if a loop is discovered.
IEEE802.3az Energy Efficient Ethernet (EEE).
Force MDI avoids incorrect cabling and possible network loops.
EAPOL/BPDU forwarding.
Flow control.
Speed/Duplex configuration.
Flooding mode.
Specifications
Product Type
Ethernet Switch
Manufacturer Part Number
AT-GS920/16-10
Power Source
Power Supply
Layer Supported
2
Weight (Approximate)
3.31 lb
Form Factor
Desktop, Rack-mountable, Wall Mountable
Manufacturer
Allied Telesis, Inc
Product Model
GS920/16
Product Name
16-Port 10/100/1000T UnManaged Switch With Internal PSU
Network Technology
10/100/1000Base-T
Product Line
CentreCOM
Product Series
GS920
Brand Name
Allied Telesis
Country of Origin
China
Height
1.5"
Width
10.4"
Depth
7"
Manageable
No
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Media Type Supported
Twisted Pair
Total Number of Network Ports
16
Port/Expansion Slot Details
16 x Gigabit Ethernet Network
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
