HGST Ultrastar Serv24 NAS Storage System
Western Digital

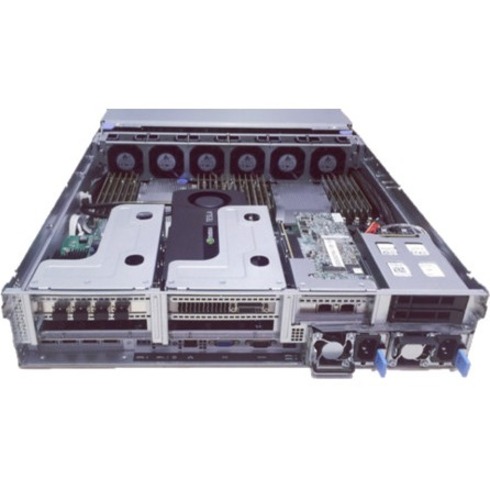

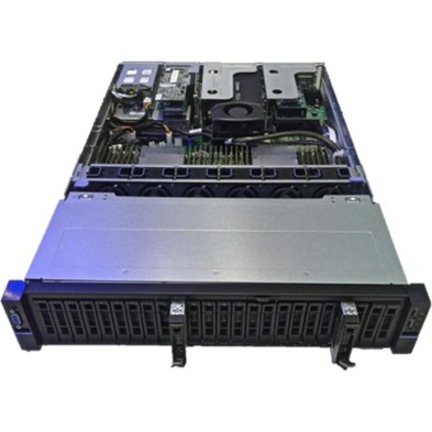

HGST Ultrastar Serv24 NAS Storage System

Intel Xeon Gold 6140 Octadeca-core (18 Core) 2.30 GHz - 24 x SSD Supported - 24 x SSD Installed - 38.40 TB Total Installed SSD Capacity - 2 Boot Drive(s) - 256 GB RAM - 24 x Total Bays - 24 x 2.5" Bay - 3 x Total Slot(s) - 10 Gigabit Ethernet - VGA - 2 USB Port(s) - 2 USB 3.0 Port(s) - Network (RJ-45) - IPMI 2.0 - 2U - Rack-mountable

SKU
1ES1009
Category
Storage Arrays & Servers

$32,267.79

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Western Digital through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
1ES1009
Category
Storage Arrays & Servers

Overview

There is a never-ending need to increase data center performance for storage-intensive applications. The Ultrastar® Serv24 is designed to be a performance-optimized platform for software defined storage (SDS). By integrating CPUs and NVMe? SSDs in the same unit, our storage server provides a tested and validated building block for deploying the SDS stack on high-performance storage.

Designed for Fast Data

Flash technology has revolutionized the performance of storage systems; NVMe technology extends flash storage to its full potential. Built upon our storage expertise, the Ultrastar Serv24 features the latest Intel® Xeon® CPUs. Chipset, core count and CPU power can be customized, providing the flexibility to meet varying requirements depending on data workload and performance requirements. Whether as a stand-alone file server or part of a scale-out deployment, the Ultrastar Serv24 is built to deliver screaming performance in software-defined storage environments. With low latency and consistently high bandwidth, data is accelerated to the speed of flash.

Highlights

  • Up to 184TB in a 2U unit
  • Up to 24 NVMe SSDs with a range of capacities and endurance options
  • High-performance Intel® "Purley"- based server with a choice of CPUs
  • 2 512GB SSD boot drives
  • 256GB DDR4 DRAM
  • 2-port 10GbE included
  • 1-port 1GbE for system management
  • 2 PCIe x16 slots available for add-in cards
  • Enterprise-grade redundant and hot-swappable PSUs and fan

Specifications

Product TypeNAS Storage System
Manufacturer Part Number1ES1009
ProtocolsIPMI 2.0
Limited Warranty5 Year
Standard Memory256 GB
Weight (Approximate)54.90 lb
Form FactorRack-mountable
ManufacturerWestern Digital Corporation
Product NameUltrastar Serv24 NAS Storage System
Processor Speed2.30 GHz
Processor TypeXeon Gold
Product LineUltrastar Serv24
Rack Height2U
Brand NameHGST
Expansion Slot TypePCI Express x16, PCI Express x8
Processor Model6140
Height3.4"
Width17.6"
Depth29.9"
Processor CoreOctadeca-core (18 Core)
Processor ManufacturerIntel
Ethernet Technology10 Gigabit Ethernet
Number of Total Expansion Bays24
VGAYes
Network (RJ-45)Yes
Maximum Power Supply Wattage1200 W
Total Number of USB Ports2
Number of USB 3.0 Ports2
Total Solid State Drive Capacity Installed38.40 TB
Number of Solid State Drive Supported24
Number of Solid State Drive Installed24
Number of 2.5" Bays24
Total Number of Expansion Slots3
Number of Boot Drives2
