SKU
Category
Switches & Bridges
Overview

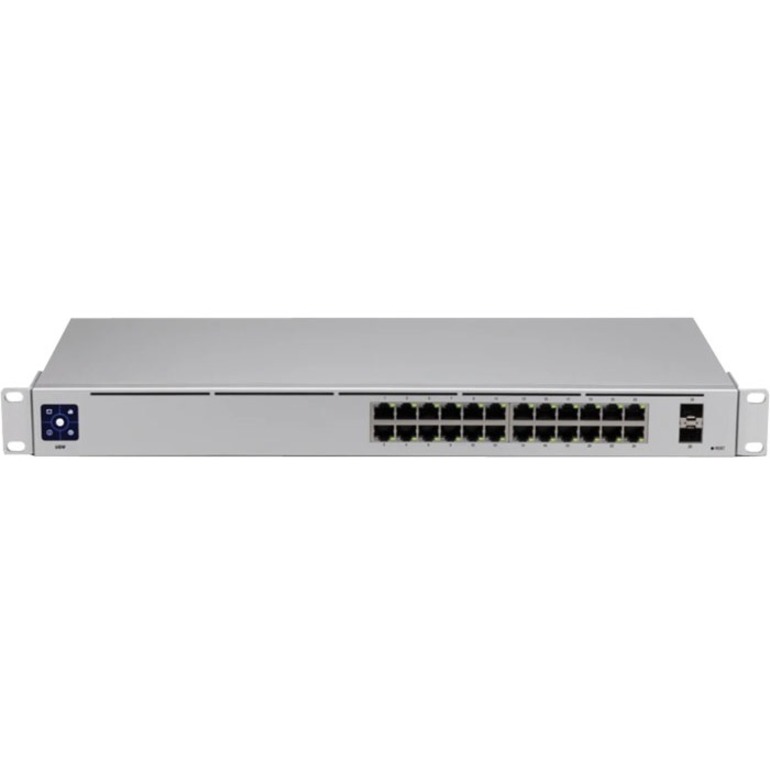

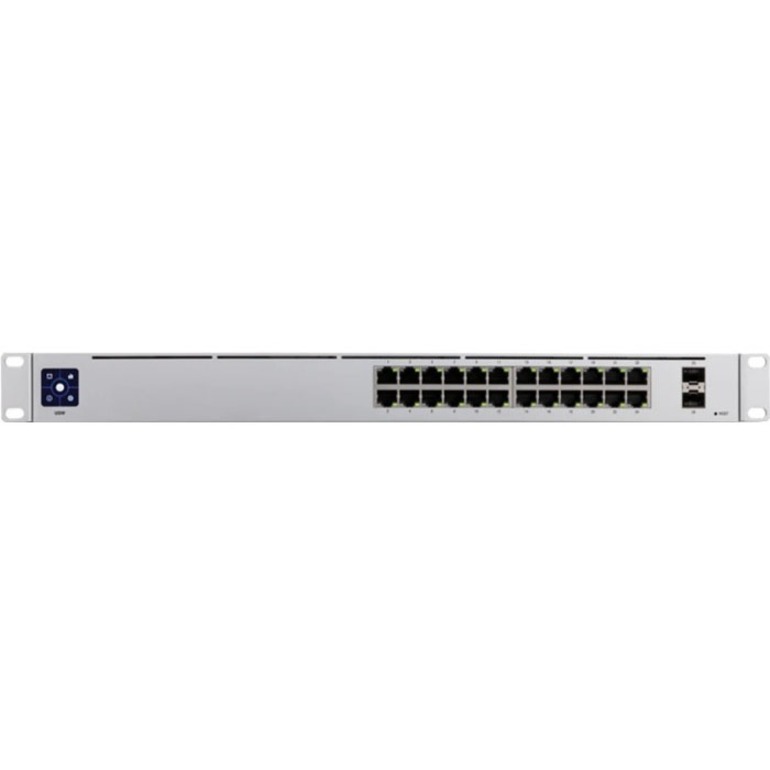

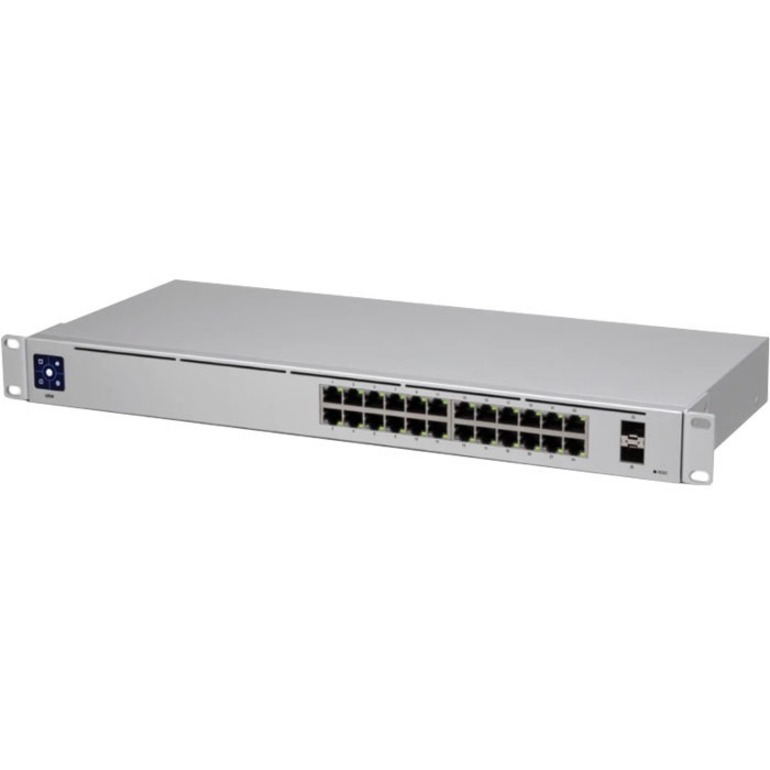

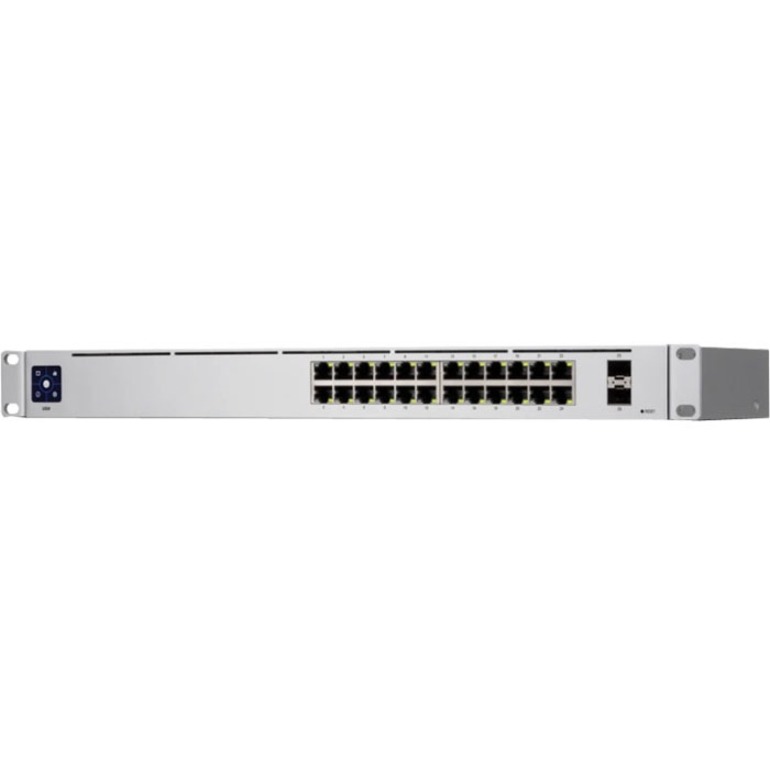

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Application with UniFi Network mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.
Features:
• (24) Gigabit Ethernet Ports
• (2) Gigabit SFP Ports
• 1.3" color touchscreen for status information
• Managed by UniFi Network Application
• 1U rackmountable (kit included)
Managed by UniFi Network Application version: 5.12.32 or higher
More from the Manufacturer
Standard 24
USW-24
A 24-port, Layer 2 switch with a silent, fanless cooling system.
Features
Effectively reduces downtime with improved network performance
Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
Quickly and easily set up a wired network with 24 networking ports
Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
Rack-mountable form factor for your convenience and simplicity of usage
Management capability provides control over setup and configuration of your network
Gigabit Ethernet port for ultra-fast network speeds
Twisted Pair media support for efficient and reliable connectivity
Warranty
Limited Warranty: 1 Year
Highlights
Ethernet Switch supports network continuity by maintaining data transmission during operation
Features 24 networking ports to support the connection requirements of larger workgroups using wired infrastructure
Gigabit Ethernet supports higher uplink data rates compared to standard Ethernet server connections
Layer 2 switching supports defined functions including IGMP snooping, port mirroring, and spanning tree operation
Rack?mountable design supports installation within standard equipment racks to accommodate organized hardware placement
Management capability enables control over network setup and configuration according to operational requirements
Twisted pair cable support enables cost?efficient network connections for data transmission across distances
Built?in power supply supports internal components by providing required operating voltage
Allows connection between standard Ethernet ports to support network extension without changing existing cabling
Specifications
General Information
Manufacturer
Ubiquiti Inc.
Manufacturer Part Number
USW-24
Brand Name
Ubiquiti
Product Line
UniFi
Product Model
USW-24
Product Name
UniFi Switch 24
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
24
Uplink Port
Yes
Modular
Yes
Port/Expansion Slot Details
24 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot
Management & Protocols
Manageable
Yes
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Ethernet Technology
Gigabit Ethernet
Network Technology
1000Base-T, 1000Base-X
Network & Communication
Layer Supported
2
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Height
1.7"
Width
17.4"
Depth
7.9"
Weight (Approximate)
5.95 lb
Power Description
Power Source
Power Supply
Power Consumption
25 W
Warranty
Limited Warranty
1 Year
I/O Expansions
Total Number of Expansion Slots
2.0
Expansion Slot Type
SFP (mini-GBIC)
Shared SFP Slot
No
Number of SFP Slots
2
Miscellaneous
Package Contents
UniFi Switch 24
Rackmount Kit
Environmentally Friendly
Yes
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE)
