Genuine Rocstor through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
Y10S006-B1
Category
Switches & Bridges
Overview

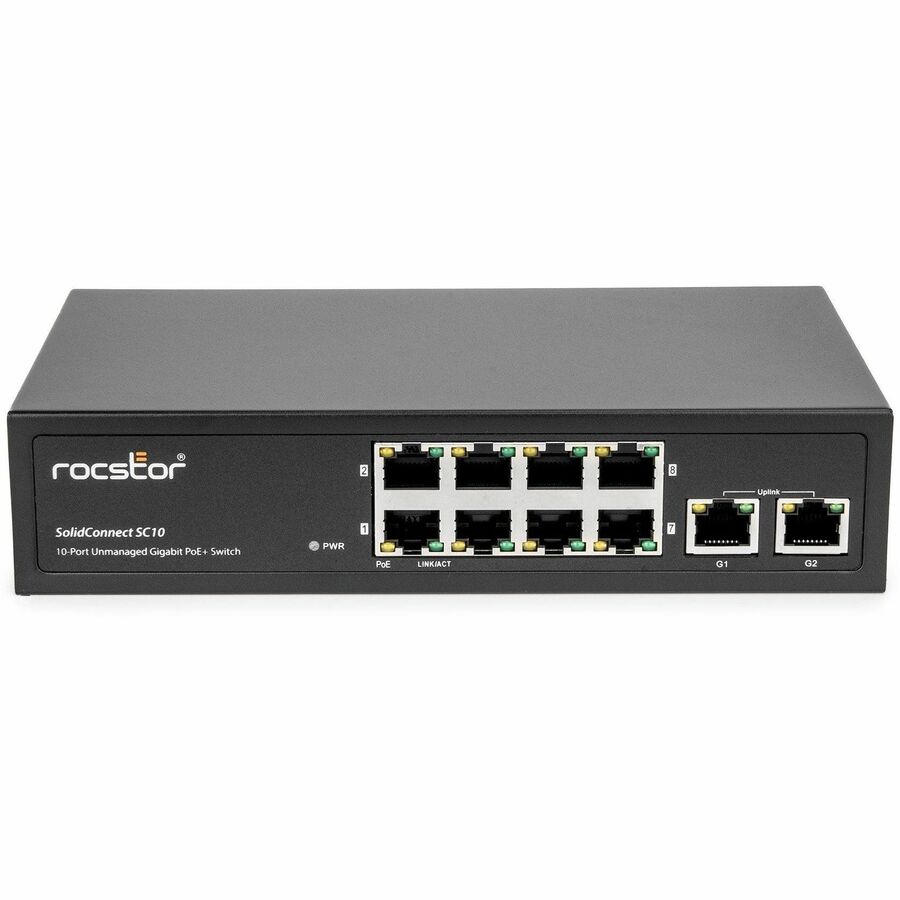

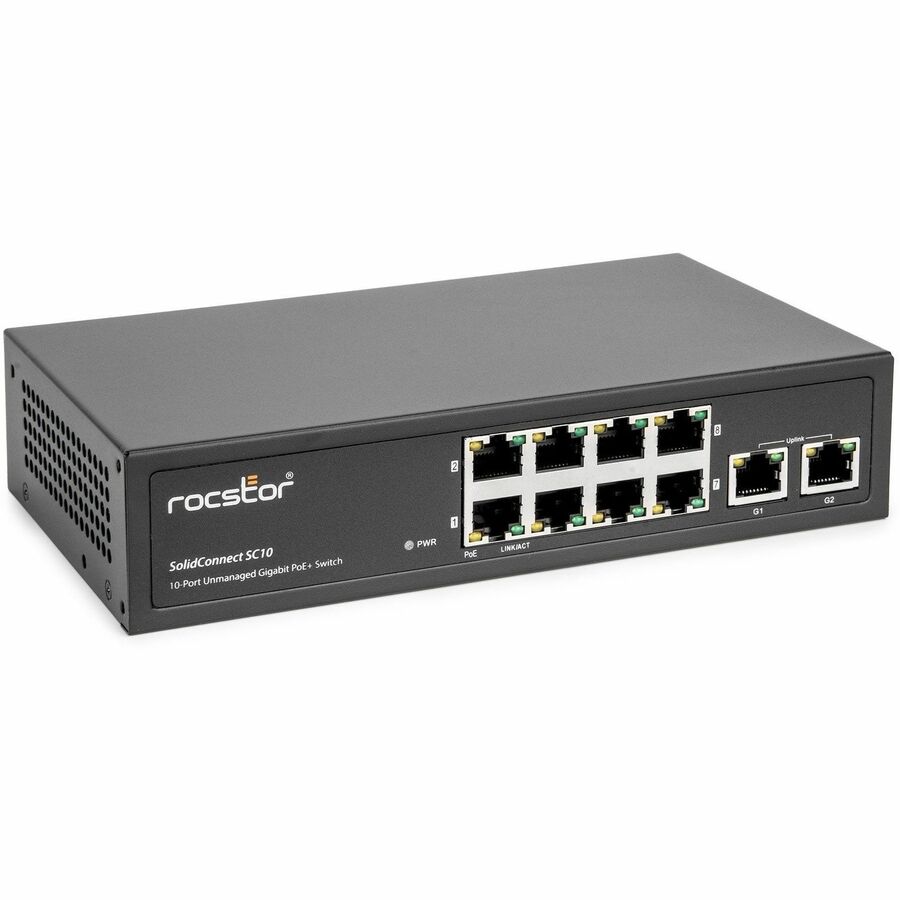

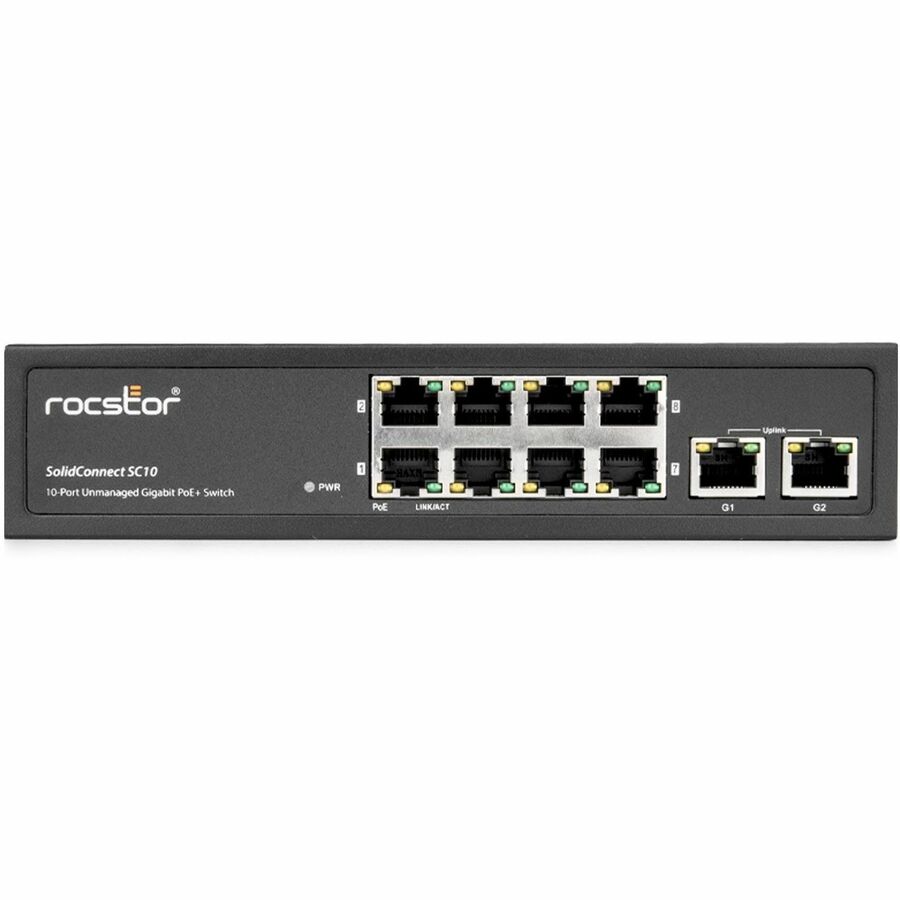

The Rocstor SolidConnect SC10 stands as a powerful solution in the realm of networking, specifically crafted for efficient Power over Ethernet (PoE) distribution. This unmanaged 8 PoE+ Gigabit Ethernet Switch offers not only robust power capabilities but also remarkable versatility in deployment. Supporting desktop, rackmount, and wall mount configurations, it adapts seamlessly to various networking scenarios. With a total of 8 x 10/100/1000 RJ-45 ports, including 2-Port Gigabit Ethernet UPLINK ports, the SC10 provides a comprehensive networking platform. Each PoE+ port is capable of delivering up to 30W, with an impressive total power budget of 120W, ensuring a reliable power source for high-demand applications such as security cameras and access points. Additionally, the switch integrates advanced security monitoring features, delivering fast packet forwarding capability and gigabit transfer rates for clear images and smooth data transmission. The SolidConnect SC10 is a reliable and comprehensive networking solution suitable for diverse professional environments.
The Rocstor SolidConnect SC10 combines versatility, power, and durability, making it an ideal choice for professional networking environments. Its compliance with industry standards, coupled with advanced features and robust design, positions it as a dependable solution for businesses and organizations with diverse networking needs. The product's UL certifications, TAA compliance, and Rocstor's 5-year warranty with lifetime technical support further reinforce its reliability and long-term viability.
Highlights
IEEE Standards Compliance:
Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3af, and IEEE802.3at standards, ensuring seamless integration with existing setups.
Versatile Ports:
Equipped with 10 10/100/1000Base-T ports, providing a diverse range of connectivity options.
PoE Support:
Provides 8 PoE injectors and a 120W built-in power supply, delivering reliable power to PoE devices.
High Backplane Bandwidth:
Boasts a substantial backplane bandwidth of 20Gbps, ensuring smooth data flow for bandwidth-intensive applications.
Flow Control:
Implements IEEE802.3x flow control to optimize data transmission, enhancing network efficiency.
Rugged Design:
Encased in a rugged metal enclosure, the SC10 ensures durability and resilience in challenging conditions.
UL Certified:
The switch has UL certifications, attesting to its reliable and safe performance.
Internal Power Supply:
With an internal power supply, the SC10 maintains a streamlined and efficient design.
TAA Compliant:
Adheres to TAA standards, making it suitable for deployment in government entities.
Specifications

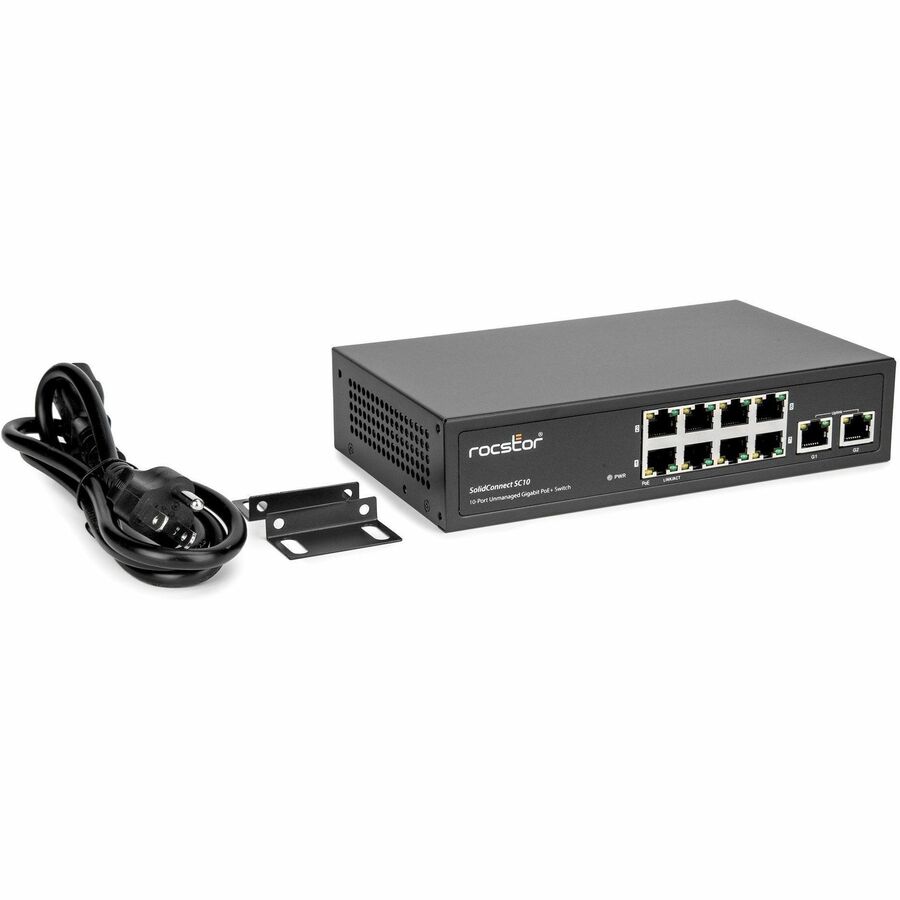

Package Contents
10-Port Gigabit Desktop Switch with 8-Port PoE+, 2x Gigabit RJ45 Uplink Port
Power Adapter
Installation Guide
Product Type
Ethernet Switch
Input Voltage
120 V AC, 230 V AC
Manufacturer Part Number
Y10S006-B1
Packaged Quantity
1
Power Source
Power Supply, AC, PoE+
Limited Warranty
5 Year
Layer Supported
2
Weight (Approximate)
2.63 lb
Form Factor
Desktop, Rack-mountable, Wall Mountable
Length
7.9"
Manufacturer
Rocstor
Product Model
SC10
Product Name
10-Port Gigabit Desktop Switch with 8-Port PoE+, 2x Gigabit RJ45 Uplink Port
Network Technology
10/100/1000Base-T, 1000Base-X
Product Line
SolidConnect
Brand Name
Rocstor
Expansion Slot Type
Uplink Module
Country of Origin
Taiwan
Height
3"
Width
9.1"
Manageable
No
Compatible Rack Unit
1U
Ethernet Technology
Gigabit Ethernet
Network (RJ-45)
Yes
Modular
Yes
Uplink Port
Yes
Media Type Supported
Twisted Pair
Total Number of Network Ports
10
Shared SFP Slot
No
PoE (RJ-45) Port
Yes
Port/Expansion Slot Details
8 x Gigabit Ethernet PoE+, 2 x Gigabit Ethernet Uplink
