Intel Core i7 i7-8700 Hexa-core (6 Core) 3.20 GHz - 16 x HDD Supported - 16 x HDD Installed - 320 TB Installed HDD Capacity - Serial ATA/600 - 16 x SSD Supported - 0 x SSD Installed - 64 GB RAM DDR4 SDRAM - 12Gb/s SAS Controller - RAID Supported - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - 16 x Total Bays - 16 x 2.5"/3.5" Bay - 10 Gigabit Ethernet, Gigabit Ethernet - HDMI - VGA - 6 USB Port(s) - 2 USB 2.0 Port(s) - Network (RJ-45) - Rack-mountable
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Promise Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Technology Breakthrough-FileBoost?
Convert from DAS to NAS and vice-versa with FileBoost? for the first time, reducing hours of troublesome transferring and sharing time to just one-click.
Performance and Sharing
Recommended for medium to large editing teams. Dual Thunderbolt? 3 ports (AJA Write:2809MB/s, Read:2784MB/s)* supports up to five 4K concurrent editors and sharing with up to twenty NAS users with 10G Ethernet switch.
Investment Protection for Pegasus Users
Aggregate, share content and expand up to total 6 daisy chain on Pegasus3 and/or Pegasus32 to ensure the best utilization of asset to Pegasus users, in addition, allow to be upgraded and adapted to fit future needs, e.g. 8K definition.
No Compromising Performance
Embrace high performance file sharing for collaborative workflow features on Final Cut Pro X, Adobe Premiere Pro, DaVinci etc.
Ease of Use
Plug and Play. Intuitive and simple PROMISE Utility Pro to simplify user and data administration, enables seamless transition and ease of use to end users.
Data Protection is essential
Worldwide most robust PROMISE RAID engine, stable and high performance. Easy backup to NAS and Cloud.
Cost Effective
All-in-one storage to support Thunderbolt? DAS/Ethernet NAS/Thunderbolt? NAS. Thunderbolt? -to-Ethernet networking connects shared asset storage to workstations. Scale up storage capacity with up to 6 JBOD expansion units on PegasusPro R16.
Limited Warranty: 3 Year
| Controllers | |
|---|---|
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| General Information | |
| Manufacturer | Promise Technology |
| Manufacturer Part Number | PPR16XXXXD20TX |
| Brand Name | Promise |
| Product Line | PegasusPro |
| Product Series | R |
| Product Model | R16 |

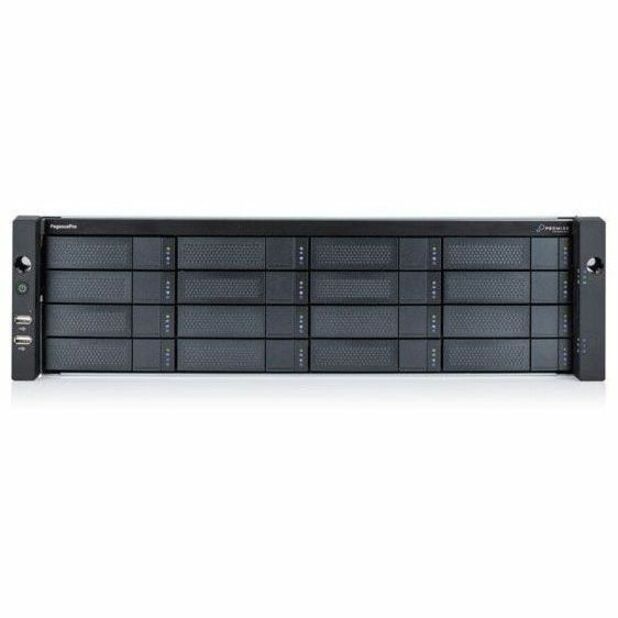

| Product Name | PegasusPro R16 NAS/DAS Storage System |
| Product Type | NAS/DAS Storage System |
| I/O Expansions | |
| Number of Total Expansion Bays | 16 |
| Number of 2.5"/3.5" Bays | 16 |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | PCI Express |
| Interfaces/Ports | |
| Drive Interface | Serial ATA/600 |
| Host Interface | Thunderbolt 3 |
| HDMI | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 6 |
| VGA | Yes |
| Number of Thunderbolt 3 Ports | 2 |
| Memory | |
| Standard Memory | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet, Gigabit Ethernet |
| Physical Characteristics | |
| Height | 5.2" |
| Width | 17.6" |
| Depth | 19.8" |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 74.96 lb |
| Power Description | |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 550 W |
| Redundant Power Supply | Yes |
| Processor & Chipset | |
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Model | i7-8700 |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 3.20 GHz |
| Software | |
| Operating System Supported | Windows 10, macOS 10.15 |
| Storage | |
| Number of Hard Drives Supported | 16 |
| Number of Hard Drives Installed | 16 |
| Total Hard Drive Capacity Installed | 320 TB |
| Hard Drive Interface | Serial ATA/600 |
| Hard Drive Configuration | 16 x 20TB |
| Number of Solid State Drive Supported | 16 |
| Number of Solid State Drive Installed | 0 |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
