8 Ports - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 2 Layer Supported - 2 SFP Slots - 9.72 W Power Consumption - 270 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable - 5 Year Limited Warranty
MSRP$783.60
$583.64
Save 26%Back-ordered — ships when restocked.
Special order — estimated available by September 10, 2026.
Genuine Perle Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

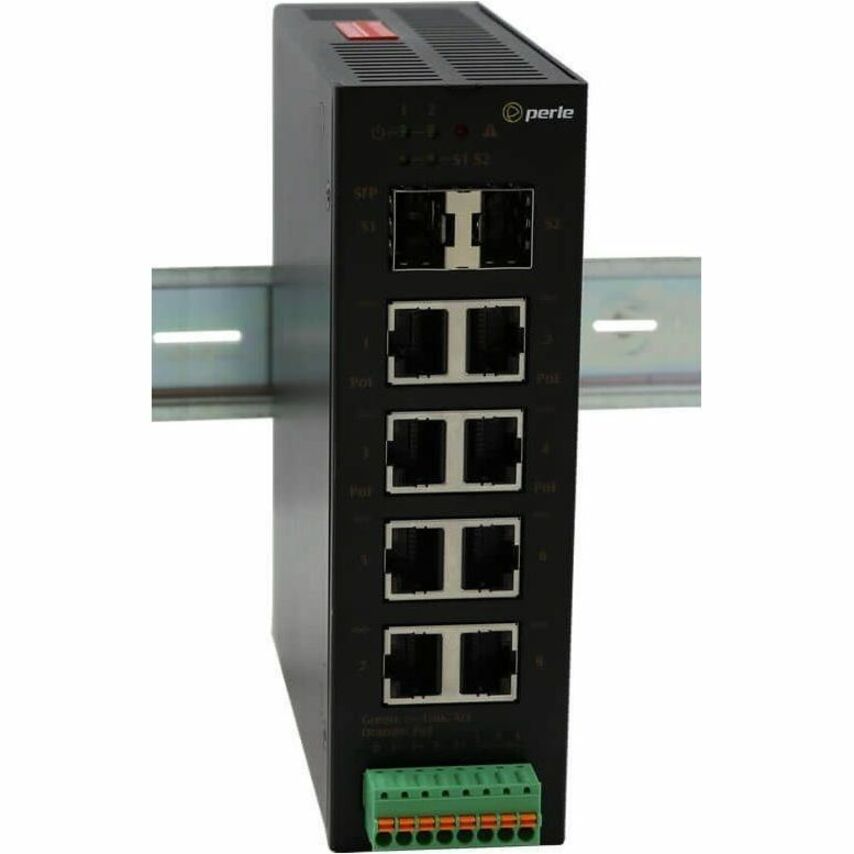

Perle IDS-114HP PoE Switches are designed for easy deployment in challenging industrial environments where extensive temperature tolerance, resistance to vibrations and shocks, and compliance with stringent safety standards are required. This low-cost, easy-to-use device combines essential industrial Ethernet networking functionality, real-time deterministic network operation, and advanced rugged performance. While it requires no configuration and will operate instantly as soon as you power it up, the built-in QoS (Quality of Service) support for EtherNet/IP and PROFINET allows for traffic prioritization and effective management of resources.
This versatile switch features full/half-duplex auto-negotiation and auto MDI/MDIX operation, allowing for convenient connection of various network devices. The two SFP fiber ports enable flexible network configurations using SFP transceivers supplied by Perle, Cisco, or other manufacturers of MSA- compliant SFPs.
In addition, these PoE Switches are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, the IDS-114HP has four ports that provide up to 90 watts of power to Powered Devices (PDs) such as outdoor PTZ dome cameras, wireless access points, and way-side communication devices.
A built-in watchdog feature enables the IDS-114HP switch to operate as an intelligent device to prevent packet loss from powered devices (PDs) in the network. If a PD becomes unresponsive, the IDS-114HP will reboot the device without interrupting other PDs connected to the switch. The IDS-114HP also provides a relay output contact that triggers an immediate alarm when redundant power fails.
Each component within these industrial-grade switches is specialized with overbuilt hardware and chips, ensuring their suitability for outdoor deployment. Their unwavering strength and resilience enable them to provide robust networking solutions, catering to the need for Fast Ethernet and Gigabit networks. They provide the necessary reliability and durability for industrial settings where dependability and high-speed connectivity are crucial. Don't trust your critical communications to commercial switch products. Perle Industrial Ethernet switches give you the proven assurance that your system will keep running for years.
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Input Voltage | 46 V DC, 57 V DC, 52 V DC, 54 V DC |
| Manufacturer Part Number | 07017850 |
| Power Source | Power Supply, DC, PoE |
| Limited Warranty | 5 Year |
| Layer Supported | 2 |
| Weight (Approximate) | 1.27 lb |
| Features | Fanless |
| Form Factor | DIN Rail Mountable |
| Manufacturer | Perle Systems, Inc |
| Product Name | 10-Port Industrial Gigabit PoE Switch |
| Network Technology | 10/100/1000Base-TX, 1000Base-X |
| Power Consumption | 9.72 W |
| Product Series | IDS-114HP |
| Brand Name | Perle |
| Plug/Connector Type | Terminal Block |
| Expansion Slot Type | SFP |
| Height | 5.7" |
| Width | 1.8" |
| Depth | 4.9" |
| Manageable | No |
| Environmentally Friendly | Yes |
| Number of Power Supplies Supported | 2 |
| Ethernet Technology | Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 2 |
| Uplink Port | Yes |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 8 |
| PoE (RJ-45) Port | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE, 2 x Gigabit Ethernet Expansion Slot, 4 x Gigabit Ethernet Network Port |
| Total Number of Expansion Slots | 2.0 |
| Redundant Power Supply Supported | Yes |
| PoE Budget | 270 W |
| Networking Standards | IEEE 802.1x, IEEE 802.3x, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 1588v2, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at |
| Product Material | Metal |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
