Perle IDS-105FE Ethernet Switch
Perle Systems

Perle IDS-105FE Ethernet Switch

5 Ports - Fast Ethernet - 100Base-TX, 100Base-FX - 2 Layer Supported - 1.82 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable, Compact - 5 Year Limited Warranty

SKU
07017400
Category
Switches & Bridges

MSRP$180.00

$139.04

Save 23%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Perle Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
07017400
Category
Switches & Bridges

Overview

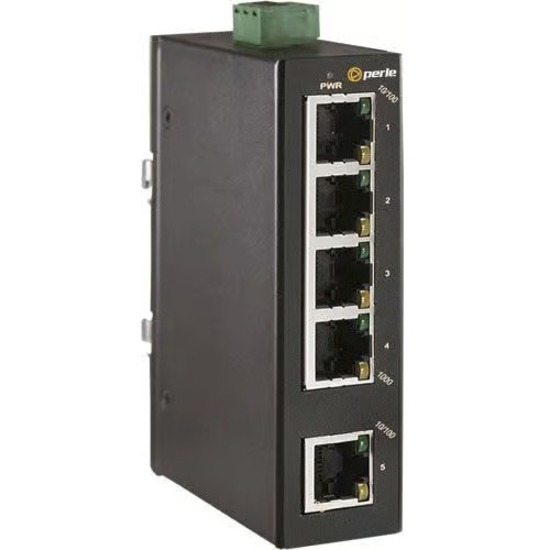

The Perle IDS-105FE Industrial Ethernet Switch is designed for easy deployment in industrial environments with harsh operating conditions and limited space. Designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, infrastructure, transportation, security, oil and gas, and mining the IDS-105FE Switch is an economical easy-to-use device, that provide essential industrial Ethernet networking functionality.

This unmanaged switches support 9 to 55VDC redundant power input and provide a relay alarm for power failure. The full/half-duplex auto-negotiation and auto MDI/MDIX operation simplifies installation and setup for convenient connection of a variety of network devices. And, QoS support allows for traffic prioritization and effective management of resources.

For automation and industrial control systems using EtherNet/IP, this rugged, DIN rail mountable switches with metal housing provides security and easy installation (mounting kit is included).

Highlights

  • 5 x RJ45 ports with 10/100 Mbps on all ports
  • Redundant dual power input 12/24/48 VDC
  • Reverse polarity protection
  • Fan-less design with no moving parts
  • -10 to 60C industrial operating temperature support
  • QoS (Quality of Service) prioritized messages

Specifications

Package Contents
  • IDS-105FE Ethernet Switch
  • Terminal Block
  • Installation Guide
  • Mounting Kit
Product TypeEthernet Switch
Input Voltage9 V DC, 55 V DC
Manufacturer Part Number07017400
Limited Warranty5 Year
Layer Supported2
Weight (Approximate)7.05 oz
FeaturesFanless
Form FactorDIN Rail Mountable, Compact
ManufacturerPerle Systems, Inc
Product ModelIDS-105FE
Product NameIDS-105FE Ethernet Switch
Network Technology100Base-TX, 100Base-FX
Power Consumption1.82 W
Brand NamePerle
Plug/Connector TypeTerminal Block
Height1"
Width4.3"
Depth2.8"
ManageableNo
Environmentally FriendlyYes
Ethernet TechnologyFast Ethernet
Network (RJ-45)Yes
Media Type SupportedTwisted Pair, Optical Fiber
Total Number of Network Ports5
Port/Expansion Slot Details5 x Fast Ethernet Network
Networking StandardsIEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.1p
Product MaterialMetal, Plastic
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
