IP HD PVM MONITOR
ORION Images is a true manufacturer of LCD & LED CCTV monitors. The ORION Images monitors are true Commercial Grade with FCC Class A Certification - Built to Run 24 x 7 x 365 continuously. Our monitors are designed, engineered and manufactured with CCTV PCB boards and circuitry making these the LCD solution for your security surveillance.
PRODUCT DESCRIPTION

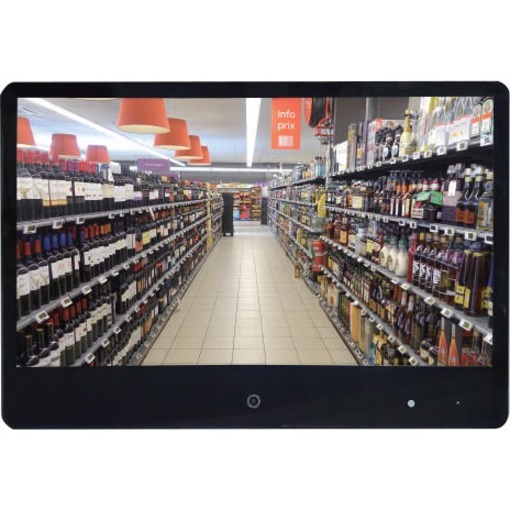

The ORION Images Full HD 1080p IP PVM 22 inch LED BLU (Backlight Unit) 22IPHPVM (Public View Monitor) with built in WDR 1 / 2.8" SONY CMOS camera and motion detection sensor becomes a highly effective theft deterrent tool creating awareness that a security surveillance system is in place. The ORION Images public view monitor can be used in supermarket, convenience store, department store etc
Warranty
Limited Warranty: 3 Year
Highlights
22 Inch IP HD LED Backlight Unit PVM Monitor
Built-In 1/2.8" Sony Camera

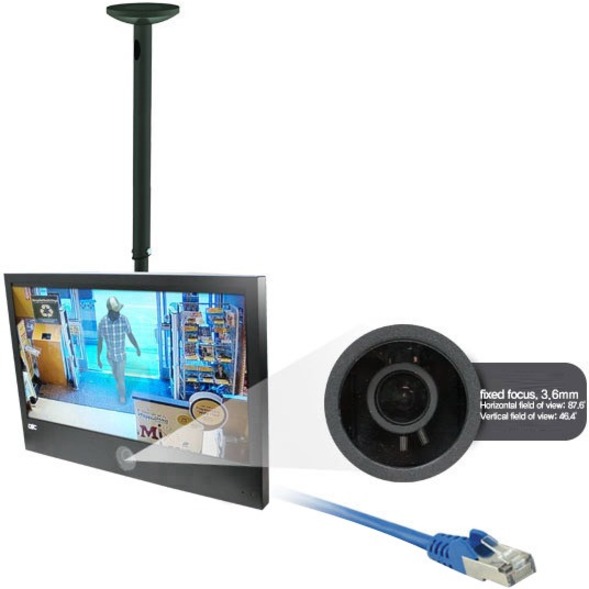

3.6mm fixed focus, Horizontal field of view: 87.6° Vertical field of view: 46.4°
0.0001 lux/F1.2
IP H264 ONVIF 1(RJ45) Out
Tilt Swivel 1080p Camera
1945(H) x 1097(V) approx. 2.13M pixels
MMP (Option)
1920 x 1080p Full HD Resolution, 250 Nits, 1000:1 Contrast
3D Comb Filter, 3D Motion ASdaptive De-Interlacing, Noise Reduction

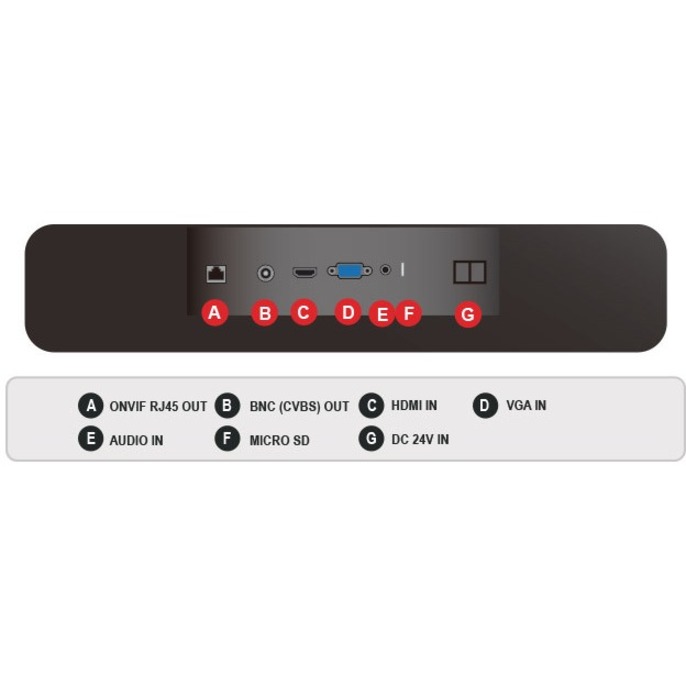

BNC Video 1 Out, Audio 1 In, HDMI 1 In, VGA 1 In, PC Stereo 1 In
Microwave PIR Motion Sensor (10 ~ 30 feet)

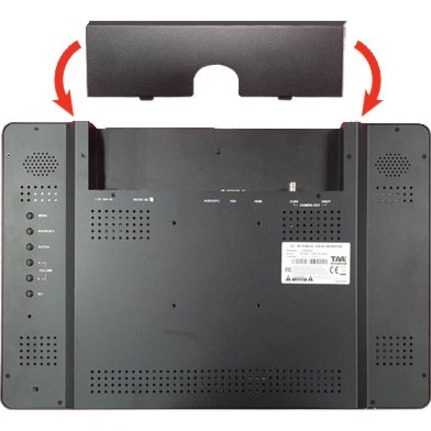

Mount Options: Wall or Ceiling
Specifications
Audio
Number of Speakers
2
Speakers
Yes
Built-in Devices
Webcam
Yes
General Information
Manufacturer
ORION Images Corporation
Manufacturer Part Number
22IPHPVM
Brand Name
ORION Images
Product Series
PVM
Product Model
22IPHPVM
Product Name
22IPHPVM Full HD IP PVM LED Monitor
Product Type
LCD Monitor
Interfaces/Ports
Network (RJ-45)
Yes
HDMI
Yes
USB
Yes
VGA
Yes
Number of HDMI Inputs
1
Physical Characteristics
VESA Mount Compatible
Yes
Color Family
Black
Product Color
Black
Height
13.8"
Width
20.2"
Depth
1.7"
Weight (Approximate)
15.43 lb
Technical Information
Number of Screens
1
Screen Size Class
22"
Viewable Screen Size
21.5"
Screen Mode
Full HD
Aspect Ratio
16:9
Pixel Pitch
0.26500 mm x 0.26500 mm
Horizontal Viewing Angle
178°
Vertical Viewing Angle
178°
Backlight Technology
LED
Mount Type
Wall Mountable, Ceiling Mountable
Features
3D Comb Filter, Pyroelectric Infrared Ray (PIR) Sensor, Noise Reduction, Deinterlace Motion
