Genuine ORION Images through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
19PVMV
Category
Monitors
Overview
PVM SERIES
ORION Images is a true manufacturer of LCD & LED CCTV monitors. The ORION Images monitors are true Commercial Grade with FCC Class A Certification - Built to Run 24 x 7 x 365 continuously. Our monitors are designed, engineered and manufactured with CCTV PCB boards and circuitry making these the LCD solution for your security surveillance.
PRODUCT DESCRIPTION

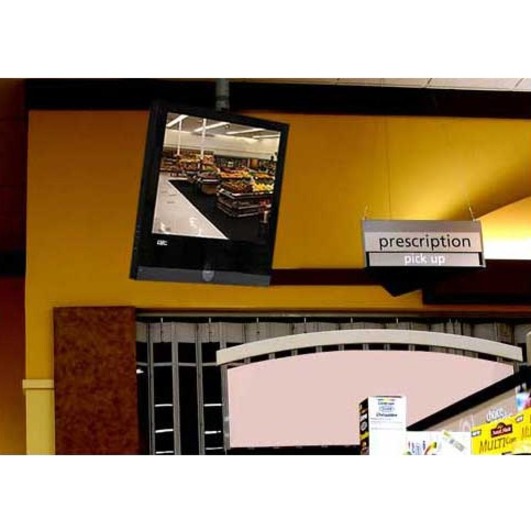

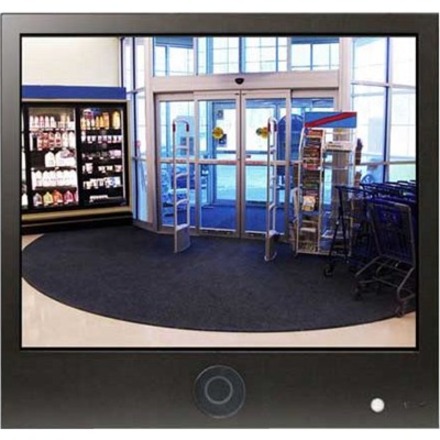

The ORION Images Value Series 18.5 inch LED PVM (Public View Monitor) with built in WDR SONY CCD camera and motion PIR detection sensor becomes a highly effective theft deterrent tool creating awareness that a security surveillance system is in place. The ORION Images public view monitor can be used in supermarket, convenience store, department store etc...
Warranty
Limited Warranty: 3 Year
Highlights
LED Backlight Unit
Built-In WDR 1 / 2.8" SONY CMOS
19 inch LED Back Light Unit
Tilt Swivel Camera
1945(H) x 1097(V) approx. 2.13M pixels
0.0001 lux / F1.2
1280 x 1024 Resolution, 250 Nits, 1000:1 Contrast
3D Comb Filter, Deinterlace, Noise Reduction, Auto Source Sequencing

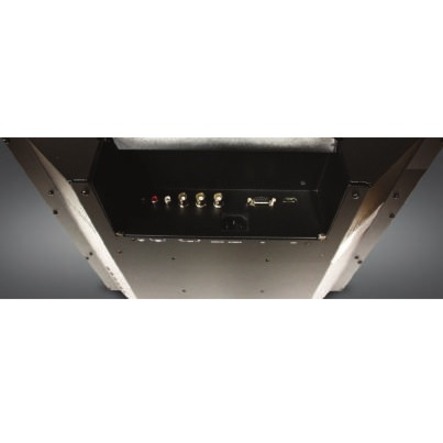

BNC Video 1 In / 1 Out, Audio 1 In, HDMI 1 In, VGA 1 In, Camera 1 Out, PC Stereo 1 In
Microwave PIR Motion Sensor (10 ~ 30 feet)

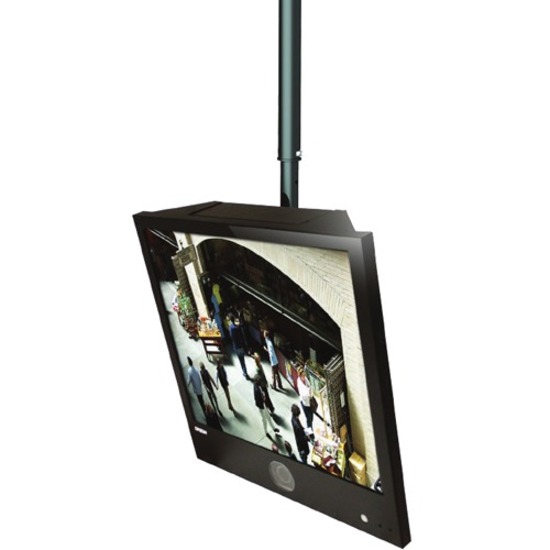

Mount Options: Wall or Ceiling
Specifications
Audio
Number of Speakers
2
Speakers
Yes
Built-in Devices
Webcam
Yes
General Information
Manufacturer
ORION Images Corporation
Manufacturer Part Number
19PVMV
Brand Name
ORION Images
Product Series
PVM
Product Model
19PVMV
Product Name
19PVMV LCD Monitor
Product Type
LCD Monitor
Interfaces/Ports
HDMI
Yes
VGA
Yes
Number of HDMI Inputs
1
Physical Characteristics
VESA Mount Compatible
Yes
Color Family
Black
Product Color
Black
Height
15.8"
Width
16.5"
Depth
3.2"
Weight (Approximate)
14.33 lb
Technical Information
Number of Screens
1
Screen Size Class
19"
Viewable Screen Size
19"
Screen Mode
SXGA
Aspect Ratio
5:4
Pixel Pitch
0.29400 mm x 0.29400 mm
Horizontal Viewing Angle
170°
Vertical Viewing Angle
160°
Backlight Technology
LED
Mount Type
Wall Mountable, Ceiling Mountable
Features
3D Comb Filter, Noise Reduction, Pyroelectric Infrared Ray (PIR) Sensor, 3D De-interlace, Auto Senquential Source Switching
