Genuine ORION Images through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
13IPHPVM
Category
Monitors
Overview
IP HD PVM MONITOR
ORION Images is a true manufacturer of LCD & LED CCTV monitors. The ORION Images monitors are true Commercial Grade with FCC Class A Certification - Built to Run 24 x 7 x 365 continuously. Our monitors are designed, engineered and manufactured with CCTV PCB boards and circuitry making these the LCD solution for your security surveillance.
PRODUCT DESCRIPTION

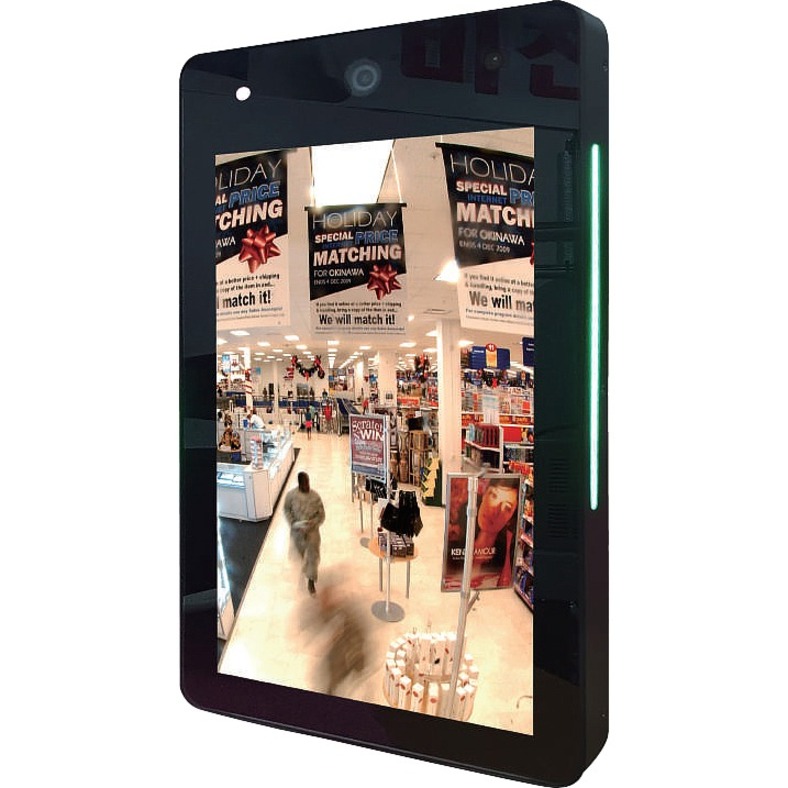

The ORION Images new 13 inch IP network PVM (Public View Monitor) with built in WDR HD camera, ONVIF IP Output and motion detect becomes a highly effective theft deterrent tool creating awareness that a security surveillance system is in place. The recording function allows video from the built in camera to be stored on a micro SD card.
Warranty
Limited Warranty: 3 Year
Highlights
Metal Chassis Black (or White)
1980 x 1080 Panel Resolution, 300 Nits, 1500:1 Contrast
1080P Camera Built-in to display high resolution and clear image
ONVIF IP Output
3.6mm fixed focus, Horizontal field of view: 87.6° / Vertical field of view: 46.4°
Message display, LED flashing and player slot
Micro SD Card Recorder
Wireless Remote Control

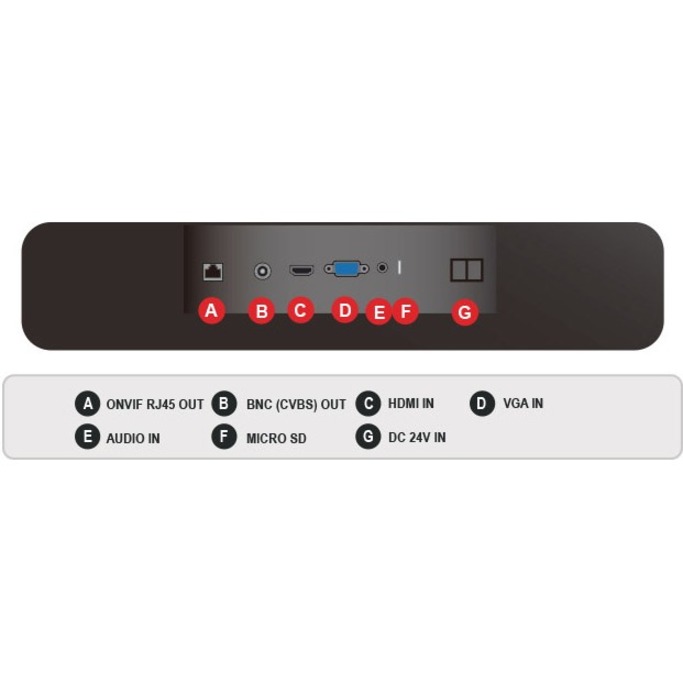

BNC Video 1 In, Camera 1 Out
PoE or DC 12 ~ 24V input
Specifications
Audio
Speakers
No
Built-in Devices
Webcam
Yes
General Information
Manufacturer
ORION Images Corporation
Manufacturer Part Number
13IPHPVM
Brand Name
ORION Images
Product Series
PVM
Product Model
13IPHPVM
Product Name
13IPHPVM LED Monitor
Product Type
LCD Monitor
Interfaces/Ports
Network (RJ-45)
Yes
HDMI
Yes
VGA
Yes
Number of HDMI Inputs
1
Physical Characteristics
VESA Mount Compatible
Yes
Color Family
Black
Product Color
Black
Height
14.9"
Width
8.4"
Depth
2.2"
Weight (Approximate)
11.02 lb
Technical Information
Number of Screens
1
Screen Size Class
13"
Viewable Screen Size
13.3"
Screen Mode
Full HD
Aspect Ratio
16:9
Pixel Pitch
0.19500 mm x 0.19500 mm
Horizontal Viewing Angle
160°
Vertical Viewing Angle
160°
Backlight Technology
LED
Mount Type
Wall Mountable, Ceiling Mountable
Features
3D Comb Filter, Noise Reduction, Deinterlace Motion
