Mellanox MQM9790-NS2R Quantum 2 NDR InfiniBand Switch
NVIDIA

Mellanox MQM9790-NS2R Quantum 2 NDR InfiniBand Switch

2 Ports - 40 Gigabit Ethernet, 56 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet, 400 Gigabit Ethernet - 40GBase-X, 100GBase-X - 32 SFP Slots - Optical Fiber, Twisted Pair - 1U - Rail-mountable

SKU
MQM9790-NS2R
Category
Switches & Bridges

MSRP$40,055.00

$30,551.95

Save 24%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine NVIDIA through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
MQM9790-NS2R
Category
Switches & Bridges

Overview

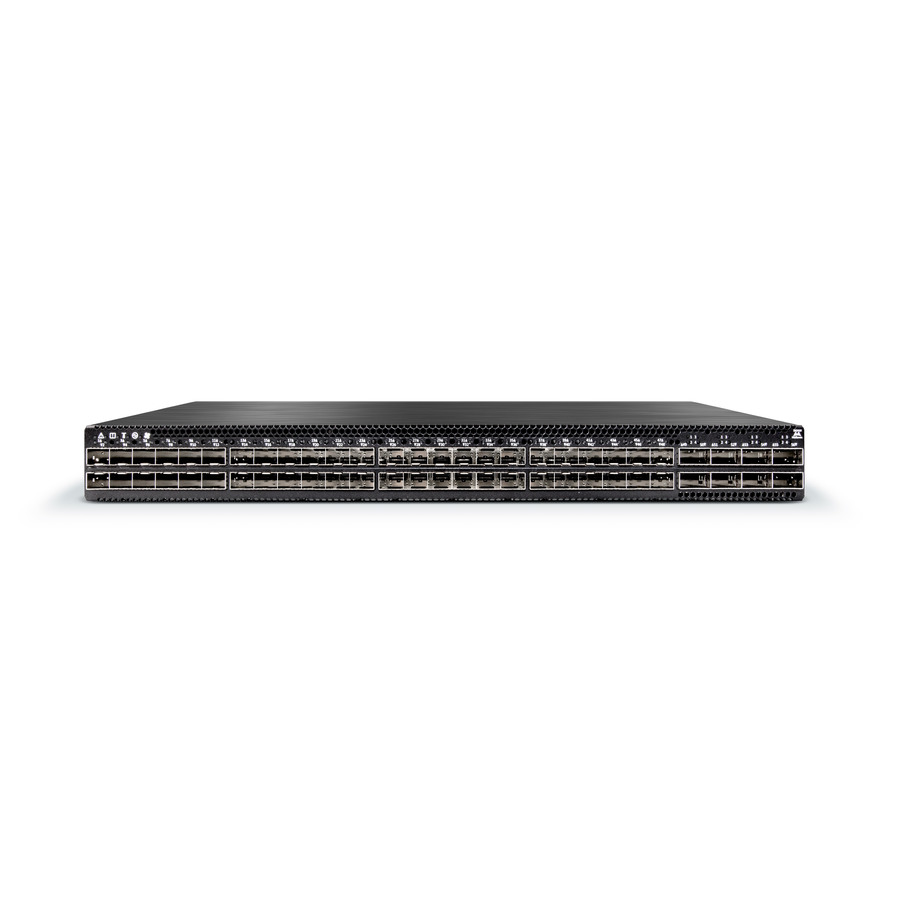

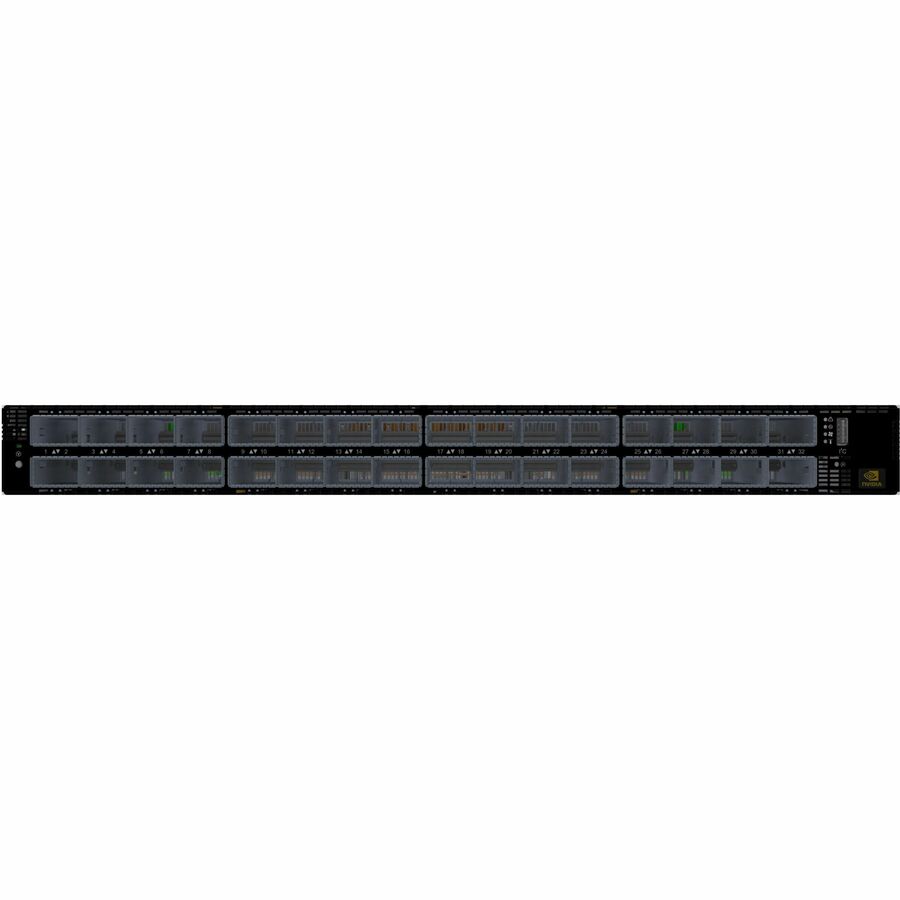

NVIDIA MQM9790-NS2R Quantum 2 NDR InfiniBand Switch 64-ports 400Gb/s 32 OSFP Ports Unmanaged C2P Airflow (Reverse)

Scaling Out Data Centers with 400G InfiniBand Smart Switches

The NVIDIA Quantum-2-based QM9700 and QM9790 switch systems deliver an unprecedented 64 ports of 400Gb/s InfiniBand per port in a 1U standard chassis design. A single switch carries an aggregated bidirectional throughput of 51.2 terabits per second (Tb/s), with a landmark of more than 66.5 billion packets per second (BPPS) capacity. Supporting the latest NVIDIA high-speed interconnect 400Gb/s technology, NVIDIA Quantum-2 brings a high-speed, extremely low-latency and scalable solution that incorporates state-of-the-art technologies such as Remote Direct Memory Access (RDMA), adaptive routing, and NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol (SHARP)

Highlights

  • Effectively reduces downtime with improved network performance
  • C15 plug/connector type for a secure, hassle-free operation
  • Quickly and easily set up a wired network with 2 networking ports
  • The switch is rail mountable, you can easily install it in racks with concrete stability
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
  • 40 Gigabit Ethernet for efficient data transfer and fast connectivity
  • Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components

Specifications

Package Contents
  • 1 x MQM9790-NS2R Quantum 2 NDR InfiniBand Switch
  • 1 x Rail kit
  • 4 x Power cables Type C14 to C15
  • 1 x Harness: HAR000631 - Harness RS232 2M cable
  • 2 x Cable retainers
  • 32 x OSFP thermal caps
Product TypeEthernet Switch
Input Voltage120 V AC, 230 V AC
Manufacturer Part NumberMQM9790-NS2R
Power SourcePower Supply
Weight (Approximate)31.97 lb
FeaturesHot-swappable
Form FactorRail-mountable
ManufacturerNVIDIA Corporation
Product ModelQM9790
Product NameMQM9790-NS2R Quantum 2 NDR InfiniBand Switch
Network Technology40GBase-X, 100GBase-X
Product LineQuantum-2
Product SeriesQM9700
Brand NameMellanox
Plug/Connector TypeC15, C14
Expansion Slot TypeOSFP
Height1.7"
Width17.2"
Depth26"
ManageableNo
Environmentally FriendlyYes
Compatible Rack Unit1U
Number of Power Supplies Installed1
Maximum Data Transfer Rate50 GB/s
Ethernet Technology40 Gigabit Ethernet, 56 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet, 400 Gigabit Ethernet
Network (RJ-45)Yes
Number of SFP Slots32
Media Type SupportedOptical Fiber, Twisted Pair
Total Number of Network Ports2
Port/Expansion Slot Details64 x 40/56/100/200/400BASE-X Gigabit Ethernet OSFP Expansion slots, 1 x USB 3.0 Port, 1 x USB I2C Channel Port, 1 x RJ-45 Network Port, 1 x RJ-45 UART Port
Total Number of Expansion Slots64
Redundant Power Supply SupportedYes
Energy StarYes
Energy Efficiency Certification80 Plus Gold
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
