Lantronix Managed Hardened Gigabit Ethernet PoE+ Switch
6 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - 8.20 W Power Consumption - 120 W PoE Budget - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable - 5 Year Limited Warranty - TAA Compliant
- SKU
- SISPM1040-362-LRT
- Category
- Switches & Bridges
MSRP$1,057.35
$767.87
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SISPM1040-362-LRT
- Category
- Switches & Bridges
Overview
The SISPM1040-362-LRT is a full managed PoE+ switch suitable for connecting and powering devices in hardened environments. The switch can supply up to 30 Watts per port on all four PoE ports simultaneously. The switch also includes the embedded Device Management System (DMS) software that provides the advanced tools necessary for total management of all IP addressable devices. The unique DMS provides security integrators with lower overall cost, less downtime and easier management of the entire PoE+ network.
Lantronix' hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other challenging environments.
Highlights
- Store-and-Forward Architecture with 16 Gbps Switching Bandwidth
- Supports Jumbo frames up to 9.6K Bytes
- Ring Protections: Industry standard G.8032 Ethernet Ring Protection Switching (ERPS), Support G.8031 Ethernet Linear Protection Switching (EPS), Rapid Ring with recovery time less than 20ms
- Radius, TACACS+, User Authentication
- Supports LLDP Protocol
- HTTPS/SSH v1/v2 Network Security
- Temperature Detection and Alarm
- Support HW Watchdog to resume operation from CPU hang up
- IEEE 1588 v2 PTP
- Port Mirroring
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Input Voltage | 57 V DC |
| Manufacturer Part Number | SISPM1040-362-LRT |
| Power Source | Power Supply, DC |
| Limited Warranty | 5 Year |
| Layer Supported | 2 |
| Weight (Approximate) | 2 lb |

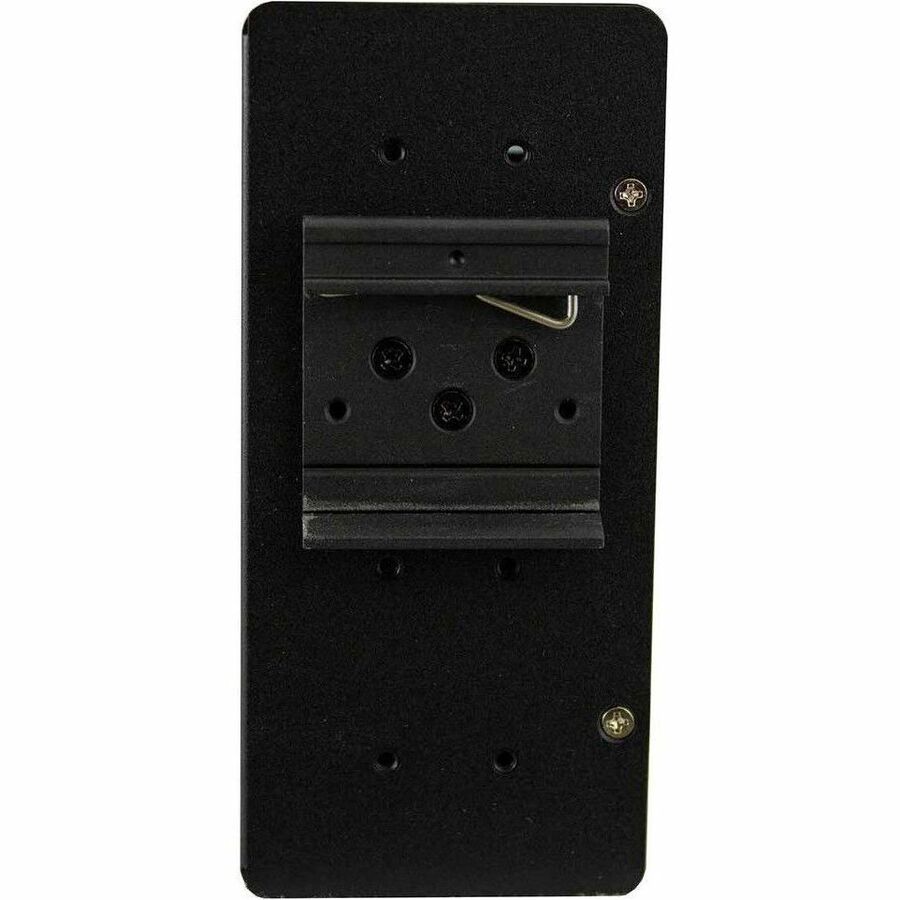

| Form Factor | DIN Rail Mountable, Wall Mountable |
| Manufacturer | Lantronix, Inc |
| Product Model | SISPM1040-362-LRT |
| Product Name | Managed Hardened Gigabit Ethernet PoE+ Switch |
| Network Technology | 10/100/1000Base-T, 1000Base-X |
| Power Consumption | 8.20 W |
| Brand Name | Lantronix |
| Expansion Slot Type | SFP |
| Country of Origin | Taiwan |
| Height | 5.4" |
| Width | 2.4" |
| Depth | 5.3" |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 2 |
| Modular | Yes |
| Uplink Port | No |
| Stack Port | Yes |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 6 |
| Shared SFP Slot | No |
| Port/Expansion Slot Details | 6 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot |
| Total Number of Expansion Slots | 2 |
| Redundant Power Supply Supported | Yes |
| TAA Compliant | Yes |
| PoE Budget | 120 W |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.1ag, IEEE 802.3ah, IEEE 802.1D |
