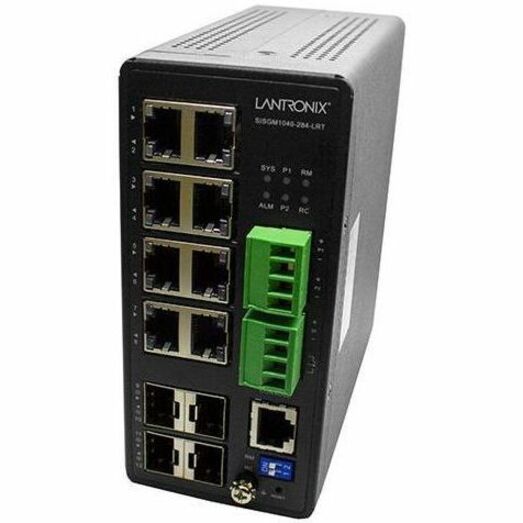

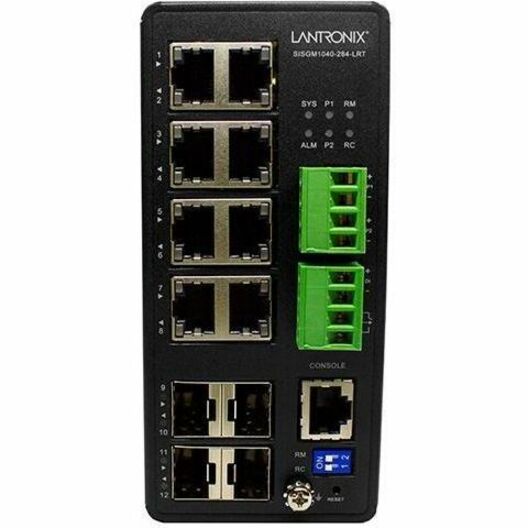

Lantronix Managed Hardened Gigabit Ethernet Switch
Lantronix

Lantronix Managed Hardened Gigabit Ethernet Switch

8 Ports - Manageable - Gigabit Ethernet - 1000Base-T, 1000Base-X - 4 Layer Supported - Modular - 4 SFP Slots - 11 W Power Consumption - Twisted Pair, Optical Fiber - Wall Mountable, DIN Rail Mountable - 5 Year Limited Warranty - TAA Compliant

SKU
SISGM1040-284-LRT
Category
Switches & Bridges

MSRP$990.15

$719.41

Save 27%

In stock: 2

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SISGM1040-284-LRT
Category
Switches & Bridges

Overview

The SISGM1040-284-LRT is a managed switch suitable for connecting devices in hardened environments. The switch has 24Gbps switching capacity. The switch also includes the embedded Device Management System (DMS) software that provides the advanced tools necessary for total management of all IP addressable devices. The unique DMS provides security integrators with lower overall cost, less downtime and easier management of the entire network.

Transition Networks' hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other challenging environments.

Highlights

  • Store-and-Forward Architecture with 24 Gbps Switching Bandwidth
  • IPv4/IPv6 dual protocols
  • Supports Jumbo frames up to 9K Bytes
  • Rapid Ring for fast recovery
  • Radius, TACACS+, User Authentication
  • Supports LLDP Protocol
  • IEEE 1588 v2 PTP
  • Port Mirroring
  • Syslog
  • Static routing

Specifications

Product TypeEthernet Switch
Input Voltage48 V DC
Manufacturer Part NumberSISGM1040-284-LRT
Power SourceDC
Limited Warranty5 Year
Layer Supported4
Weight (Approximate)2.20 lb
Form FactorWall Mountable, DIN Rail Mountable
ManufacturerLantronix, Inc
Product ModelSISGM1040-284-LRT
Product NameManaged Hardened Gigabit Ethernet Switch
Network Technology1000Base-T, 1000Base-X
Power Consumption11 W
Brand NameLantronix
Expansion Slot TypeSFP (mini-GBIC)
Country of OriginTaiwan
Height5.4"
Width2.4"
Depth5.3"
ManageableYes
Environmentally FriendlyYes
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Number of SFP Slots4
ModularYes
Media Type SupportedTwisted Pair, Optical Fiber
Total Number of Network Ports8
Shared SFP SlotNo
Port/Expansion Slot Details8 x Gigabit Ethernet Network, 4 x Gigabit Ethernet Expansion Slot
Total Number of Expansion Slots4
TAA CompliantYes
Networking StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ad, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1x
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
