Overview
Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

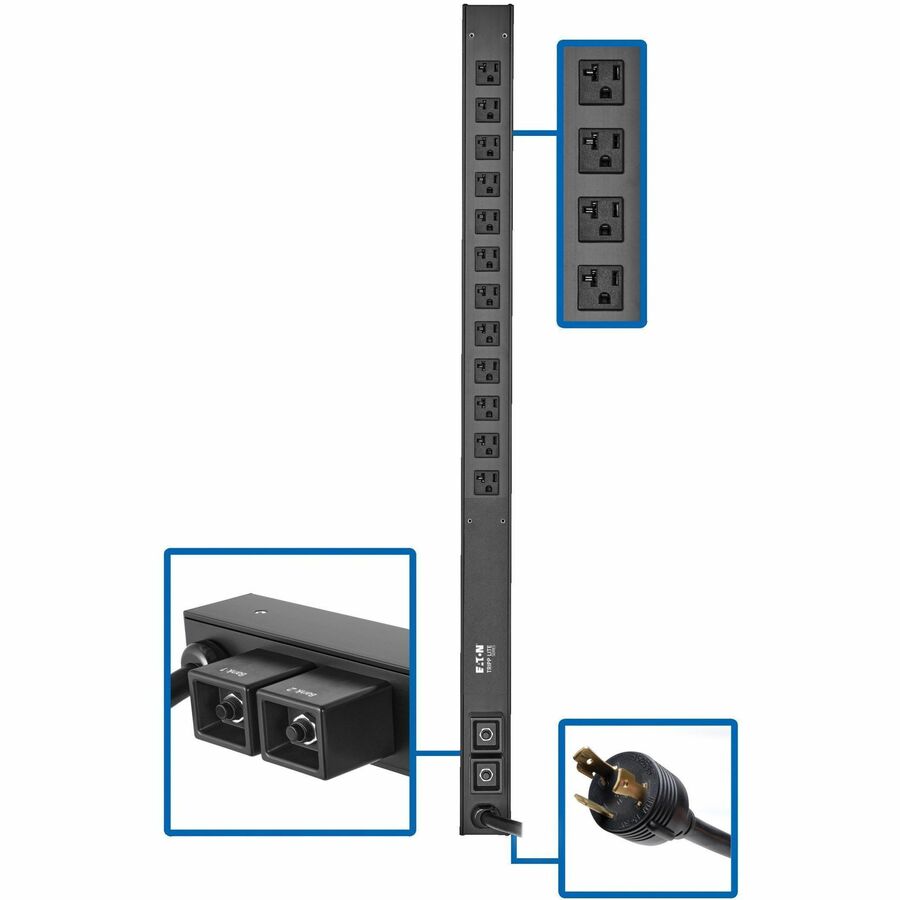

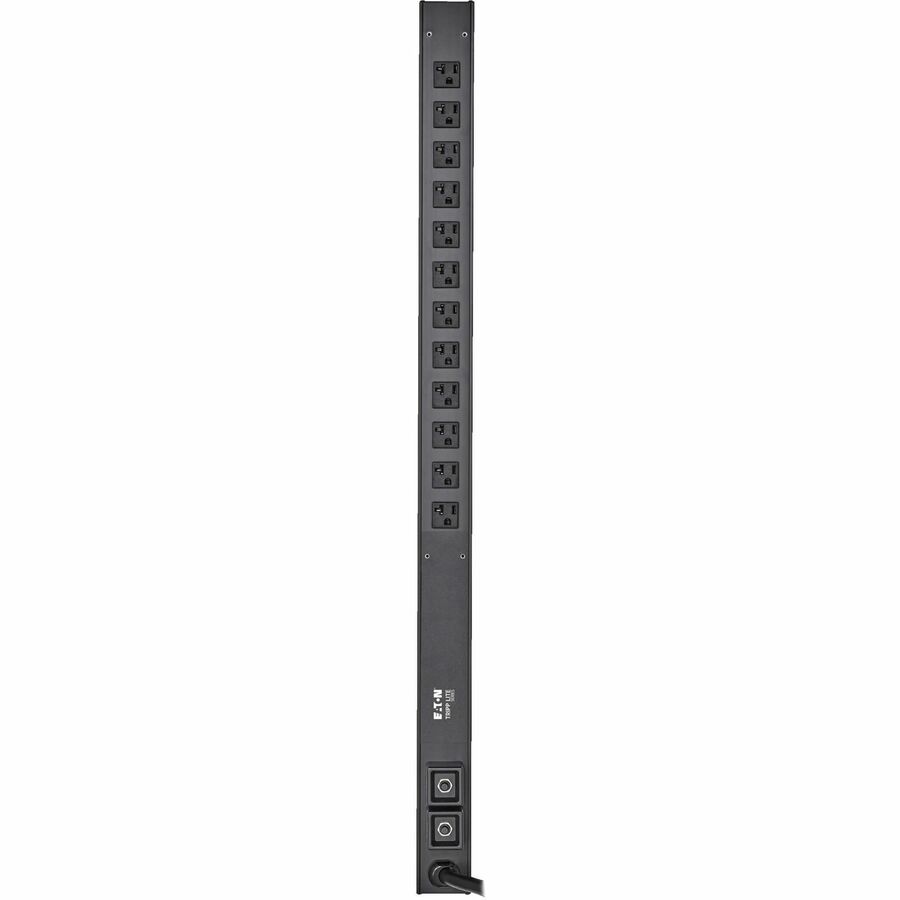

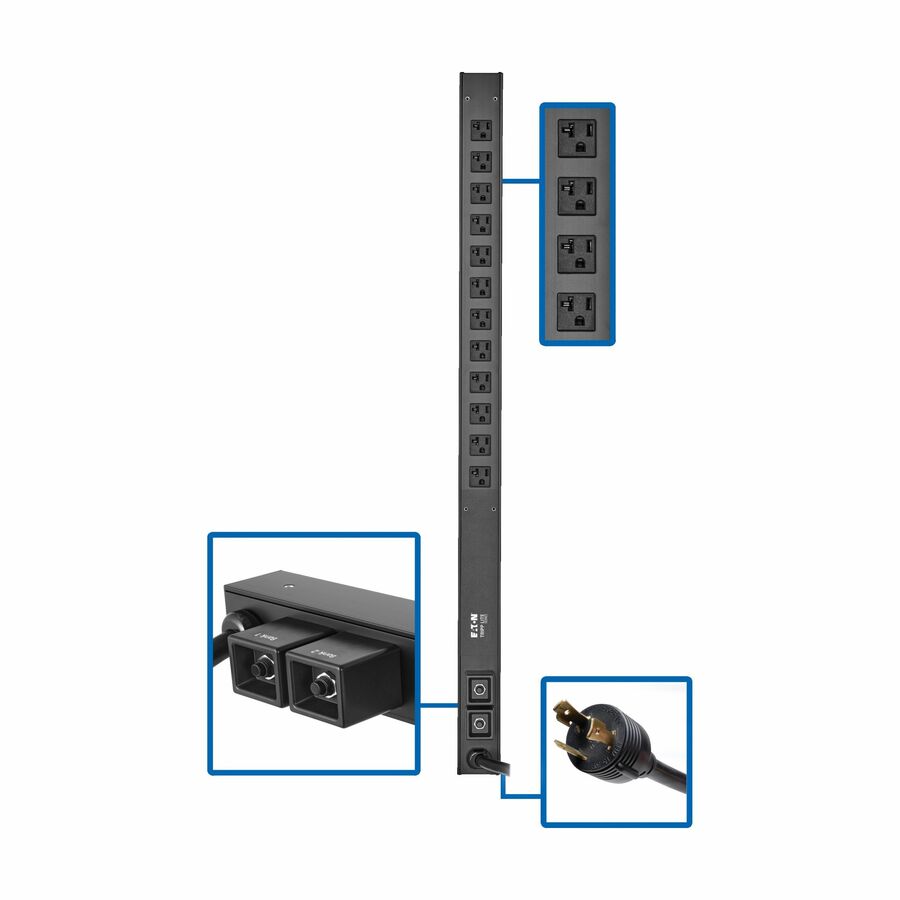

This basic rack PDU (rPDU) is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for data centers, computer rooms and network closets, the PDUV30-36 features two breakered load banks, each with six 5-15/20R outlets for connecting equipment. A 10-foot cord with NEMA L5-30P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment

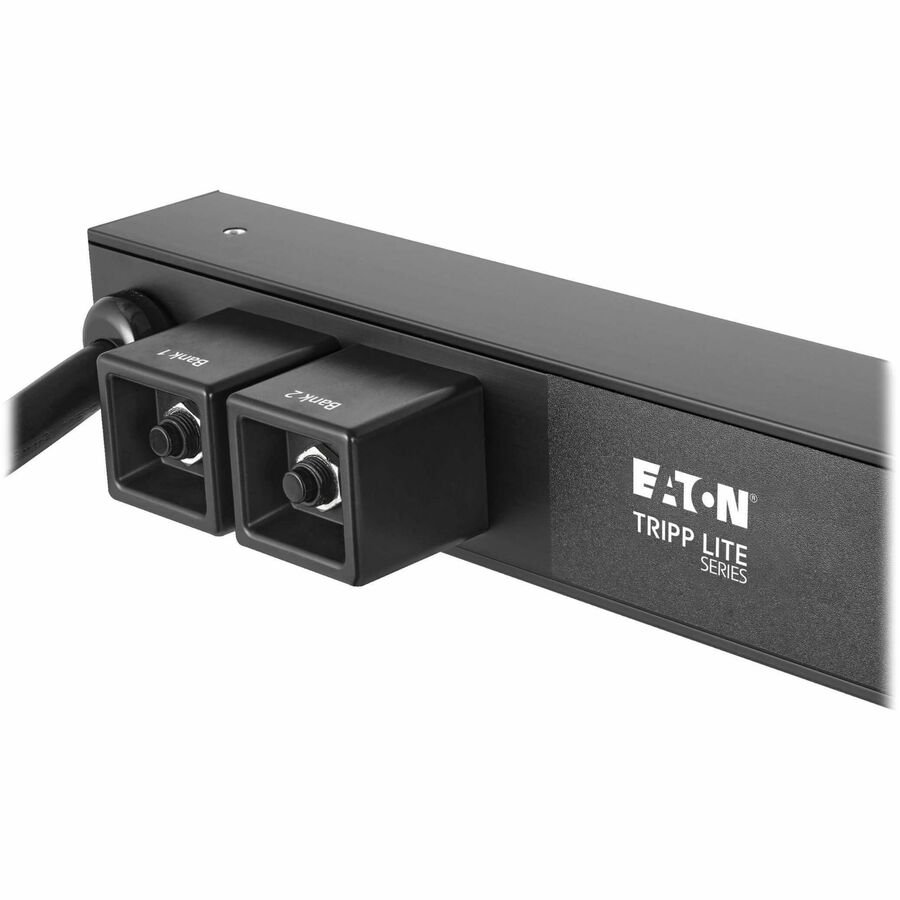

The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices

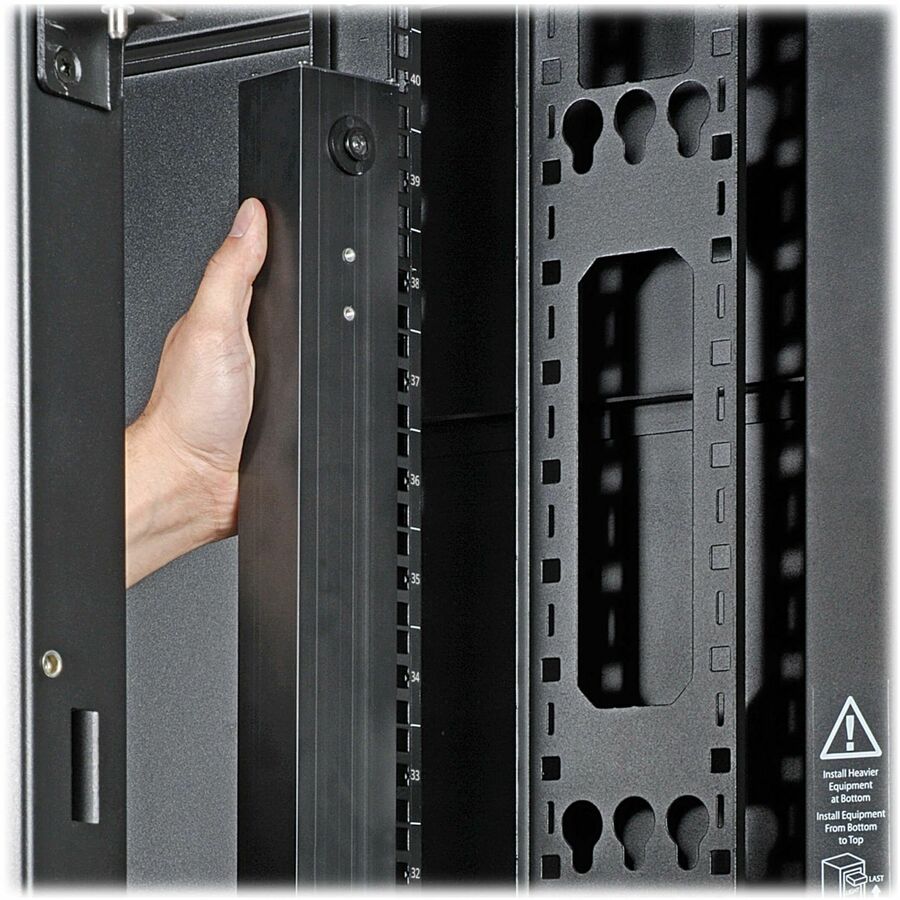

The 36-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting brackets with user-supplied hardware. You may also use the brackets to secure the PDU to the underside of a counter with the addition of two user-supplied screws. Bolt-down retention brackets keep power cords organized and your rack free of clutter.
Warranty
Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Ideal no-frills PDU for telecom, security, audio/video and other network applications
12 NEMA 5-15/20R outlets distribute AC power to connected equipment
Switchless design helps prevent accidental shutdowns that can lead to costly downtime
10 ft. cord with NEMA L5-30P single-phase input connects to AC power source
36 in. 0U PDU with included mounting brackets installs in rack or under counter
2-year limited warranty
Specifications
Environmental Conditions
Minimum Operating Temperature
32°F (0°C)
Maximum Operating Temperature
104°F (40°C)
Minimum Storage Temperature
-22°F (-30°C)
Maximum Storage Temperature
122°F (50°C)
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
PDUV3036
Brand Name
Tripp Lite series
Product Model
PDUV30-36
Product Name
PDUV30-36 12-Outlet PDU
Product Type
PDU
Physical Characteristics
Mounting Orientation
Vertical
Mount Type
Rack-mountable, Wall-mountable
Placement
Under-counter
Rack Height
0U
Height
36"
Width
2.2"
Depth
3.8"
Weight (Approximate)
8 lb
Power Description
Input Voltage
120 V AC
Output Voltage
120 V AC
Input Current
24 A
Technical Information
PDU Type
Basic
Phase
Single Phase
Plug/Connector Type
NEMA L5-30P
Receptacle Type
NEMA 5-15/20R
Receptacle Detail
12 x NEMA 5-15/20R
Protection Type
Overload Protection
Load Capacity (Watt)
2900 W
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
PDUV30-36 12-Outlet PDU
2 x Plug Retention Brackets with Installation Hardware
