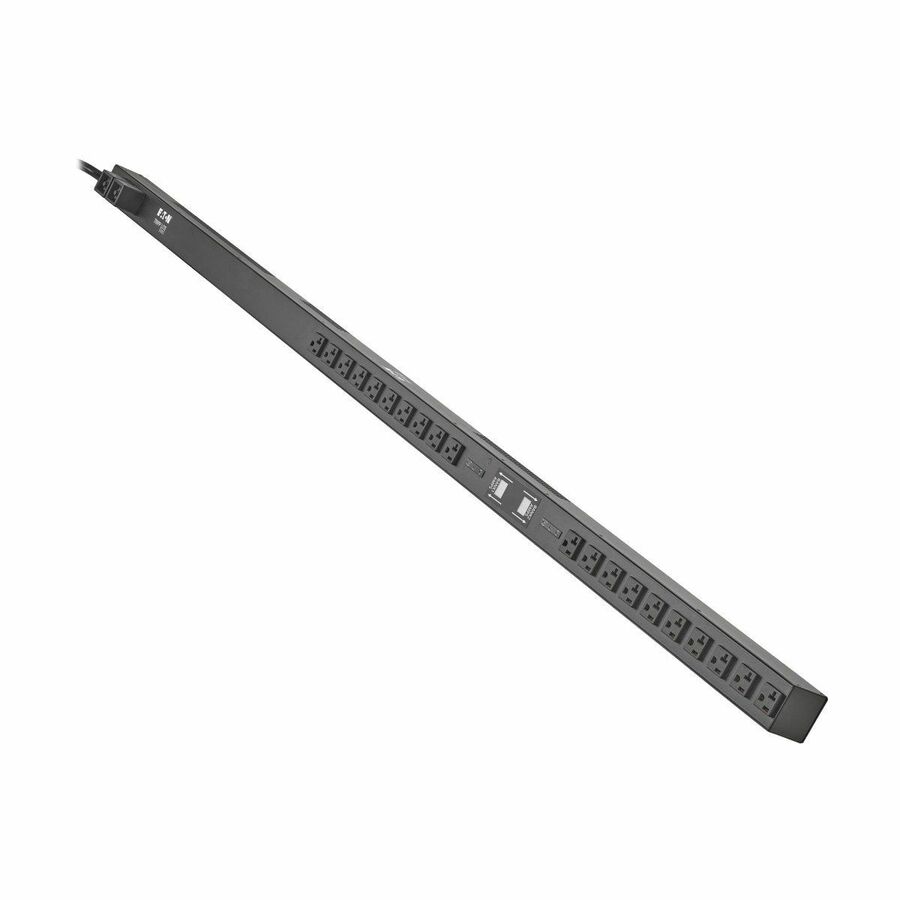

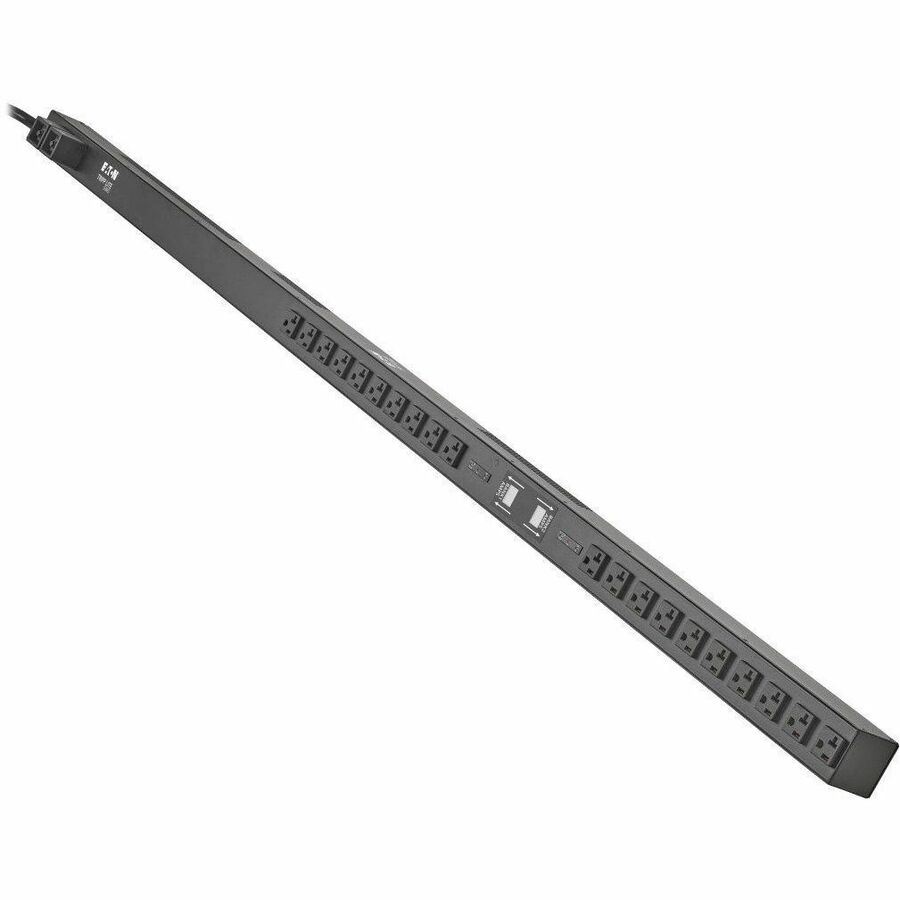

Eaton Tripp Lite Series 2.88kW Single-Phase Local Metered PDU with ISOBAR Surge Protection, 120V, 3840 Joules, 20 NEMA 5-15/20R Outlets, L5-30P Input, 10 ft. Cord, 0U Vertical

Metered - NEMA L5-30P - 120 V AC - 0U - Vertical - Wall-mountable - Rack

SKU: PDUMV30-ISO
Category: PDUs

MSRP$782.00

$510.00

Save 35%

Back ordered

Back ordered — ships when restocked.

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: PDUMV30-ISO
Category: PDUs

Overview

Single-Phase 120V PDU Distributes and Monitors Network-Grade Power to Multiple Loads

This local metered PDU is an ideal unit for telecom, security, audio/video and a wide variety of general portable and stationary rack-mount applications. Recommended for network-grade IT environments, the PDUMV30-ISO provides real-time monitoring of load levels via its built-in digital current metering. A 10-foot (3.1-meter) cord with L5-30P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

Warranty

Limited Warranty: 2 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

Local metered PDU ideal for telecom, security, A/V and other small network applications
Digital ammeter for on-site load monitoring helps prevent power overloads
3840 joules protect your valuable electronics against dangerous surges and spikes

Specifications

Package Contents	PDUMV30-ISO PDU Mounting Hardware Owner's Manual
Product Type	PDU
Input Voltage	120 V AC
Manufacturer Part Number	PDUMV30-ISO
Limited Warranty	2 Year
Output Voltage	120 V AC
Weight (Approximate)	13.96 lb
Form Factor	Rack
Input Current	24 A
Manufacturer	Eaton Corporation
Product Model	PDUMV30-ISO
Product Name	PDUMV30-ISO PDU
Mount Type	Wall-mountable
Protection Type	Surge Protection, Overload Protection, Noise
Rack Height	0U
Brand Name	Tripp Lite series
Plug/Connector Type	NEMA L5-30P
Country of Origin	Taiwan
Height	70"
Width	2.2"
Depth	4.2"
Phase	Single Phase
Receptacle Type	NEMA 5-15/20R
Environmentally Friendly	Yes
PDU Type	Metered
Mounting Orientation	Vertical
Power Rating (Watt)	2880 W
Product Color	Black
Color Family	Black
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
