Platform Interface 120V Outlets (24 5-15/20R) L5-30P Plug 0U Vertical TAA
Monitored - 24 x NEMA 5-15/20R - 120 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - TAA Compliant
MSRP$1,044.00
$960.48*
Save 8%In stock: 34
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

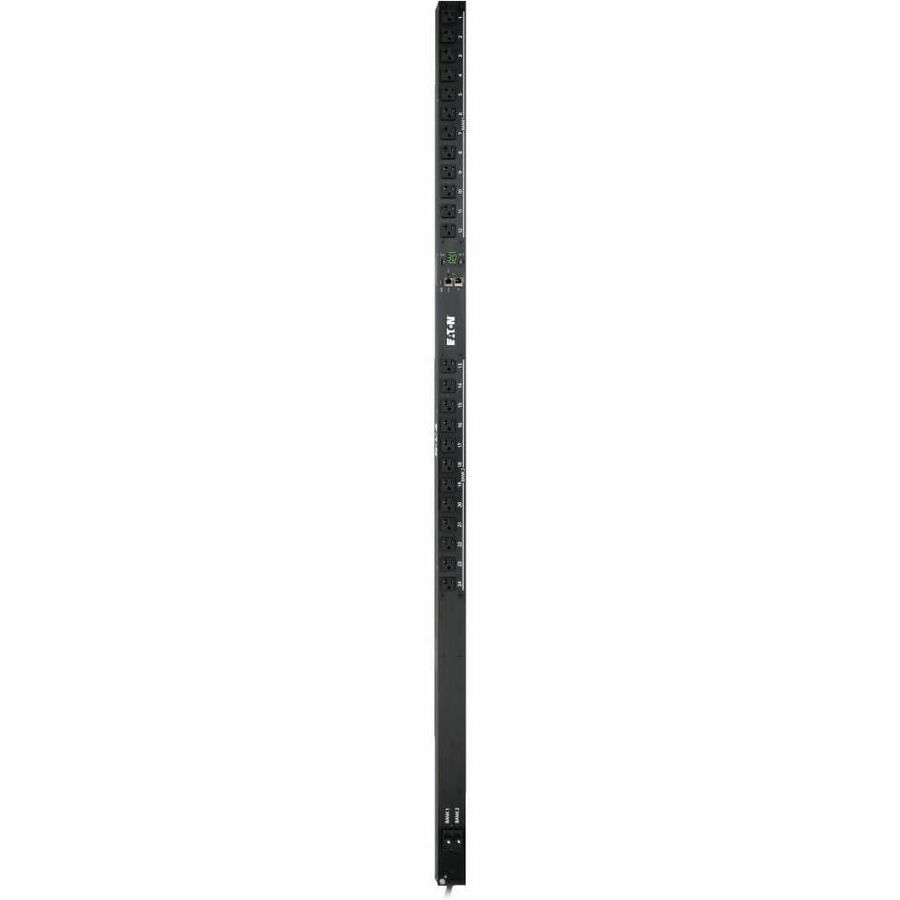

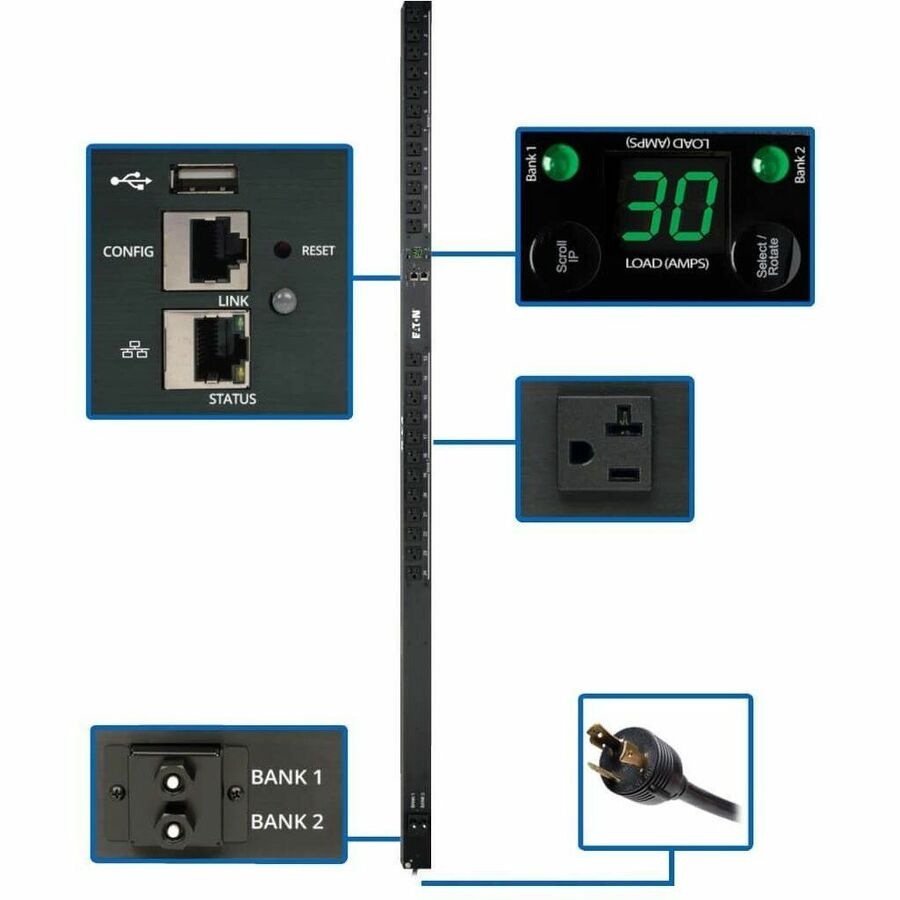

The PDUMNV30LX 2.9kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for IT and industrial applications, the vertical PDU features 24 NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L5-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor power consumption for both breakered load banks, as well as the total load to ensure they remain well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Features
Distributes and Monitors Network-Grade AC Power
• 2.9kW 120V 20A monitored PDU with single-phase input
• NEMA L5-30P with 10 ft. cord connects to compatible AC power source
• Firmware upgrades support future product enhancements

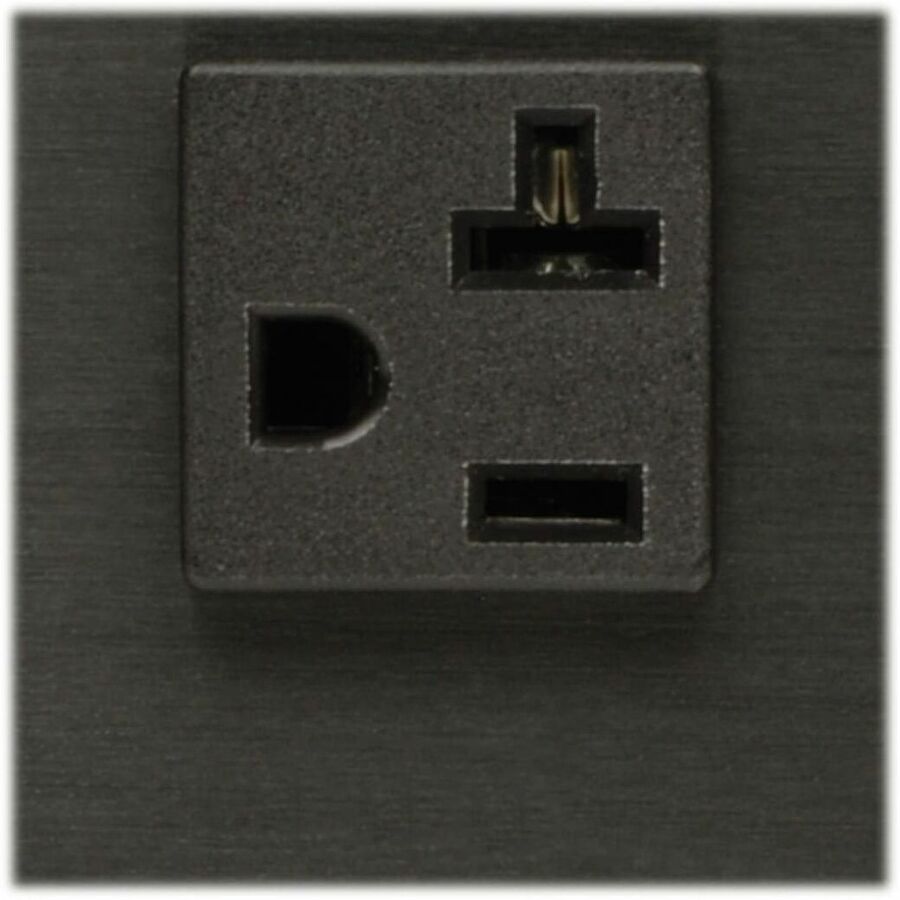

24 NEMA 5-15/20R Outlets Distribute Power
• Cord retention brackets prevent cables from becoming accidentally disconnected

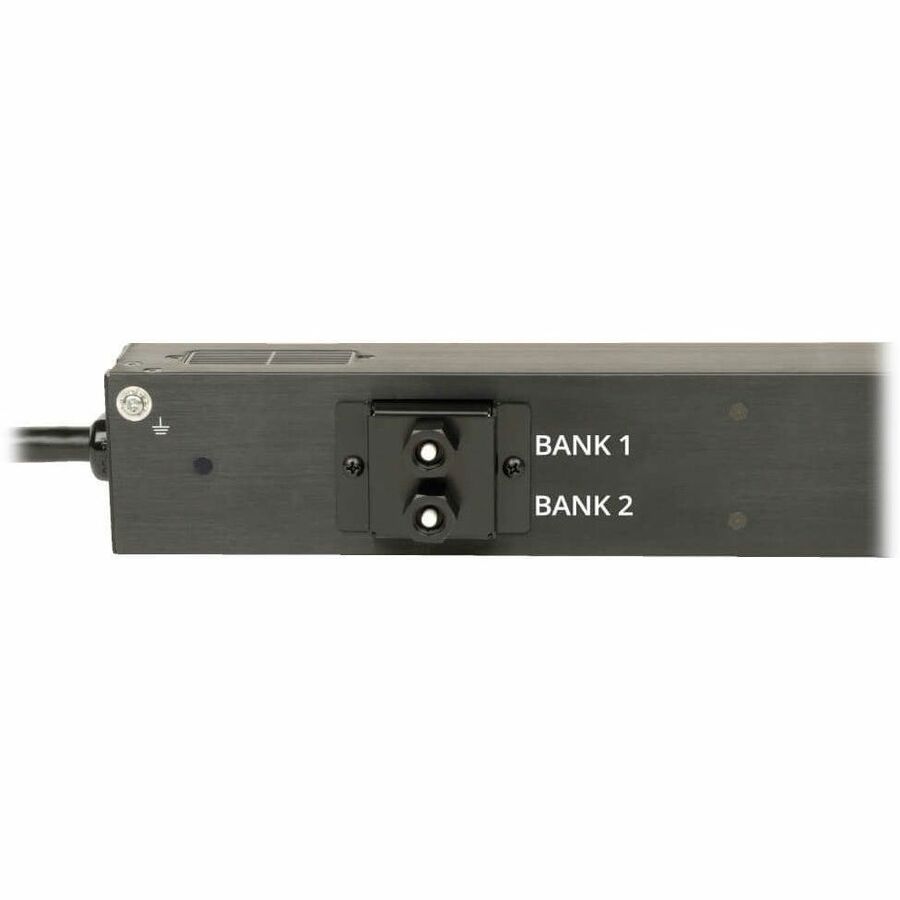

Digital Ammeter
• Reports power consumption for both breakered load banks, plus total output current
• Supports IP-address self-ID
• Rotates 180° for easy reading at either angle

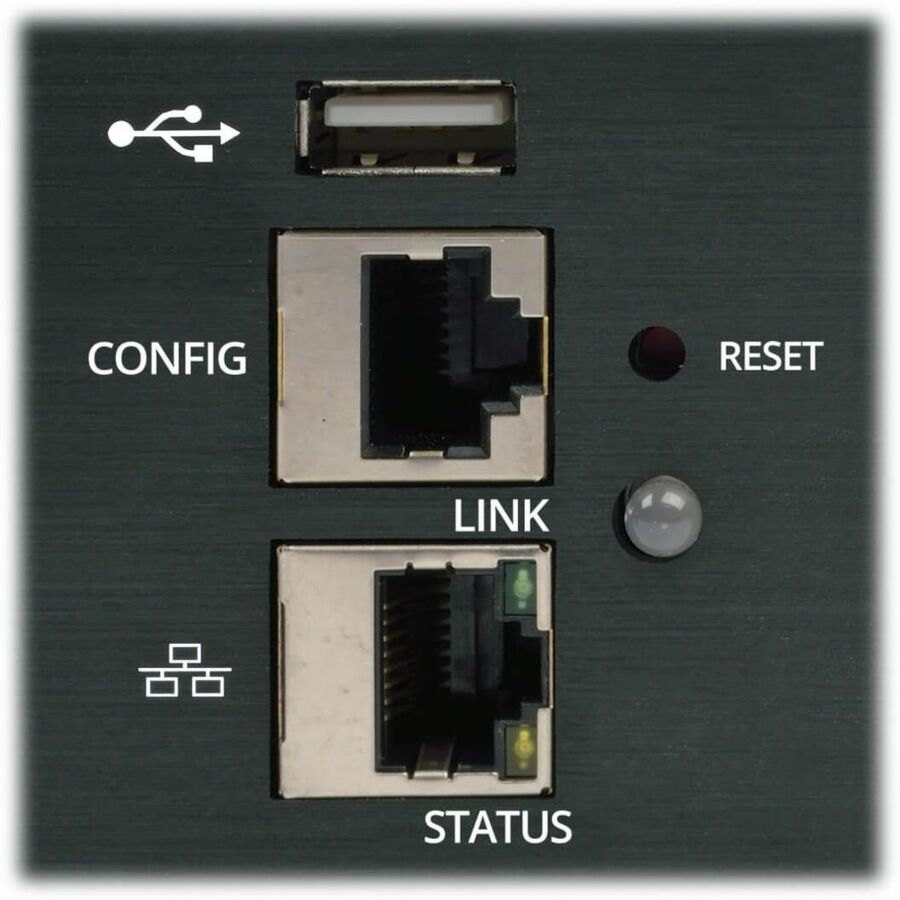

Built-In LX Platform Interface
• Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
• Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
• Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
• No Java required
Broad Communications Compatibility
• Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
• Supports automatic and manual assignment of IP address
Easy 0U Installation in EIA-Standard 19 in. Racks
• Mounts vertically using included toolless buttons or rack-mounting brackets
• Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
TAA-Compliant
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
More from the Manufacturer
Distributes and Monitors Single-Phase Power with No Java Required
Tripp Lite's PDUMNV30LX 2.9kW Single-Phase Monitored PDU is an efficient, cost-effective, next-generation power distribution solution with remote monitoring capabilities. Designed for users who prefer a Java-free interface, it features 24 NEMA 5-15/20R outlets and is recommended for any IT or industrial application. Its 10-foot cord with locking L5-30P plug connects to a compatible power source, generator or UPS.
Key Features
HTML5-Based Interface Provides Advanced Network Monitoring Capabilities
Featuring a built-in, Java-free, HTML5-based LX Platform interface (the mobile-friendly PowerAlert Device Manager), the PDUMNV30LX provides complete remote access for power monitoring and email notifications via a secure network or Web browser. When used with an optional EnviroSense2 environmental sensor (sold separately), it can also perform temperature/humidity and dry contact monitoring, providing IT personnel with enhanced oversight of facility power and environmental conditions. As an added bonus, up to three EnviroSense2 modules can be daisy-chained together. The PDUMNV30LX supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts can be configured to warn against potential overload, power loss and downtime. Manual configuration support provides the ability to have network settings automatically assigned or manually assigned via a permanent IP address.
HTML5-Based Interface Provides Advanced Network Monitoring Capabilities
Featuring a built-in, Java-free, HTML5-based LX Platform interface (the mobile-friendly PowerAlert Device Manager), the PDUMNV30LX provides complete remote access for power monitoring and email notifications via a secure network or Web browser. When used with an optional EnviroSense2 environmental sensor (sold separately), it can also perform temperature/humidity and dry contact monitoring, providing IT personnel with enhanced oversight of facility power and environmental conditions. As an added bonus, up to three EnviroSense2 modules can be daisy-chained together. The PDUMNV30LX supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts can be configured to warn against potential overload, power loss and downtime. Manual configuration support provides the ability to have network settings automatically assigned or manually assigned via a permanent IP address.
Integrates Easily Into Your Existing Infrastructure
This PDU is configurable with included hardware for 0U (vertical) installation in the cable management area of most rack enclosures. It also supports toolless button-mount installation. Vertical 0U installation promotes efficient airflow in the rack, and included cord retention brackets reduce cable clutter. An included PDUMVROTATEBRKT kit allows the PDU to be mounted with rear-facing outlets for improved airflow and equipment access. Included cable ties prevent cables from becoming accidentally disconnected from their outlets.
Why Choose Tripp Lite?
Founded in 1922 in Chicago, Illinois, Tripp Lite is one of the leading manufacturer of products to power, protect, manage, house, cool, connect and mount your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosures, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 95 years of quality products and service, Tripp Lite is a brand you can trust.
Limited Warranty: 2 Year
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMNV30LX |
| Brand Name | Eaton |
| Product Model | PDUMNV30LX |
| Product Name | PDUMNV30LX 2.9kW Single-Phase Monitored PDU |
| Product Type | PDU |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management |
|
| Remote Outlet Switching | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" |
| Width | 2.2" |
| Depth | 1.8" |
| Weight (Approximate) | 11.50 lb |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (Watt) | 2880 W |
| Input Current | 30 A |
| Technical Information | |
| PDU Type | Monitored |
| Design | Modular |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 24 x NEMA 5-15/20R |
| Protection Type | Overload Protection |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
