Tripp Lite by Eaton PDU 1.9kW Single-Phase Switched PDU LX Interface 120V Outlets (8 5-15/20R) NEMA L5-20P/5-20P input 12 ft. (3.66 m) Cord 1U Rack TAA

The PDUMH20NET2LX 1.9kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

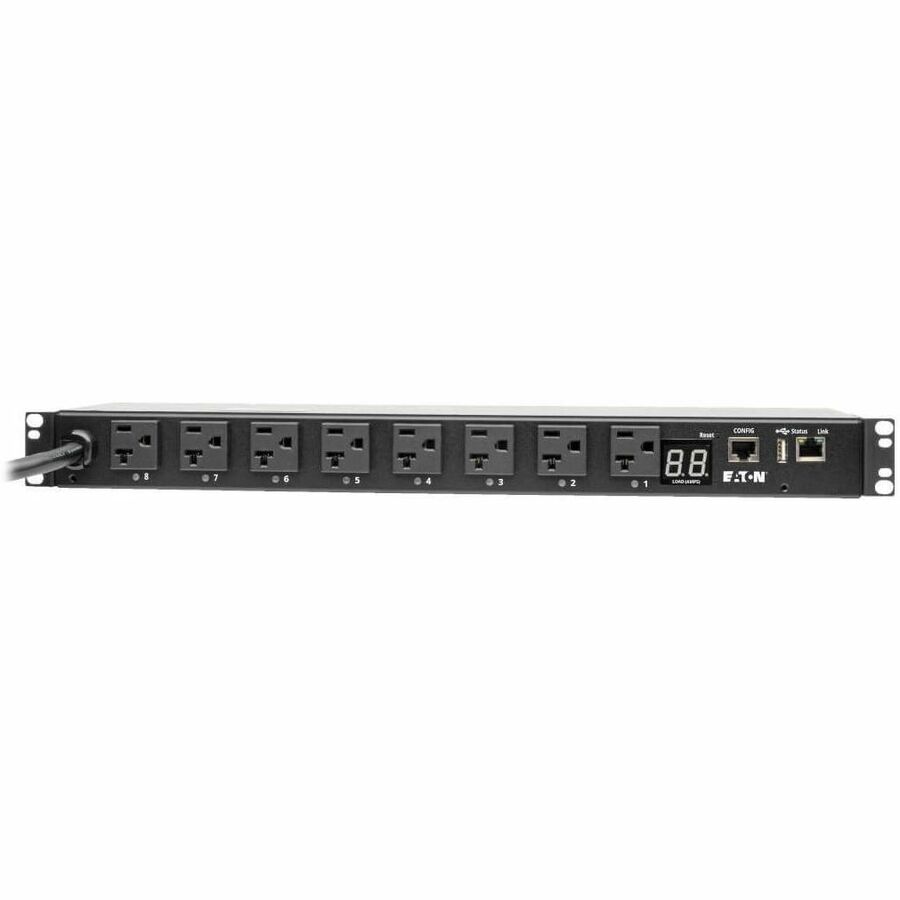

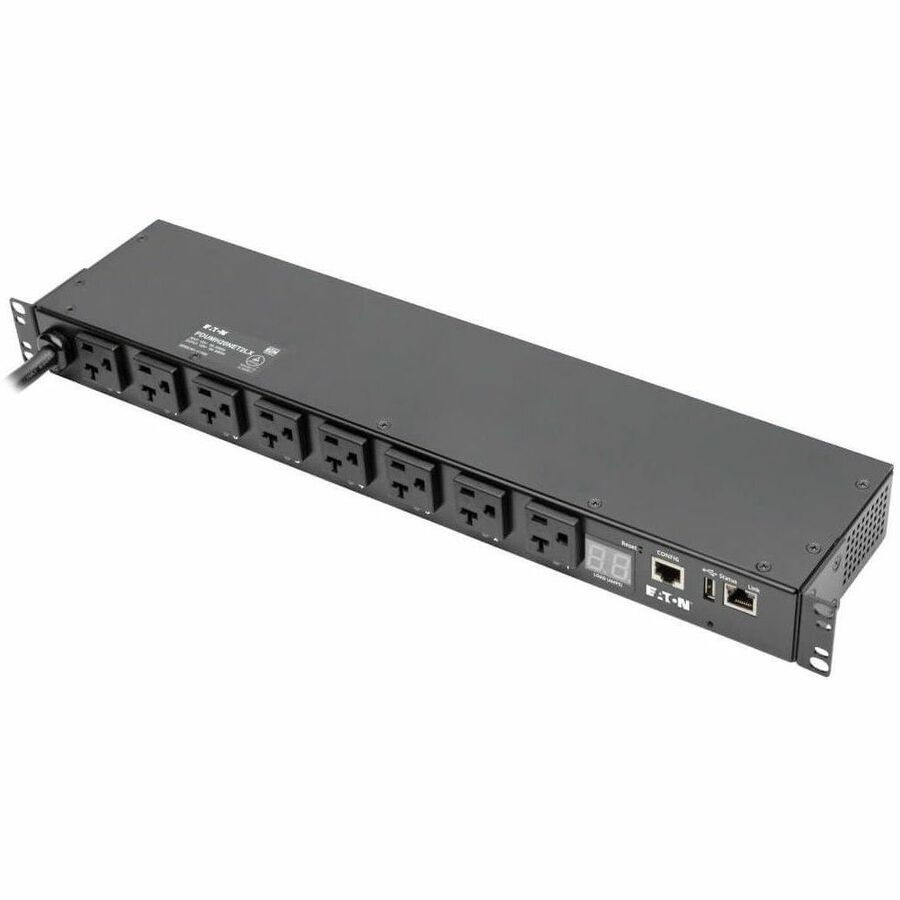

The 1U PDU features eight switched NEMA 5-15/20R outlets with an included cord retention bracket to prevent cables from becoming accidentally disconnected. A 12-foot cord with NEMA L5-20P plug and 5-20P plug adapter connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The single-phase PDU installs in 1U of space in EIA-standard 19-inch racks. You can also mount it vertically in 0U of rack space or on a wall or under a counter with the included brackets and user-supplied screws.

Features

Distributes, Monitors and Manages Network-Grade AC Power

• 1.9kW 120V switched PDU with single-phase input

• Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components

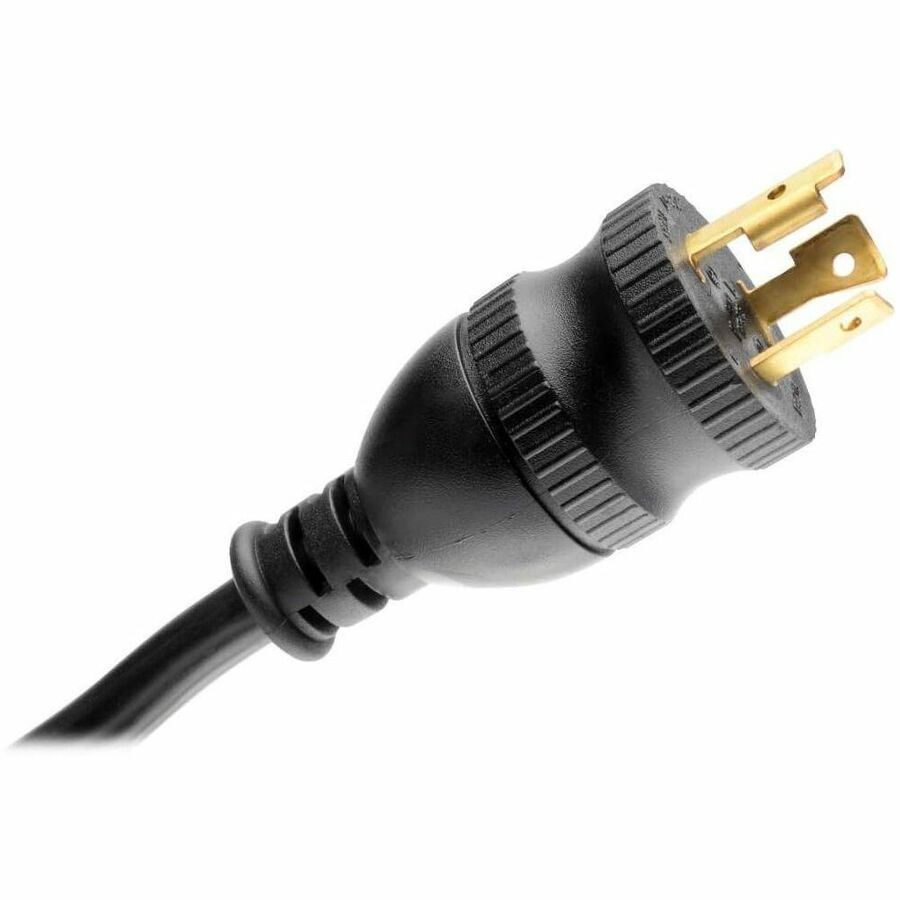

• NEMA L5-20P plug with 12 ft. cord and 5-20P plug adapter connects to compatible AC power source

• Firmware upgrades support future product enhancements

• Digital ammeter reports total PDU load in real time

8 Switched NEMA 5-15/20R Outlets Distribute AC Power

• Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices

• Cord retention bracket prevents cables from becoming accidentally disconnected

• Individual LEDs indicate which outlets are live

Built-In LX Platform Interface

• Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH

• Supports 10/100 Mbps auto-sensing for communication with an Ethernet network

• Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities

• No Java required

Broad Communications Compatibility

• Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP

• Supports automatic and manual assignment of IP address

Essential Safety Features

• Tiered access allows administrator and guest to log in via web browser

• Immediate alert notifications via email or SNMP traps

• Supports user-specified alarm notification thresholds

• Real-time clock backup maintains day/date even if PDU is unpowered

Flexible Mounting Options

• Included rack-mounting brackets compatible with front- or rear-facing installation

• Compatible with 1U horizontal, 0U vertical, wall and under-counter mounting with included brackets and user-supplied screws

Product Information

Distributes, Monitors and Manages Single-Phase Power with No Java Required

Tripp Lite's PDUMH20NET2LX 1.9kW Single-Phase Switched PDU is an efficient, cost-effective, next-generation power distribution solution with remote monitoring and control capabilities. Each of its eight NEMA 5-15/20R outlets can be turned on, turned off, rebooted or locked via Web interface, and you can monitor each outlet’s power consumption both remotely and with the unit’s ammeter. Designed for users who prefer a Java-free interface, this advanced 1U rack PDU distributes 120V single-phase output and is recommended for any IT or industrial application—especially those requiring individual outlet control, regular load shedding and remote monitoring of critical components. Its 12-foot cord with locking L5-20P plug connects to a compatible power source, generator or UPS.

HTML5-Based Interface Provides Advanced Network Monitoring and Control Capabilit

Featuring a built-in, Java-free, HTML5-based LX Platform interface (the mobile-friendly PowerAlert Device Manager), the PDUMH20NET2LX provides complete remote access f¬or power monitoring, configuration, control and email notifications via a secure network or Web browser. When used with an optional EnviroSense2 environmental sensor (sold separately), it can also perform temperature/humidity and dry contact monitoring, providing IT personnel with enhanced oversight of facility power and environmental conditions. As an added bonus, up to three EnviroSense2 modules can be daisy-chained together. The PDUMH20NET2LX supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts can be configured to warn against potential overload, power loss and downtime. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. DHCP/Manual configuration support provides the ability to have network settings automatically assigned or manually assigned via a permanent IP address.

Supports Individual Outlet Current Monitoring and Remote Outlet Control

The PDUMH20NET2LX offers the ability to turn on, turn off, recycle, or lock out power to any of its eight outlets as well as locally and remotely monitor each outlet’s output power consumption. This allows you to more efficiently manage network power consumption and properly balance loads, both remotely and on site. So if equipment needs to be rebooted on a Sunday—no problem! Simply log on from wherever you are and take care of business remotely.

Product Information

Supports Real-Time Load and Power Status Monitoring

The PDUMH20NET2LX is equipped with a digital ammeter that allows you to monitor the PDU’s total load in real time. This meter helps ensure the PDU is used below maximum capacity with no danger of overload.

Reduces the Cost of Data Center Maintenance

Advanced remote control capabilities lower the PDUMH20NET2LX’s total cost of ownership by reducing the frequency of on-site visits.

Integrates Easily Into Your Existing Infrastructure

This 1U PDU includes all necessary mounting hardware and is configurable with front- or rear-facing installation in your rack. It also supports 0U vertical, wall and under-counter mounting with included brackets and user-supplied screws. Once the PDU is installed in your rack, included cable ties prevent cables from becoming accidentally disconnected from their outlets.
