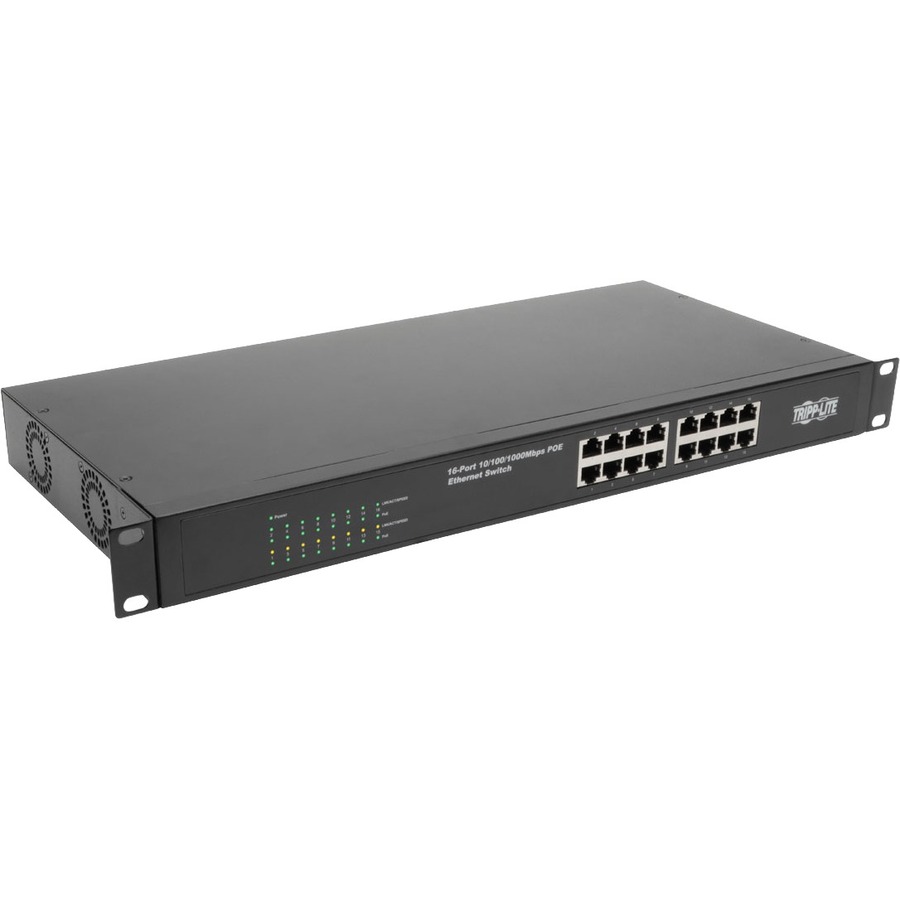

Eaton Tripp Lite Series 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch with PoE+, 247W, Metal Housing

The NG16POE 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch adds a Gigabit Ethernet connection with PoE+ capacity to your small office, workgroup or creative workspace. Especially recommended for security applications to power IP cameras, VoIP phones and other PoE-compatible devices, this Ethernet switch provides PoE+ compatibility with wireless access points and other devices with up to 30W per port and a PoE budget of 247W. Sharing large bandwidth-intensive files, such as CAD drawings and high-definition videos, at Gigabit speeds improves efficiency and cuts costly downtime. IEEE 802.3x flow control allows smooth transmission.

This unmanaged switch features 16 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection. It's plug-and-play with no configuration required and can be up and running immediately. Easy-to-read LEDs indicate power, connection, activity and PoE status for each port.

The detachable six-foot power cord with NEMA 5-15P plug connects to any compatible AC source. The heavy-duty metal housing is designed for desktop installation or mounting into 1U of an EIA-standard 19-inch rack with the included brackets.

Unmanaged Network Switch for Home/Small Offices, Workgroups and Security Applications

• 16 twisted-pair RJ45 Gigabit Ethernet ports with PoE+ capability

• Auto-negotiable 10/100/1000 Mbps

• Automatic MDI/MDIX cross-over detection

• 36 Gbps switching capacity (2 Gbps per port with full duplex)

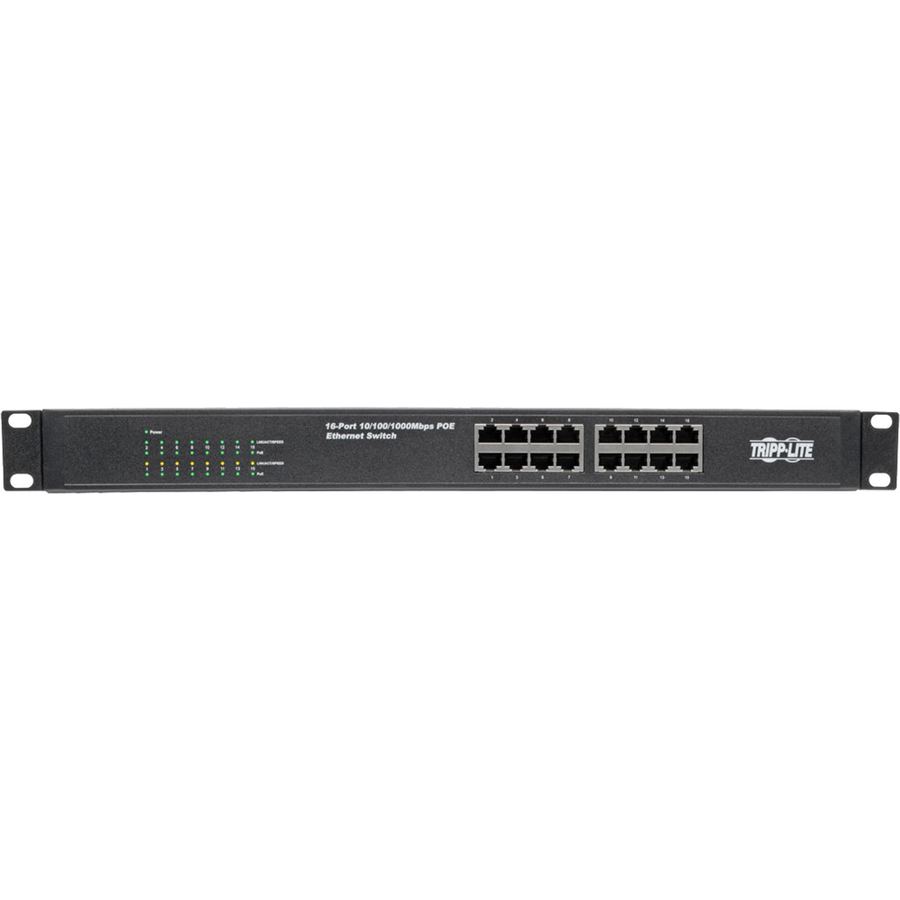

• LEDs indicate power, connection, activity and PoE status per port

• Supports 10k jumbo frames, MAC address auto-learning and auto-aging, and 802.3x flow control (full duplex) and back pressure (half duplex)

• The UTP port supports the auto-negotiation function and automatically adjusts the transmission mode and transmission rate

247W Total PoE+ Budget

• Up to 30W PoE per port

• Each port supplies PoE+ power to connected devices via network cable

Heavy-Duty Metal Housing

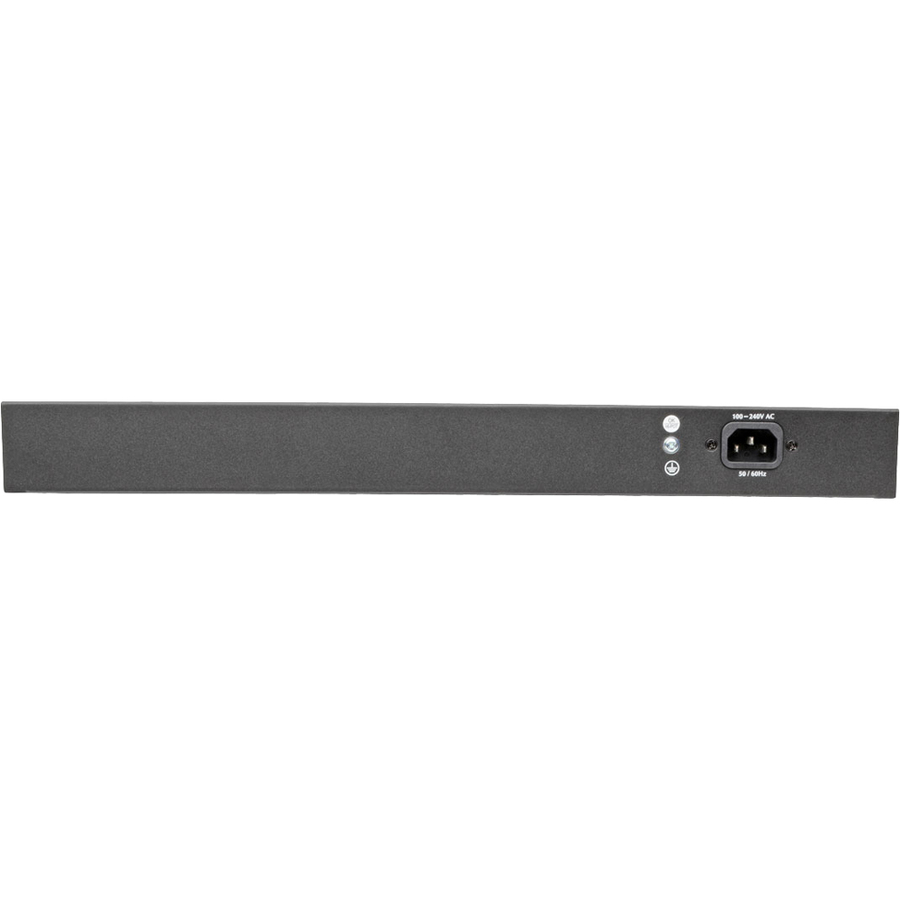

• Detachable 6 ft. AC power cord with NEMA 5-15P plug

• Plug-and-play-no configuration necessary

Versatile Installation Options

• Includes rubber feet for secure placement on flat desktop surface

• Mounts in 1U of EIA-standard 19 in. rack with included brackets

• Grounding lug included

Works with the Most Popular Web Browsers

The NG16POE is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NG16POE accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

More from the Manufacturer

Smart Investment for Faster Speeds and Higher Wattages

Network-attached storage, cloud computing, VoIP and video streaming are just a few of the data-intensive applications that can overwhelm outdated networks. If you’re still using switches limited to 10/100 megabit speeds, it’s time to upgrade and finish projects faster with a blazing-fast Gigabit Ethernet switch. This switch also has one of the highest PoE budgets in its price range, which means you can power more high-wattage PoE and PoE+ devices without overloading the switch.

Gigabit Speed for Homes, Offices and Facilities with PoE Devices

This cost-effective network switch was designed for the needs of home users, businesses and IT/facility managers. It combines easy setup, blazing-fast network speeds, trouble-free operation and rock-solid reliability with outstanding value. It also supports high-wattage Power over Ethernet (PoE+) devices like security cameras and wireless access points.

Stress-Free Network Setup

Unmanaged Ethernet switches provide plug-and-play network convenience. Simply connect your network cables, and your Gigabit network is ready to go. Easy-to-read LEDs communicate port-by-port network activity at a glance, including Power over Ethernet status. If you ever need to expand your network, it only takes a moment to connect more switches through the auto-MDIX Ethernet ports.

High-Wattage Power over Ethernet

Power over Ethernet (PoE) delivers convenient in-line power to compatible equipment like security cameras, wireless access points, routers, IP phones, access control devices, PA speakers and sensors. This switch has one of the highest total PoE wattage budgets in its price range, which means you can power more devices without overloading the switch. It also supports the PoE+ standard to deliver more watts per port and drive the latest power-hungry devices while maintaining complete compatibility with lower-wattage devices.
