CyberPower PDU20BVHVIEC38F 200 - 230 VAC 20A Basic PDU
CyberPower Systems

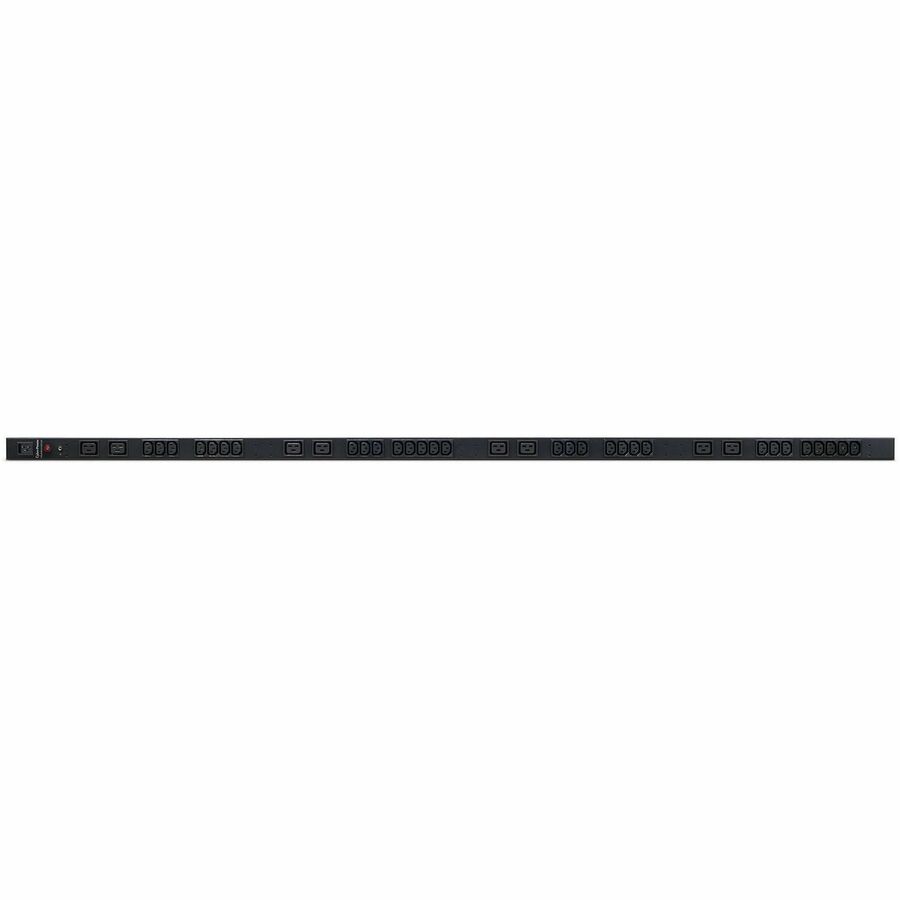

CyberPower PDU20BVHVIEC38F 200 - 230 VAC 20A Basic PDU

38 Outlets, 10 ft, IEC-320 C20, Vertical, 0U, Lifetime Warranty

SKU
PDU20BVHVIEC38F
Category
PDUs

MSRP$362.95

$216.09

Save 40%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PDU20BVHVIEC38F
Category
PDUs

Overview

The CyberPower PDU20BVHVIEC38F, a 38-outlet (front) 0U vertical rackmount basic power distribution unit (PDU), provides 200/230V 20A output. It distributes power to 30 IEC-320 C13, 8 IEC-320 C19 receptacles from a single IEC-320 C20 plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BVHVIEC38F has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation. The PDU20BVHVIEC38F comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

Highlights

  • Phase: Single
  • Amps: 20A (Derated to 16A)
  • Volts: 200 - 230 V
  • Frequency: 50Hz/60Hz
  • Plug type: IEC-320 C20
  • Outlets: 30 IEC-320 C13, 8 IEC-320 C19
  • Size: 0U Rackmount
  • Dimensions (in.): 1.75W x 70H x 1.5D
  • Cord length (ft.): 10
  • Warranty: Limited lifetime

Specifications

Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberPDU20BVHVIEC38F
Limited WarrantyLifetime
Output Voltage230 V AC
Weight (Approximate)8.41 lb
ManufacturerCyberPower Systems, Inc
Product ModelPDU20BVHVIEC38F
Product NamePDU20BVHVIEC38F 200 - 230 VAC 20A Basic
Mount TypeRack-mountable
Protection TypeOverload Protection
Brand NameCyberPower
Plug/Connector TypeIEC 60320 C20
Height70"
Width1.8"
Depth1.5"
Receptacle TypeIEC 60320 C19, IEC 60320 C13
Environmentally FriendlyYes
PDU TypeBasic
Mounting OrientationVertical
Receptacle Detail8 x IEC 60320 C19, 30 x IEC 60320 C13
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
