CyberPower PDU20BHVT12R 200 - 230 VAC 20A Basic PDU
CyberPower Systems

CyberPower PDU20BHVT12R 200 - 230 VAC 20A Basic PDU

12 Outlets, 10 ft, NEMA L6-20P, Horizontal, 1U, 3YR Warranty

SKU
PDU20BHVT12R
Category
PDUs

MSRP$231.00

$169.75

Save 27%

In stock: 4

Get a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PDU20BHVT12R
Category
PDUs

Overview

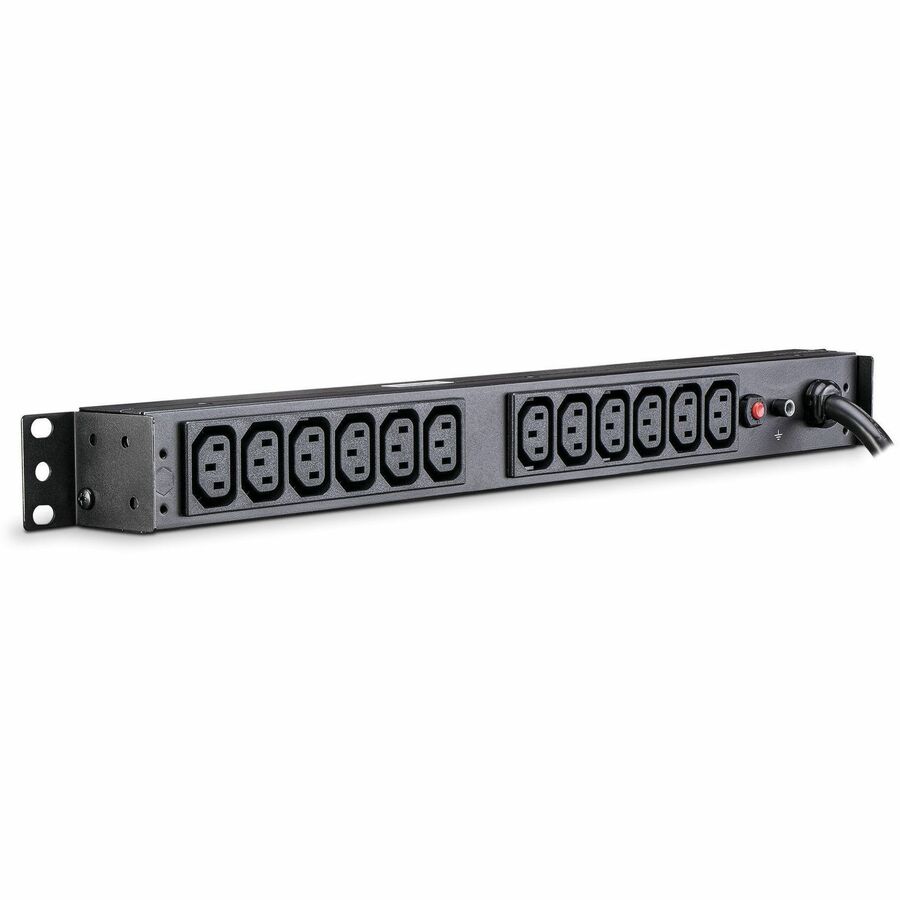

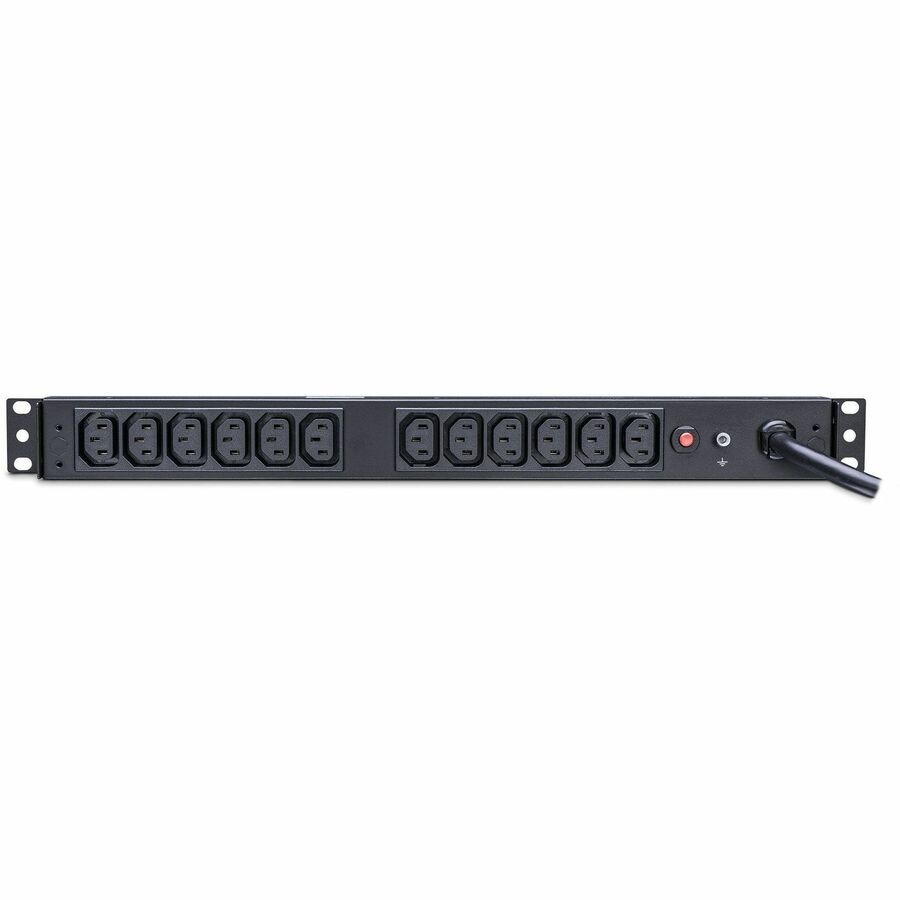

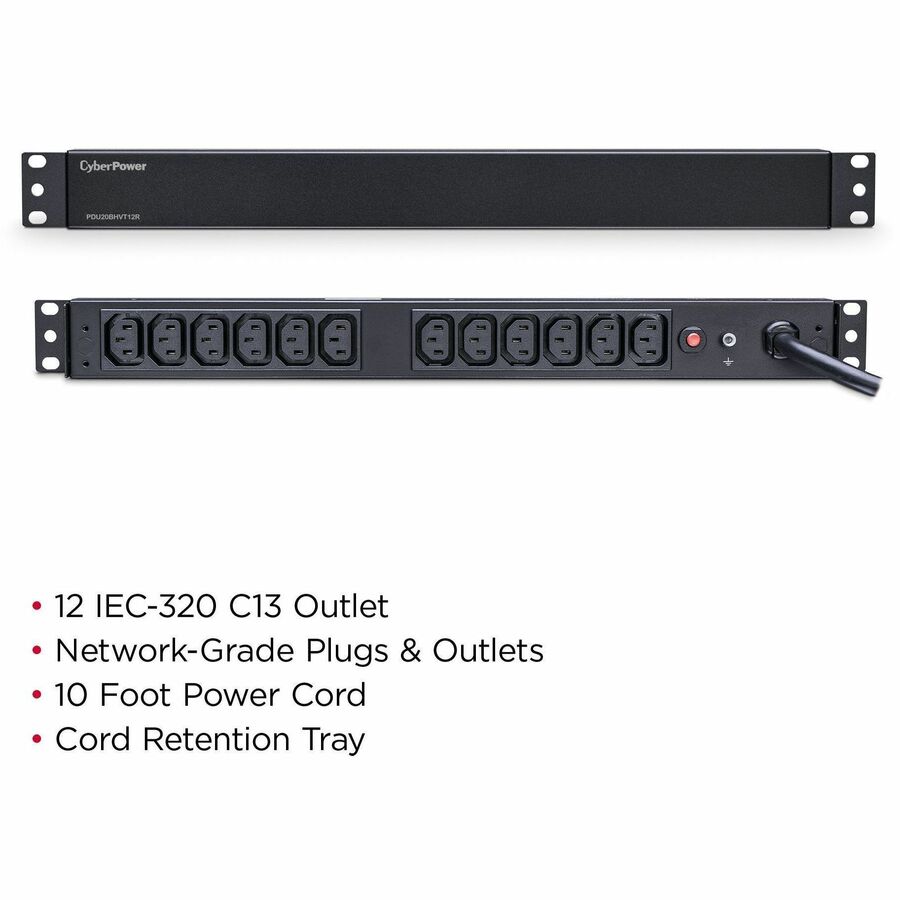

The CyberPower PDU20BHVT12R, a 12-outlet (rear) rackmount basic power distribution unit (PDU), provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single NEMA L6-20P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BHVT12R has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

Highlights

  • Phase: Single
  • Amps: 20A (Derated to 16A)
  • Volts: 208 - 230 V
  • Frequency: 50Hz/60Hz
  • Plug type: NEMA L6-20P
  • Outlets: 12 IEC-320 C13
  • Size: 1U Rackmount

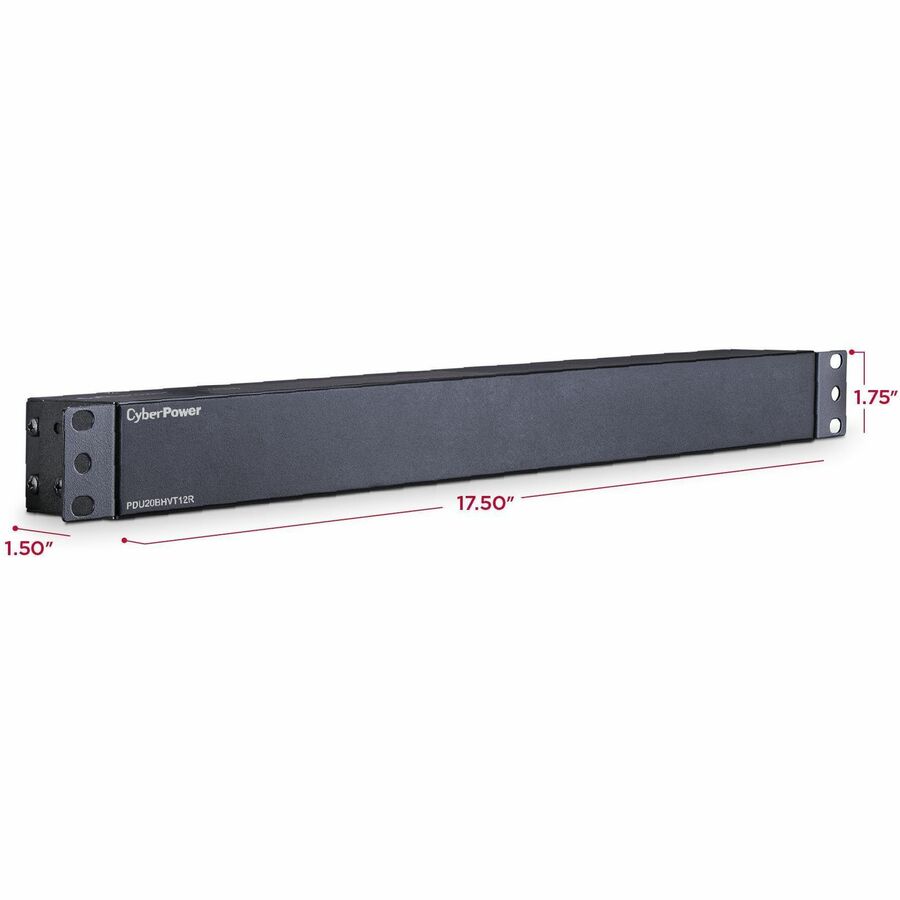

  • Dimensions (in.): 17.5W x 1.75H x 1.5D
  • Cord length (ft.): 10
  • Warranty: Limited lifetime

Specifications

Package Contents
  • Basic PDU20BHVT12R 12-Outlets PDU
  • Cord Retention Tray
  • User Manual
  • Screw Kit
  • Cord Clip Kit
  • Horizontal Mounting Brackets
  • Vertical Mounting Brackets
  • Product Registration Card
Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberPDU20BHVT12R
Limited WarrantyLifetime
Weight (Approximate)3.70 lb
ManufacturerCyberPower Systems, Inc
Product ModelPDU20BHVT12R
Product NamePDU20BHVT12R 200 - 230 VAC 20A Basic
Mount TypeRack-mountable
Protection TypeOverload Protection
Product SeriesBasic PDU
Rack Height1U
Brand NameCyberPower
Plug/Connector TypeNEMA L6-20P
Input Voltage Range200 V AC - 230 V AC
Height1.8"
Width17.5"
Depth1.5"
PhaseSingle Phase
Receptacle TypeIEC 60320 C13
Environmentally FriendlyYes
Output Voltage Range200 V AC - 230 V AC
Energy StarNo
PDU TypeBasic
Mounting OrientationVertical
Receptacle Detail12 x IEC 60320 C13
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
