CyberPower PDU15B6F12R 100 - 125 VAC 15A Basic PDU
CyberPower Systems

CyberPower PDU15B6F12R 100 - 125 VAC 15A Basic PDU

18 Outlets, 15 ft, NEMA 5-15P, Horizontal, 1U, Lifetime Warranty

SKU
PDU15B6F12R
Category
PDUs

MSRP$233.00

$133.12

Save 43%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PDU15B6F12R
Category
PDUs

Overview

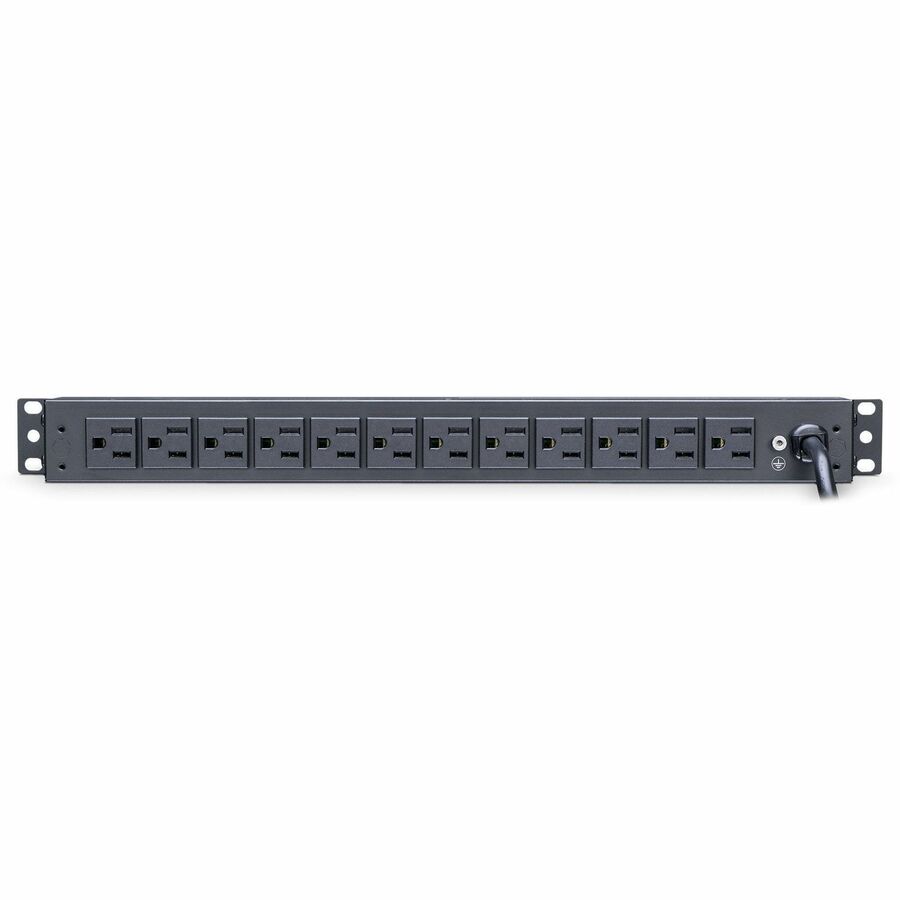

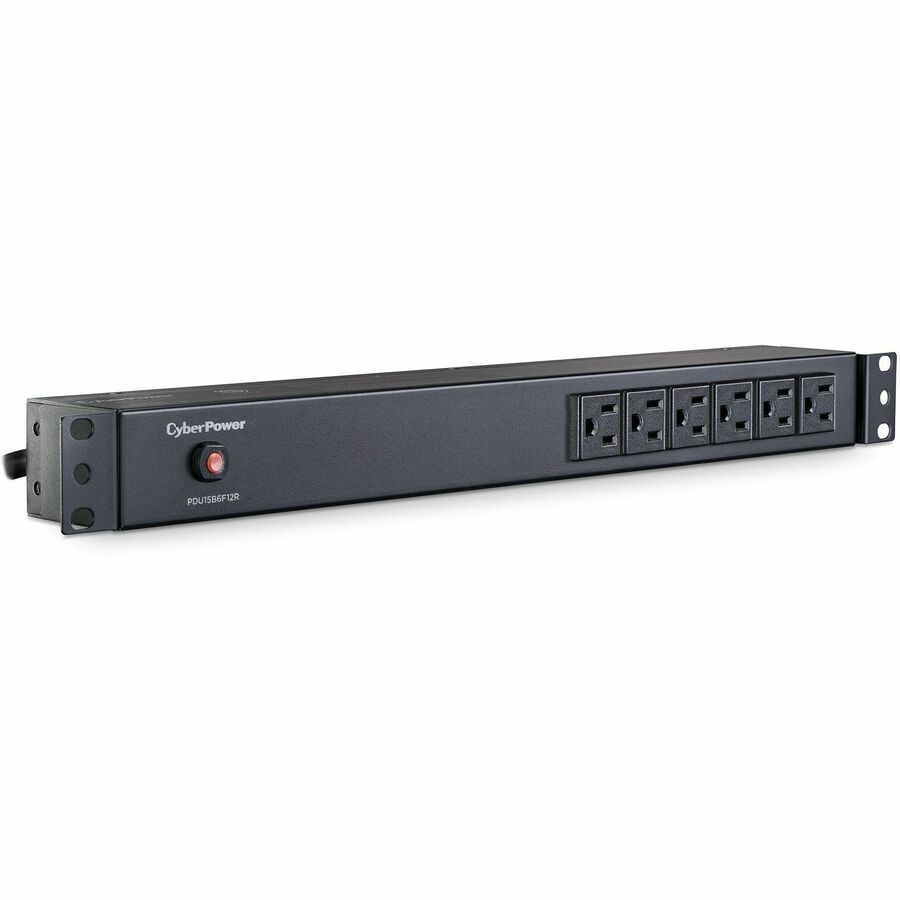

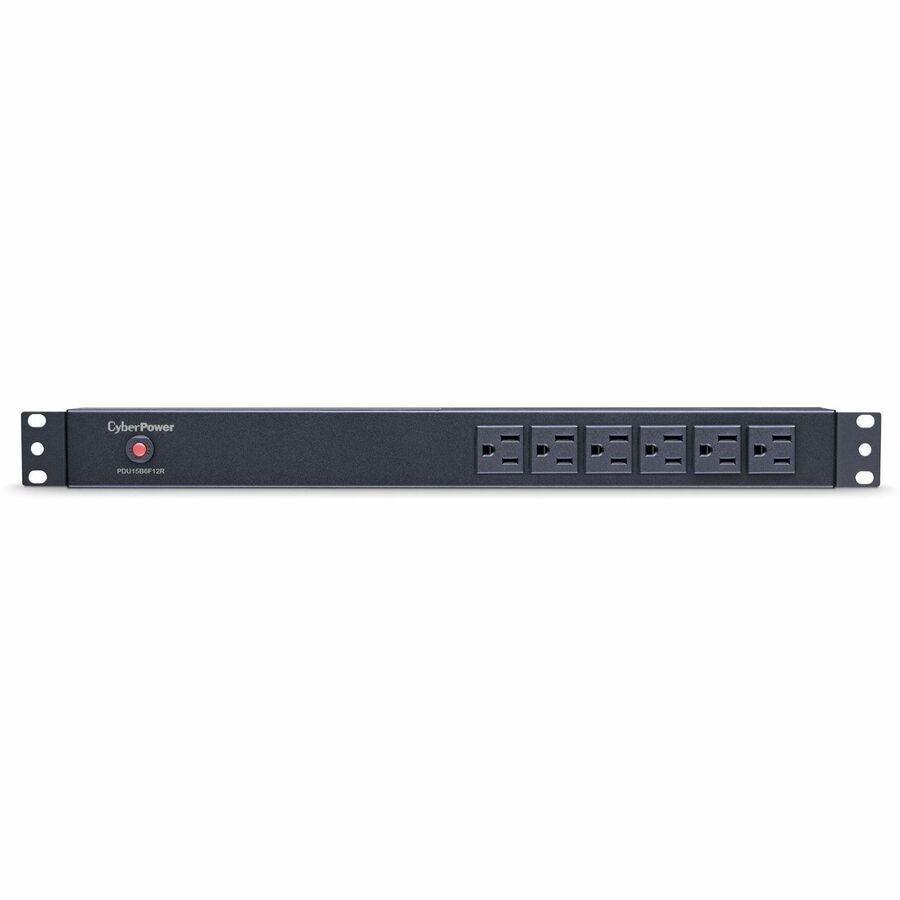

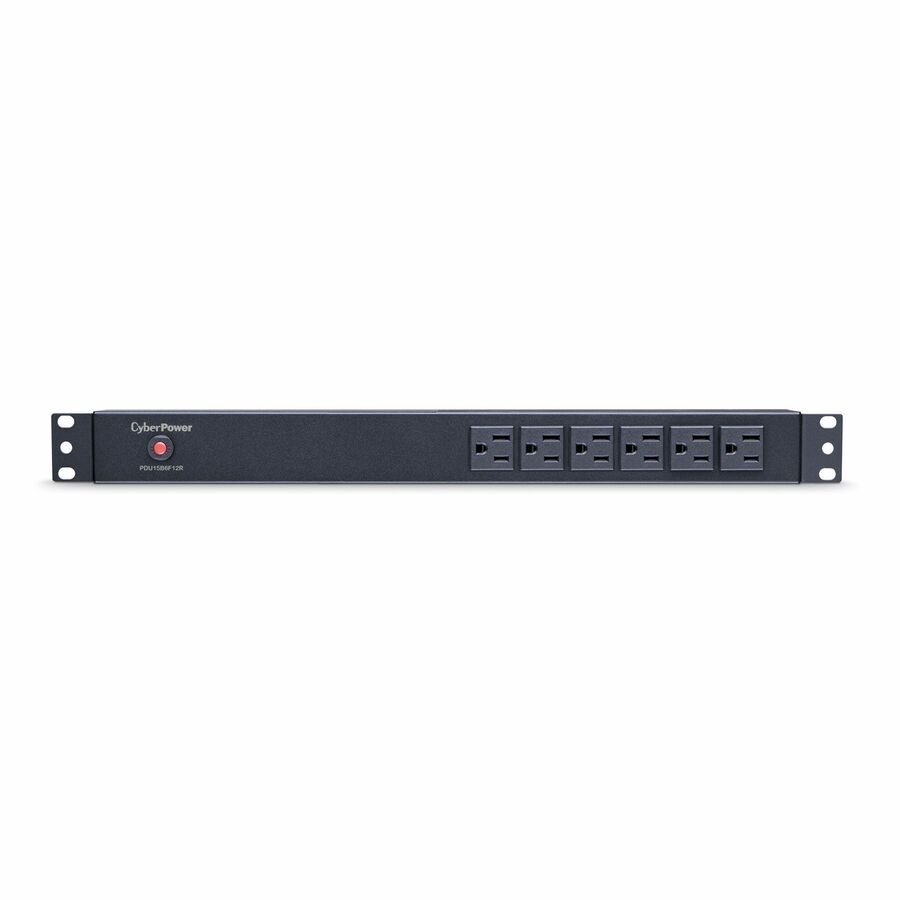

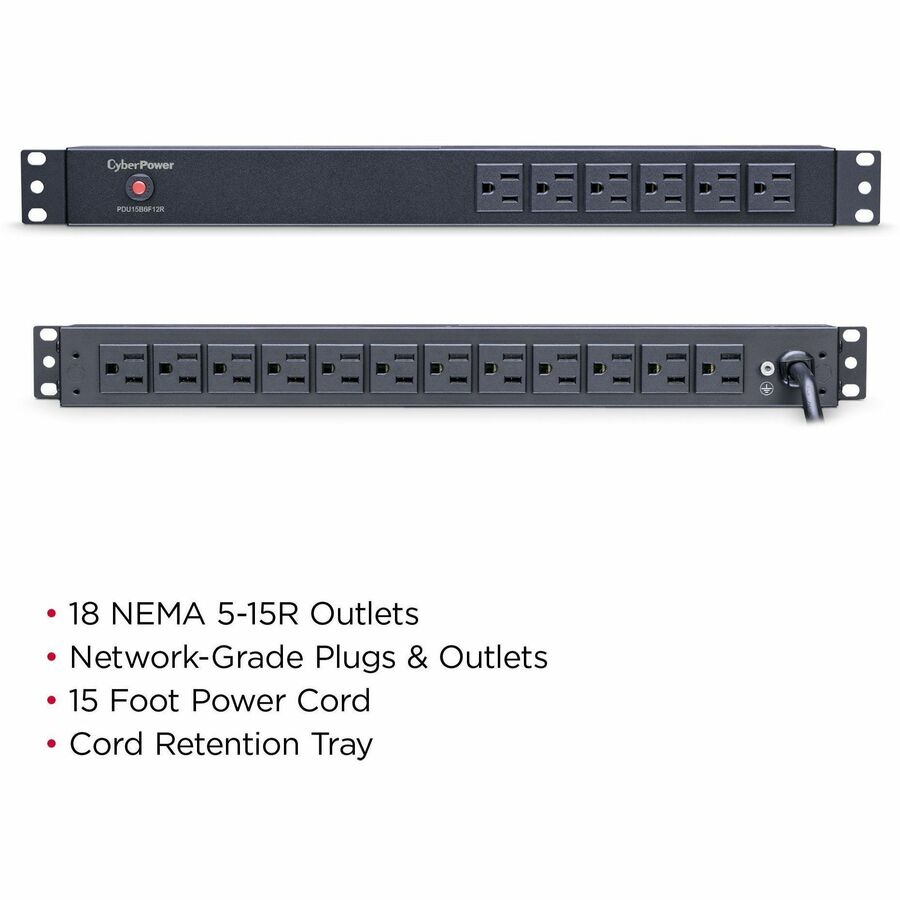

The CyberPower PDU15B6F12R, an 18-outlet (6 front, 12 rear) rackmount basic power distribution unit (PDU), provides 100 ? 125 V 15A output. It distributes power to 18 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU15B6F12R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

Highlights

  • Phase: Single
  • Amps: 15A (Derated to 12A)
  • Volts: 100 - 125 V
  • Frequency: 50Hz/60Hz
  • Plug type: NEMA 5-15P
  • Outlets: 18 NEMA 5-15R
  • Size: 1U Rackmount

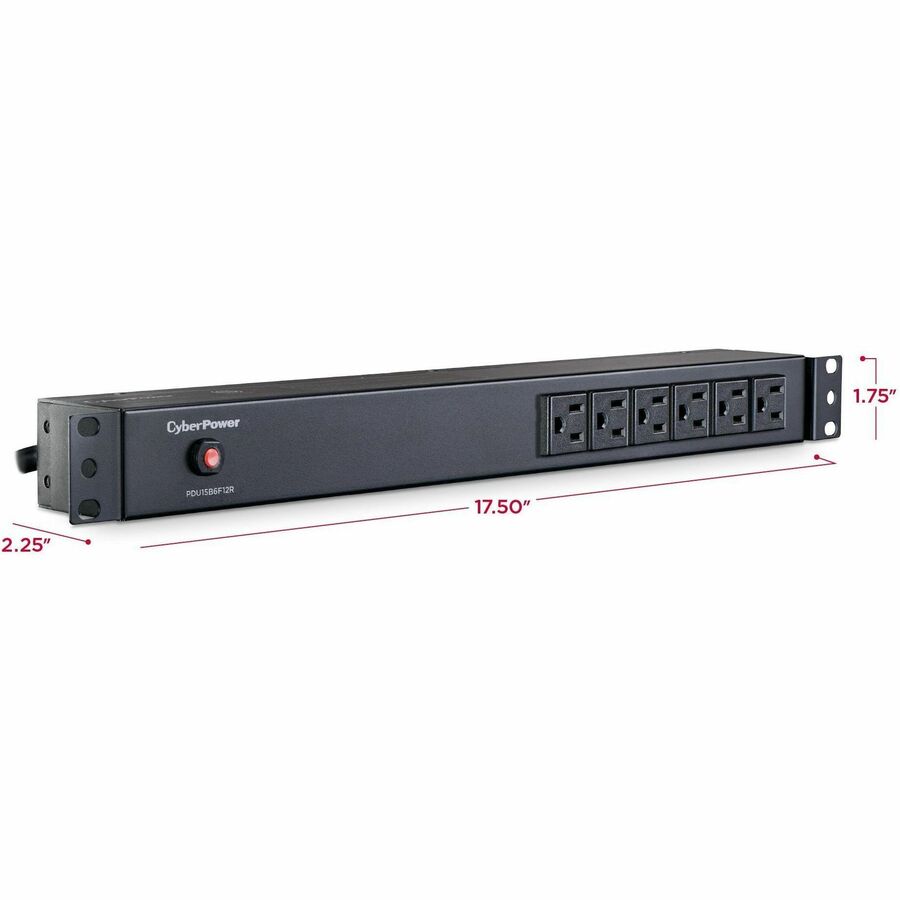

  • Dimensions (in.): 17.5W x 1.75H x 2.25D
  • Cord length (ft.): 15
  • Warranty: Limited lifetime

Specifications

Package Contents
  • PDU15B6F12R 18-Outlets PDU
  • Cord Retention Tray
  • User Manual
  • Screw Kit
  • Cord Clip Kit
  • Horizontal Mounting Brackets
  • Vertical Mounting Brackets
  • Product Registration Card
Product TypePDU
Input Voltage120 V AC
Manufacturer Part NumberPDU15B6F12R
Limited WarrantyLifetime
Weight (Approximate)3.70 lb
Input Current15 A
ManufacturerCyberPower Systems, Inc
Product ModelPDU15B6F12R
Product NamePDU15B6F12R 100 - 125 VAC 15A Basic
Mount TypeRack-mountable
Protection TypeOverload Protection
Product SeriesBasic PDU
Rack Height1U
Brand NameCyberPower
Plug/Connector TypeNEMA 5-15P
Input Voltage Range100 V AC - 125 V AC
Height1.8"
Width17.5"
Depth2.3"
PhaseSingle Phase
Receptacle TypeNEMA 5-15R
Environmentally FriendlyYes
Output Voltage Range100 V AC - 125 V AC
Energy StarNo
PDU TypeBasic
Mounting OrientationVertical
Receptacle Detail18 x NEMA 5-15R
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
