CyberPower PDU20BVHVIEC20F 200 - 230 VAC 20A Basic PDU
CyberPower Systems

CyberPower PDU20BVHVIEC20F 200 - 230 VAC 20A Basic PDU

20 Outlets, 10 ft, IEC-320 C20, Vertical, 0U, Lifetime Warranty

SKU
PDU20BVHVIEC20F
Category
PDUs

MSRP$346.95

$240.40

Save 31%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PDU20BVHVIEC20F
Category
PDUs

Overview

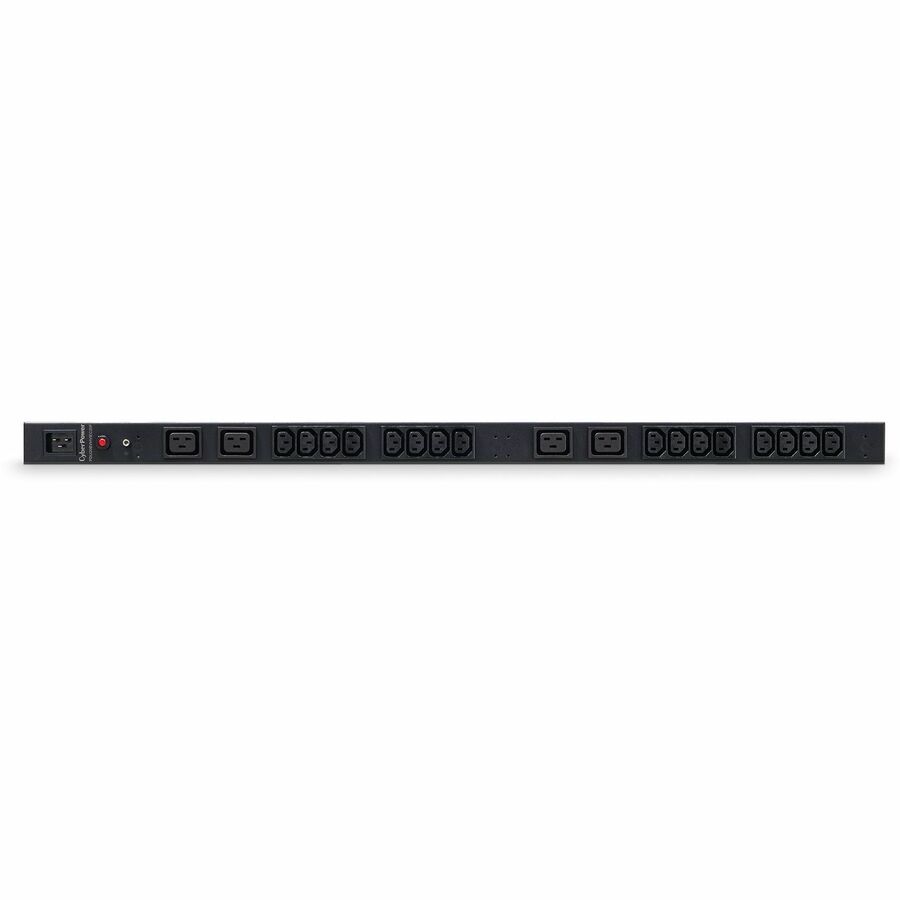

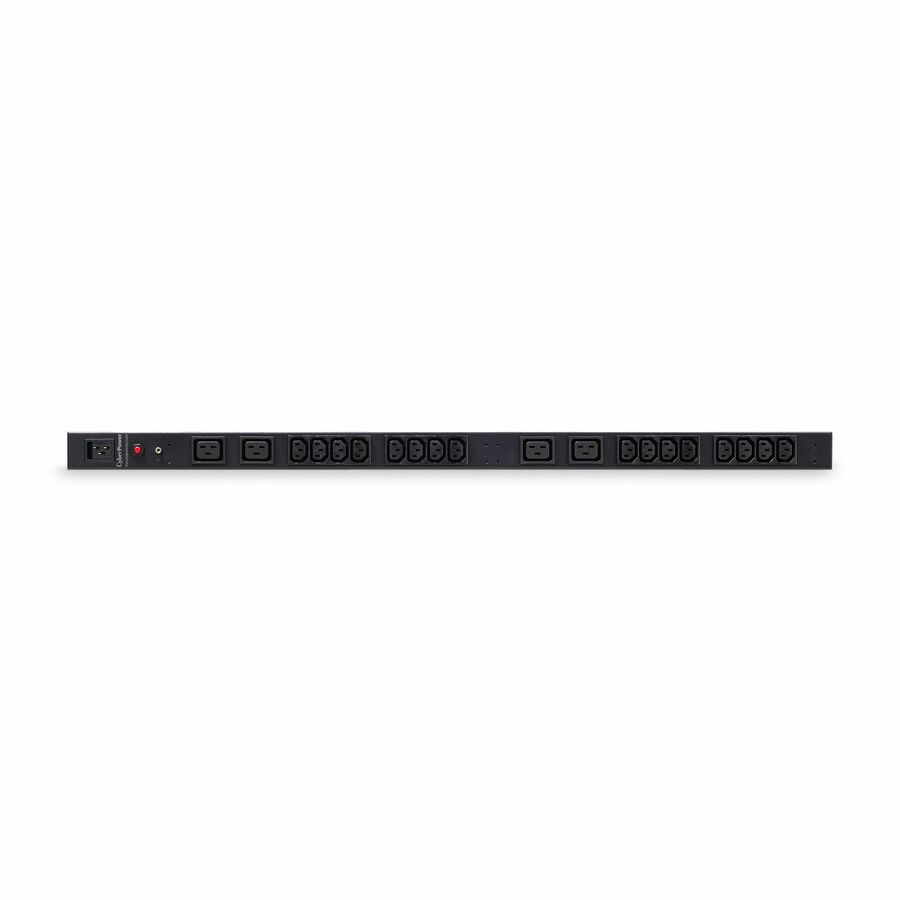

The CyberPower PDU20BVHVIEC20F, a 20-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 200/230V 20A output. It distributes power to 16 IEC-320 C13, 4 IEC-320 C19 receptacles from a single IEC-320 C20 plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BVHVIEC20F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation. The PDU20BVHVIEC20F comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

Highlights

  • Phase: Single
  • Amps: 20A (Derated to 16A)
  • Volts: 200 - 230 V
  • Frequency: 50Hz/60Hz
  • Plug type: IEC-320 C20
  • Outlets: 16 IEC-320 C13, 4 IEC-320 C19
  • Size: 0U Rackmount
  • Dimensions (in.): 1.75W x 36H x 1.5D
  • Cord length (ft.): 10
  • Warranty: Limited lifetime

Specifications

Package Contents
  • PDU20BVHVIEC20F 20-Outlets PDU
  • Cord Retention Tray
  • User Manual
  • Screw Kit
  • Cord Clip Kit
  • Horizontal Mounting Brackets
  • Vertical Mounting Brackets
  • Product Registration Card
Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberPDU20BVHVIEC20F
Limited WarrantyLifetime
Output Voltage230 V AC
Weight (Approximate)4.30 lb
Input Current20 A
ManufacturerCyberPower Systems, Inc
Product ModelPDU20BVHVIEC20F
Product NamePDU20BVHVIEC20F 200 - 230 VAC 20A Basic
Mount TypeRack-mountable
Protection TypeOverload Protection
Product SeriesBasic PDU
Rack Height0U
Brand NameCyberPower
Plug/Connector TypeIEC 60320 C20
Input Voltage Range200 V AC - 230 V AC
Height36"
Width1.8"
Depth1.5"
PhaseSingle Phase
Receptacle TypeIEC 60320 C19, IEC 60320 C13
Environmentally FriendlyYes
Output Voltage Range200 V AC - 230 V AC
PDU TypeBasic
Mounting OrientationVertical
Receptacle Detail4 x IEC 60320 C19, 16 x IEC 60320 C13
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
