CyberPower PDU20BHVIEC8R 200 - 230 VAC 20A Basic PDU
CyberPower Systems

CyberPower PDU20BHVIEC8R 200 - 230 VAC 20A Basic PDU

8 Outlets, 10 ft, IEC-320 C20, Horizontal, 1U, Lifetime Warranty

SKU
PDU20BHVIEC8R
Category
PDUs

MSRP$186.95

$138.79

Save 26%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PDU20BHVIEC8R
Category
PDUs

Overview

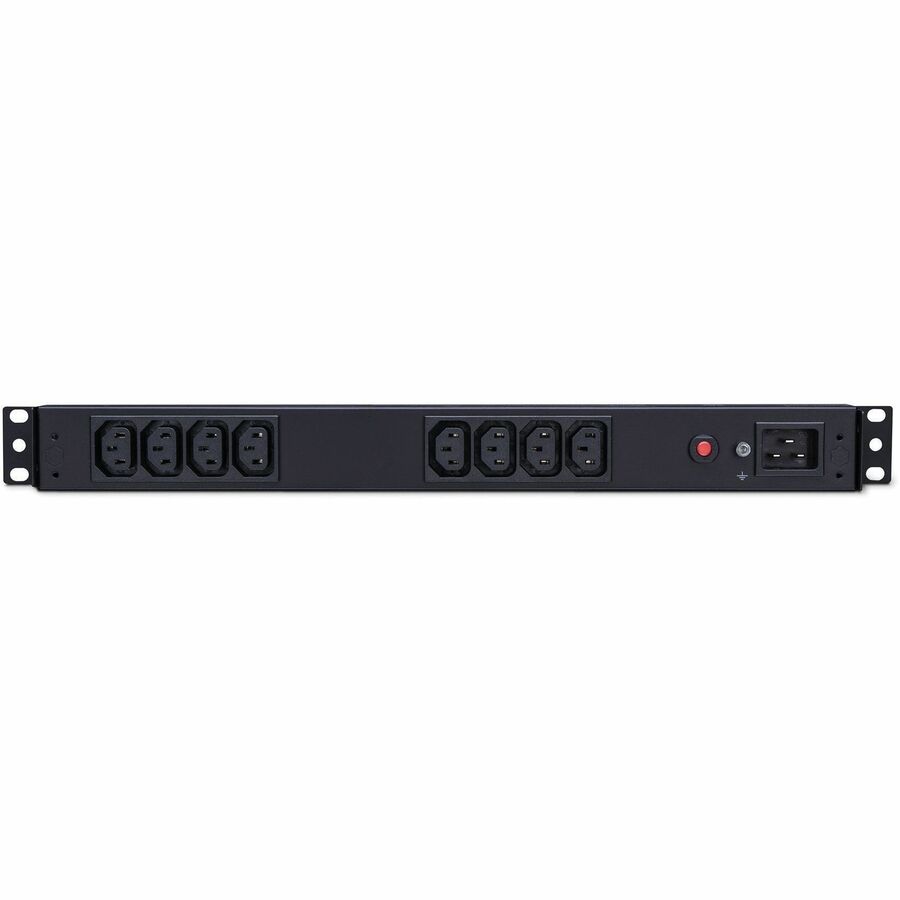

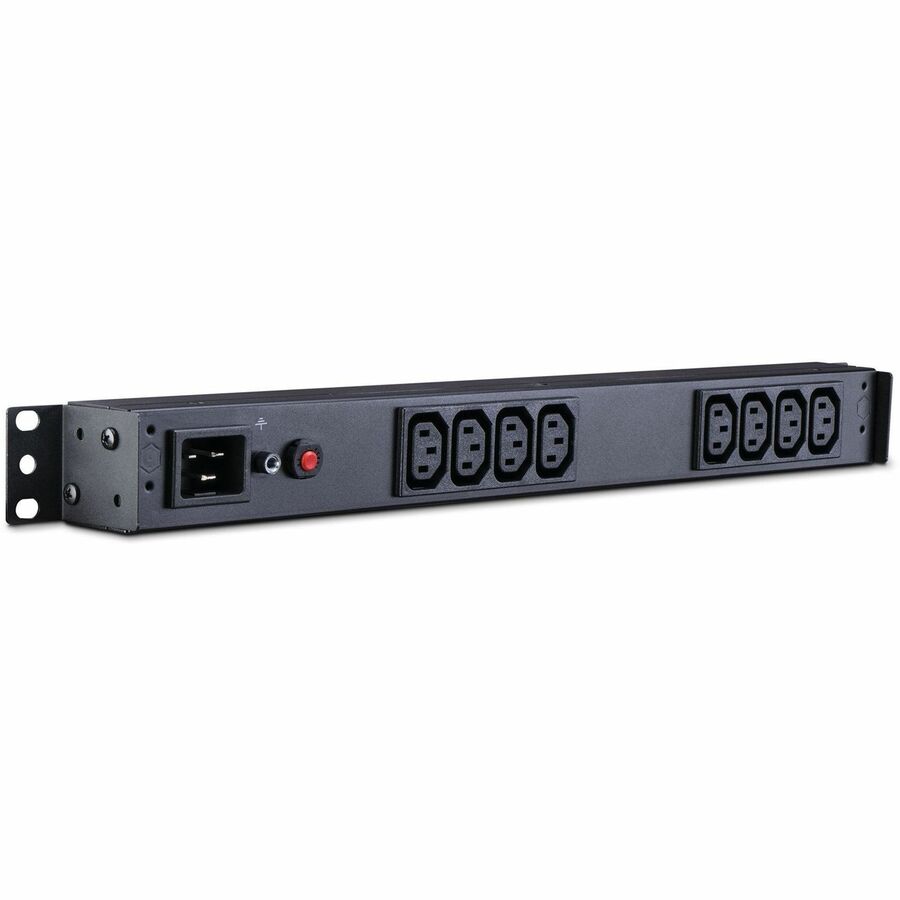

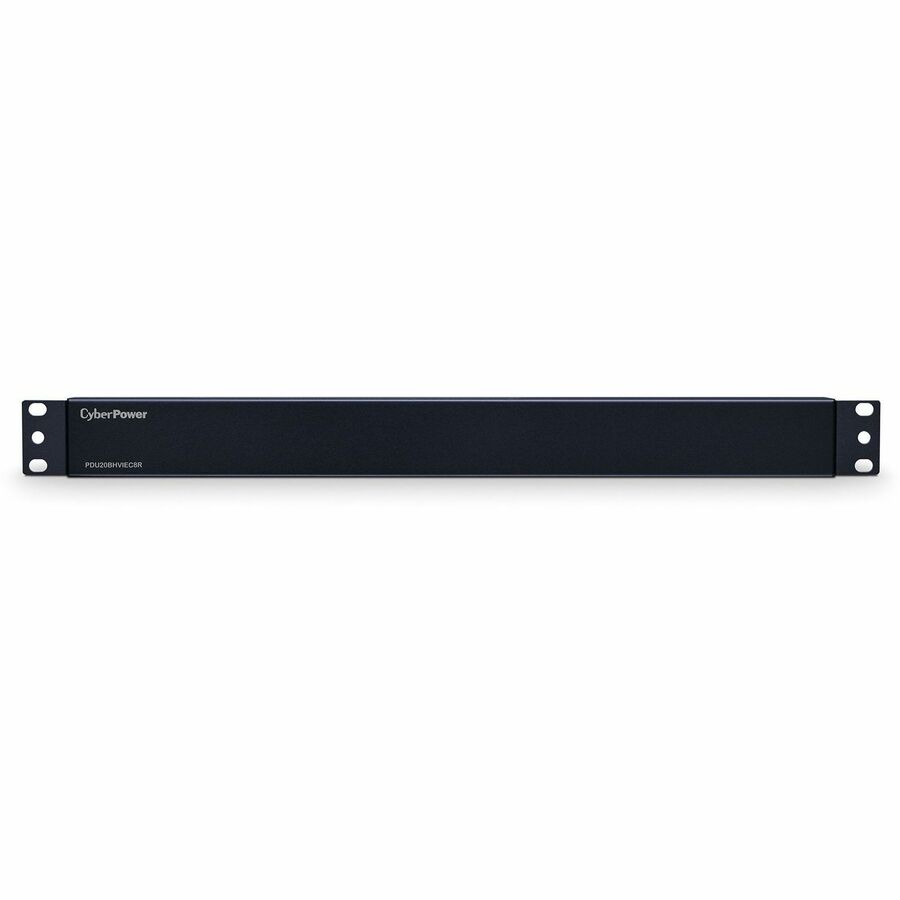

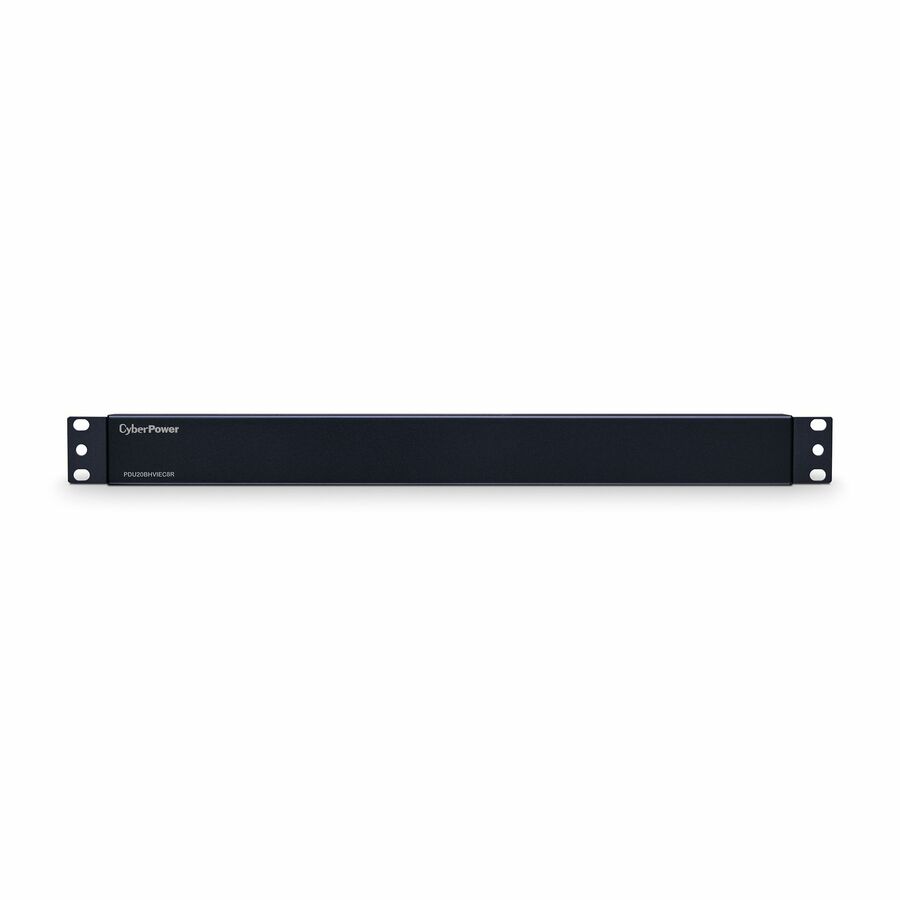

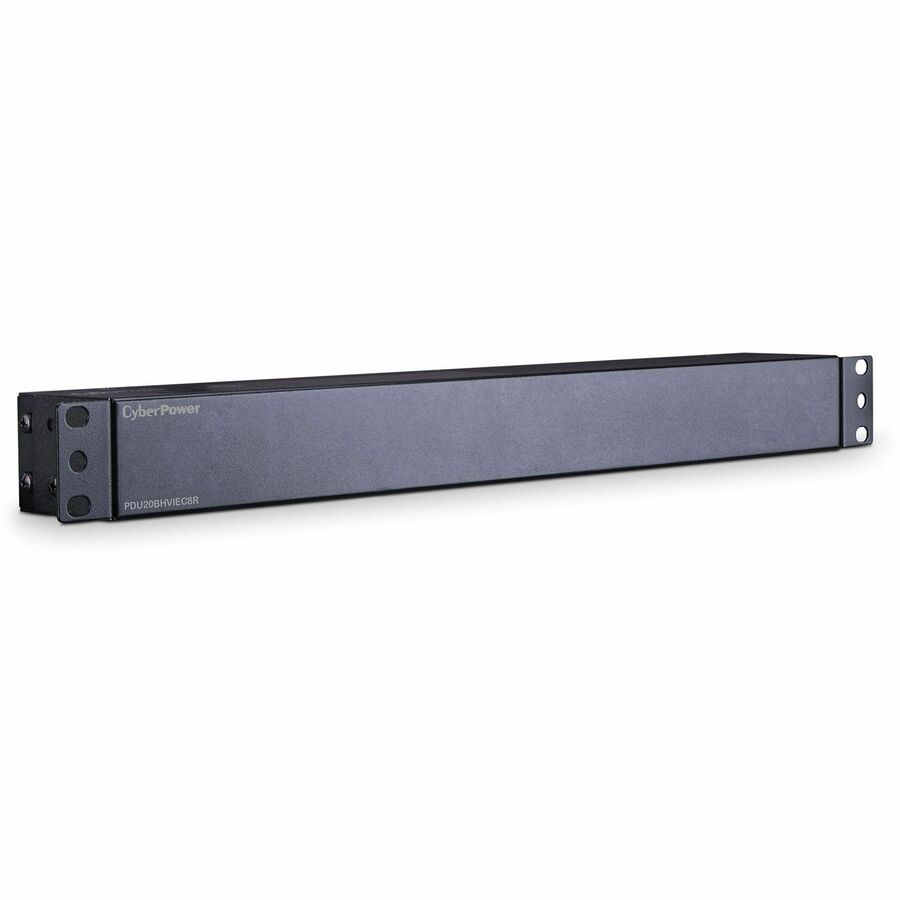

The CyberPower PDU20BHVIEC8R, an 8-outlet (rear) rackmount basic power distribution unit (PDU), provides 208V/230V 20A output. It distributes power to 8 IEC-320 C13 receptacles from a single IEC-320 C20 plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BHVIEC8R has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

Highlights

  • Phase: Single
  • Amps: 20A (Derated to 16A)
  • Volts: 208 - 230 V
  • Frequency: 50Hz/60Hz
  • Plug type: IEC-320 C20
  • Outlets: 8 IEC-320 C13
  • Size: 1U Rackmount
  • Dimensions (in.): 17.5W x 1.75H x 1.5D
  • Cord length (ft.): 10
  • Warranty: Limited lifetime

Specifications

Package Contents
  • Basic PDU20BHVIEC8R 8-Outlets PDU
  • Cord Retention Tray
Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberPDU20BHVIEC8R
Limited WarrantyLifetime
Output Voltage200 V AC, 208 V AC, 230 V AC
Weight (Approximate)1.81 lb
Length1.5"
ManufacturerCyberPower Systems, Inc
Product ModelPDU20BHVIEC8R
Product NamePDU20BHVIEC8R 200 - 230 VAC 20A Basic
Mount TypeRack-mountable
Protection TypeOverload Protection
Product SeriesBasic PDU
Rack Height1U
Brand NameCyberPower
Plug/Connector TypeIEC 60320 C20
Input Voltage Range200 V AC - 230 V AC
Height1.8"
Width17.5"
Receptacle TypeIEC 60320 C13
Environmentally FriendlyYes
Energy StarNo
PDU TypeBasic
Mounting OrientationVertical
Receptacle Detail8 x IEC 60320 C13
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
