Overview
OVERVIEW
? INDUSTRIAL MANAGED AND UNMANAGED GIGABIT ETHERNET SWITCHES DATA SHEET
INTRODUCTION
The Industrial Managed and Unmanaged Gigabit Ethernet Switches include unmanaged switches that provide four (4) copper RJ-45 or RJ-45 PoE ports and one (1) multi-rate SFP slot and managed switches that provide six (6) or eight (8) copper RJ-45 or RJ-45 PoE ports and two (2) or four (4) multi-rate SFP slots.
Power over Ethernet
The LIE401A, LIE1014A, LIE1080A and LIE1082A switches support Power over Ethernet compliant to the IEEE 802.3af and IEEE 802.3at standard on all copper ports. These switches can be used to power standard PoE PD devices with up to 30 watts per port along with the Ethernet data on standard Ethernet Cabling.
Multi-rate SFP slots
The benefit of having multi-rate SFP slots is to be able to use 100-Mbps and 1-Gbps SFP Modules for either multi- or single-mode in a mix and match as needed. If requirements change, just replace the SFP module and protect your switch investment.
Power
The switches are powered from 12- to 58-VDC. The PoE models need 48 VDC for 802.3af and a minimum of 53 VDC for 802.3at.
Extended temperature range
All models are tested and released for operating temperatures from -40° up to +75° Celsius.
Management
The switches offer powerful features including Layer 2 routing and management with all advanced filter and multicast algorithms needed today to easily prioritize, partition, and organize a reliable high-speed network.
Highlights
MANAGED SWITCH SUPPORTS LACP, SPANNING TREE AND RING FAIL-OVER FOR REDUNDANCY AND RESILIENCY
RATED FOR EXTREME TEMPERATURES OF -40° TO +75°C
DUAL DC POWER INPUTS FOR REDUNDANCY
IP-RATED HOUSING IS ALSO RATED FOR SHOCK AND VIBRATION PROTECTION
MANAGE THROUGH A WEB INTERFACE, SNMP OR COMMAND-LINE INTERFACE (CLI)
DIN RAIL OR WALLMOUNT
Specifications
Package Contents

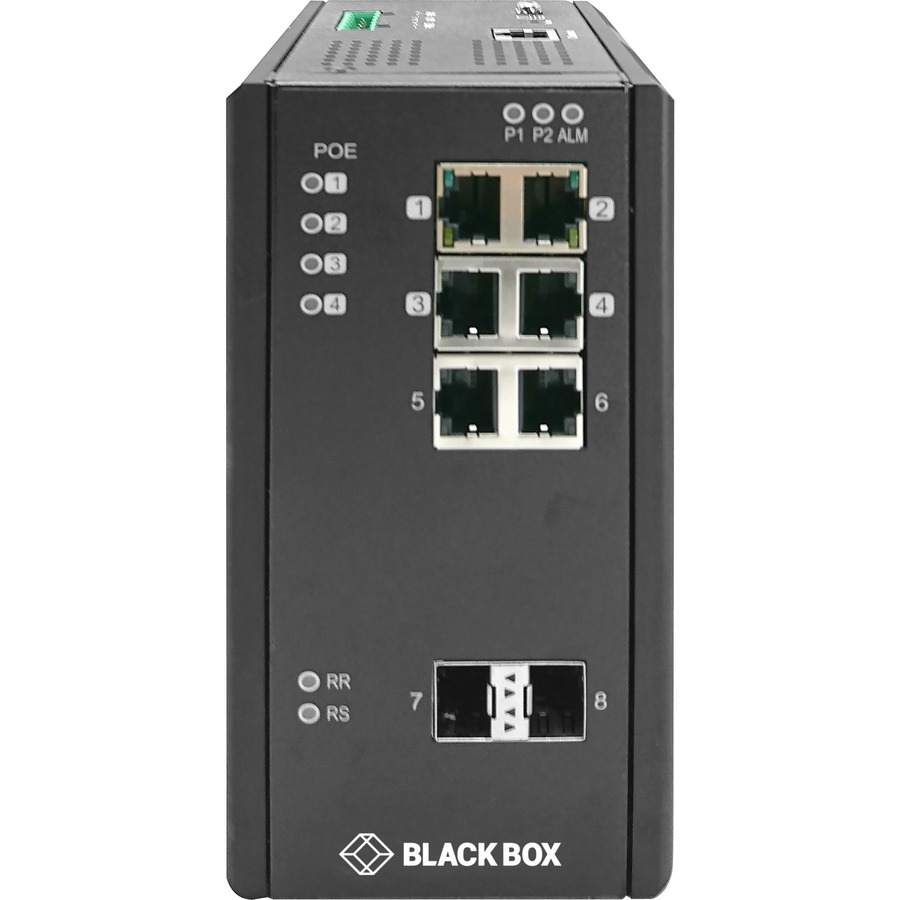

Industrial Managed Gigabit POE Ethernet Switch
2 x Wallmount Plates
1 x Din Rail Clip
1 x DC power Terminal Block
6 x RJ-45 port Dust Covers
2 x SFP port Dust Covers
Product Type
Ethernet Switch
Input Voltage
12 V DC, 58 V DC
Manufacturer Part Number
LIE1082A
Power Source
DC
Limited Warranty
1 Year
Layer Supported
2
Weight (Approximate)
3.10 lb
Form Factor
Wall Mountable, DIN Rail Mountable
Manufacturer
Black Box Corporation
Product Name
Industrial Managed Gigabit POE Ethernet Switch
Network Technology
1000Base-X, 10/100/1000Base-T
Power Consumption
14 W
Product Series
LIE1000
Brand Name
Black Box
Expansion Slot Type
SFP
Height
6.1"
Width
3"
Depth
5"
Manageable
Yes
Environmentally Friendly
Yes
Number of Power Supplies Supported
2
Ethernet Technology
Gigabit Ethernet
Network (RJ-45)
Yes
Number of SFP Slots
2
Media Type Supported
Twisted Pair, Optical Fiber
Total Number of Network Ports
6
PoE (RJ-45) Port
Yes
Port/Expansion Slot Details
2 x 10/100/1000Mbps Copper RJ45 LAN, 2 x 100/1000Mbps SFP, 4 x 10/100/1000Mbps Copper RJ45 PoE+
Total Number of Expansion Slots
2
PoE Budget
265 W
Networking Standards
IEEE 802.3af, IEEE 802.3at
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
